- Page 1 Security Camera Security Camera EYE -02...

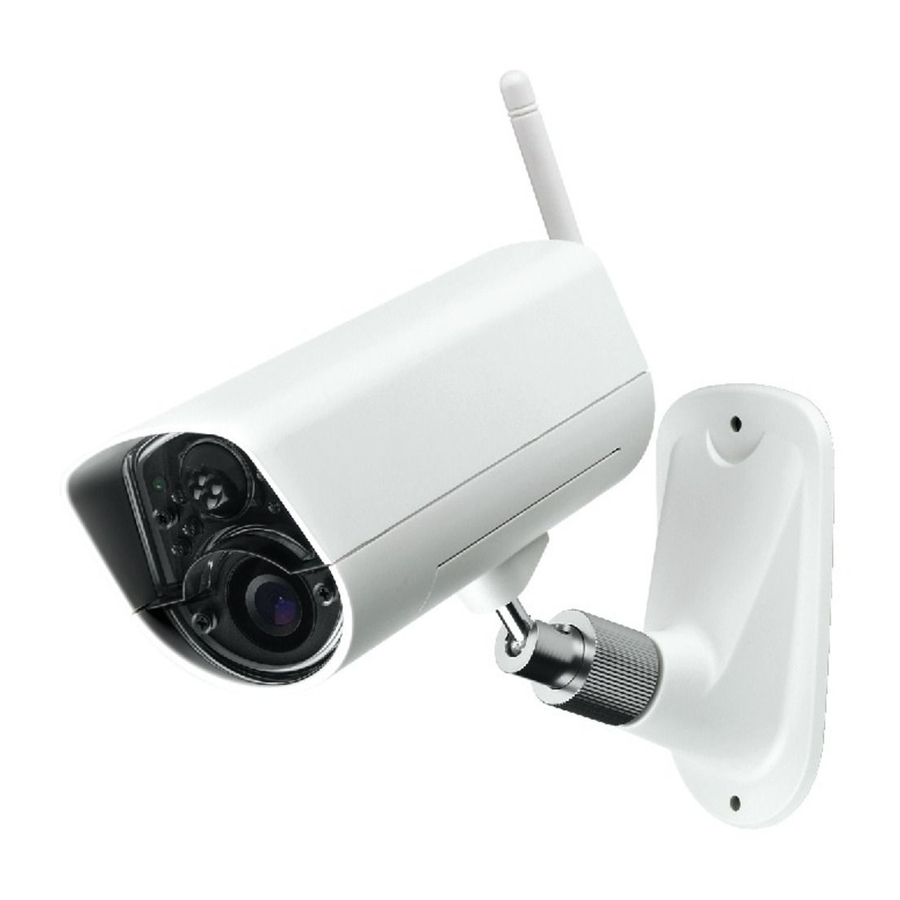

- Page 2 Camera EYE-02: GSM Antenna Battery cover Power button PIR motion sensor AC adaptor socket Red light Green light USB connector Camera lens Infra red illumination Package content: EYE-02 camera Battery Remote control Instalation CD USB cable Screwdriver Wall mounting screws...
-
Page 3: Table Of Contents
EYE-02 is simple to install and configure (suitable for DIY installations) • EYE-02 sends an alarm record using MMS, e-mail, SMS or voice call. Copies of pictures and videos can be stored on the memory card or can be stored at a web server. Alarm Receiving Centers are also suppor- ted. -
Page 4: Eye-02 Camera Internal Parts
• CMOS chip with 2.9 mm lens 2. Camera Installation Before installing the camera, ensure you have a SIM card provided by your GSM operator with an activate EDGE/GPRS internet connection and MMS service. Some SIM cards are protected by PIN code. It is necessary to disable the PIN code protection of the SIM card. -
Page 5: Installation
Plug the power cable to the camera. Plug the power adaptor to a wall socket. The camera will automatically turn on. Wait 30 seconds and check the EYE-02 camera LED lights on the front panel. • Enroll your mobile phone and remote control to the camera... -
Page 6: Camera Function
3. Camera Function 3.1 Working Modes S L EEP WATC H CO NFIG The EYE-02 camera has three main working modes: Butt on on Mode Descripti on the Remote Control SLEEP mode is a stand-by mode of the camera. The camera doesn’t... -
Page 7: Config Mode
CONFIG mode. 3.4 Profiles The EYE-02 camera allows fast and simple setting of all necessary detector parameters by selecting one of the pre-defined PROFILEs. These profiles are suitable for most camera applications. If necessary, the profile may be further adjusted by the user. -
Page 8: Detectors
4.2). You can switch mode and make some additional sensor customization also in JabloTool software. 3.5 Detectors The EYE-02 camera integrates a wide range of detectors. This sophisticated solution of combining various types of detectors enables the user to protect the desired area from a wide range of threats. This chapter briefly describes individual detector principles necessary for a correct setting of detection. -
Page 9: Reports & Contacts
Editing contacts To add a new contact by calling, you can call the EYE-02 camera directly from a new phone number while the camera is in the ENROLL mode. New contacts may also be added via an SMS command (see chapter 4.2, CONFIG commands). -
Page 10: Security Settings
If there are no phones saved in the contact list (aft er installing a new EYE-02 camera or aft er using the factory reset functi on), the camera switches automati cally to ENROLL mode (aft er power on) and waits for an incoming call. -
Page 11: Sms Commands
EYE-02 connecti on wit JabloTool WEB 4.2 SMS Commands Basic EYE-02 camera functi ons can be operated by text message (SMS) commands sent to the camera. Com- mands are accepted only when sent from a mobile phone number stored in the contact list. -
Page 12: Event Reports
Example: <Configuration Password> CONFIG CONTACT +555 888 770 551 The phone number +555 888 770 551 will be added to the EYE-02 camera contact list. ALARMs will be reported to this phone number in accordance with default set- tings via a voice call and anMMS. -
Page 13: Video Record Setting (Available Through Jablotool Only)
(similar to ALARM, but ALERTs are not reported to the contacts) or some technical reports (Example: information about the AC power failure). 4.4 Video Record Setting (Available through JabloTool only) The EYE-02 camera allows a detail setting of all important parameters for collecting video records under many conditions. Parameter... -
Page 14: Gsm Network Setting
GSM network you use. The EYE-02 camera can automatically adjust the correct setting for most of GSM networks. In case there are some specific settings of your GSM network, which you got from you GSM network operator, you can confi- gure it manually in JabloTool, Device configuration, GSM network folder. -
Page 15: Other Features
5.1 Call Control The EYE-02 camera provides a basic control function when it is called from a user’s phone. When a phone saved in the contacts calls the EYE-02 camera, the camera answers the call and plays the basic navigation... -
Page 16: Switching Off And On
When the green light on the front panel switches off, the camera shuts down. To switch the EYE-02 camera ON, press and hold the power button on the back panel of the camera. Keep holding the button until the green light on the front panel switches on. The start-up process has started and you can release the button. -
Page 17: Reset To Factory Defaults
Once the camera is enrolled into the wireless relay, you can choose function of the relay outputs. Outputs can be managed by an SMS, can signal the mode of camera, etc. For settings go to JabloTool EYE-02/Configu- ration/External devices/ Programmable outputs. -
Page 18: Maintenance
Your SIM card is out-of-service or blocked by a PIN code – remove the SIM card the camera, put it into your GSM phone and try to make a call and send an SMS. If PIN protected, please remove the PIN or set it to default network value. -
Page 19: Technical Specification
Li-Ion battery, 1300 mAh GSM system Quad band 850/900/1800/1900 MHz GSM antenna External GSM antenna +2.5 dBi, SMA connector Data connectivity EDGE class 10; GPRS class 10: max. 85.6 kbps, CS1, CS2, CS3 and CS4, Audio parameters AGC and Noise reduction system, HR, FR, EFR and AMR audio codec... -
Page 20: Battery Information
A battery’s performance is particularly limited in temperatures well below freezing. 8.2 Warranty Hereby, JABLOCOM s.r.o., declares that this EYE-02 GSM Camera is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The original conformity assessment document can be found at the web site www.jablocom.com. -
Page 21: Safety Instructions
8.3 Safety Instructions Read these guidelines. Not following them may be dangerous and/or illegal. You alone are responsible for how you use your device and any consequences of its use. Do not switch the device on wherever the use of a wireless device is prohibited or when it may cause interference or danger. Small Children Do not leave your device and its accessories within the reach of small children or allow them to play with it. - Page 22 Do not drop, throw or try to bend your device or its accessories. Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories. Do not expose your device or its accessories to extreme temperatures, minimum -10 and maximum +55 degrees Celsius. Battery and Charger Handling &...
- Page 23 Wireless devices: Controlers remote control personal HELP! button personal HELP! button wall button doorbell button Detectors Sirens internal siren motion detector door (window) outdoor siren opening detector smoke detector relay gas leak detector thermostat III. III. For more information about wirelles devices see www.jablotron.cz...
-
Page 24: Built-In Acoustic Indicator
• 2.9 mm lens (95˚) up to 4 GB Motion-in-picture Audio: Sensitive microphone + detector digital signal processing (DSP) • DSP analysis provides SIM holder Detection of: • Glass-break excellent detection of the • For standard GSM SIM card • Door-opening scene changes Security:...
