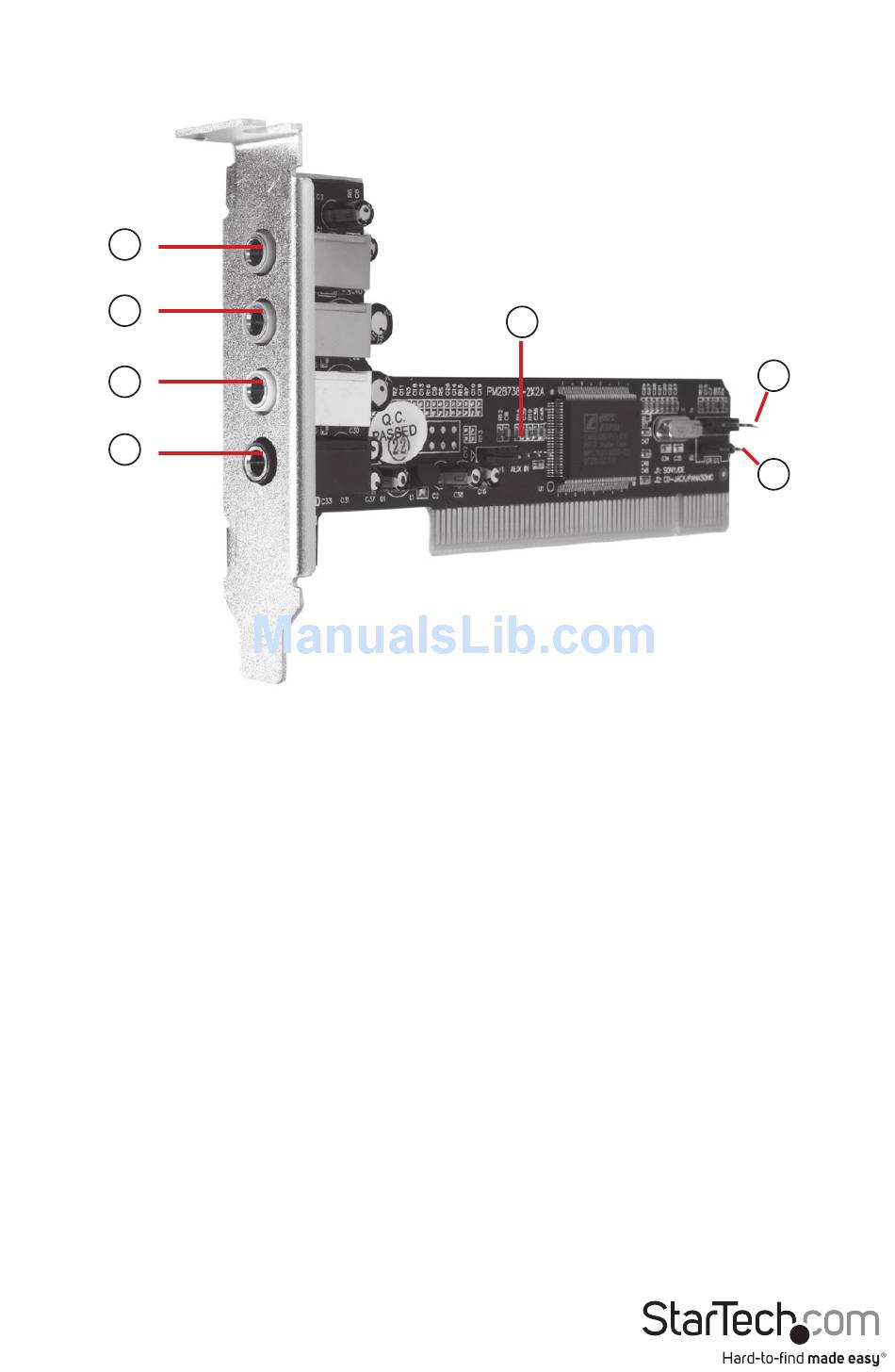

Hardware Guide
1
2
3
4
1. Line In (blue) – Line-In Connect to the audio output port of stereo
2. Mic In (pink) – Connect to the Microphone (Mono)
3. Front-Speaker (green) – Output to speakers with the amplifier or ear
phones or Audio-in of home stereo
4. Rear-Speaker (black) – Connect to the rear speakers while four
channel speakers mode is enabled
In addition to the rear panel jacks, this 4 Channel Sound Card also has the following
internal connections:
5. Aux-in
6. Analog CD/IN Port (Signals: L-G-G-R)
7. Analog CD/IN Port (Signals: G-R-G-L)
Instruction Manual
5
2
6
7
