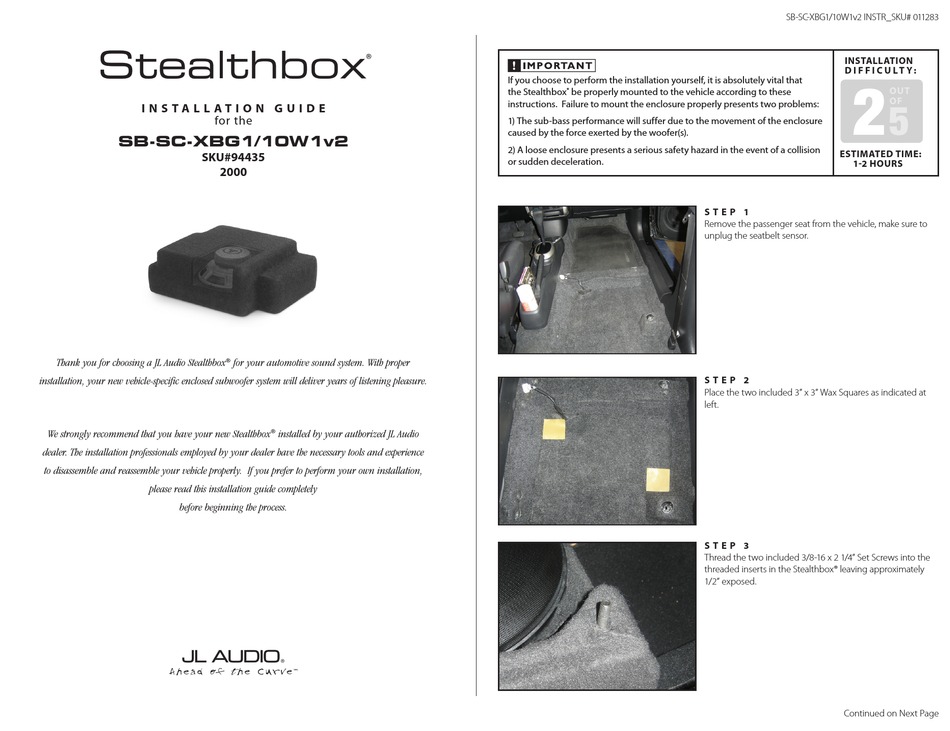

I n s t a l l a t I o n G u I d e
for the
SB-SC-XBG1/10W1v2
sKu#94435
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. If you prefer to perform your own installation,
please read this installation guide completely
before beginning the process.
2000
® for your automotive sound system. With proper
® installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-SC-XBG1/10W1v2 INSTR_SKU# 011283
InstallatIon
d I F F I C u l t Y :
2
estImated tIme:
1-2 HouRs
s t e P 1
Remove the passenger seat from the vehicle, make sure to
unplug the seatbelt sensor.
s t e P 2
Place the two included 3" x 3" Wax Squares as indicated at
left.
s t e P 3
Thread the two included 3/8-16 x 2 1/4" Set Screws into the
threaded inserts in the Stealthbox® leaving approximately
1/2" exposed.
Continued on Next Page
