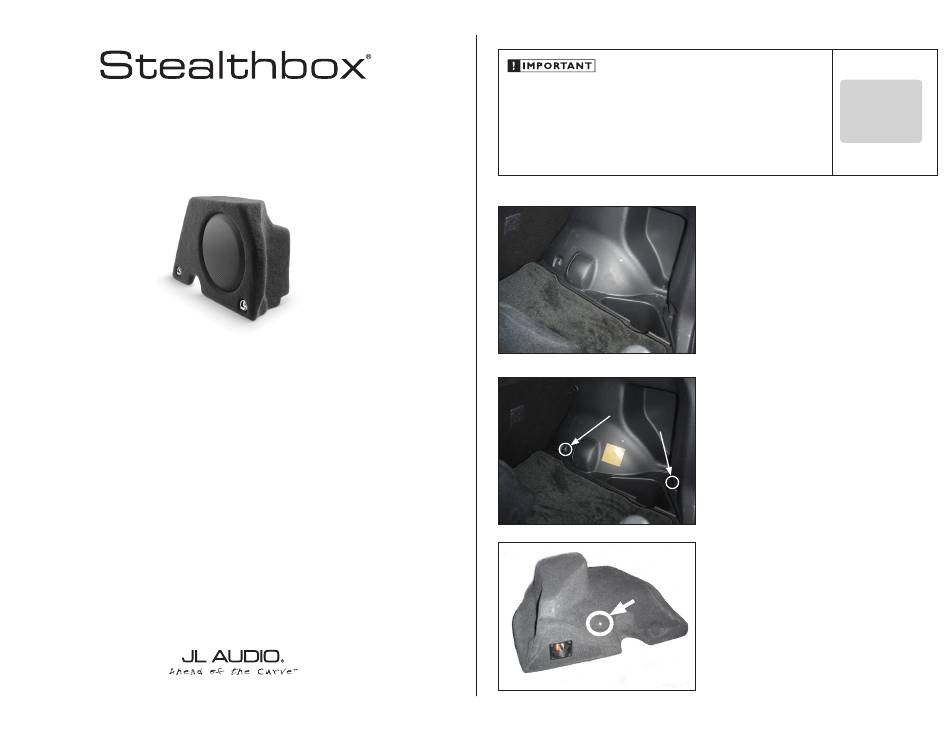

JL Audio Stealthbox SB-SC-XB/12W3v3 Installation Manual

I N S T A L L A T I O N G U I D E
for the
SB-SC-XB/12W3v3
SKU# 94421
2007 & Up Scion xB
Thank you for choosing a JL Audio Stealthbox ® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
installed by your authorized JL Audio dealer. The installation
®
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-SC-XB/12W3v3-2 INSTR_SKU# 011277
INSTALLATION
D I F F I C U L T Y : 1
OUT
OF
ESTIMATED TIME:
1 HOUR
S T E P 1
Remove anything stored in the passenger rear corner of
the trunk so that you are working in a clean environment.
Unpack the Stealthbox® and test for proper operation
before continuing!
The wiring for the Stealthbox® should go from the seam
between the seat back and the floor to the amplifier
location.
S T E P 2
Place the wax square as shown onto the interior panel.
Remove the two cargo anchors from the mounts as
indicated by the arrows. These anchors will be installed on
the Stealthbox.
S T E P 3
Locate the threaded insert for the mounting bolt, thread the
3/8-16 bolt in so that only approximately 1/2" remains out
(see Detailed picture on next page).
Continued on Next Page
5
