JL Audio Stealthbox SB-N-TTCRW/10W3v2 Installation Manual

®
Stealthbox
I N S T A L L A T I O N G U I D E
for the
SB-N-TTNCRW/210W3v2
(04-Up Nissan Titan Crew Cab)
This Stealthbox is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.
w w w . j l a u d i o . c o m
START
HERE
➔

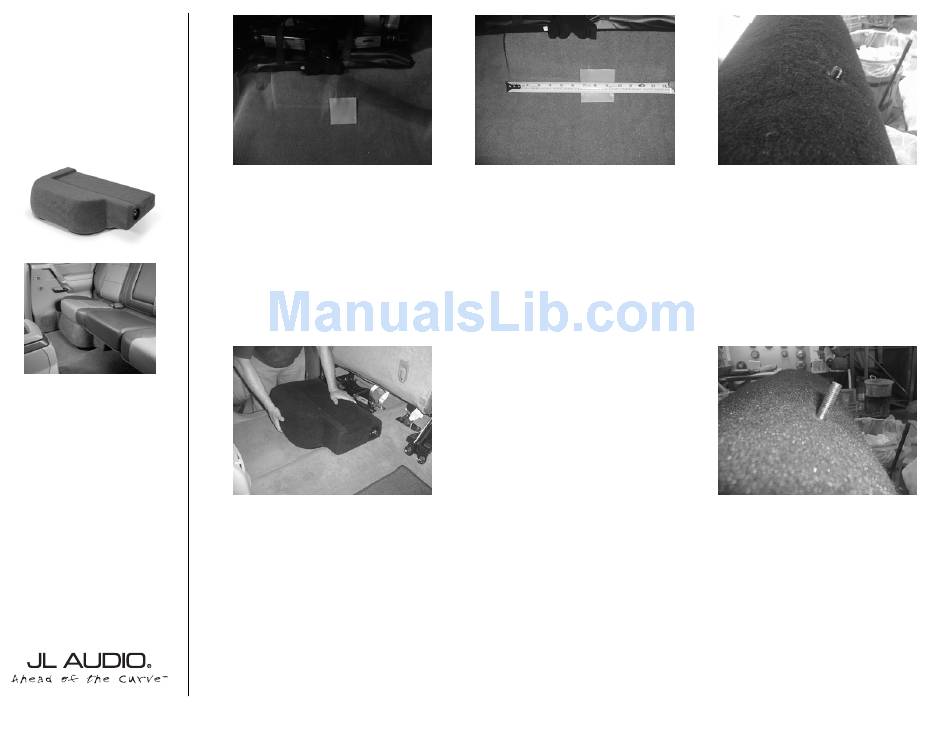

STEP 1: The wax square needs to be placed
into the curvature of the floor bulk head.
➔
STEP 4: Place the enclosure into position and
press down firmly.
Make sure that the enclosure does not move
around when placing the enclosure into posi-
tion.
Once the wax square is marked, remove the
enclosure out of vehicle.
S B - N - T T C RW / 1 0 W 3 v 2 , J L AU D I O, I n c 2 0 0 4
➔
STEP 2: With the passenger side rear seat
lifted, out of the way.
Measure 8" from the left floor corner to the
middle of the placed wax square.
Once placement is found, remove the paper
backing and adhere to the carpet.
STEP 5: *CAUTION*
Before drilling, make sure that you are not going to
➔
be drilling into any gas lines, brake lines, transmission
lines, electrical wiring, transfer case(4x4 vehicles) or
anything else that might cause a reduction in your
weekly pay. Always wear eye protection when drilling.
With the use of a 1/2" drill bit and drill. Drill out the
floor at the impression on the wax square.
Pa g e 1
➔
STEP 3: Place the supplied socket cup set
screw into the enclosure, leaving 1/4"
exposed.
➔
STEP 6: With the enclosure removed out of
the vehicle, expose 1-1/2" of the socket cup
set screw.
Continued on Next Page ➔
