JL Audio Stealthbox SB-N-ARMAD/10W6v2 Installation Manual

Stealthbox ®
I N S T A L L A T I O N G U I D E
for the
SB-N-ARMAD/10W6v2
(2004-Up Nissan Armada, without the power
lift gate)
This Stealthbox is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.
w w w . j l a u d i o . c o m
START
HERE

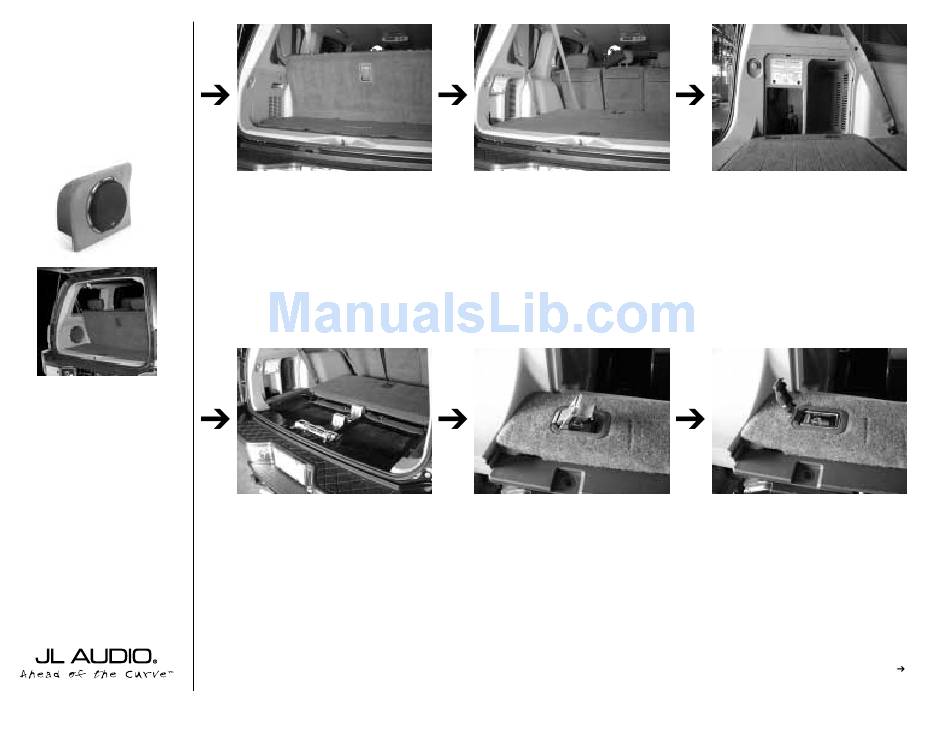

STEP 1: Clear out any contents from the
cargo area.
STEP 4: Remove the sill plate, floor storage
door and cargo area carpeting.
S B - N - A R M DA / 1 0 W 6 v 2 , J L AU D I O, I n c 2 0 0 5

STEP 2: Fold down the third row seating.

STEP 5: There are a pair of tie-down cleats
that need to be removed from the driver's
side.
Pull the metal loop up and with a flat blade
screw driver pop up the plastic clip.
Pa g e 1
STEP 3: Remove the driver's side rear stor-
age door and remove the jack.
STEP 6: Lower the metal loop and feed the
plastic clip through the metal loop.
With a 10mm socket, remove the bolts from
each cleat.
Continued on Next Page
