JL Audio Stealthbox SB-J-LBRTY/12W3 Installation Manual

®
Stealthbox
I N S T A L L A T I O N G U I D E
for the
SB-J-LBRTY/12W3
(Freedom,Limited,Renegade,Sport)
This Stealthbox is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.
w w w . j l a u d i o . c o m
START
HERE
➔

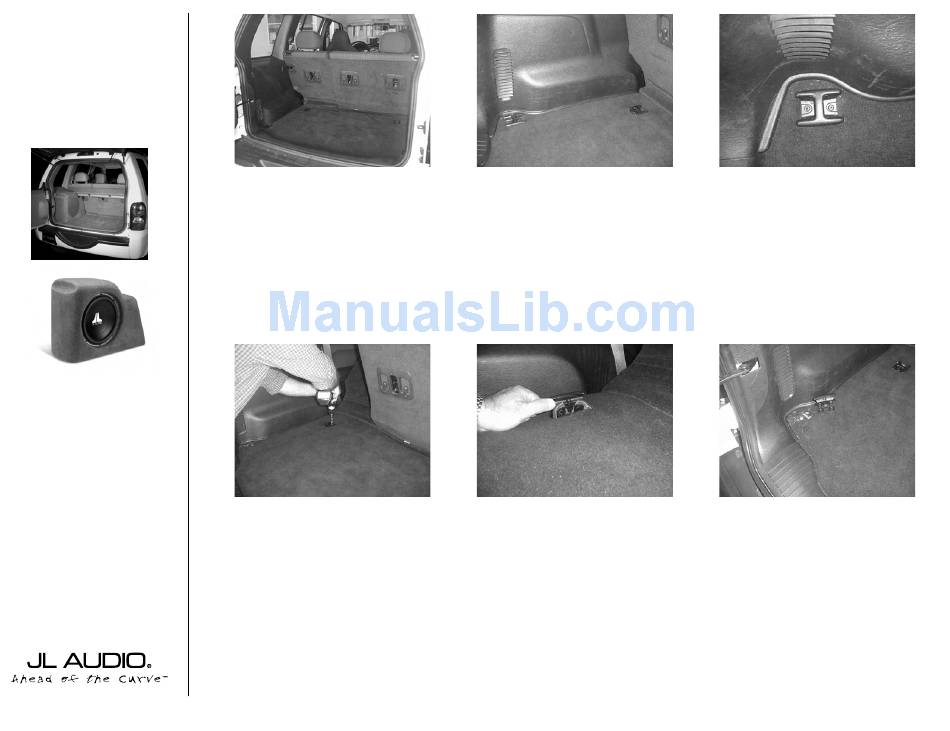

STEP 1: Open the rear door and remove
any contents and the retractable security
cover.
➔
STEP 4: With a 1/4" drill bit, drill out the
rivet's head.Then with a punch out and ham-
mer, carfully tap out the rivet's body.
S B - J - L B RT Y / 1 2 W 3 , J L AU D I O, I n c 2 0 0 3
➔
STEP 2: The enclsoure will be mounted on
the driver's side cargo area. Both cleats are to
be removed.
➔
STEP 5: After the rivets are completely
removed, the cleats should pull up.They are still
going to be attached to the carpet.
Pa g e 1
➔
STEP 3: To remove both cleats, you need to
remove both of the OEM rivets.
➔
STEP 6: Unasnp the cleats to remove them
from the carpet.
*WARNING*
Please keep these cleats with the vehicle's
owner.They will need to be reinstalled if they
remove the Stealthbox.
Continued on Next Page ➔
