JL Audio Stealthbox SB-J-GRCHER/10W1 Installation Manual

SB-J-GRCHER/10W1 STEALTHBOX™
Fits 1993 - 1998
® ®
Jeep Grand Cherokee
Installation Guide:
This Stealthbox is designed to mount in the right-rear corner of the hatch area and is a product which
requires professional installation skills and tools. We highly recommend that an authorized
JL Audio dealer performs the installation.
Please read this installation guide thoroughly before beginning the project. It will guide you step by
step through the process. Some steps may require two people to accomplish.
It is absolutely vital that the Stealthbox be properly mounted to the vehicle according to these instruc-
tions. Failure to mount the enclosure properly will result in inferior bass performance and potential
danger in the event of a collision or sudden jolt to the vehicle.

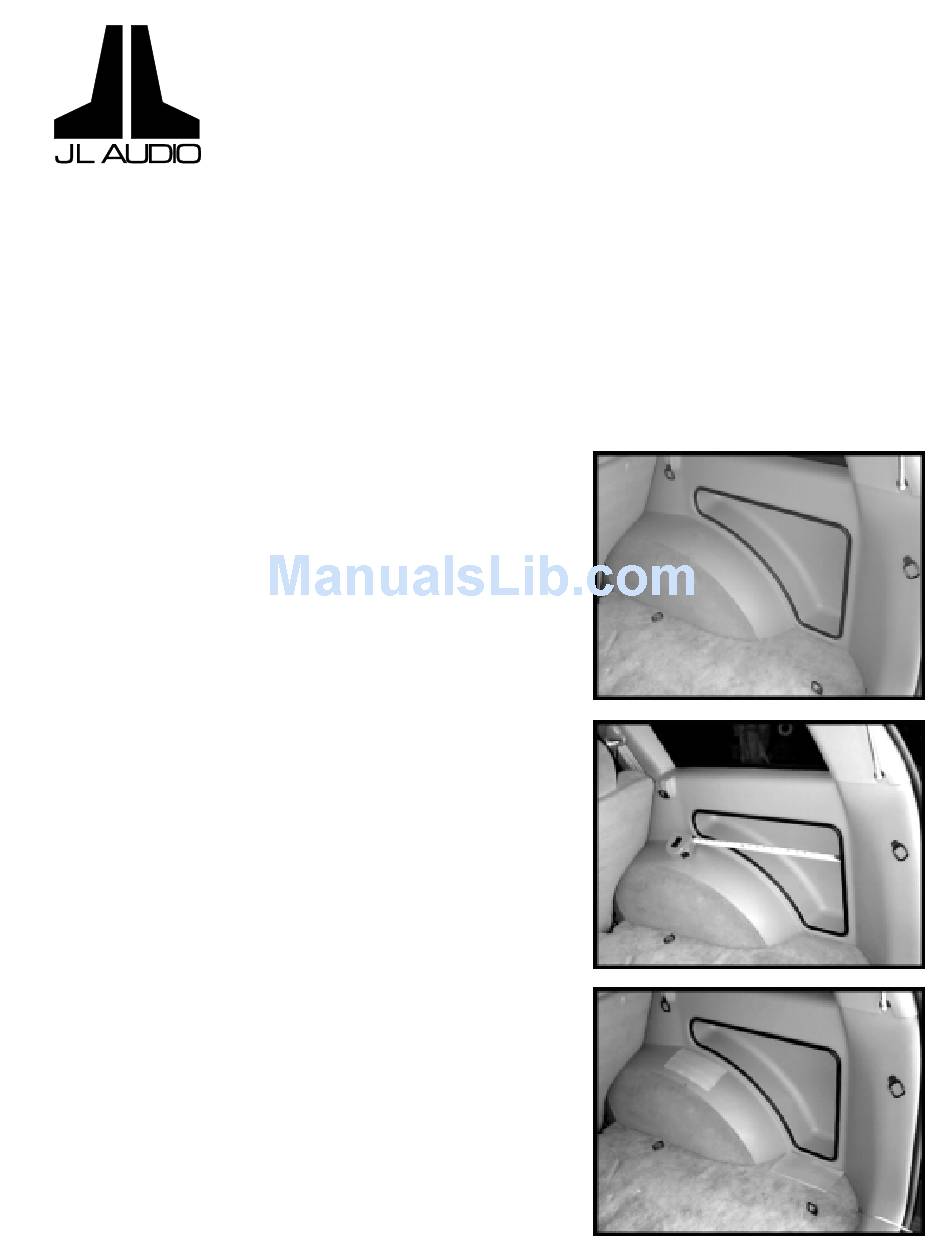

STEP 1: Permanently remove the retainer net from the
storage pocket on the passenger side trim panel (if present).
STEP 2: Run speaker wires to the corner of the hatch where
the Stealthbox will be located.
STEP 3: Measure distances for placing the wax sheets as
follows: The front square should be placed on the wheel well
approximately 18" from the back of the storage pocket open-
ing. The rear square should be placed approximately 3" from
the back of the storage pocket opening on the floor of the
cargo area (see next step).
STEP 4: Peel the backing from the supplied sheet wax squares
and place them, sticky side down, centered on the locations
measured in STEP 3.
SB-J-GRCHER, JL AUDIO, Inc 1997 • Page 1 Sheet SKU#011129 Revision 8/15/00
