JL Audio Stealthbox SB-J-GCHER3/10W1v2 Installation Manual

I N S T A L L A T I O N G U I D E
for the
SB-J-GCHER3/10W1v2 SB-J-GCHER3/10W1v2
2005 - Up Jeep Grand Cherokee 2005 - Up Jeep Grand Cherokee
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
® for your automotive sound system. With proper
® installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-J-GCHER3/10W1v2_INSTR_SKU#011235 SB-J-GCHER3/10W1v2_INSTR_SKU#011235
INSTALLATION
D I F F I C U L T Y :
2
ESTIMATED TIME:
1-2 HOURS 1-2 HOURS

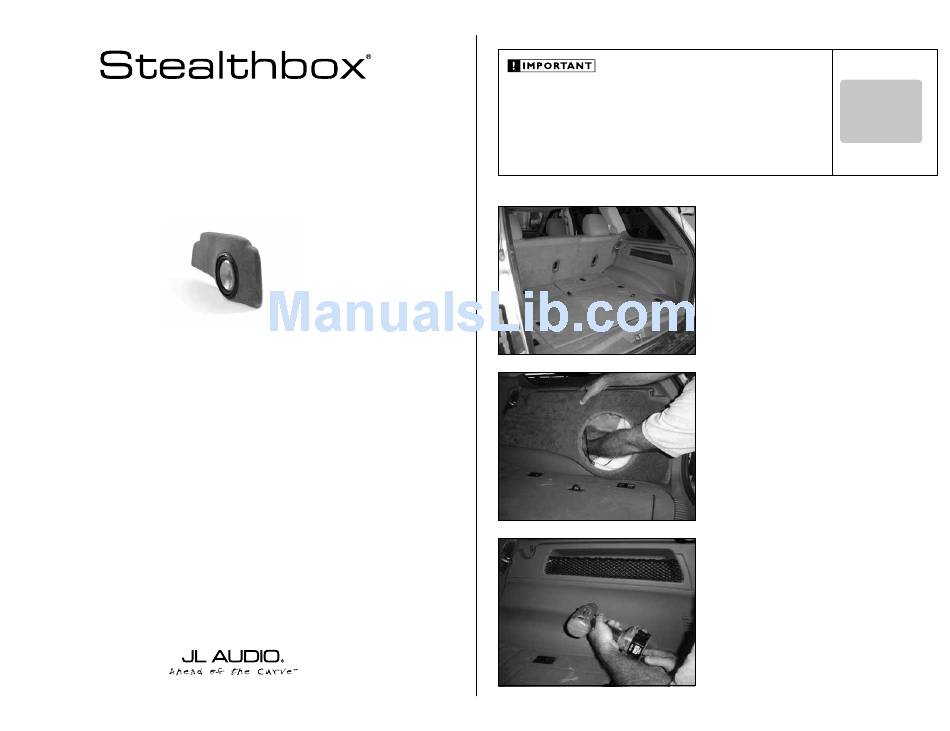

S T E P 1
Remove any contents from the cargo area.
S T E P 2
With a Phillips screw driver, remove the woofer from the
Stealthbox®.
Place the Stealthbox® onto the right side
wheel well/side panel (mounting location).
With a pencil or marker, mark the location of the mounting
hole onto the side panel from inside the Stealthbox®.
S T E P 3
Remove the Stealthbox® from the vehicle.
With an 3/8" drill bit and drill, drill a hole through the side
plastic panel at the marked location from STEP 2.
There is a metal side panel that is located about 4" behind
this plastic side panel. The metal side panel also needs to be
drilled with the 3/8" drill bit. If the drill bit being used is more
then 4" long, then once you're through the plastic panel you
can then mark or drill through the metal panel.
If your drill bit is not long enough. Mark onto the metal panel
with a pencil or marker, through the hole that was drilled
through the plastic panel.
Continued on Next Page
