7. POWER SUPPLY AND VOLTAGE REQUIRED

KA7 and KA7-7 operate safely and without audio discontinuity if the AC voltage stays
within an operating window of 90 V to 260 V.
Check the voltage before connecting the amplifier to the AC power.
A higher voltage could seriously damage the device.

8. BACK PANEL

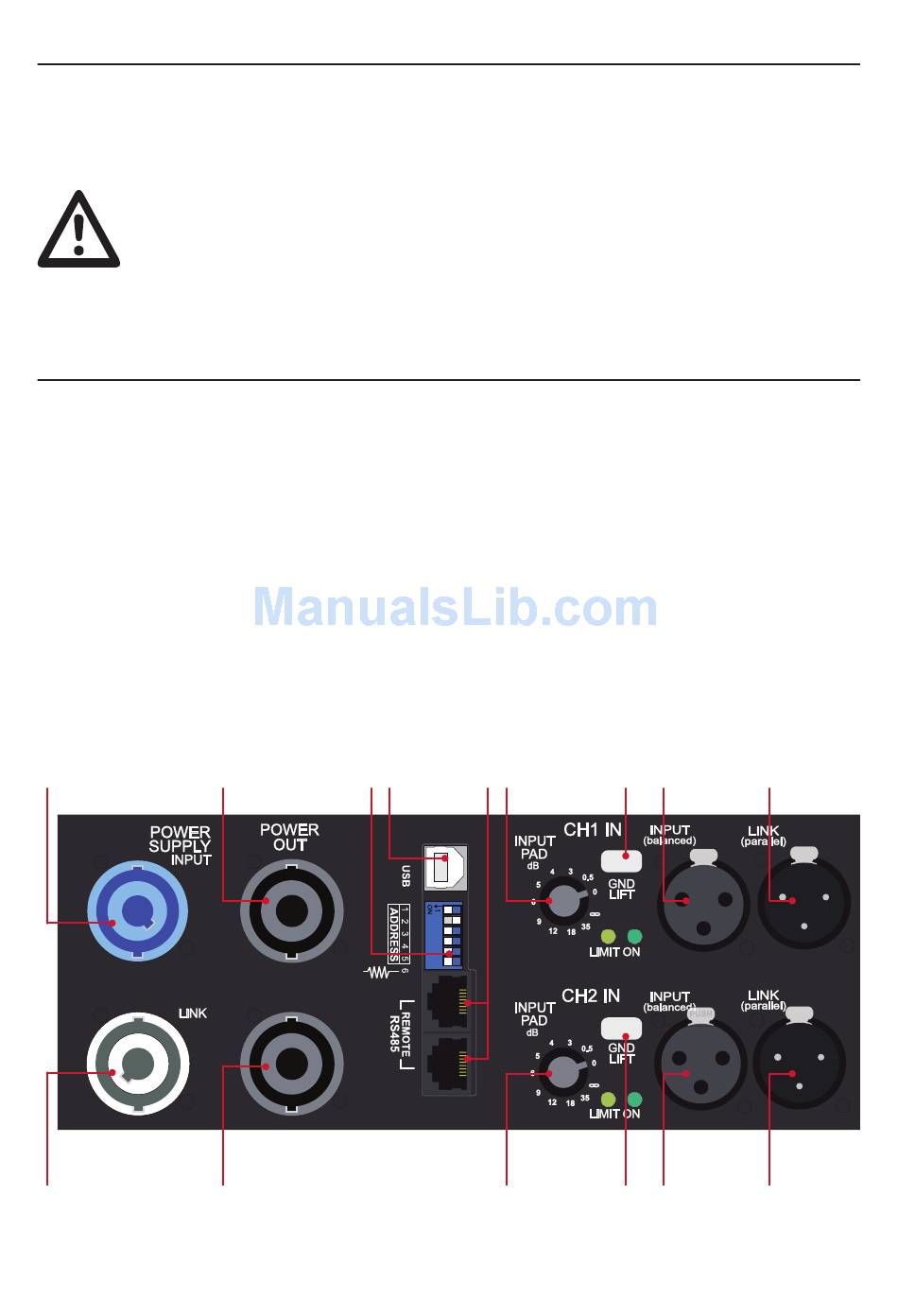

1. Powercon IN
2. Powercon OUT (max 15A)
3. Speakon1 OUT (CH1, CH2)
4. Speakon1 OUT (CH3, CH4)
5. DIP Switch ID assigment
6. USB remote control connector
7. RS485 remote control connectors
8. Input 1 level PAD
1
2
12
3 5 6
4
9. Input 2 level PAD
10. Input 1 ground lift switch
11. Input 2 ground lift switch
12., 13. Input 1 XLR balanced parallel
connectors
14., 15. Input 2 XLR balanced parallel
connectors
7 8
9
12
10 13
11 14 15
