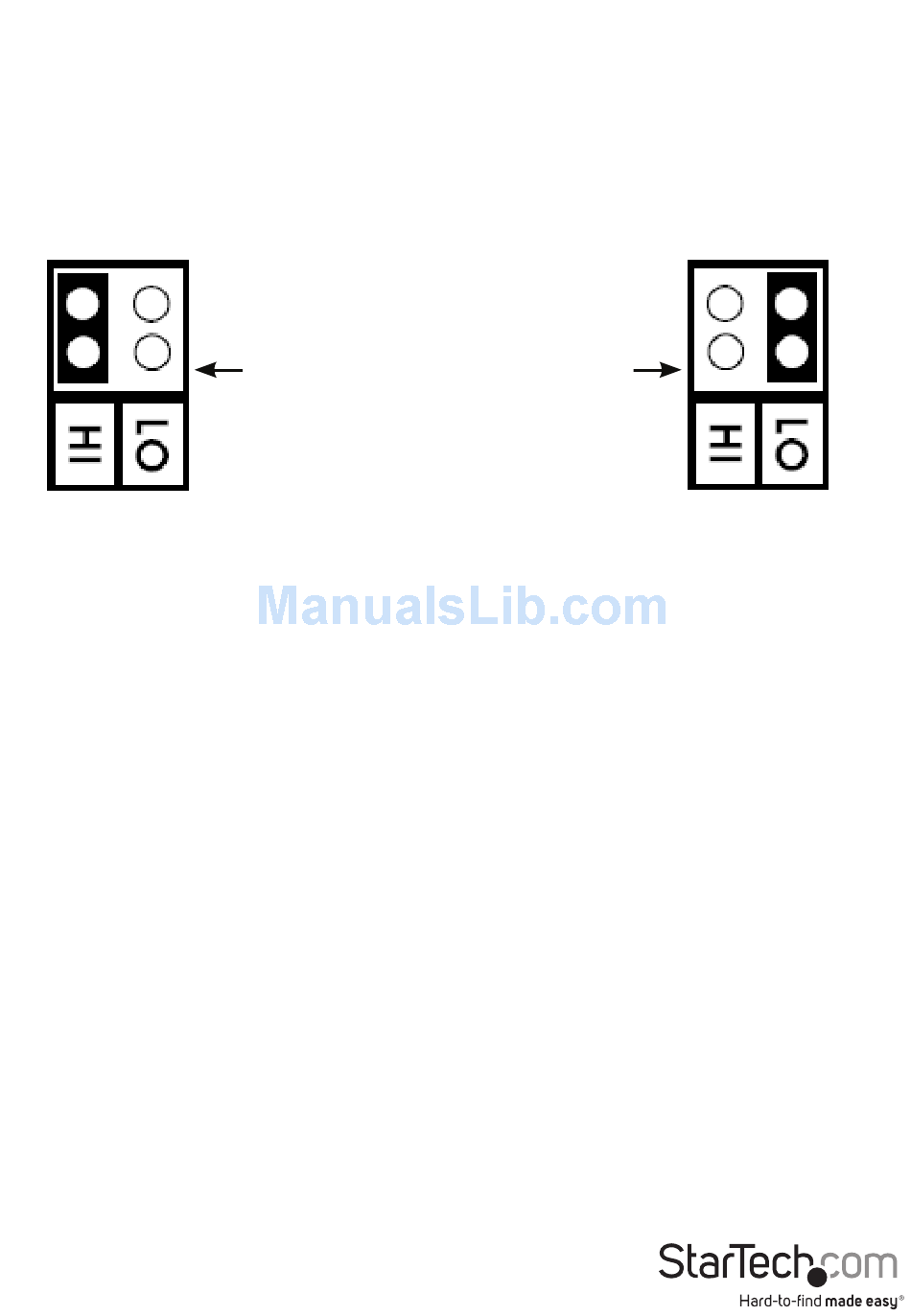

JP2 - Baud Rate Selector - Used to control the baud rate clock input of the UARTs.
There are two positions:
Lo (factory default) - The clock is set to 1.8432MHz, with a maximum baud rate of
115.2Kbps.
Hi - The clock is set to 14.7456MHz, with a maximum baud rate of 921.6Kbps. Please
see the section entitled Configuration for more information.
Instruction Manual
Baud Rate Clock
set to1.8432MHz
(Low Speed)
Baud Rate
Clock set to
14.7456MHz
(High Speed)
4
