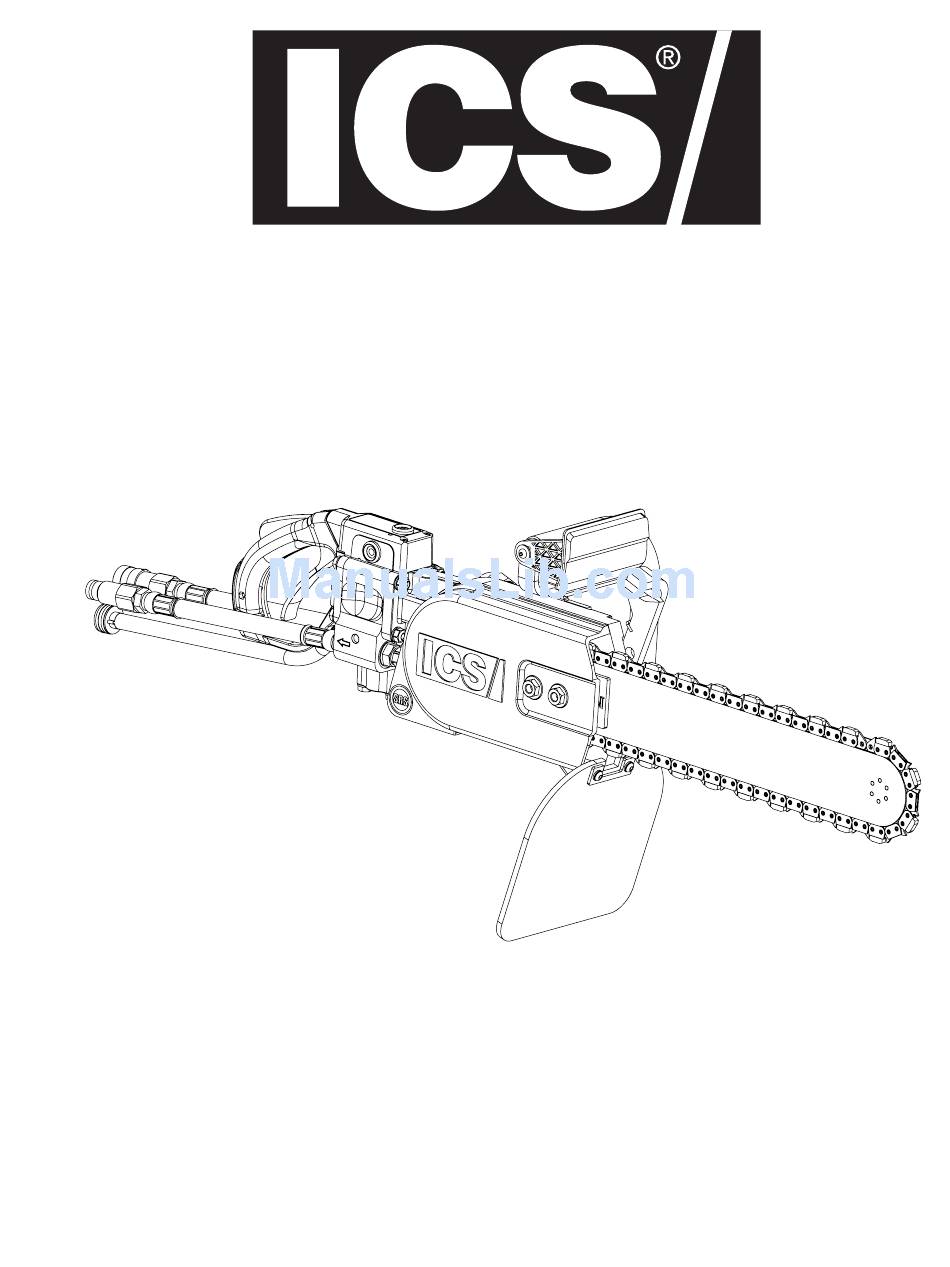

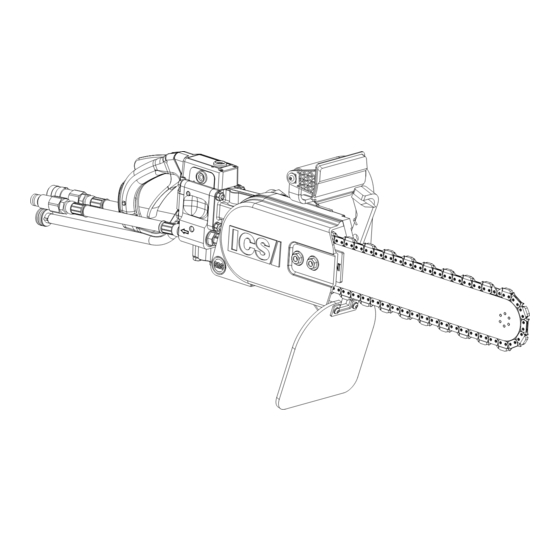

- Page 1 890 Series Hydraulic Saw OPERATOR’S MANUAL © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
- Page 2 890 SERIES OPERATOR’S MANUAL © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
-
Page 3: Table Of Contents
This is a professional tool and is solely intended for use by trained and experienced operators. The 890 Series chainsaw is designed to cut concrete, stone, and masonry when used with the appropriate genuine ICS Diamond Chain. Other materials including ductile iron, cast iron or PVC pipe require the use of ICS PowerGrit Utility Saw Chain. -
Page 4: Symbols & Labels
• Do NOT use this saw cover on any other saw model. • Do NOT operate saw without baffle drain. • Failure to observe these precautions can result in serious injury. © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100... -
Page 5: Safety
DO NOT insert the saw into a slot narrower than the chain segments. Rapid pushback might occur. Reference: Most diamond segments are .225 (5.72 mm) wide. • DO NOT use the 890 Series side cover as a replacement cover for another saw. • DO NOT use damaged, modified or improperly repaired chain. - Page 6 Set up a well-marked safety zone with a roped boundary and clear signs. • Provide adequate ventilation when working in an enclosed area. • To avoid electrocution, check for live electrical wiring near cutting area. © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
-
Page 7: Technical Specifications
17.5 hp (13 kW) *Product data shown is rated based on maximum input conditions and efficiency assumptions and may vary dependent on power supply. © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100... -
Page 8: Set-Up
Mount the chain on the bar starting Place the bar onto the studs and the at the drive sprocket & continue chain adjustment pin. over the bar nose. © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100... - Page 9 Install the side cover over the bar studs and install side cover nuts. Finger tighten only. STEP 6 Install the bar clamp plate over the bar studs. © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
- Page 10 To prevent chain tensioner breakage, be sure the side cover nuts are tightened to approximately 20 ft-lbs CORRECT CHAIN TENSION (27 Nm). © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
-
Page 11: Operation
= 12 in x 12 in x 12 in = 150 lbs (30 cm x 30 cm x 30 cm = 68 kg). • Check for live electrical wiring near the cutting area or in the concrete to avoid electrocution. © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100... - Page 12 When using a new chain, you can increase the cutting speed by opening up the diamonds by making a few cuts in an abrasive material such as a cinder block. © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
- Page 13 Unexpected movement of the clamp could cause loss of control of the saw and could result in death or serious injury to the operator. © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
-
Page 14: Maintenance
Inspect sprocket after each usage. Replace when grooves in the drive teeth are worn more than half way through (approximately every 2-3 chains) and resembles the photo on the right (B) . © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100... - Page 15 • Ensure snap ring is fully seated in snap ring • Remove snap ring • Remove sprocket groove. • Install new/replacement sprocket • Install snap ring © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
-
Page 16: Troubleshooting
Not enough feed pressure while cutting. Avoid letting the saw bounce and chatter. Further questions? Call 800.321.1240 or visit our website at: icsbestway.com © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100... -
Page 17: Reference
2. Determine the length of the cut in feet. 3+7+3+7=20 feet 3. Multiply the two numbers 8 in x 20 ft = 160 in-ft © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100... - Page 18 8 gpm (30 lpm) / 12 gpm (45 lpm) flow at 2,500 psi (172.5 bar) • Zero elevation change • 2 pairs of flush-face fittings per hose Deep cuts, precise cuts, fast cuts, affordable cuts. © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
-
Page 19: Declaration Of Conformity
Portable Chainsaws – Chain Catcher, Dimensions & Mechanical Strength ISO 10726:1992 CLARIFICATION OF PRODUCT CLASS: The ICS 890F4 Hydraulic Saw, using the appropriate genuine ICS Diamond Chain, is designed to ONLY cut concrete or designated materials other than wood. The cutting means is by grinding through the work-piece, using a continuous water supply as a coolant and lubricant. - Page 20 890 SERIES OPERATOR’S MANUAL ICS, Blount Inc. 4909 SE International Way Portland, OR 97222 Tel 800.321.1240 Fax 503.653.4393 icsbestway.com © 2014 ICS, Blount International Inc. Specifications are subject to change without notice. REV021414 F/N 566100...
