ICS Merit M130 Operator's Manual

Flat saw
Hide thumbs

Advertisement

Quick Links

Download this manual

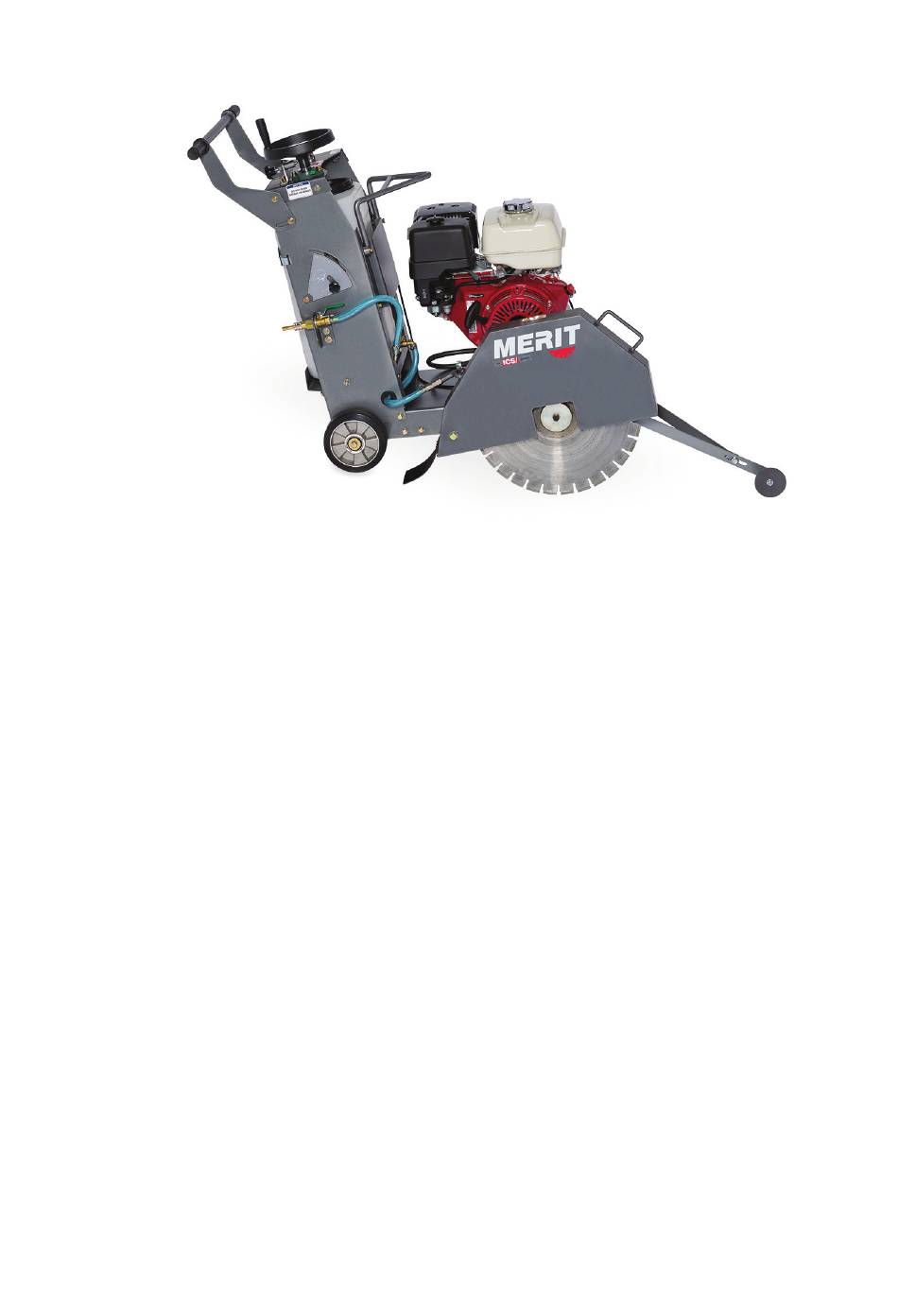

Merit M130
Flat Saw
OPERATOR MANUAL
WARNING: READ AND UNDERSTAND ALL SAFETY WARNINGS
AND ALL INSTRUCTIONS BEFORE YOU USE THIS EQUIPMENT.
Failure to follow the warnings and instructions may result in fire, serious injury, or death.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Merit M130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICS Merit M130

Summary of Contents for ICS Merit M130

  • Page 1 Merit M130 Flat Saw OPERATOR MANUAL WARNING: READ AND UNDERSTAND ALL SAFETY WARNINGS AND ALL INSTRUCTIONS BEFORE YOU USE THIS EQUIPMENT. Failure to follow the warnings and instructions may result in fire, serious injury, or death. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE...
  • Page 2 Section 38006, on any forest-covered land, brush-covered land, or grass-covered land unless the vehicle is equipped with a spark arrester maintained in effective working order. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 3: Table Of Contents

    2.7 BELTS & PULLEYS P 16 - 18 III. TROUBLE SHOOTING P. 19 IV. LUBRICATION AND SERVICE P. 20 - 37 V. REPLACEMENT PARTS LISTS P. 38 VI. WARRANTY P. 39 VII. SPECIFICATION © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 4: Rules For Safe Operation

    The following safety guidelines should always be used when operating the M130 flat saw. 1.1 LABELS & PLACEMENT LABEL SHEET 6” wide Merit Logo label 10” wide Merit Logo label © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 5: Label Placement

    M130 OPERATOR MANUAL LABELS & PLACEMENT LABEL PLACEMENT 10” wide Merit Logo label 6” wide Merit Logo label behind guard on chassis surface © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 6: Explanation Of Warning Levels

    Indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a potential situation exists which, if not avoided, may result in damage to your flat saw or property. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 7: General Safety

    NEVER touch the hot exhaust manifold, muffler or cylinder. Allow these parts to cool before servicing engine or saw. ALWAYS Allow the engine to cool before adding fuel or performing service and maintenance functions. Contact with hot components can cause serious burns. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 8 ALWAYS check the machine for loosened or damaged nuts and/or bolts before starting. NOTICE NEVER Run engine without air filter. Severe engine damage will occur. ALWAYS service air cleaner frequently to prevent carburetor malfunction. Unauthorized equipment modifications will void all warranties. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 9: Diamond Blade Safety

    The engine governor is designed to permit maximum engine speed in a no-load condition. Speeds that exceed this limit may cause the diamond blade to exceed the maximum safe allowable speed. Ensure that the diamond blade is mounted for proper operating direction. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 10: Saw Transportation Safety

    Dispose of hazardous waste properly. Examples of potentially hazardous waste are used motor oil. In accordance with your local government regulations. NOTICE Refer to the engine manufacturer’s manual for engine maintenance and repair. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 11: Operation

    Ensure all belts are installed and tensioned. NOTICE Saw is shipped without oil. Oil must be added before initial startup. Failure to add oil will result in engine failure and void the warranty. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 12: Installing Blade

    Set unit up in an open area. Avoid close proximity to structures or other equipment. Failure to do so may cause inadvertent injury to operator or other persons in the area. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 13: To Start Cutting

    Align blade and flat saw with cut. Open water valve and ensure water is flowing. ((Caution)) Never cut dry, excessive dust will occur and blade and saw life will be compromised. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 14: Cutting

    Misalignment will show up as a gap between the pulley face and straight edge. Make sure there is clearance between arbor pulley and saw base on both sides. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 15 Apply straight edge against pulley faces. No gap should be present. Using belt tool, ensure belt is appropriately tensioned. Belt Tension tool OTC 6673 is recommended. Tool can be purchased from Amazon. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 16: Troubleshooting

    M130 saw • Improper blade tension • Check spindle speed to ensure blade is running at correct RPM • Avoid twisting or turning blade in the cut © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 17 Blade does not cut for the material being cut material it was specified • Break-in blade on the material to be cut. Expose diamonds by cutting in softer, more abrasive material © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 18 • Make certain that drive pin is than other. functioning • Check for bad • Tighten spindle nut bearings, bent shaft or worn mounting arbor © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 19: Lubrication And Service

    Use only clean containers for oil and only CLEAN, FRESH oils and grease of correct grade. • Contaminated Water / Fluids / Oil / Filters Must Be Disposed of Safely. • Use a NLGI #2 grease – i.e.: Lucas Oil X-Tra Heavy Duty Grease © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 20: Replacement Parts Lists

    Handlebar Kit - 650836 Depth Mechanism Kit - 650539 Pulley & Belt - 650614 11-4 7-10 7-11 7-12 11-3 11-2 11-1 Belt Guard - 650530 2-10 2-11 2-10 Pointer Kit - 650534 2-12 © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 21 10-4 10-5 10-7 10-9 10-2 6-10 10-3 10-2 10-6 10-7 10-8 Blade Guard Assembly Kit - 650538 Front Wheel Kit - 650537 Rear Wheel Kit - 650536 4-1 4-2 4-4 4-5 © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 22 Unless noted, individual items not sold separately 650614 650614 650508 Part No. ID # Description Quantity 650614 Belt Pulley, engine Flat key 650828 650508 Bigger flat washer Spring washer Hex bolt © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 23 2-10 2-12 Part No. ID # Description Quantity Locknut Pointer plate Hex bolt Spring washer 650534 Flat washer Pointer arm Hex bolt 2-10 Locknut 2-11 Pointer arm 2 2-12 Hex bolt © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 24 Description Quantity Hex bolt Spring washer Bigger flat washer Collar Flat key Main shaft 650535 Bearing Flat washer 3-10 Spring washer 3-11 Hex bolt 3-12 Bigger flat washer 3-13 Hex bolt © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 25 3b. Blade Collar Kit Unless noted, individual items not sold separately 3-16 3-17 3-18 650616 Part No. ID # Description Quantity 3-16 Blade flange (outer) 650616 3-17 3-18 Blade flange (inner) © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 26: Spring Washer

    Unless noted, individual items not sold separately 4-1 4-2 4-4 4-5 650536 Part No. ID # Description Quantity Liner tube Bearing Rear Wheel 650536 Bigger flat washer Spring washer Hex bolt © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 27: Spring Washer

    REPLACEMENT PARTS 5. Front Wheel Kit Unless noted, individual items not sold separately 650537 Part No. ID # Description Quantity Bearing Front wheel 650537 Bigger flat washer Spring washer Hex bolt © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 28 REPLACEMENT PARTS M130 OPERATOR MANUA 6. Blade Guard Assembly Kit Unless noted, individual items not sold separately 6-10 650538 650617 650829 © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 29 Hex bolt Spring washer Bigger flat washer blade cover 650538 Rubber mat bigger Nylon washer Locknut Flat washer 6-10 Screw Guard Flap 650617 Rubber mat bigger Blade Guard Cover 650829 blade cover © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 30 REPLACEMENT PARTS M130 OPERATOR MANUA 7. Depth Mechanism Kit Unless noted, individual items not sold separately 650539 7-10 7-11 7-12 650618 © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 31 Description Quantity Hex bolt Spring washer Bigger flat washer Wheel Flat key Jackscrew 650539 Screw Flat washer Bearing 7-10 Locknut 7-11 Jackpost assy. 7-12 Gas spring rod Flange Bearing 650618 Bearing © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 32 REPLACEMENT PARTS M130 OPERATOR MANUA 8. E-Stop Switch Assembly Kit Unless noted, individual items not sold separately 650540 Part No. ID # Description Quantity Emergency Stop 650540 Relay © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 33 M130 OPERATOR MANUAL REPLACEMENT PARTS 9. Front Axle Bearing Plates Kit Unless noted, individual items not sold separately 650541 Part No. ID # Description Quantity Plate Flat washer 650541 Spring washer Hex bolt © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 34 ID # Description Quantity 10-1 Wheel rack module 10-2 Bearing 10-3 Front wheel 10-4 Plate 650529 10-5 Flat washer 10-6 Bigger flat washer 10-7 Spring washer 10-8 Hex bolt 10-9 Hex bolt © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 35 Unless noted, individual items not sold separately 11-4 11-3 11-2 11-1 650530 Part No. ID # Description Quantity 11-1 Hex bolt 11-2 Spring washer 650530 11-3 Flat washer 11-4 Belt cover © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 36 12-1 650533 12-1 12-2 650531 12-2 Part No. ID # Description Quantity Water Tank Kit 12-1 Water Tank Cap 650533 12-2 Water Tank Water Tank Cap 650531 12-1 Water Tank Cap © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 37 Unless noted, individual items not sold separately 13-1 13-2 650836 13-1 650532 Part No. ID # Description Quantity Handlebar & Grip Kit 13-1 Handle (set) 650836 13-2 Handle grip Handlebar 650532 13-1 Handle (set) © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 38: Warranty

    Merit. There are no express warranties other than those contained in this warranty. For more information, please call 800.321.1240 or email merit.service@oregontool.com © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...

  • Page 39: Specification

    30º 40ºC AMBIENT TEMPERATURE SAE 10W-30 is recommended for general use. Other viscosities shown inthe chart may be used when the average temperature is your area is within the indicated range. © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
  • Page 40 ICS/MERIT 4909 SE INTERNATIONAL WAY PORTLAND, OR 97222 800.321.1240 icsdiamondtools.com © 2024 ICS®, Oregon Tool Inc. REV09192024 P/N 649751...
