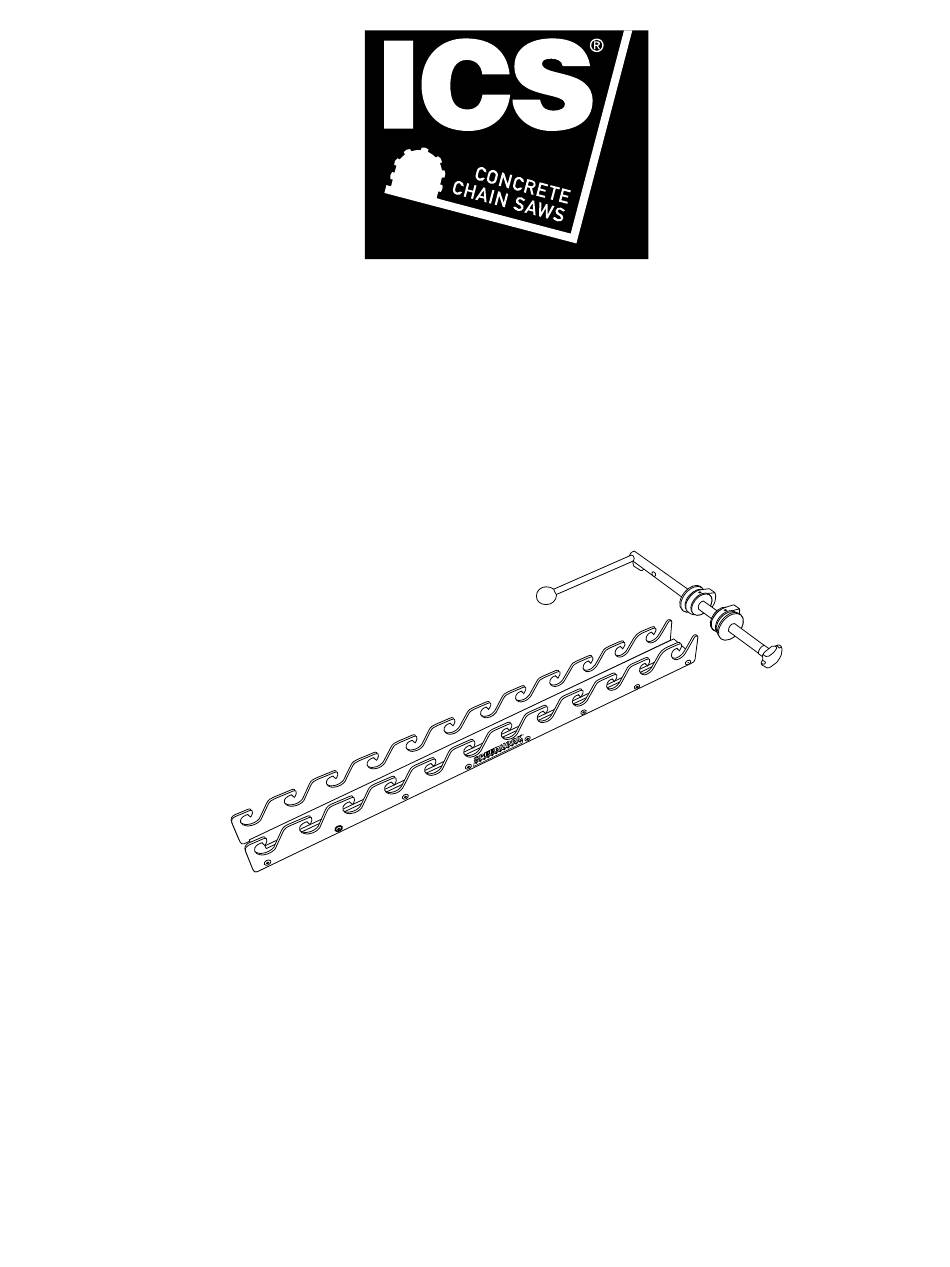

- Page 1 SpeedHook ® Concrete Cutting System Hydraulic Saws OPERATOR’S MANUAL © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SYMBOLS & LABELS SAFETY TECHNICAL SPECIFICATIONS SET-UP • 823H / 853PRO / 880F4 • 813M / 814PRO OPERATION CUTTING TIPS TROUBLESHOOTING © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569... -
Page 4: Symbols & Labels
Always use: • Protective helmet • Ear protection • Protective glasses or full face protection Wear hand protection © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569... -
Page 5: Safety
Set up a well-marked safety zone with a roped boundary and clear signs. • Provide adequate ventilation when working in an enclosed area. Breathing exhaust gases is dangerous. © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569... -
Page 6: Technical Specifications
823H / 853PRO / 880F4 / 890 Series Hydraulic Saws 1. Scrench 701-A Series Pneumatic Saw 1. Scrench 813M & 814PRO Hydraulic Saws 1. 3/16" Allen wrench 2. Pliers © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569... -
Page 7: 823H / 853Pro / 880F4
SpeedHook shown and firmly tighten knob ® STEP 3 STEP 6 Mount SpeedHook mounting bracket ® Complete assembly over bar mount studs © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569... -
Page 8: 813M / 814Pro
Insert axle into mounting bracket as Remove spring anchor shown and firmly tighten bolt STEP 3 STEP 6 Remove mud flap and bracket Complete assembly © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569... -
Page 9: Operation
As the saw approaches the end of its rotation, keep the chain running and index the next set of hooks. It is easier to index if the saw has not reached a full 90 degrees. © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569... -
Page 10: Cutting Tips
Dress the guidebar rails on a belt sander to make the rail height on each side even again. • UPGRADE SPEEDHOOK - To help cut straighter, with less physical effort, upgrade earlier SpeedHook to new axle bracket. ® © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569... -
Page 11: Troubleshooting
RESTART CUT - If the cut starts to become crooked, pull out, move down one or two hooks and restart the cut. Connect the two cuts later by up-cutting. Further questions? Call 1.800.321.1240 visit our website at icsdiamondtools.com © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569... - Page 13 SpeedHook OPERATOR'S MANUAL ® ICS, Blount Inc. 4909 SE International Way Portland, OR 97222 Tel 800.321.1240 Fax 503.653.4393 icsdiamondtools.com © 2012 ICS, Blount International Inc. Specifications are subject to change without notice. REV1112 F/N 70569...
