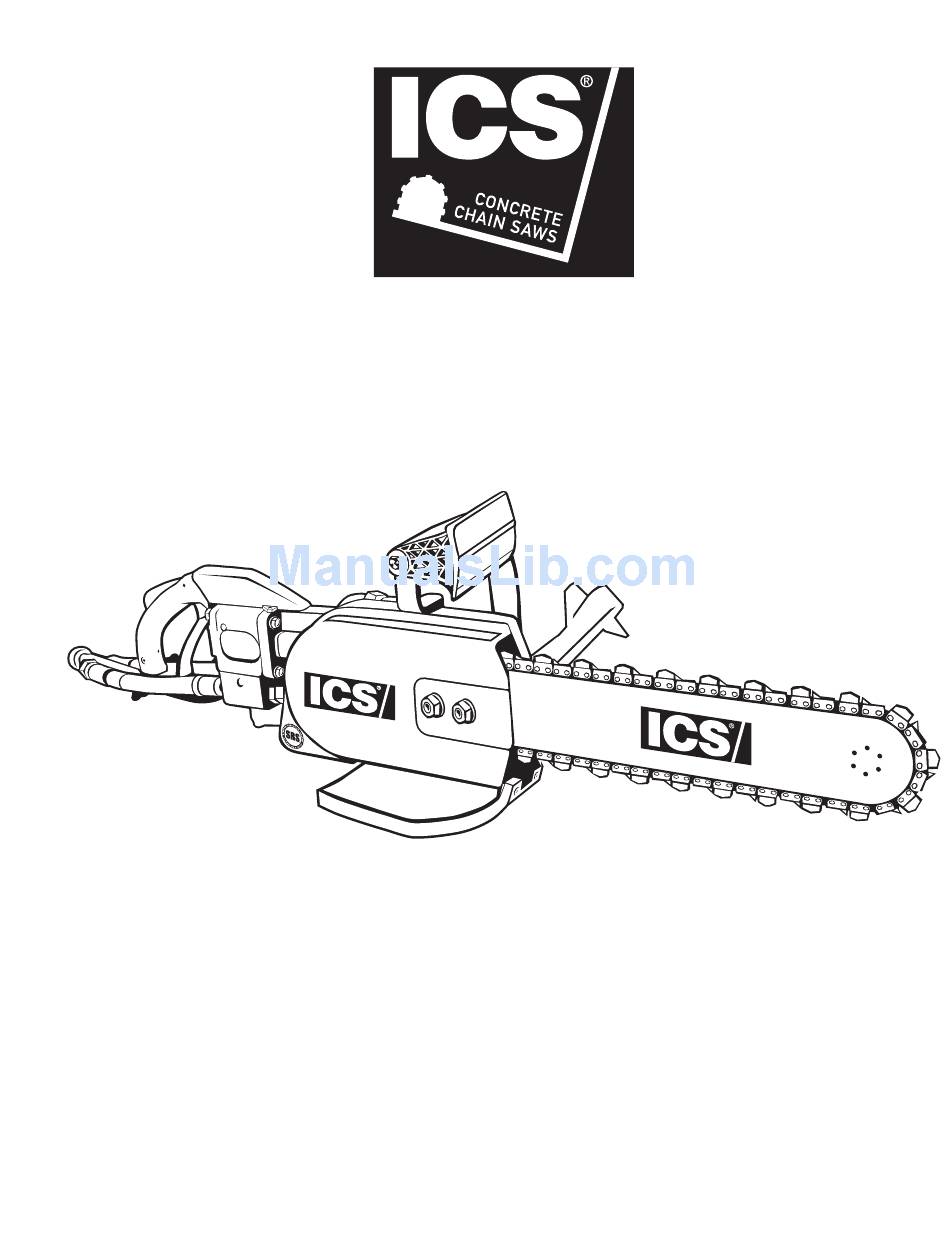

853PRO Hydraulic Saw
OPERATOR'S MANUAL
© 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904

Advertisement

loading
Need help?

Need help?

Do you have a question about the 853PRO and is the answer not in the manual?

Questions and answers

Related Manuals for ICS 853PRO

Summary of Contents for ICS 853PRO

  • Page 1 853PRO Hydraulic Saw OPERATOR’S MANUAL © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...

  • Page 2: Table Of Contents

    This is a professional tool and is soley intended for use by trained and experienced operators. The 853PRO chainsaw is designed to cut concrete, stone, and masonry when used with the appropriate genuine ICS Diamond Chain. Ductile iron pipe may be cut ONLY if using PowerGrit Utility Saw Chain.

  • Page 3: Symbols & Labels

    READ OPERATIONS & MAINTENANCE MANUAL BEFORE USE OF TOOL. FAILURE TO OBSERVE THESE PRECAUTIONS CAN RESULT IN SERIOUS PERSONAL INJURY © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...

  • Page 4: Safety

    Utility Saw Chain). Segment loss or diamond chain breakage may occur. • See page 12 for information about cutting ductile iron pipe with PowerGrit chain. © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...
  • Page 5 Provide adequate ventilation when working in an enclosed area. Breathing exhaust gases is dangerous. • To avoid electrocution, check for live electrical wiring near cutting area. © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...

  • Page 6: Technical Specifications

    Ref. ISO standard no. 7505 Ref. ISO standard no. 7505 Torque 130 in-lbs (176 Nm) 207 in-lbs (280 Nm) Horsepower 11.5 hp (8.6 kW) 17.5 hp (13 kW) © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...

  • Page 7: Set-Up

    Make sure all of the drive links are CCW until the bar comes into inside the bar groove, then pre- contact with the drive sprocket. tension the chain. © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...
  • Page 8 To prevent chain tensioner breakage, be sure the side cover nuts are tightened to approximately 20 ft-lbs (27 Nm). © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...

  • Page 9: Operation

    = 12 in x 12 in x 12 in = 150 lbs (30 cm x 30 cm x 30 cm = 68 kg). • Check for live electrical wiring near the cutting area or in the concrete to avoid electrocution. © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...
  • Page 10 When using a new diamond chain, you can increase the cutting speed by opening up the diamonds by making a few cuts in an abrasive material such as a cinder block. © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...

  • Page 11: Maintenance

    After cleaning the saw, spray the entire saw body, diamond chain, guide bar, and drive sprocket with lightweight oil. Using lightweight oil on the saw will minimize rust and help reduce slurry build up. © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...
  • Page 12 Note: Do not turn around or reverse the direction of the drive sprocket to extend sprocket tooth life. Damage to chain or drive links may occur. © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...

  • Page 13: Troubleshooting

    MOTOR WON'T TURN – Hydraulics are hooked up backwards or powerpack is set on reverse flow. Further questions? Call 800.321.1240 visit our website at: icsbestway.com © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...

  • Page 14: Reference

    2. Determine the length of the cut in feet. 3+7+3+7=20 feet 3. Multiply the two numbers 8 in x 20 ft = 160 in-ft © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...
  • Page 15 8 gpm (30 lpm) or 12 gpm (45 l/min) flow at 2,500 psi (172.5 bar) • Zero elevation change • 2 pairs of flush-face fittings per hose © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...
  • Page 16 853PRO OPERATOR'S MANUAL ICS, Blount Inc. 4909 SE International Way Portland, OR 97222 Tel 800.321.1240 Fax 503.653.4393 icsbestway.com © 2009 ICS, Blount International Inc. Specifications are subject to change without notice. REV0810 F/N 71904...

This manual is also suitable for:

814pro
