JL Audio Stealthbox SB-F-TRKCTR3/10W3 Installation Manual

Stealthbox ®
I N S T A L L A T I O N G U I D E
for the
SB-F-TRKCTR3/10W3
(Fits 2001-Up Standard Cab, Super-Cab
and Super-Crew trucks
lso fits, 2001 Harley Davidson and King
Ranck trucks)
This Stealthbox is a product
which requires professional
installation skills and tools.
Please read this installation guide
thoroughly before beginning the
project. It will guide you step by
step through the installation. Several
of the steps in this process may
require two people to accomplish.
It is absolutely vital that the
enclosure be properly mounted to
the vehicle according to these
instructions. Failure to mount the
enclosure properly presents two
problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused
by the force exerted by the
woofer(s) and 2) A loose enclosure
presents a serious safety hazard in
the event of a collision or sudden
deceleration.
Please enjoy your JL Audio
Stealthbox responsibly.
START
HERE

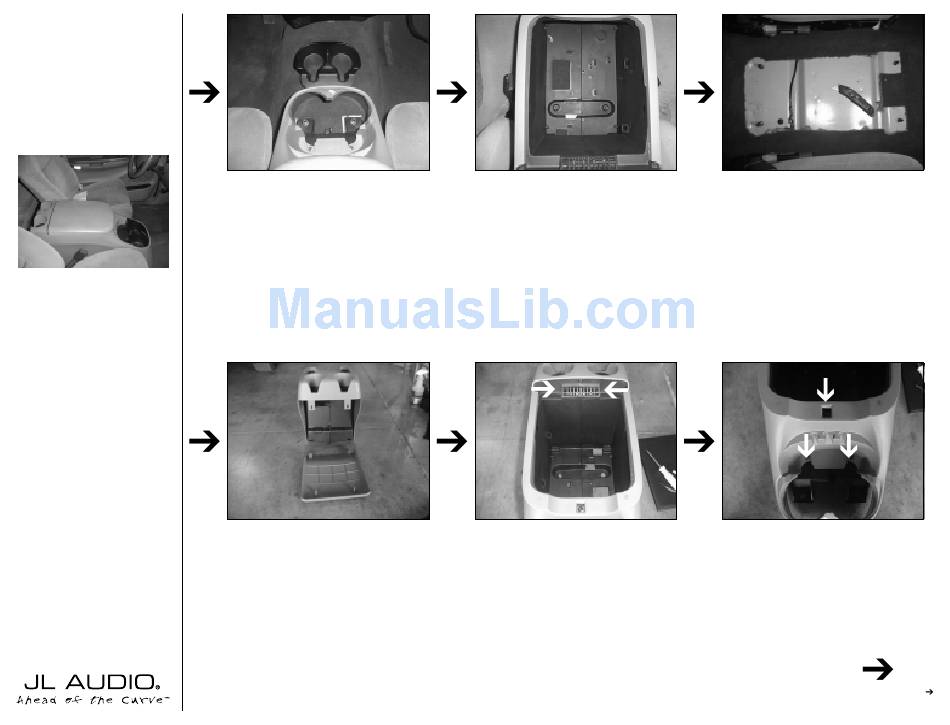

STEP 1: Remove the front cup holder to
reveal two 18mm bolts. Remove these bolts.
STEP 4: Remove (unsnap) the rear panel of
the console.
STEP 2: Remove tray and liner to reveal two
18mm bolts. Remove these bolts. Remove
console from truck.
STEP 5: Remove the armrest lid of the
console by removing four Phillips head screws.
STEP 6: Remove the 7mm bolt that is
exposed when console top is removed.
STEP 3: Cut and remove the carpet under
the console as shown in the picture.
**WARNING**
Seat Belt sensor wire runs underneath this
carpet. DO NOT CUT THIS WIRE!
STEP 7: Remove three 7mm bolts denoted
by the arrows in the picture.
Continued on Page 2
