I N S T A L L A T I O N G U I D E
for the
SB-F-SUPRCC/13TW5v2
SKU# 94414-94417
2004-2016 Ford SuperDuty Crew Cab
Thank you for choosing a JL Audio Stealthbox
®
for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
installed by your authorized JL Audio dealer. The installation
®
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-F-SUPRCC/13TW5v2 INSTR_SKU# 011275
INSTALLATION
D I F F I C U L T Y :
1
OUT
OF
ESTIMATED TIME:
1 HOUR
S T E P 1
Remove any contents in the backseat area and flip the seat
up.

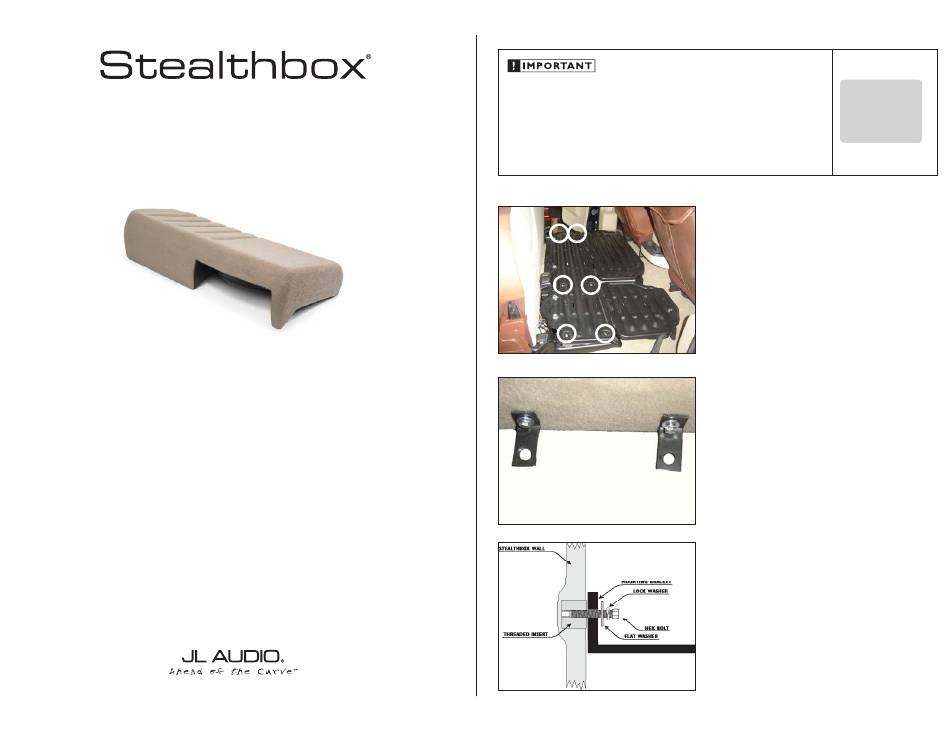

Remove the 6 Torx® T40 bolts that hold in the floor tray as
indicated by the circles on the picture to the left. This tray
will not be used, remove it from the truck and, store it for re-
installation if the truck needs to return to OEM configuration.
set aside 4 of the T40 Torx® bolts, they will be used to install
the Stealthbox®.
S T E P 2
There are four brackets that need to be installed on the
enclosure, two on each end. The short end of the bracket
attaches to the enclosure using the supplied hardware (see
DETAIL below). Do not tighten hardware down at this point,
just get it in place.
D E T A I L
Continued on Next Page
5
