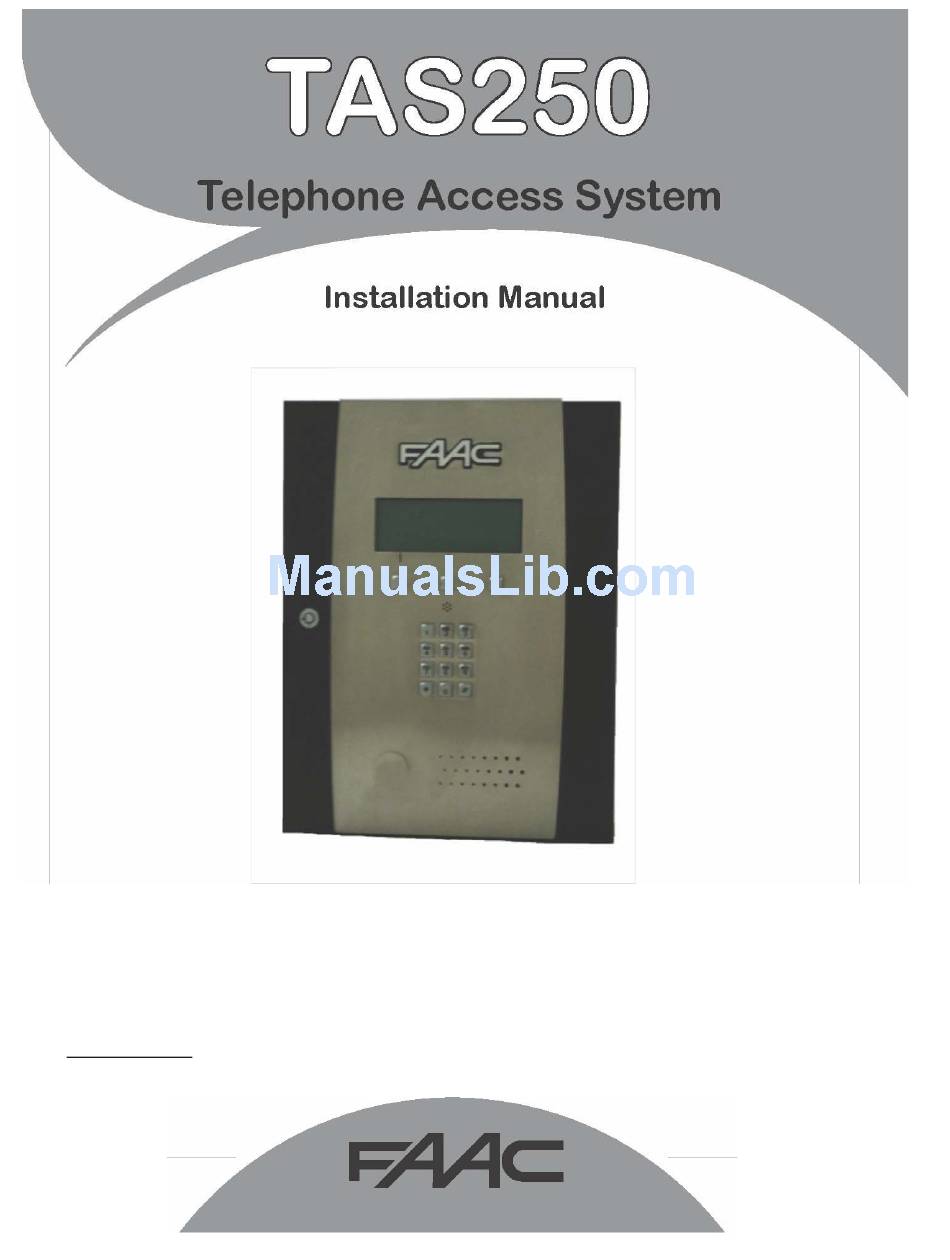

- Page 1 FAAC International Inc. Headquarter & FAAC International Inc. East Coast Operations West Coast Operations 5151 Sunbeam Road Suites 9-11 357 South Acacia Avenue Unit 357 Jacksonville, FL 32257 Fullerton, CA 92831 Tel. 866 925 3222 Tel. 800 221 8278 www.faacusa.com...
-
Page 3: Table Of Contents
5 - Troubleshooting ............................25 6 - Heartbeat Patterns ............................26 7 - Hardware Default initialization ........................27 7.1 How to reset the FAAC Telephone Access System for Factory Default ..............27 8 - Maintenance Recommendations ........................28 Appendix A - Installation Checklist ....................29... -
Page 5: General Description
General Description Pre-Installation Information To the Installer: If you are familiar with the installation, you can jump to section 4 - Installing the TAS250 or use the Appendix A - Installation Checklist on page 31 of this manual. Safety Instructions... -
Page 6: Technical Support
Technical Support For technical assistance with the FAAC Telephone Access System and other FAAC products, contact technical support, Monday to Friday from 8AM to 5PM Eastern. -
Page 7: Compliance Specifications
-CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. -In addition, the FAAC Telephone Access System complies with the CS-03 (Direct Connection to the Public Switched Telephone Network, Canada). - Page 8 • The TAS250 can be connected to the PC via IP or RS-485 or internal PTSN to the phone line, these are all supplementary. The TAS250 must be connected to one of the compatible controllers (KT-300, or KT-400).
-
Page 9: Overview
The TAS250 is designed to be a stand-alone unit as well as a part of a complete access control system such as EntraPass from FAAC. The TAS250 can be connected to a PC via IP or RS-485 or internal PSTN to the phone line. -
Page 10: Features
• EntraPass Global Edition with a Corporate Gateway • Multiple Configuration Options Visual User Interface (VUI): The TAS250 can be configured locally with the VUI, refer to the Programming • Manual, for details concerning the VUI. • EntraPass: The TAS250 can be configured and monitored through the EntraPass system, refer to the corresponding EntraPass Reference Manual, for additional details. -
Page 11: Optional Accessories
100 (GREEN): This LED is ON when the TAS250 is connected to a 100 Base-T Ethernet network. Optional Accessories The TAS250 can be mounted indoor or outdoor directly on the wall (surface mount) or recessed (flush mount). The surface mount is described 4 - Installing the TAS250. The following figures describes the options available with the TAS250. - Page 12 Matching Paper Directory The TAS250 itself does not support a paper directory but has an optional matching enclosure designed just for that purpose. This illuminated enclosure supports the letter format 216 x 279 mm (8.5 x 11 in) and A4 format 210 x 297 mm (8.3 x 11.7 in).
- Page 13 Postal Lock This option fits in the product enclosure. Its role is to allow postal service personnel access to the building. For added security purpose its usage may be limited by a schedule. Figure 5: Postal Lock Mounting Location...
- Page 14 Goose Neck The TAS250 can be mounted on a goose neck stand. Figure 6: Goose Neck Mounting Plate with Gaskets (Goose Neck not Included)
-
Page 15: System Architecture
• Figure 7: TAS250 Configurations with EntraPass TAS250 TAS250 TAS250 TAS250 Integrated with FAAC Access Control System Note: For the UL 294 Compliance, the TAS250-125US and TAS250-125CDN models must be integrated with an access control system over a Wiegand connection. - Page 16 Figure 8: PCB view of main board...
- Page 17 Figure 9: TAS250 Wiring Example with an External Controller - UL Compliant (North America)
- Page 18 Figure 10: TAS250 Wiring Example with Reader (Stand Alone Application) - North America...
-
Page 19: Technical Specifications
Humidity Level Indoor and outdoor: 0 to 90% Storage Conditions Temperature: -40°C to 70°C (-40°F to 158°F) Multiple TAS250 Cabling Telephone Line: 305 m (1,000 ft.) maximum RS-485 Bus: 1219 m (4,000 ft.) maximum Ethernet network: 91 m (300 ft.) maximum TAS250 Dimensions 29.21 cm (11 1/2 in.) Wide x 37.46 cm (14 3/4 in.) High x 9.91 cm (3.9 in.) Deep... -
Page 20: Electrical Specifications
Table 1: Technical Specifications Specification Description Paper Index Surface Mount 29.21 cm (11 1/2 in.) Wide, 37.46 cm (14 3/4 in.) High, 9.93 cm (4 in.) Deep Paper Index Black Trim 35.72 cm (14 in.) Wide, 44.13 cm (17 3/8 in.) High, 0.92 cm (3/8 in.) Deep Ring Goose Neck Mounting 25.30 cm (10 in.) Wide, 36.50 cm (14 3/8 in.) High, 3.30cm (1 1/4 in.) Deep... -
Page 21: Installing The Tas250
Tubing) conduit knockouts (1.9 cm (0.75 in)) are provided. The location should be easily accessible for servicing the equipment. The TAS250 must be located at a minimum distance of 2 m (6 ft) from any high voltage equipment or wiring and from electrical equipment susceptible of generating electrical interference and at a minimum of 8 m (25 ft) from any transmitting equipment. -
Page 22: Step 3: Mounting
Figure 11: Surface Mount Installation STEP 3: Mounting It is recommended that you mount the TAS250 so that the bottom of the enclosure is not higher than 117 cm (46 in.) from the floor. If you install it in a location where there are... -
Page 23: Step 4: Connecting The Door Locking Device (Dc Powered)
STEP 4: Connecting the Door Locking Device (DC Powered) Connecting the Door Lock Device to LK+ and Check for Local “magnetic lock” Regulations The door locking device output is controlled according to the end-user programmed parameters for allowing access to or unlocking doors according to schedules and access levels. -
Page 24: Step 7: Connecting An External Controller
Resistors for all Inputs 5.6K Ohms (EOL or DEOL) (Optional) The TAS250 has an on-board capability of monitoring 4 input points. Each onboard input is supervised with or without end-of-line resistors (5.6K ohm). The maximum distance of one line is 600 m (2,000 ft) with AWG #22. -
Page 25: Step 8: Connecting A 3Rd Party Controller
STEP 8: Connecting a 3rd Party Controller The +V terminal voltage level is set by jumper JP9 (5V, 12V or EXT). STEP 9: Connecting the Telephone Line Connect the TIP (green) and RING (red) from the Phone Line to the TIP and RING terminals. Note: The (T-1 and R-1) terminals can be connected to the local telephone. -
Page 26: Step 12: Connecting Multiple Tas250 On The Same Telephone Line (Optional)
Since the TAS250 uses high performance communication and the telephone line, proper grounding is required to insure safety and proper operation. An AWG #18 single conductor copper wire must be used to ground each TAS250 to good earth ground as per the local electrical code (be careful with ground loops). The ground clamp should be located below any other ground. -
Page 27: Step 15: Connect Dc Power (Emea Only)
STEP 14: Connecting the Backup Battery The 12 VDC, 7 A/h backup battery provides operation of up to 12 hours. Note: The battery must be kept indoor if the ° ° outdoor temperature drops below -25 C (-13 STEP 15: Connecting the Heater Kit for Outdoor Operation (Optional) Refer to the Heater Kit Install Sheet. -
Page 28: Step 18: Connecting The Ethernet Cable (Optional)
The TXRX (YELLOW) LED is OFF when there is no Ethernet network or the cable is disconnected; FLASHING when there is network activity; and ON when the network is present The 100 (GREEN) LED is ON only when the TAS250 is connected to a 100 Mb/s (100 Base-T) network. •... -
Page 29: Troubleshooting
Jumpers Heartbeat Patterns Resets Soft Reset: When JP1 and JP2 are ON, the TAS250 will reset on a) power up, b) pushbutton, or c) EntraPass software 'Manual operator soft reset': • All TAS250 memory definitions and parameters are verified and kept intact if still valid. -
Page 30: Heartbeat Patterns
6 - Heartbeat Patterns The TAS250 status can be obtained from the HEARTBEAT blue LED patterns. It is located near the ribbon cable connected to the door PCB, see Figure 8:. This information is particularly useful when connecting the TAS250 to the EntraPass system. -
Page 31: Hardware Default Initialization
7 - Hardware Default initialization Note: The Soft Reset and the Hard Reset can be performed directly from the VUI, without having to open the TAS250, refer to the TAS250 Programming Manual. 7.1 How to reset the FAAC Telephone Access System for Factory... -
Page 32: Maintenance Recommendations
The TAS250 includes a lithium battery (see the FAAC Telephone Access System PCB View on page 12). This battery cant be replaced in the field. If the lithium battery stops working, return the circuit board to FAAC. Do not crush, puncture, open, disassemble or otherwise mechanically interfere with the battery. Do not try to recharge the battery. -
Page 33: Appendix A - Installation Checklist
STEP 8: Connecting a 3rd Party Controller see page 21 STEP 9: Connecting the Telephone Line see page 21 STEP 10: Connecting the Telephone Line with the Ferrite (TAS250-125AUS Model for see page 21 Australia and New Zealand only) STEP 11: Connecting the RS-485 (optional) -
Page 34: Warranty
FAAC S.p.A. or FAAC International, Inc., neither assumes nor authorizes any person to assume for them any other liability in connection with the sale or use of the products of FAAC S.p.A. or FAAC International, Inc. The warranty herein above set forth shall not be deemed to cover maintenance parts, including, but not limited to, hydraulic oil, filters, or the like.
