- Page 1 Cellular Intercom 4G Video DO NOT GIVE TO HOME OWNER. FOR PROFESSIONAL USE ONLY FAAC International Inc. Headquarter & East Coast Operations FAAC International Inc. West Coast Operations 3160 Murrell Rd 357 South Acacia Avenue Rockledge, FL 32955 Fullerton, CA 92831 Tel.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Site survey Overview of product Modem A look inside Power to call box Network cables Power module in detail Main intercom module in detail Keypad module in detail Relay wiring tips Powering on App setup Answering on Android Answering on Apple Adding additional App users Other settings... -
Page 3: Site Survey
Site Survey YES! I have 4G signal at the gate with my phone! If not, STOP. You will need some! Try a different network provider. YES! I have at least 1 Mb cellular UPLOAD speed. If not STOP! This system may operate intermittently remotely or have delayed PUSH Slow Fast... -
Page 4: Overview Of Product

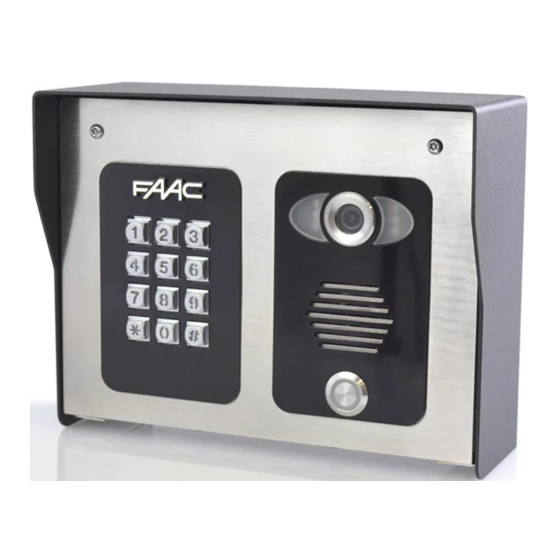

Overview of Product Security screw access Camera Microphone Night vision LEDS (short range, up to Optional 5 feet) Keypad Speaker Call button Modem Front view Side view Mounting Modem holes (wall or weatherproof pole housing mountable) Bottom LAN RJ45 Sim Card Holder View (DATA/IOT Sim only) Connection... -
Page 5: A Look Inside
Now let’s have a look inside... Pedestal mounting holes Power filter board Call button Main intercom module Speaker volume Optional keypad module Camera Code button module... -
Page 6: Power To Call Box
Power to Call Box After fitting the box to the gooseneck, re-fit the module and connect a 14-gauge earth wire to the earth terminal. IF necessary, remove 4 screws and remove the power conditioning module. Surge protected 110v Use minimum 16-gauge wire from the 24v DC adaptor Call box provided to the terminals... -
Page 7: Network Cables
Network Cables and Modem (Keep high) Modem POE powered Option 1 Perimeter wall / fence Pedestal Surge protected (Non POE) 110v supply 30 foot Patch cable (included) Weatherproof enclosure 6 foot patch cable (included) Perimeter wall Option 2 / fence (Non POE) (Mounting on Pedestal) Surge... -
Page 8: Power Module In Detail
POE Power supply Main intercom Modem module Non-POE WARNING: Do not send POE power to the intercom. Only the modem is powered with POE. The intercom is powered separately with 24v DC. Power 500mA quick blow output fuse Module in Detail…... -
Page 9: Main Intercom Module In Detail
RJ 45 socket for CAT5 Main Ethernet connection to Intercom router / modem Module in Quick connect terminals for Ethernet connection Detail... to router/access point/switch Code button Speaker volume 24v DC (pre-wired) from power module Relay1 Relay2 Exit button (N/O) Keypad Module in Detail…... -
Page 10: Relay Wiring Tips
Relay Wiring Tips Intercom Module Pedestrian Gate Magnetic Lock Optional Exit button (N/C) Separate Lock Power Supply Gate Controller unit Automatic Gates Note: Never connect any electric lock Remember to wire keypad relays to to the power supply provided with the lock or gates as well as the main intercom. -
Page 11: Powering On
Powering on Note: ensure SIM is inserted BEFORE power is turned on. Pads down, chamfer IN, press until “CLICK” RF (signal level) SIM – The sim LED will come on if there is a sim inserted. RF – The first LED will flash if you have low 3G signal. The second LED will flash if you have medium 3G signal. - Page 12 Step 2 Open the APP and press the Settings button. Then press the add intercom button. Step 3 Enter the intercom Bell I.D which can be found on the main board. Enter “admin” for the main user. Enter “123456789” as the default password and press the TICK as shown.
- Page 13 Step 5 Should be showing Press the Video icon to view ONLINE status. live video. Note: at close proximity, you will experience acoustic feedback. This is normal. If the unit is not showing online If you can see live video you are not and hear audio, the connected to the...
-
Page 14: Answering On Android
Answering on Android Press the green icon to Swipe down your Your phone will now accept. notification banner launch the app and when called, and press you will see a the Intercom snapshot of the visitor notification. at which point you can answer or decline the call. -
Page 15: Answering On Apple
Answering on Apple Phone will now Swipe the Swipe green Press “VIEW” launch app notification left icon to answer Note: Various versions of IOS and Android OS will have different notification acceptance techniques. Please refer to online support for your device if needed. TIP: Make sure ringer switch is ON and volume is turned up. -
Page 16: Adding Additional App Users
Adding Additional APP Users Additional users MUST be added with individual user names. Do NOT use the same username. ADMIN Phone ADMIN Phone ADMIN Phone ADMIN Phone Note how existing users Enter a NEW username & can be deleted password New Phone New Phone New Phone... -
Page 17: Other Settings
Other Settings Add an intercom (can Check APP Ring tones Edit Intercom have up to 6 version details doors/gates calling one device) Change relay times (1- Add/edit users 9 secs) Turn off config Set time zone + mode (extra (daylight saving security) adjust) Set max talking... -
Page 18: Sound Settings
Sound, Volumes and Speech This intercom is capable of full duplex speech, which means two people can have a conversation and appear to speak at the same time. Since various manufacturers of android phones, iphones and tablets all differ in acoustic performance, and different users may require varying levels of volume on their own handset, it may be possible to setup some devices in full duplex mode but others may need to be set in half duplex mode (phone user will press to talk). -
Page 19: Using The App
Using the APP Settings Thumbnail preview View Camera & Call Log (shows listen images of visitors whom calls were accepted or If you took previewed on this snapshots of a device. visitor while on a call, view them here. Home If you took video recordings of Android users press BACK button to run in... -
Page 20: Keypad Overview
Keypad overview This keypad has 3 outputs, all independent from the intercom/app relays. The diagram below shows the LED indicators which indicate programming and relay status information. RED when incorrect codes entered and outputs are locked out. GREEN when output 1 activated. RED when output 2 activated. - Page 21 Enter or delete new user/Homeowner codes There are 3 groups of user codes. Group 10 for relay 1, group 20 for relay 2, and group 30 for relay 3. The programming sequence is shown below… 10= relay 1 codes Memory locations 2= add code (1000 available) 000-999 for relay 1...
-
Page 22: Using The Keypad
When the engineers/installers code is forgotten…. 1) Wire a push button (or replicate with wire link) across the Egress terminal and (-)GND. 2) Switch off power for 1 minute. 3) Switch ON power. 4) during the first 60 seconds, press the EG button once to enable the function. 5) Enter the following code.. - Page 23 Warranty Terms To the original purchaser only: FAAC International, Inc., warrants, for twenty-four (24) months from the date of invoice, the gate operator systems and other related systems and equipment manufactured by FAAC S.p.A. and distributed by FAAC International, Inc., to be free from defects in material and workmanship under normal use and service for which it was intended provided it has been properly installed and operated.
- Page 24 FAAC S.p.A. or FAAC International, Inc., neither assumes nor authorizes any person to assume for them any other liability in connection with the sale or use of the products of FAAC S.p.A. or FAAC International, Inc. The warranty herein above set forth shall not be deemed to cover maintenance parts, including, but not limited to, hydraulic oil, filters, or the like.
