Cellular Intercom 4G
Preferred!
DO NOT GIVE TO HOME
OWNER.
FOR PROFESSIONAL USE ONLY
FAAC International Inc.
Headquarter & East Coast Operations
FAAC International Inc.
West Coast Operations
3160 Murrell Rd
357 South Acacia Avenue
Rockledge, FL 32955
Fullerton, CA 92831
Tel. 800 221 8278
www.faacusa.com
Advertisement
Table of Contents
Related Manuals for FAAC FCI4400
Summary of Contents for FAAC FCI4400
- Page 1 Cellular Intercom 4G Preferred! DO NOT GIVE TO HOME OWNER. FOR PROFESSIONAL USE ONLY FAAC International Inc. Headquarter & East Coast Operations FAAC International Inc. West Coast Operations 3160 Murrell Rd 357 South Acacia Avenue Rockledge, FL 32955 Fullerton, CA 92831 Tel.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Really important things you need to know A look around the product Overview of inside Pedestal Installation Power Module in detail Cellular module in detail Wiring relays Keypad/prox module in detail Connecting slave devices Inserting the SIM Powering up and LEDS Installing the programmer APP for the first time Programming a brand new install... -
Page 3: Really Important Things You Need To Know
Really Important things you Need to Know.. Please read this entire manual before To be installed by certified and qualified installing this product. personnel / gate automation dealer only. Not for DIY install! Ensure there is good At&T or T-Mobile 4G Set up on a bench in workshop BEFORE signal at the gate/door of the install site going to site. -
Page 4: A Look Around The Product

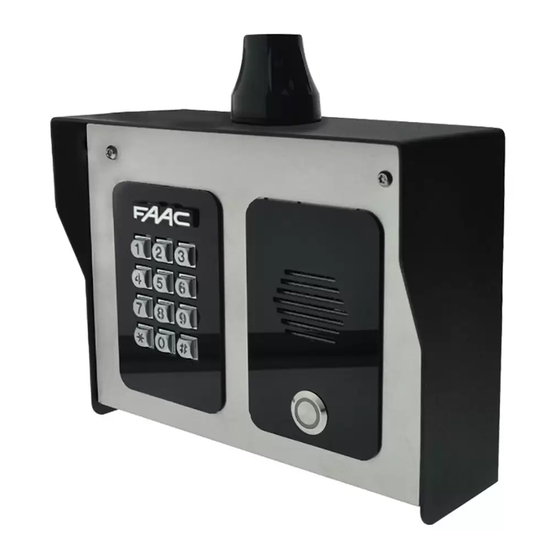

Now lets have a look around the product… Built in antenna Security screw Microphone access Optional Prox badge reader Speaker grill Optional Keypad Hinged front door Call button Overview of Inside… Surge & Power Conditionin g Module Optional Prox reader module Push button Optional... -
Page 5: Pedestal Installation
Pedestal Installation After fitting the box to the gooseneck, re-fit the module and connect a 14 gauge earth wire to the earth terminal. Remove 4 screws and remove power conditioning module (if needed) Surge protected 110v Use minimum 16 gauge wire from the 24v dc adaptor Call box provided to the terminals... -
Page 6: Power Module In Detail
Power 500mA quick blow output fuse Module 24vdc out Detail… - Solar or 12v DC IN 24vdc IN (Do NOT use 12v here) Optional Battery Earth Rod Connection leads Connection 3Ah 12v dc max 1A quick blow input fuse Cellular SIM holder Modem Status CPU Status... -
Page 7: Wiring Relays
Wiring Electric Gates Relays Note: The manufacturer is not responsible for wiring to third party devices. Please consult an experienced security installer. Magnetic lock Pedestrian gates or door Separate lock Power Exit button supply (not supplied) Slave OUT connections 24v out GND Keypad / PROX Modules in... -
Page 8: Connecting Slave Devices
Connecting CAT5 (30ft max) Slave Optional Slave 300ft if device Keypad Devices powered separately 1 2 3 24v Optional To next Keypad device 1 2 3 24v 1 2 3 24v To next device Optional 1 2 3 24v Prox reader Optional Slave Prox Reader... -
Page 9: Powering Up And Leds
Constant ON/OFF = searching Installing the Programmer APP for the first time If you are using an Apple or Android smart phone, download and install the FAAC Cell Access Pro APP. It will make programming much easier. Note: You may notice the app “Cell Access” on the store. This is for homeowners to use. - Page 10 After you send the Accept and allow all To register first time, registration email, go permissions (Android enter your name, email back to the app version shown) and cell phone screen. number.
-
Page 11: Programming An Existing Install
Programming a Brand-New Install Enter site or customer name, and INTERCOM PHONE NUMBER If Engineers and user pass codes are at default then do not change these. Once completed, you are ready to begin programming. Programming an EXISTING Install Now you are ready to begin programming! -
Page 12: Programming Main Steps
Programming Now that you have either entered a new client, or selected an existing client from the client list, you are now ready to begin programming. Step 1A: Check Reception Go to MORE>INFO to reveal the screen shown. Press the reception check button. On Android the app will automatically send a SMS string (*20#) to the intercom. - Page 13 Step2: Activate Clock Sync This feature makes the intercom send itself a SMS after a power failure. This feature must be activated to maintain proper time (the intercom re-calibrates its time from an incoming SMS message). SMS Programming Format: 9999#86telephonenumber# Pass code Phone number of the SIM card in the intercom...
- Page 14 Step4: Programming Numbers for the intercom to call 1.Press the SINGLE home icon for a 1 button system, or MULTI for a 10 button system. 2. Simply enter cell phone numbers and/or landline phones which the intercom is to call when the call button is pressed.
-
Page 15: Additional Features
Additional Features Time restricted Caller ID (20 users) Enter phone number of visitor Enter start time in 24hr format (military style) with no colon. E.g. 8.30am = 0830 Enter end time in 24hr format (military style) with no colon. E.g. 1.30pm = 1330 Select the days which access are to be granted SMS string for time restricted caller ID:... -
Page 16: Keypad Codes
Permanent Keypad Code Stores up to 200 codes, all of which can be used to gain access 24/7. Enter a 4 digit code Choose relay 1 or relay 2 (pedestrian option) 1 second for gate systems or strike lock. 3-10 seconds for magnetic locks. -
Page 17: Prox Cards (Optional Models Only)
Temporary Code Stores up to 30 codes which will auto expire after the pre-set time has elapsed. Enter a 4 digit code Enter time in hrs (1-168) SMS String for temporary code: 9999#82#hours#code# 4 digit code Pass code Function Can be between code 1-168 hours Proximity Cards (Optional) - Page 18 24/7 cards Enter card users name (6 digits max) Enter card serial number (10 digits) xxxxxxxx Choose relay 1 or relay 2 for activation 1 sec for gates or strike lock. 5-10 secs for mag lock. 0 = latching SMS String for adding Prox cards/tags: Only on selected models! 9999#611cardID#time#name# 6 digit...
- Page 19 Auto Expiring Temp Cards Store up to 30 cards which auto expire within a certain time frame. (Relay 1 only). Enter card ID (10 digits) xxxxxxxx Enter countdown time in hours (1-168) SMS String for temporary card/tag: 9999#62#hours#cardID# Card ID Pass code Only on selected models! Function...
-
Page 20: Auto Opening/Closing
Automatic Open/close Set up to 20 auto trigger, latch or unlatch times to control gates, depending on the setup of the gate system For step-by-step setup, use trigger times to open or close gates as required. For auto-closing gates, use latching and unlatching commands to control open times. -
Page 21: App Control Of Gates
App Control of Gates Gates can be controlled from the APP. Take care not to use the LATCH command with a strike lock as it can cause damage to the lock. Relay 2 – Momentary (1234#4#) Relay 2 – Latch / HOLD (1234#5#) Relay 1 –... -
Page 22: After Hours Calling
Out of Hours / After Hours The number stored in this screen will receive calls from the intercom after hours if the do not disturb feature is set. This is useful for commercial installs to call a manager after normal business hours. Enter phone number to receive out of hours calls Enter button number (enter 1 for 1 button unit) 9999#211telephonenumber#... -
Page 23: Ringing Times
Ringing Times In order to prevent unanswered calls going to voicemail (which will prevent the intercom rolling to then next phone number), you can adjust the ringing time to end the call before voicemail is picked up. Enter time in seconds (1-99, default = 20) SMS strings: 9999#45XX# (X=dialling time for first number) 9999#46XX# (X=dialling time for second number) -
Page 24: Information
Information FW version and This screen is very useful for retrieving information from the sig strength will *20# intercom and its status. E.g. keypad codes, or state of the be sent relays. SIG = 21 4G *21# O:5559994321 O:5557811234 I:5559994321 *22# “open”... -
Page 25: Relay Times
Relay Times Relay default trigger times are 1 second. Use this feature to change a relay for a longer time perhaps for a magnetic door lock or to make one relay a momentary relay and the other a 1 hour relay for example. Enter time in seconds (1-9999) SMS string for relay 1: 9999#50XXXX# (X=time in seconds, 1-9999) - Page 26 9999#50?# Relay 1 time. ? = seconds, 1-9999 1 sec 9999#51?# Relay 2 time. ? = seconds, 1-9999. 1 sec Calling time for first number, adjust this to avoid voicemail 9999#45??# 20 secs picking up a call (10-99 secs) Calling time for second number, adjust this to avoid 9999#46??# 20 secs voicemail picking up a call (10-99 secs)
- Page 27 code# Code = Pin code 4-6 digit code. 9999#84code# Delete code – Code=known code to be deleted. 9999#84*# Delete all codes. Notifications 9999#80X# X=1 to disable. X=2 to enable. X=phone number to send notifications to. (*=delete 9999#78XXX# number) 9999#79text# X=text to send to the receiving phone e.g. “gate opened” Automatic Time Clock Trigger Times X=1,2.3 (trigger, latch, unlatch relay 1) 4,5,6 (relay 2) 1234#X#...
-
Page 28: Troubleshooting
Troubleshooting guide Q. The unit will not power up. No LEDs on. A. Check power supply voltage at intercom is within 14.8V DC. Cable length from PSU to intercom should be less than 25 feet and in 14 gauge. Check the fuse. Q. - Page 29 Q. The trigger keys do not work when the intercom calls a phone. A. Check if you can hear the relay clicking at the gate when the keys are pressed during a call. If it can be heard, then the system is working, check wiring between the relay and the lock or gate panel.
- Page 30 FAAC S.p.A. or FAAC International, Inc., neither assumes nor authorizes any person to assume for them any other liability in connection with the sale or use of the products of FAAC S.p.A. or FAAC International, Inc. The warranty herein above set forth shall not be deemed to cover maintenance parts, including, but not limited to, hydraulic oil, filters, or the like.
- Page 31 Regulatory Compliance FCC Id: 2ALPX-PE-4GA (Multiple variation part numbers registered under this main part number) Grantee: Advanced Electronic Solutions Global LLC This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 32 Note: For legal reasons, telephone technical support is for registered and qualified product dealers only. Home owners and end users should contact their local dealer for product technical support...
