B8028Y190X2
1U Rackmount Server
Service Engineer's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B8028Y190X2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TYAN B8028Y190X2

Summary of Contents for TYAN B8028Y190X2

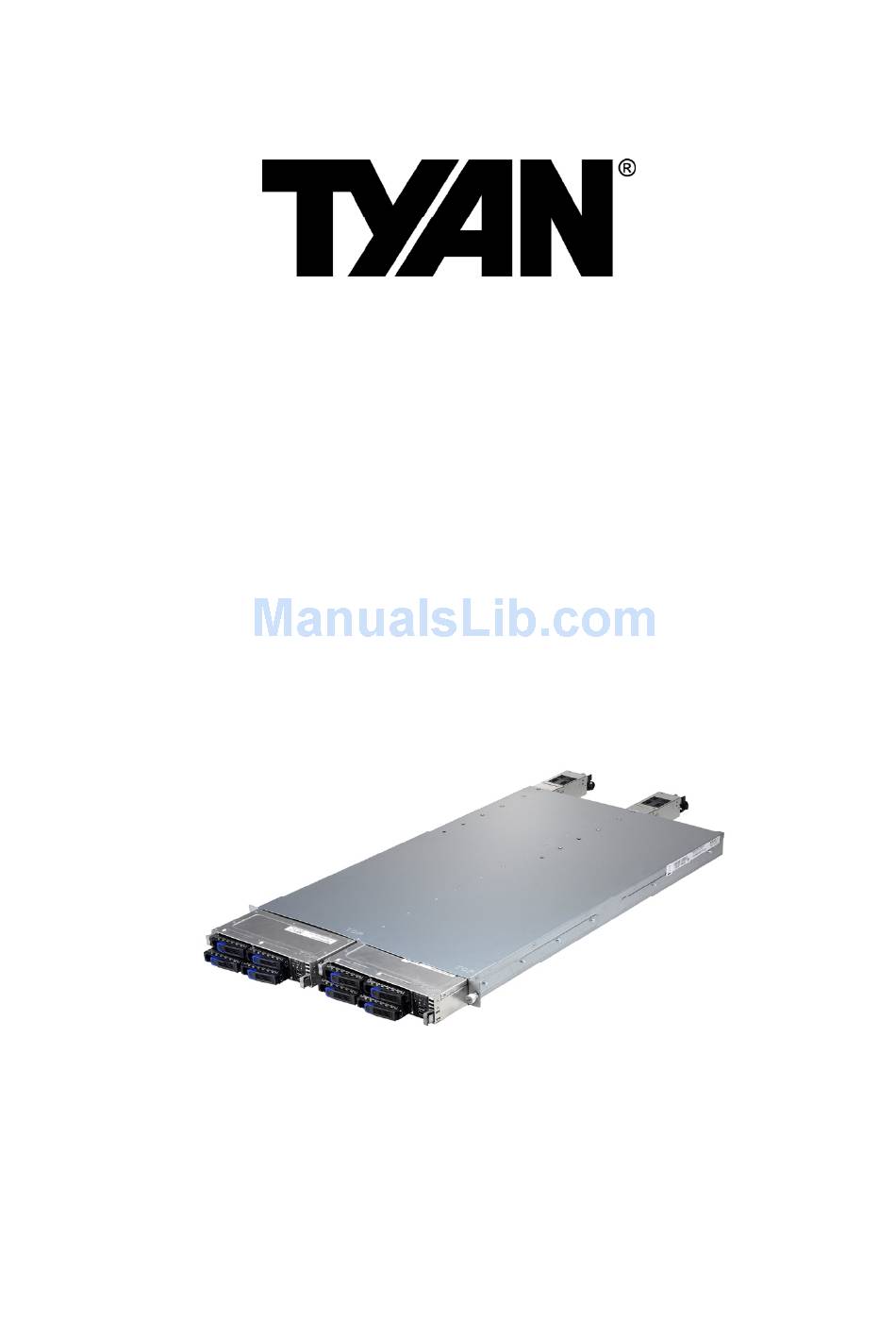

  • Page 1 B8028Y190X2 1U Rackmount Server Service Engineer’s Manual...
  • Page 3 Corporation and has been reviewed for accuracy and reliability prior to printing. MiTAC assumes no liability whatsoever, and disclaims any ® express or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability.

  • Page 4: Fcc Declaration

    There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. http://www.tyan.com...

  • Page 5: About This Manual

    About this Manual ® This manual provides you with instructions on installing your TYAN YR190-B8028. This Manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts: Chapter1: Product Introduction Provides an introduction to the general features of the server.

  • Page 6: Safety And Compliance Information

    Safety and Compliance Information ® Before installing and using TYAN YR190-B8028, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 7: Safety Information

    General Precautions ·Follow all caution and warning instructions marked on the equipment and explained in the accompanying equipment documentation.  Machine Room Environment ·Make sure that the area in which you install the system is properly  ventilated and climate-controlled. http://www.tyan.com...
  • Page 8 ·Make sure only one component is extended at a time. A rack might become unstable if more than one component is extended. To avoid damage to the equipment: ·The rack width and depth must allow for proper serviceability and cable http://www.tyan.com...
  • Page 9 ·Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug. · T o reduce the risk of electrical shock, disconnect all power cords before servicing the appliance. http://www.tyan.com...
  • Page 10 AC electrical outlet and refer servicing to an authorized service provider. Examples of damage requiring service include: – The power cord, extension cord, or plug has been damaged. – Liquid has been spilled on the product or an object has fallen into the product. http://www.tyan.com...
  • Page 11 – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. http://www.tyan.com...
  • Page 12 http://www.tyan.com...

  • Page 13: Table Of Contents

    Table of Contents Chapter 1: Overview ............... 15 1.1 About the TYAN YR190-B8028 ..........15 1.2 Product Model ................15 1.3 Features ..................16 1.4 Standard Parts List..............19 1.5 About the Product ............... 21 Chapter 2: Setting Up..............29 2.1 Installing Motherboard Components ...........
  • Page 14 http://www.tyan.com...

  • Page 15: Chapter 1: Overview

    Chapter 1: Overview 1.1 About the TYAN YR190-B8028 ® Congratulations on your purchase of the TYAN YR190-B8028, a highly optimized rack-mountable barebone system. The YR190-B8028 is designed to support 1 AMD Opteron™ 6200 series Processor and support 12 R/UDDR3 DIMM sockets (per node), four Channels R/U DDR3 667/800/1066/1333 , providing a rich feature set and incredible performance.

  • Page 16: Features

    1.3 Features TYAN YR190B8028 (B8028Y190X2-030V4H) Form Factor 1U Rackmount Chassis Model YR190 Dimension (D x W x 28.74" x 17.32" x 1.72" (730 x 440 x 43.6mm) Blade Dimension (D 28.74" x 8.46" x 1.61" (730 x 214.8 x 40.8mm)
  • Page 17 Memory voltage 1.5V/ 1.35V PCI-E (1) PCI-E Low-Profile Gen.2 x16 slot Expansion Pre-install TYAN M7018-R16-1L, 1U PCI-E x16 riser card (right) Slots (per Riser Card blade) Max. HBA (1) 68.90mm x 167.65mm (HH/HL) Dimension (H x L) Port Q'ty LAN (per...
  • Page 18 (2) CCBL-0310, US type power cord / (2) Cable Power Cord CCBL-0300, EU type power cord This is the condition when writing the manual, please take the material object as standard, for the latest handbook please browse to TYAN’s website: http://www.tyan.com. http://www.tyan.com...

  • Page 19: Standard Parts List

    The product should arrive packaged as illustrated below. 1.4.1 Box Contents Per Node Component Description 1U chassis, 2 nodes (4) hot swap HDD bays per node ® TYAN S8028 system board (pre-installed) single 300Watts(100V~240VAC) Power Supply (pre-installed) (1) 40x28mm System FAN...
  • Page 20 If any items are missing or appear damaged, contact your retailer or browse to TYAN’s website for service: http://www.tyan.com ® The website also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. The samples we've provided in this manual are for reference only.

  • Page 21: About The Product

    USB ports are located on the front panel. 1.5.1 System Front View (Per Node) LED control panel hot-swap HDD Bays HDD1 HDD0 HDD2 HDD3 HDD Indicator LED IPMI LED LAN1 LED LAN2 LED Power LED HDD LED Reset button Power button ID button USB port http://www.tyan.com...
  • Page 22 Front I/O Front Panel HDD Indicator LED State Activity LED Fault LED Description On Solid Drive present,no activity Green Drive present,with activity (Blinking) @ 4 Hz On Solid HDD Fail Identify (Blinking@ 1 Hz) Rebuild (Blinking @ 4 Hz) http://www.tyan.com...
  • Page 23 Press to reset the system. Rear I/O LAN1/ LAN2/ LAN3 State Color Description Green 10Mb/100Mb/1000Mb linked RJ-45 Linkage/ Blinking Green 10Mb/100Mb/1000Mb activity Activity(left) No LAN linked Amber 1000Mb linked/activity RJ-45 Linkage/ Green 100Mb linked/activity Activity(Right) 10Mb mode or No LAN linked http://www.tyan.com...
  • Page 24 Note: Press ID button when the system is AC (Alternating Current) on, then ID LED will show the system is identified with emitting blue light. Users from remote site could also activate ID LED by input a few commands in IPMI, detailed software support please visit http://www.tyan.com for lastest AST2050 user guide. http://www.tyan.com...
  • Page 25 1.5.4 Internal View (Per Node) Number Description HDD Cage SATA HDD Backplane Board System Fans& Mylar Fan Duct CPU Socket & Heatsink DIMM Socket PCI-E Riser Card Assembly Power Distribution Board http://www.tyan.com...
  • Page 26 1.5.5 Motherboard (S8028) Layout The diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram. http://www.tyan.com...
  • Page 27 1.5.6 System Block Diagram S8028 Block Diagram (Represents all SKUs) http://www.tyan.com...
  • Page 28 http://www.tyan.com...

  • Page 29: Chapter 2: Setting Up

     A grounding strap or an anti-static pad Most of the electrical and mechanical connections can be disconnected with your hands. It is recommended that you do not use pliers to remove connectors as it may damage the soft metal or plastic parts of the connectors. http://www.tyan.com...
  • Page 30 Metallic parts or metal flakes can cause electrical shorts. All connectors are keyed to only attach one way. All use the correct screw size as indicated in the procedures. http://www.tyan.com...

  • Page 31: Installing Motherboard Components

    The YR190-B8028 supports four 2.5” hard drives per node. Follow these instructions to install a hard drive. 1. Firmly Press the locking tabs at both sides as the arrow in the illustration. 2. Seize the tabs and pull the node out of the bay. http://www.tyan.com...
  • Page 32 3. Press the locking lever latch and pull the locking lever open. 4. Slide the HDD tray out. 5. Unscrew the HDD tray bracket. http://www.tyan.com...
  • Page 33 7. Reinsert the HDD tray into the chassis. 8. Press the locking lever to secure tray. Repeat same procedures to install other HDD trays 9. Repeat steps 3 to 8 if you wish to install a second SATAII drive. http://www.tyan.com...

  • Page 34: Installing The Cpu And Heatsink

    Step 1: Locate the CPU socket. Step 2: Press the load lever with your thumb, and then move it to the right until it released from the retention tab. http://www.tyan.com...
  • Page 35 Step 3: Move the load lever to a fully open position. Step 4: Lift the load plate to a fully open position. Step 5: Remove the PnP cap from the CPU socket. http://www.tyan.com...
  • Page 36 NOT force the CPU into the socket to prevent bending connectors socket and damaging the CPU. Step 7: Close the load lever of the socket and press the CPU socket lever down to lock the CPU in place. http://www.tyan.com...
  • Page 37 AMD website : http:// www,amd.com The following diagram illustrates how to install heat sink onto the CPU of S8028. Step 9: Place the heat sink on top of the CPU and secure it to the motherboard with 2 screws. http://www.tyan.com...

  • Page 38: Installing The Memory

    2. Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. 3. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. http://www.tyan.com...
  • Page 39 4. Dual-rank DIMMs are recommended over single-rank DIMMs 5. Un-buffered DIMM can offer slightly better performance than registerd DIMM if populating only a single DIMM per channel 6. We don't suggest other memory installation. 7. AMD 6100 series CPU doesn't support Quad-ranks U-DIMM http://www.tyan.com...
  • Page 40 SR or DR 1333MHz SR or DR SR or DR NOTE:  UDIMM theoretically can support up to 8GB sized DIMM’s Maximum of theoretically 16GB per channel   SR and DR UDDR3 module support only  SR: Single-rank, DR: Dual-rank http://www.tyan.com...
  • Page 41 SR or DR 1066M SR, DR SR or DR 1333M 1333MHz SR or DR 1333M 1333MHz SR or DR SR or DR 1333M NOTE:  RDIMM can support up to 8GB sized DIMM’s  SR: Single-rank, DR: Dual-rank, QR: Quad-rank http://www.tyan.com...

  • Page 42: Rack Mounting

    2.2.1 Installing the Server in a Rack Follow these instructions to mount the TYAN YR190-B8028 into an industry standard 19” rack. NOTE: Before mounting the TYAN YR190-B8028 in a rack, ensure that all internal components have been installed and that the unit has been fully tested.

  • Page 43: Installing The Inner Rails To The Chassis

    2.2.2 Installing the inner Rails to the Chassis 1. Draw out the inner rails from the rail assembly. Install inner rails to left and right side of chassis. 2. Push the rails forwards to lock the rails in place. http://www.tyan.com...

  • Page 44: Installing The Outer Rails To The Rack

    / 2 sets rear) for each side. Secure the rails to the rack as shown.） 3. Repeat Step 2 if you want to install more chassis to the rack. 4. To make the installation easier, we suggest that you remove all nodes before you insert the chassis to the rack. http://www.tyan.com...

  • Page 45: Rack Mounting The Server

    2.2.4 Rack mounting the Server To install the chassis to the rack 1. Lift the chassis and then insert the inner slide rails into the outside rails. 2. Push the chassis into the rack. http://www.tyan.com...
  • Page 46 3. Screw the chassis to the rack. 4. Insert the node into the chassis. 5. Repeat Step 4 for the second node. To remove the chassis from the rack 1. Remove the nodes. 2. Unscrew the chassis. http://www.tyan.com...
  • Page 47 3. Press the locking tabs on both sides of the chassis to pull the chassis out. To avoid injury, it is strongly recommended that two people lift the TYAN YR190-B8028 into the place while a third person screws it to the rack.
  • Page 48 http://www.tyan.com...

  • Page 49: Chapter 3: Replacing Pre-Installed Components

    This chapter explains how to replace the pre-installed components, including the M7018-R16-1L Riser card, System fans, and Power supply unit etc. 3.2 Disassembly Flowchart The following flowchart outlines the disassembly procedure. Components Power Distribution Board System Fan & Mylar Front Panel Board Back Panel Board Mainboard http://www.tyan.com...

  • Page 50: Replacing Power Distribution Board

    3.3 Replacing Power Distribution Board Follow these instructions to replace the Power Distribution Board. Unscrew to remove the Fan Duct. Disconnect all cables from the power distribution board. Unscrew to take out the power distribution board. http://www.tyan.com...
  • Page 51 Repeat the procedures described earlier in reverse order to replace a new power distribution board. http://www.tyan.com...

  • Page 52: Replacing Expansion Card

    ② to install a new PCI-E card. ③ to replace a new riser card. 1. Locate the riser card assembly in the chassis. Unscrew the riser card assembly to lift the assembly up. 2. Unscrew to remove the PCI-E bracket. http://www.tyan.com...
  • Page 53 Install a low-profile PCIE card onto the assembly. 4. Screw the assembly to the chassis. Unscrew to replace a new M7018-R16-1L riser card. Repeat the procedures 3~4 mentioned earlier order to place the riser card assembly back into the chassis. http://www.tyan.com...

  • Page 54: Replacing The Sata Backplane Board

    2. Unscrew the backplane bracket. 3. Lift the bracket up from the chassis. There are six screws on 4. Replace a new SATA Backplane Board as illustrated in the below and reinstall it into the chassis following the above steps in reverse. http://www.tyan.com...

  • Page 55: Sata Backplane Board Features

    When customer uses 4 SATA connectors with Native IDE mode, we suggest to install OS on SATA2 (J12)，please refer to 1.5.5 Motherboard Placement Hard disk, and make SATA0, SATA1, SATA3 as data disk to get the best hard disk IO performance. http://www.tyan.com...

  • Page 56: Replacing The System Fan

    Follow these instructions to replace the cooling fans in your system. 1. Locate the cooling fans in your system. Pull off the fan mylar. 2. Unplug the cables connected to the mainboard and lift the fan unit up from the chassis. 3. Remove the rubber screws from the fan. http://www.tyan.com...

  • Page 57: Installing System Fan Mylar

    6. Connect the fan cables. 3.6.1 Installing System Fan Mylar 1. The fan Mylar and the six plastic rivets 2. Place the six rivets on the fan Mylar to fix it with the system fans. http://www.tyan.com...
  • Page 58 3. Pay attention to the appearance of the wires and the direction of air flow. 4. Remove the gum on the Mylar. 5. Put the Mylar adhesive to this location http://www.tyan.com...

  • Page 59: Replacing The Power Supply

    3.7 Replacing the Power Supply 1. Press and hold the latch to pull the power supply out. 2. After replacing a new power supply, press and hold the latch to push the power supply back into the chassis. http://www.tyan.com...

  • Page 60: Disconnecting All Motherboard Cables

    Before replacing the motherboard, remove cables connected to the motherboard. Follow these instructions to remove all motherboard cables. 1. Disconnect all the power and fan cables. 2. Disconnect SATA cables and front panel cable. 3. Disconnect the front panel cable. http://www.tyan.com...

  • Page 61: Removing The Motherboard

    After removing all of the aforementioned cables, follow the instructions below to remove the motherboard from the chassis. Remove the heatsink and processor if installed. Remove the nine screws securing the motherboard to the chassis. Carefully lift the motherboard from the chassis http://www.tyan.com...
  • Page 62 NOTE http://www.tyan.com...

  • Page 63: Chapter 4: Bios Setting

    2. Press <Del> during POST (<Tab> on remote console) to start the BIOS setup utility. 4.2 - BIOS Menu Bar The menu bar at the top of the windows lists these selections: Main For changing the basic system configuration  Advanced For changing the advanced system settings  PCI PnP For changing the advanced PCI/PnP settings    Boot For changing the system boot configuration  Security For setting the Supervisor and User passwords  Chipset For customize the AMD chipset function  Exit For selecting the exit options and loading default settings  http://www.tyan.com...

  • Page 64: Setup Basics

    In particular, do not change settings in the Chipset section unless you are absolutely sure of what you are doing. The ® Chipset defaults have been carefully chosen either by TYAN or your system manufacturer for best performance and reliability. Even a seemingly small change to the Chipset setup options may cause the system to become unstable or unusable.

  • Page 65: Bios Differences

    The BIOS of B8028 is similar to S8028 while there are some differences in menus. The following table displays those differences in details. For a complete review of S8028 BIOS, please refer to the motherboard manual. 1. FAN Configuration Sub-Men S8028: B8028: http://www.tyan.com...
  • Page 66 1. Sensor Data Register Sub-Men S8028: http://www.tyan.com...
  • Page 67 30% Duty Circle CPU FAN Min Duty Circle 45% Duty Circle 40% Duty Circle 60% Duty Circle 50% Duty Circle 60% Duty Circle 70% Duty Circle Sensor Data Register F0 PSU Power Sub-Men 42 PSU FAN 2A PSU Temp http://www.tyan.com...
  • Page 68 NOTE http://www.tyan.com...

  • Page 69: Appendix I: Cable Connection Tables

    SATA/SAS Backplane (BP) Board to S8028 MB SATA/SAS BP Cable Connect to S8028 MB Board → → SATA Cable → → → SGPIO Cable 3. B4P PWR Cable SATA/SAS Backplane (BP) Board to S8028 MB SATA/SAS BP Connect to S8028MB Board → B4P Cable http://www.tyan.com...
  • Page 70 4. FP Ctrl and USB Cable Front Panel Board (FPB) to S8028 MB Connect to S8028 MB → Control Cable → USB Cable 5. Power Supply Cables PDB to S8028 MB Connect to S8028 MB → 2X10P PWR → PSMI Cable http://www.tyan.com...

  • Page 71: Appendix Ii: Fru Parts Table

    CHSK-0450 343791800001 Passive Heatsink Riser Card M7018-R16-1L PCI-E X16 1U Riser Card 411786900021 Rack Mounting Part CRAL-0170 340786900010 Slide Rail Kit The table is subject to change without notice. Please visit our Web site at http://www.tyan.com for latest update. http://www.tyan.com...
  • Page 72 NOTE http://www.tyan.com...

  • Page 73: Appendix Iii: Technical Support

    MiTAC serves multiple market segments with the industry’s most competitive services to support them. TYAN's tech support is some of the most impressive we've seen, with great response time and exceptional organization in general.” — Anandtech.com Please feel free to contact us directly for this service at tech-support@tyan.com...
  • Page 74 Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. ® TYAN YR190-B8028 Service Engineer’s Manual V1.1 D2109 - 110 Document No.:...
