4.17 RTC battery

CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the laws and ordinances of your local
authority.
Removing the RTC battery
The following describes the procedure for removing the RTC battery. (See Figure 4-29.)
1. Disconnect the RTC battery cable from the connector CN9300 on the system board.
2. Peel off the insulator and remove the RTC battery from the slot.
RTC battery
4-50 [CONFIDENTIAL]

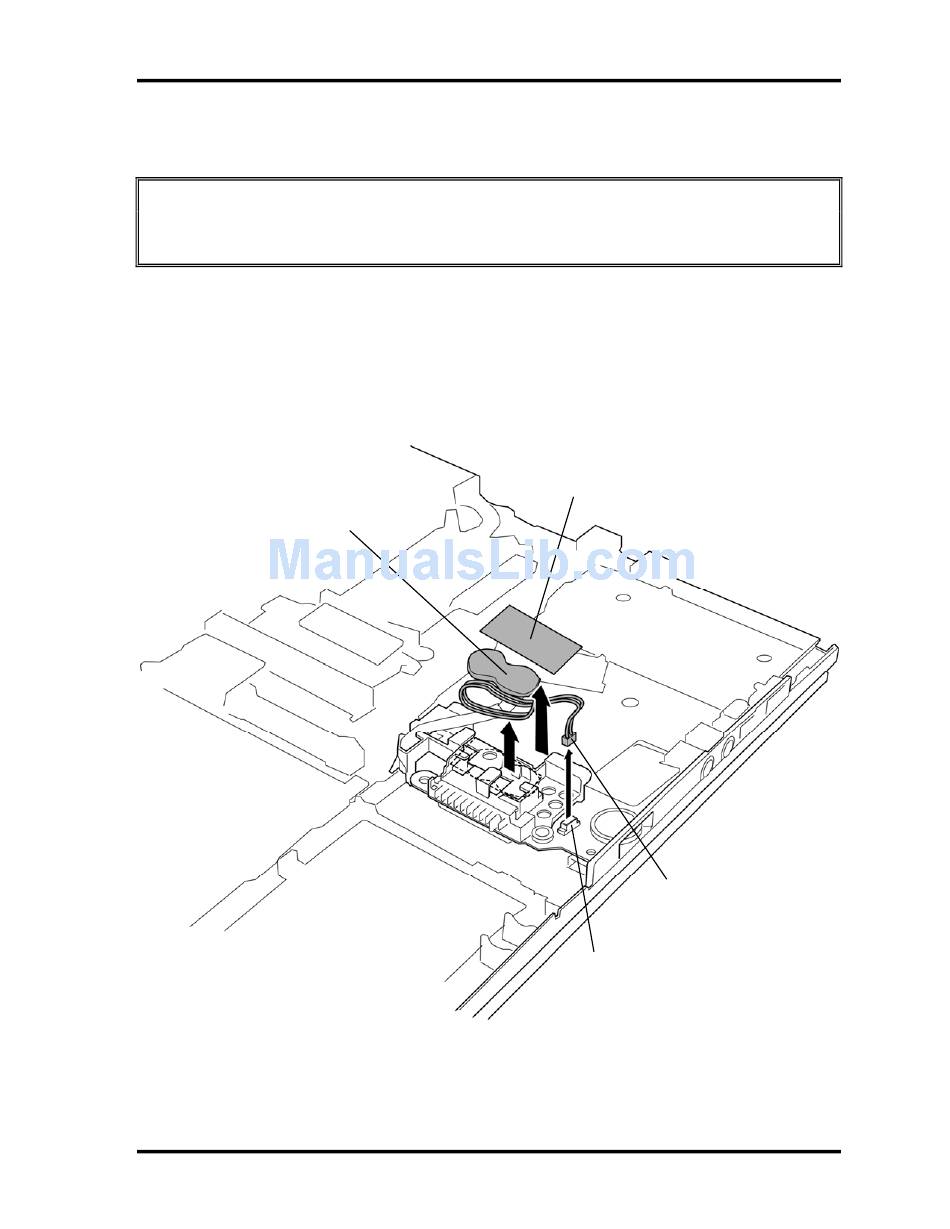

Figure 4-29 Removing the RTC battery
PORTÉGÉ M700/M750 Maintenance Manual (960-661)
Insulator
RTC battery cable
CN9300
