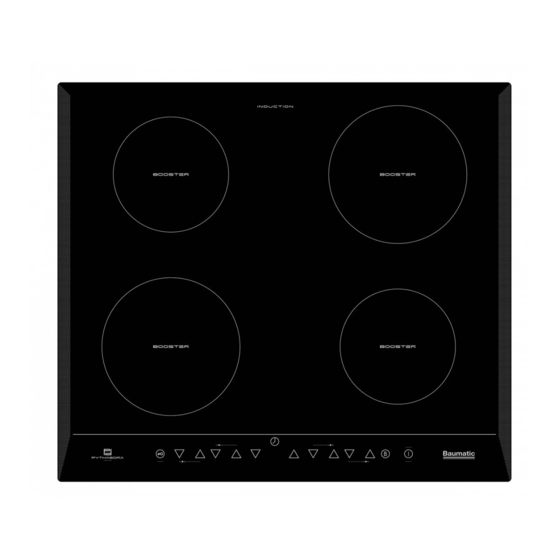

- Page 1 PI645 60cm Front touch control induction zone hob...
- Page 2 User Manual for your Baumatic PI645 60 cm Front touch control induction zone hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 8 Specifications 9 - 11 Electrical details Ceramic hob surface layout Control panel layout Using the ceramic hob 11 - 19 Before first use Touch controls Switching the hob on Switching a zone on and setting a power level Switching a zone off gradually Switching a zone off instantly Switching the hob off... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 If in doubt, you should consult the manufacturer of your device or your doctor. In this respect, Baumatic can only guarantee the conformity of our own product. o If an object made of metal, (e.g. saucepan lid, knife, fork or spoon) is placed on a cooking zone that is switched on, it can get hot.
- Page 8 Declaration of conformity This appliance complies with the following European Directives: -73/23/EEC dated 19/02/1973 Low Voltage Directive. -89/336/EEC dated 03/05/1989 Directive inclusive Amending Directive 92/31/EEC. -93/68/EEC dated 22/07/1993 CE Marking Directive. -89/109/EEC dated 25/01/1992 Materials that can touch food. o The manufacturer declares that the hob is built using certified materials requires appliance...
-
Page 9: Specifications
Specifications Product dimensions: Aperture dimensions: Height: 520 mm Height: 490 mm (+5) mm Width: 590 mm Width: 560 mm (+5) mm Depth: 52 mm Product specifications: o 2 x 2.00 kW induction zone with booster (2.6 kW)- Ø 180 mm o 2 x 1.50 kW induction zones with booster (2.0 kW)- Ø... -
Page 10: Electrical Details
Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 40 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 7.00 kW Mains Supply Lead: 3 core x 6 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. -
Page 11: Control Panel Layout
Control panel layout 1) Safety lock button 2) Minus button (x 4) 3) Cooking zone indicator (x 4) 4) Plus button (x 4) 5) Timer minus button 6) Timer display 7) Timer plus button 8) Booster button 9) ON/OFF button Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see... -
Page 12: Touch Controls
Touch controls o All operations are performed by means of the touch controls that can be found on the control panel. o Each touch control has a visual display that corresponds to it. o Every time you press a touch control, an acoustic signal will sound. -
Page 13: Switching A Zone Off Gradually
Switching a zone off gradually o Press the minus button (2) of the zone that you wish to switch off, until the number in the cooking zone indicator (3) reaches “0”. After 3 seconds, the zone will switch off automatically. o An “H”... -
Page 14: Residual Heat Indicator
Residual heat indicator o After a zone is switched off, the corresponding cooking zone indicator (3) will show the letter “H”. This means that the temperature of the zone is over 60°C and is therefore still high enough to cause injury. o If the zone falls below 60°C and there are still other zones switched on, a “0”... -
Page 15: Cookware That Is Suitable For An Induction Hob
Cookware that is suitable for an induction hob The table below shows cookware that is normally suitable for use on an induction zone hob:- Cookware Suitable Steel, enamelled steel Cast iron Stainless steel Yes (if stated by the pan manufacturer) Aluminium, copper, brass Glass, ceramic, porcelain o The bottom of the pans should be as flat and thick as possible. -
Page 16: Safety Cut-Out
o IMPORTANT: If the appliance is switched off whilst the safety lock feature is activated, then it will still be activated the next time that you switch the appliance on. Therefore before you can switch on a zone and set it to a power level, you will need to deactivate the safety lock by pressing the safety lock button (1). -
Page 17: Switching Off The Booster Function
o If the saucepan is removed from the zone when the booster is switched on, then the boosting function will remain active and the boosting time will continue until the 5 minute booster period has elapsed. o The hob has two generators which create the power for the zones;... -
Page 18: Cooking Zone Temperature Sensor
o Immediately use the timer minus (5) and timer plus (7) buttons, to set the countdown time that you require. o The countdown time will appear on the timer display (6). o When the countdown time that you require appears on the timer display (6), stop pressing the timer minus (5) and timer plus (7) buttons. -
Page 19: Hob Guidelines
Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. -
Page 20: Cleaning And Maintenance
Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the ceramic hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 21: Using A Ceramic Hob Scraper
Using a ceramic hob scraper Your appliance will be provided with a hob scraper. The following guidelines should also be followed when using the ceramic hob scraper:- o The scraper should be placed on the ceramic surface at an angle. o Residues should be removed by sliding the blade carefully over the ceramic surface. -
Page 22: Positioning
Positioning The adjacent furniture must be able to withstand a minimum temperature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. This appliance is classified as Class 3 and therefore is to be built into a kitchen unit (depending on size) or 600 mm worktop that is between 25 mm and 40 mm thick. -
Page 23: Installing Above A Built Under Oven
When unpacking the appliance please check that the following items are contained within the packaging: 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 1 Sealing strip... -
Page 24: Installing The Appliance
Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above. o Apply the sealing strip provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. - Page 25 o Carefully turn the hob back over and then gently lower it into the aperture hole that you have cut out. o IMPORTANT: There ventilation holes around the outside of the hob. YOU MUST ensure that these holes are not blocked by the work top, when you put the hob into position (see drawing opposite).
-
Page 26: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 27: Connecting The Mains Supply Cable
Connecting the mains supply cable o The mains terminal block is located on the underside of the hob and the terminals are accessible by removing the terminal block cover by removing the cover screw. o The mains terminal block is located on the underside of the hob and the terminals are accessible by removing the terminal block cover. -
Page 28: Replacing The Mains Supply Cable
If when the hob is first switched on, only two of the zones work, you should recheck that the terminal screws are all fully tightened between the links. This should be done before contacting Baumatic Customer Care Department. o IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket. -
Page 29: My Appliance Isn't Working Correctly
My appliance isn’t working correctly Error codes Error code Possible causes Solution F0/F1/F2 Fan failure Contact the Baumatic Service Department F3 – F8 Temperature sensor Contact the Baumatic failure Service Department E1/E2 Abnormal supply Check that the power voltage supply the hob is connected to is appropriate. - Page 30 * IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Service Department. o A humming sound is heard when a cooking zone is selected.
- Page 31 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 32: Contact Details
