- Page 1 AS26SS/B26SS/B40/ B70.1BL/B71TCBL/ B72BL/B72TCBL/W/ B77BL/B77TCBL/B78BL/ PHG602 Gas hobs...

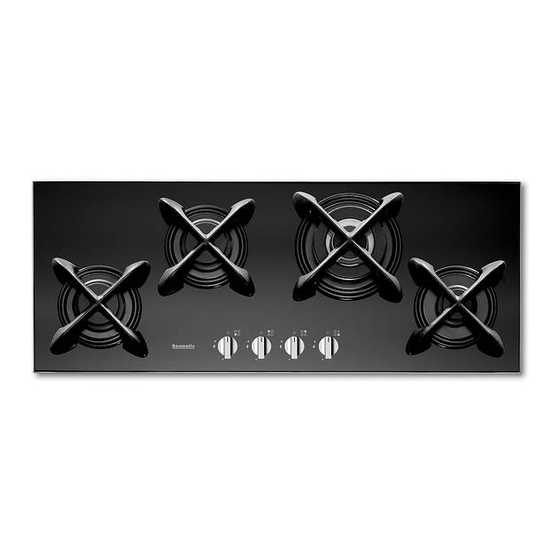

- Page 2 User Manual for your Baumatic AS26SS 90 cm 4 Burner gas glass hob with thermocouples B26SS 90 cm 4 Burner gas glass hob with thermocouples Circular Ø 52 cm Frameless glass gas hob B70.1BL 60 cm 4 Burner gas glass hob...
-
Page 3: Table Of Contents
Switching the hob on 20 - 21 Automatic ignition (B70.1BL, B72BL, B77BL) Automatic ignition with flame failure safety device 21 - 22 (AS26SS, B26SS, B40, B71TCBL, B72TCBL/W, B77TCBL, B78BL, PHG602) Energy saving tips Cleaning 23 - 24 Cleaning the hob top... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the applian ce at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the...
- Page 7 British Standards. Please see the specific sect ion of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications As26Ss/B26Ss
AS26SS/B26SS Product dimensions: Aperture dimensions: Height: 350 mm Height: 335 mm Width: 880 mm Width: 865 mm Depth: 50 mm Product specifications: o 1 x 3.50 kW rapid burner o 2 x 1.75 kW semi-rapid burne o 1 x 1.00 kW auxiliary burner... -
Page 9: B40
Product dimensions: Aperture dimensions: idth: 520 mm Width: 500 mm Height: 50 mm Product specifications: o 1 x 3.50 kW triple crown (wok) burner o 1 x 3.00 kW rapid burner o 1 x 1.75 kW semi-rapid burner o Front control operation o Automatic ignition Flame failure safety device on each burner o RANA design cast iron pan stands... -
Page 10: B70.1Bl
B70.1BL Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm idth: 580 mm Width: 560 mm Height: 50 mm Product specifications: o 1 x 3.00 kW rapid burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary b urner o Side control operation Automatic ignition... -
Page 11: B71Tcbl
B71TCBL Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm idth: 580 mm Width: 560 mm Height: 50 mm Product specifications: o 1 x 3.00 kW rapid burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary b urner o Side control operation o Automatic ignition... -
Page 12: B72Bl
B72BL Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 490 mm idth: 580 mm Width: 560 mm Height: 50 mm o 1 x 3.50 kW wok burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary bu rner o Front control operation Automatic ignition... -
Page 13: B72Tcbl/W
B72TCBL/W Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 490 mm idth: 580 mm Width: 560 mm Height: 50 mm o 1 x 3.50 kW wok burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary bu rner o Front control operation o Automatic ignition... -
Page 14: B77Bl
B77BL Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 490 mm idth: 680 mm Width: 562 mm Height: 50 mm Product specifications: o 1 x 3.50 kW wok burner o 1 x 3.00 kW rapid burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary bu rner o Front control operation... -
Page 15: B77Tcbl
B77TCBL Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 490 mm idth: 680 mm Width: 562 mm Height: 50 mm Product specifications: o 1 x 3.50 kW wok burner o 1 x 3.00 kW rapid burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary bu rner o Front control operation... -
Page 16: B78Bl
B78BL Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 490 mm idth: 680 mm Width: 562 mm Height: 50 mm Product specifications: o 1 x 3.50 kW wok burner o 1 x 3.00 kW rapid burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary bu rner o Front control operation... -
Page 17: Phg602
HG60 Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 490 mm idth: 580 mm Width: 560 mm Height: 50 mm Product specifications: o 1 x 3.50 kW wok burner 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary bu rner o Front control operation o Automatic ignition... -
Page 18: Electrical Details
Therefore it is a good idea to record this information before you install your ap pliance. Model Number ………………………………. Serial Number ………………………………. ate of Purchase ………………………………. Gas hob surface layout AS26SS/B26SS 1.75 kW semi-rapid burne 3.50 kW wok burn 1.00 kW auxiliary burner Control panel... - Page 19 3.50 kW wok burner 3.00 kW rapid burner 1.75 kW semi-rapid urner Control panel 70.1BL/B71TCB 72BL/B72TCBL/ W/PHG602...
-
Page 20: Using The Gas Hob
77BL/B77TCBL/ B78BL Using the gas Before first use MPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). Switching the hob on he following symbols will appear on the control panel, next to each control knob: 0 = gas off arge flame: maximum setting Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation... -
Page 21: Automatic Ignition (B70.1Bl, B72Bl, B77Bl)
In case of power failure, the burners can be lit by carefully using a match. Automatic ignition with flame failure safety device (AS26SS, B26SS, B40, B71TCBL, B72TCBL/W, B77TCBL, B78BL,PHG602) he appliance is fitted with a flame failure safety device on each... -
Page 22: Energy Saving Tips
o In case of powe r failure, the burners can be lit by carefully using a match. Energy saving tips BURNERS PA S Minimum aximum diametre iametre 220 mm 260 mm Rapid 180 mm 220 mm Semi-rapid 120 mm 200 mm Auxiliary 80 mm 160 mm... -
Page 23: Cleaning
Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains sup ply before commencing any cleaning process. Clea ing the hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 24: Maintaining The Cast Iron Pan Stands
IEE Wiring Regulations o Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Ventilation for Gas Appliances o Baumatic Ltd Installation Instructions... -
Page 25: Positioning
Position The adjacent furniture must be able to withstand a minimum tempe rature rise of 85°C above the ambient temperature of the room it is located in, during periods of use. o This appliance can be located in a kitche n, a kitchen diner or a bed sitting room. -
Page 26: Unpacking The Appliance
1 x Baumat ic hob 3 x Pan stands (B40) 4 x Pan stands (AS26SS, B26SS, B70. 1BL, B71TCBL, B72BL, B72TCBL/W , PHG602) 5 x Pan stands (B77BL, B77TCBL, B78BL) - Page 27 B70.1BL B71TCBL B72BL B72TCBL/ HG602 B77BL B77TCB 78BL o Cut a hole in the worktop that corresp onds with the relevant drawing for your hob on pages 26 - 27.
- Page 28 o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip (A) provided around the edge of the appliance.
-
Page 29: Gas Connection
Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Advice Line. o The hob must be installed by a qualified person, in accordance... -
Page 30: Gas Safety (Installation And Use) Regulations
o If the room has a volume of less than 5m³, it will require an air vent of 100cm² (effective area). o If it is installed in a room with a volume that exceeds 11m³, then no air vent is required. o If there are any other fuel burning appliances in the same room the current edition of BS 5440: Part 2: should be consulted to determine air vent requirements. -
Page 31: Gas Safety (Installation And Use) Regulations (B40 Only)
o Put the gas seal into the elbow. o Fully tighten the elbow and seal onto the gas rail. o The elbow MUST be pointing in a downwards direction. o Gas pressure may be checked on a semi-rapid hob burner. Remove the appropriate injector and attach a test nipple. -
Page 32: Gas Adjustment (Conversion To Lpg)
= Gas inlet = Seals = Gas Elbow = Copper pipe (not supplied) o Put the gas seal into the elbow. o Fully tighten the elbow and seal onto the gas rail. IMPORTANT: The gas elbow must be in the position shown in the above line drawing. - Page 33 o Unscrew the injector (B) and replace it with the stipulated injector for the new gas supply (see table below). GENERAL INJECTORS TABLE Kind of gas Nozzle Burners Power (in watts) mm/100 Max. Min. Natural 3500 1700 Rapid 3000 Semi-rapid 1750 Auxiliary 1000...
-
Page 34: Minimum Flow Adjustment For Hob Gas Taps
Minimum flow adjustment for hob gas taps. work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the hob from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Switch the burner on and set the knob at the minimum position. -
Page 35: Gas Tap Maintenance
Gas tap maintenance These maintenance operations MUST ONLY be carried out by a GASSAFE registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing screws and clamps. -
Page 36: Electrical Connection
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at your mains supply. -
Page 37: My Appliance Isn't Working Correctly
Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance. -
Page 38: Contact Details
