Summary of Contents for Baumatic PHC620SS
- Page 1 PHC620SS 60 cm/ PHC720SS 77 cm Front touch control ceramic hob...
- Page 2 User Manual for your Baumatic PHC620SS 60 cm PHC720SS 77 cm Front touch control 4 hyperspeed zone ceramic hob. NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Unpacking the appliance Installing the appliance 23 – 24 Electrical connection Connecting the mains supply cable 25 – 26 Replacing the mains supply cable 26 - 27 My appliance isn’t working correctly 27 – 28 Baumatic Ltd. Conditions of Guarantee Contact details... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
Pans should be lifted on and off the hob surface and not dragged. o Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty. Specifications PHC620SS Product dimensions Height: 510 mm Width:... - Page 9 PHC720SS Product dimensions Height: 510 mm Width: 770 mm Depth: 40 mm Aperture dimensions Height: 490 mm Width: 750 mm Product specifications o 1 x 0.75/2.20 kW double hyperspeed zone (diametre 120/210 o 1 x 1.10/2.00 kW hyperspeed rectangular zone (diametre 140/240 mm) o 1 x 1.80 kW hyperspeed zone (diametre 180 mm) o 1 x 1.20 kW hyperspeed zone (diametre 140 mm)
-

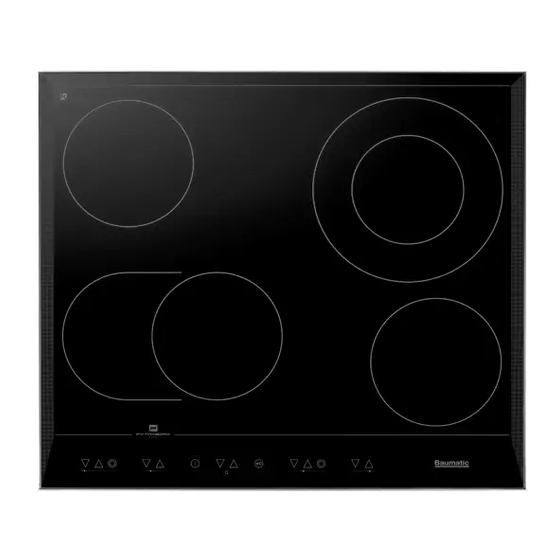

Page 10: Ceramic Hob Surface Layout
Ceramic hob surface layout PHC620SS PHC720SS... -
Page 11: Control Panel Layout
Control panel layout PHC620SS PHC720SS ON/OFF button Safety lock button Safety lock neon Plus button Minus button Cooking zone indicator Decimal point symbol Dual circuit ON/OFF button Dual circuit indicator neon Timer plus button Timer minus button Timer display Timer neon Cooking zone indicators and neon’s... -
Page 12: Using The Ceramic Hob
PHC720SS Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit. -
Page 13: Turning The Hob On
Turning the hob on o Press the ON/OFF button (1) o The cooking zone indicators (6) will all read “0”. o The decimal point symbols (7) will flash on and off. Turning on a zone and setting a power level IMPORTANT: A zone must be selected within 10 seconds of turning the hob on. -
Page 14: Turning Off A Zone Instantly
Turning off a zone instantly o Press the minus button (5) and the plus button (4) simultaneously. o The zone will switch off immediately. o An “H” will show in the cooking zone indicator (6), alternating with “0”. (See the section on the “residual heat indicator” below). -
Page 15: Residual Heat Indicator
o Use the plus (4) or minus (5) buttons of the dual circuit zone that you wish to use and select a power level between 1 and 9. o The central section of the duel circuit zone will switch on. o If you wish to also activate the outer section of a duel circuit zone, you should press the dual circuit ON/OFF button (8). -
Page 16: Locking The Hob Top
Locking the hob top o The whole hob top can be locked by pressing the safety lock button (2) whilst the appliance is turned on. o The safety lock neon (3) will light to show that the safety lock feature has been switched on. -
Page 17: Automatic Pre-Heating
Automatic pre-heating o This feature will set a cooking zone to maximum power and will then automatically set the cooking zone to a power level that you have selected after a certain period of time. o Press the minus button (5) once and power level 9 appears on the cooking zone indicator (6), then release the minus button. -
Page 18: Increasing The Power Level During Automatic Pre-Heating
Increasing the power level during automatic pre-heating o If a zone is already within automatic pre- heating mode and you wish to adjust the power level. Make sure that the decimal point symbol (7) is present in the cooking zone indicator. -
Page 19: Hob Guidelines
o After selecting the timer, a zone must be selected within 10 seconds by pressing one of the plus (4) or minus (5) buttons. You should use these buttons to select your desired power level. o The zone will switch on and start to heat, the timer neon (13) will switch on next to the relevant cooking zone indicator (6). - Page 20 Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY.
-
Page 21: Cleaning And Maintenance
Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the ceramic hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 22: Using A Ceramic Hob Scraper
Using a ceramic hob scraper Your appliance will be provided with a hob scraper. The following guidelines should also be followed when using the ceramic hob scraper:- o The scraper should be placed on the ceramic surface at an angle. o Residues should be removed by sliding the blade carefully over the ceramic surface. -
Page 23: Positioning
When unpacking the appliance please check that the following items are contained within the packaging: 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 4 Spring clips 1 Sealing strip... - Page 24 o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip provided around the edge of the appliance.
-
Page 25: Electrical Connection
WARNING: THIS APPLIANCE MUST BE EARTHED. o The PHC620SS appliance must be wired into a 30 A double pole switched fused spur outlet, having 3 mm contact separation and placed in an easily accessible position adjacent to the appliance. -
Page 26: Connecting The Mains Supply Cable
This should be done before contacting the Baumatic Service Department. o IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket. -
Page 27: Replacing The Mains Supply Cable
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the control switch. o Open the terminal block on the underside of the hob. - Page 28 * IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Service Department. o A humming sound is heard when a cooking zone is selected.
- Page 29 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
- Page 30 Czech Republic Baumatic CR spol s.r.o. Amperova 495 46215, Librec Czech Republic +420 800 185 263 United Kingdom www.baumatic.cz Baumatic Ltd., Baumatic Buildings, Slovak Republic 6 Bennet Road, Baumatic Slovakia, s.r.o. Reading, Berkshire Skultetyho 1 RG2 0QX 831 04 Bratislava 3...
