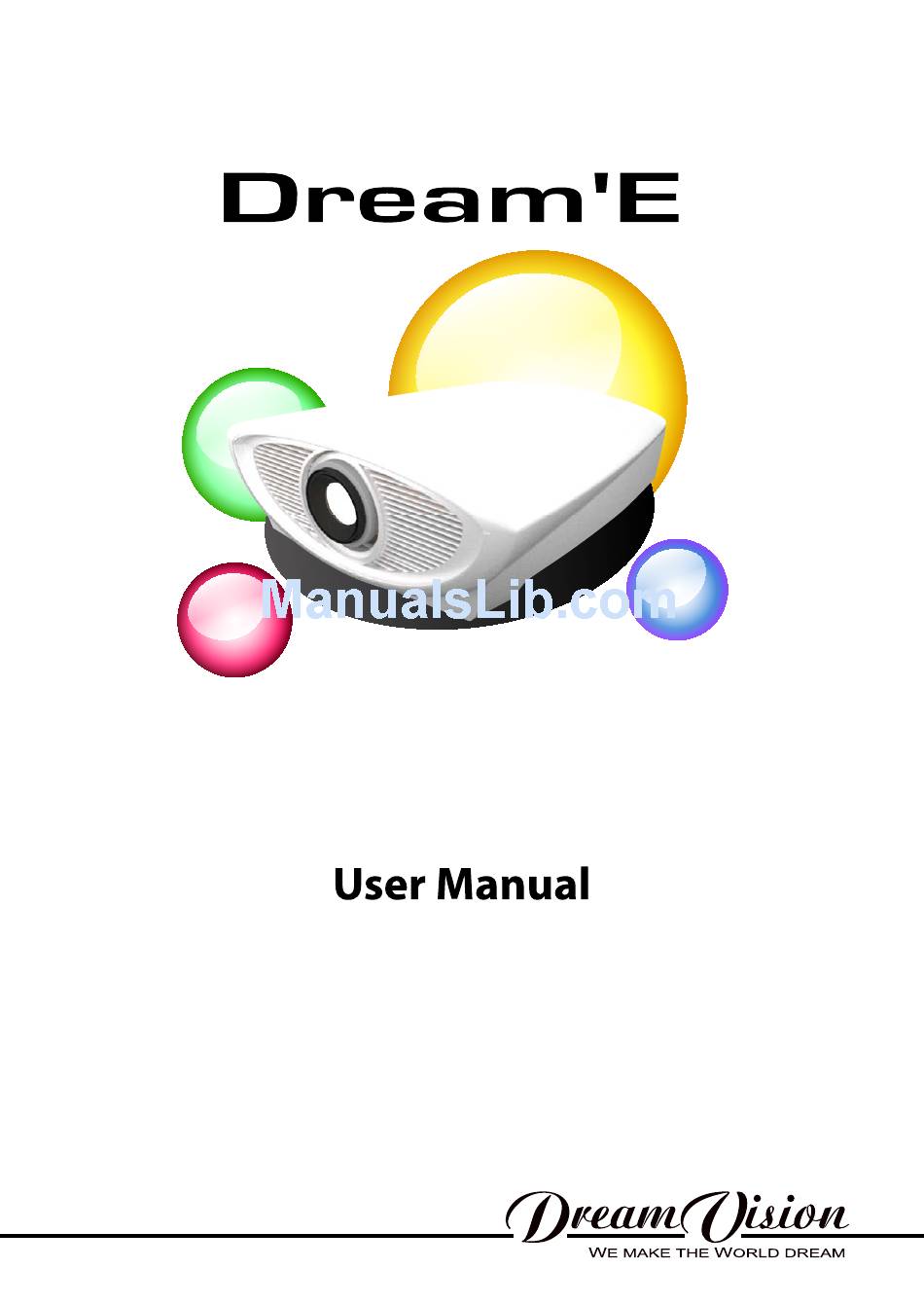

Dream Vision Dream'E R69976 User Manual

R699763 - dream e
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dream'E R69976 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dream Vision Dream'E R69976

Summary of Contents for Dream Vision Dream'E R69976

  • Page 2 Changes DreamVision provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. DreamVision may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.

  • Page 3: Table Of Contents

    ABLE OF ONTENTS SAFETY INSTRUCTIONS ..................... 5 Important information........................5 Lead-free regulation ......................5 Information for Users on Disposal of Old Equipment ............5 About the installation place....................5 Important safeguards.......................... 5 REGIONAL SPECIFIC INFORMATION..................7 FCC INFORMATION (USA ONLY) ................. 7 INSTALLATION GUIDELINES ..................
  • Page 4 HDMI Signal (HDMI level and Colorspace) ..............25 System Setup Menu ......................... 25 Language ........................... 25 Power Saving ........................25 Led Illumination........................ 25 Startup Screen ........................25 Background color ......................25 Lamp Output ........................25 OSD Style.......................... 26 OSD Timer ........................26 Initial Setup Menu ...........................

  • Page 5: Safety Instructions

    1.0 SAFETY INSTRUCTIONS 1.0 SAFETY INSTRUCTIONS 1.1 Important information Lead-free regulation This product has a High Intensity Discharge (HID) lamp that contains a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: http:// www.eiae.org.
  • Page 6 1.0 SAFETY INSTRUCTIONS temperature, as this causes condensation, which opening or removing covers may expose you to may result in fire, electric shock, or other dangerous voltages and other hazards. Refer all hazards. service to qualified service personnel. • Do not place this product on an unstable cart, •...

  • Page 7: Regional Specific Information

    1.0 SAFETY INSTRUCTIONS it. Fragments from a broken light-source lamp may cause injuries. • The light-source lamp used in this projector is a high pressure mercury lamp. Be careful when disposing of the light source lamp. If anything is unclear, please consult your dealer. •...

  • Page 8: Installation Guidelines

    2.0 INSTALLATION GUIDELINES 2.0 INSTALLATION GUIDELINES 2.1 Environment of Use • Do not use this unit in rooms with cigarette smoke or oily smoke. This may cause the unit to malfunction. Mounting this unit to the ceiling Check temperature around the unit. When a heater is in use, the ceiling may reach a temperature higher than anticipated, hence leading to malfunction of the unit.

  • Page 9: Ceiling Mounting The Unit

    2.0 INSTALLATION GUIDELINES 150 mm 150 mm 100 mm 150 mm 100 mm 150 mm Space requirements 2.3 Ceiling mounting the unit When mounting of this unit is required, make use of the 3 screw holes (M6x20 screws) at the bottom of this unit indicated by the letter A.

  • Page 10: Projection Distance

    2.0 INSTALLATION GUIDELINES Projection Distance Projection Screen Size Projection Screen Size Projection Screen Dream E Diagonal size Base size Height Projecting Distance (Aspect Ratio 16:9) (Aspect Ratio 16:9) (Aspect Ratio 16:9) minimum - maximum 50" (1270 mm) 43,6" (1107 mm) 24,5"...
  • Page 11 2.0 INSTALLATION GUIDELINES This unit comes with a optical shift that features vertical and horizontal adjustment of the projection screen position. Adjust the picture to your screen. • The Vertical Shift level is between -60% and 60% of the Screen Height (0.60 x H). •...
  • Page 12 2.0 INSTALLATION GUIDELINES Turn anti-clockwise to shift the picture on the screen upward. 2.4.0.2 Adjust the picture position horizontally Turn clockwise to shift right the picture on the screen. Turn anti-clockwise to shift left the picture on the screen. R699763 - Dream E User Manual...

  • Page 13: Focus And Zoom Adjust

    2.0 INSTALLATION GUIDELINES 2.5 Focus and Zoom Adjust Zoom In Zoom Out Focus Adjust Zoom Adjust Use the inner ring to adjust the picture focus, and use outer ring to adjust the picture size (zoom). R699763 - Dream E User Manual...

  • Page 14: Remote Control Unit (Rcu)

    3.0 REMOTE CONTROL UNIT (RCU) 3.0 REMOTE CONTROL UNIT (RCU) 3.1 General view Power ON button STANDBY button Select Active Input Video, PC, HDMI S-Video, Comp, Switch Confirm button Navigation buttons Display Menu Exit to previous menu Dynamic, Theater, Standard Select Picture Mode User1, User2, User3 Digital Zoom...

  • Page 15: How To Use The Remote Control Unit

    3.0 REMOTE CONTROL UNIT (RCU) it is firmly closed. AUTION WHEN USING BATTERIES Do not mix new and old batteries.Do not mix different type of batteries as they are different in characteristics. Insert batteries according to the + and - marks on the battery case. Do not put batteries into fire or recharge them if they are not design to.

  • Page 16: Getting Started

    4.0 GETTING STARTED 4.0 GETTING STARTED 4.1 General View Front side Air Inlet Air Inlet IR sensor Focus and Zoom Adjust • Air Inlets: see “Air-Flow and Space Requirements”, page 8. • Focus and Zoom Adjust: see “Focus and Zoom Adjust”, page 13. Rear side Operating LEDs Back IR sensor...

  • Page 17: Connecting The Power Cord

    4.0 GETTING STARTED 4.2 Connecting the Power Cord • Before plugging in the Power Cord, ensure that all devices have been connected. • Connect the power cord to the power input terminal of the projector. AUTION AGAINST IRE AND LECTRIC HOCK Since the power consumption of this unit is high, insert the power plug directly into a wall outlet.

  • Page 18: Operating And Navigation Buttons

    5.0 CONNECTIONS BOUT OWN MODE After projection or when warning occurred, the heated lamp will go through a 2 minutes cool-down process known as the Cool Down mode. This function is to prevent damage and deformation from the heated lamp may cause to the internal components of the projector.

  • Page 19: Connecting A Device To The Projector

    5.0 CONNECTIONS 5.1 Connecting a device to the projector RS-232 (1:1) YPbPr HDMI 2 Video HDMI 1 S-Video VGA (Sub D-15) Input Device DVD-Player, HDTV Receiver, Game Console (SD or HD), DVB-T receiver, YPbPr Multimedia box, Analog Camera DVD-Player, Computer video, Game Console (SD), digital camera, video Video camera.

  • Page 20: Menu And Picture Setting

    6.0 MENU AND PICTURE SETTING 6.0 MENU AND PICTURE SETTING 6.1 Menu Structure MAIN MENU SUBMENU AVAILABLE OPTIONS Picture Picture Mode Standard Dynamic Theater User1 User2 User3 Picture Adjustment Brightness 0-100 Contrast 0-100 Color 0-100 -50 +50 Sharpness 0-100 Color Temperature: (D65) Medium High User...
  • Page 21 6.0 MENU AND PICTURE SETTING Input Signal Input Source Composite, S-Video, Component, RGB, (source dependant) HDMI1, HDMI2 Aspect Ratio Standard Full Screen Cinemascope Converted 16:9 Virtual Wide Cinemascope Aspect Ratio 1.78-2.50 Converted 16:9 Aspect Ratio 1.30-1.78 Overscan Black Level setup 0 IRE 7.5 IRE Black Level adjustment...
  • Page 22 6.0 MENU AND PICTURE SETTING Initial Setup Location Front Table Front Ceiling Rear Table Rear Ceiling Keystone Adjustment Horizontal Keystone -30 +30 Vertical Keystone -30 +30 Lamp Timer Warning System Reset Alignment X Alignment X-R -5 +5 X-B -5 +5 Y Alignment Y-R -5 +5 Y-B -5 +5...

  • Page 23: Picture Menu

    6.0 MENU AND PICTURE SETTING 6.2 Picture Menu Picture Mode Three preset picture modes are available and they can be applied to any input. A picture mode retains the following settings that are applied to the selected input: • Brightness •...

  • Page 24: Detail Enhancement

    6.0 MENU AND PICTURE SETTING Detail Enhancement Detail Enhancement function is used to greatly improve the picture quality. The default value is Low. Set it to Off to soften the picture or to Medium or High to improve a medium quality input. 6.3 Advanced Picture Settings Aperture Control The Ultimate Reference Lens™...

  • Page 25: Converted 16:9 Aspect Ratio

    6.0 MENU AND PICTURE SETTING between 1.78 up to 2.50 when using an anamorphic lens. Converted 16:9 Aspect Ratio The “Converted 16:9” mode is used to horizontally squeeze the picture. This mode is to be used with a fixed anamorphic lens to obtain a 16:9 picture using a 2.35:1 projection screen. Configure the Aspect Ratio function when “Converted 16:9”...

  • Page 26: Osd Style

    6.0 MENU AND PICTURE SETTING The Lamp Output function is used to configure the light output of the lamp. OSD Style This function is used to set the On Screen Display to opaque or transparent. OSD Timer This function is used to determine how long the OSD is displayed before fade out. 6.6 Initial Setup Menu Location Determines the picture orientation.

  • Page 27: Theatre Mode

    7.0 THEATRE MODE 7.0 THEATRE MODE 7.1 Optional Wide System and 2.35 THEATRE System The Dream’E centralizes the controls and automation commands for both the Wide System and the 2.35 THEATRE System for a unique, versatile and unexpectedly simple to operate 2.35:1 theatre experience using an Anamorphic Lens.

  • Page 28: Wide System (Ref.t9003000)

    7.0 THEATRE MODE Full Screen A motorized anamorphic lens uses Full Screen and Cinemascope. Cinemascope Standard A fixed anamorphic lens uses Cinemascope and Converted 16:9. Virtual Wide Converted 16:9 When you press sequentially the [ASPECT] button, the aspect mode rotation goes clock-wise.

  • Page 29: Theater System (Ref. T9004000)

    7.0 THEATRE MODE To switch forth and backward, press twice the [ASPECT] button on the RCU as described below. Full Screen Converted 16:9 Cinemascope on 2.35 screen 16:9 format 2.35:1 format When the source automatically switches format..press twice [ASPECT] button on the Remote Control Unit 2.35 THEATER System (Ref.

  • Page 30: Select A Different Input: Aspect Ratio To Full Screen

    7.0 THEATRE MODE Select a different input: Aspect Ratio to “Full Screen” When you switch to a different input, the Anamorphic Lens is automatically removed from the projector if this input is not configured in Cinemascope. You can switch back to the wide format input, the Anamorphic Lens will be automatically moved in front of the projector.

  • Page 31: Maintenance

    8.0 MAINTENANCE 8.0 MAINTENANCE 8.1 Clean Dirt on the Cabinet Always use a soft cloth. In case of heavy soiling, soak a cloth in neutral detergent diluted with water, wring dry and wipe, followed by wiping again using a dry cloth. Caution Pay attention to the following as the cabinet may deteriorate in condition, get damaged or paint may come off.

  • Page 32: Cleaning And Replacing The Dust Filters

    8.0 MAINTENANCE • Tighten the screws of the lamp unit and close the handle. • Attach the lamp cover and fasten the screws. Resetting Lamp Time installing a new lamp, reset the lamp time into the OSD menu. After a) Insert plug into the power outlet b) Switch on the projector and browse into the menu: “Menu =>...

  • Page 33: Miscellaneous

    9.0 MISCELLANEOUS 9.0 MISCELLANEOUS 9.1 RS-232 input Communication Specifications Control of this unit is possible using a computer or automation device connected with a RS-232 straight cable (male - female D-sub 9 pins cable). Communication specifications for this unit are as follows: Baud Rate 115200 bps Data Format...
  • Page 34 9.0 MISCELLANEOUS Keypad 01h 01h MENU: Toggle OSD Menu ON and OFF 01h 02h UP: Uses as up function key for navigation 01h 03h DOWN: Uses as down function key for navigation 01h 04h LEFT: Uses as left function key for navigation 01h 05h RIGHT: Uses as right function key for navigation 01h 06h...
  • Page 35 9.0 MISCELLANEOUS Block Artifact 09h 05h Set BAR to Off 09h 06h Set BAR to On Reset to default 0Ah 01h Reset settings to default value Examples You want to... Command to send Switch the projector ON 00h 01h FFh Switch the projector OFF 77h 88h 99h 03h 02h 01h FFh Switch the projector OFF with...

  • Page 36: Specifications

    9.0 MISCELLANEOUS Specifications Overview The Dream’E uses the latest technology developed to provide the ultimate video-projection experience. LCoS (Liquid Crystal on Silicon) technology based on a reflective principle features an extremely high-definition picture and seamless color gradations. Emission Method LCoS (Reflective Active Matrix Principle) Display Panel/Size 0.6"...

  • Page 37: Dimensions

    9.0 MISCELLANEOUS Dimensions 192 mm 7.6’’ 522 mm 526 mm 20.5’’ 20.7’’ 522mm 20.5’’ R699763 - Dream E User Manual...
  • Page 38 9.0 MISCELLANEOUS R699763 - Dream E User Manual...
  • Page 39 Contact Information: TEC - DreamVision 7, rue La CAILLE, 75017 Paris - FRANCE Web: www.dreamvision.net...
