Summary of Contents for Dream Vision R699740

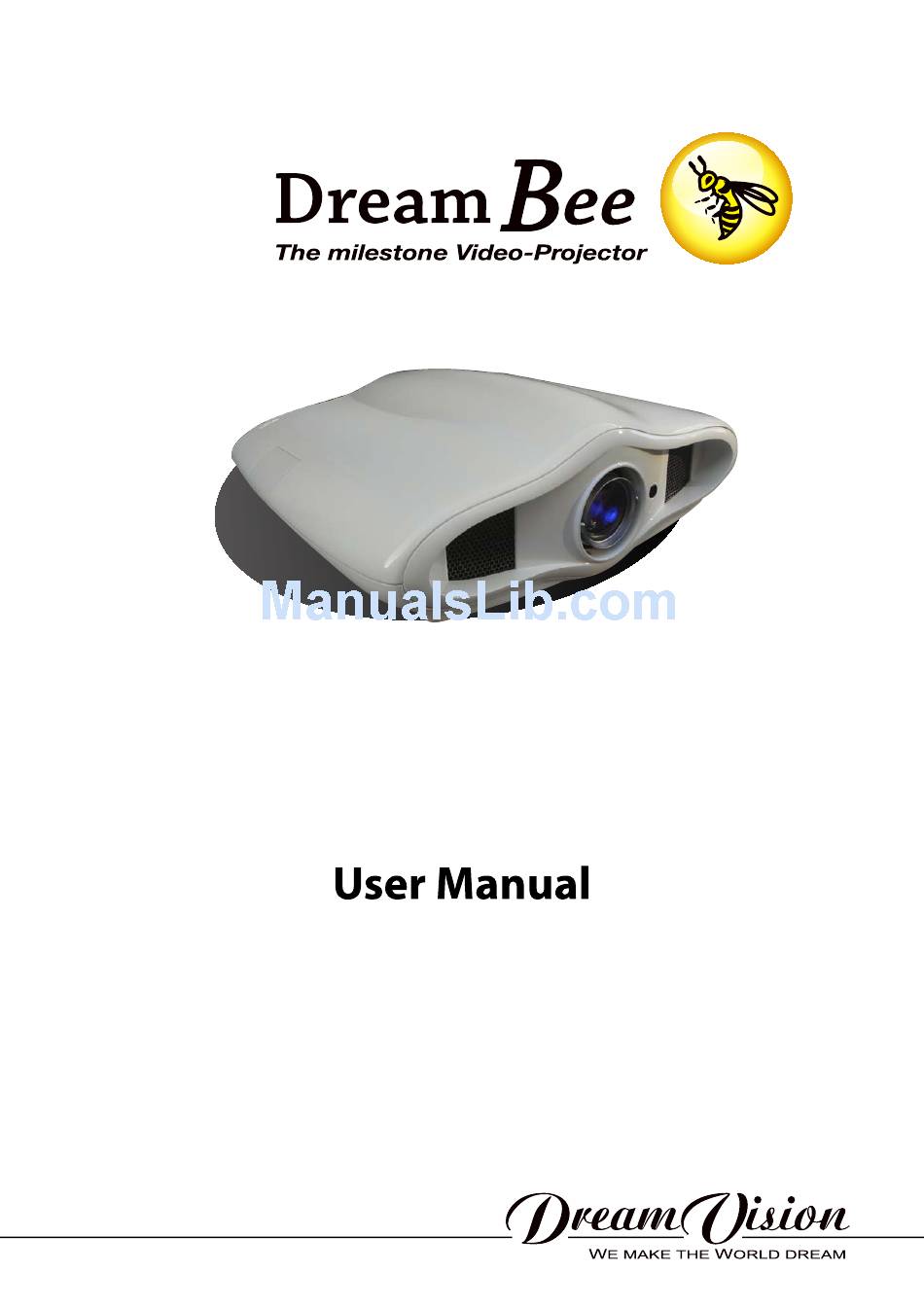

- Page 2 Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders. All brands and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for the products of their manufactures. R699740 - DreamBee User Manual...
-
Page 3: Table Of Contents
MENU AND PICTURE SETTING................25 How to start up the Menu ........................ 25 Box like Menu Structure ....................25 How to activate the Menu Structure.................. 25 How to select an Item and make an Adjustment ............... 25 R699740 - DreamBee User Manual... - Page 4 Procedure for Lamp Replacement..................34 Resetting Lamp Time ......................34 Cleaning and Replacing the Dust Filter ................... 34 Pull out the plug from the power outlet ................34 Remove the inner filter...................... 34 Clean the filter........................35 R699740 - DreamBee User Manual...
- Page 5 RS-232C input ..........................38 Pin Assignment........................38 External Control ........................ 38 Communication Specifications ..................38 Command Format......................38 Response data format ......................38 Available Commands and Parameters................39 Specifications..........................41 Overview ........................... 41 Dimensions........................42 R699740 - DreamBee User Manual...
-
Page 6: Packaging And Dimensions
Take the projector out of its shipping carton, remove the foam rubber and place it on a table. 1.3 Projector Dimensions 205 mm 8.0’’ 585 mm 470 mm 23.0’’ 18.5’’ 585 mm 23.0’’ R699740 - DreamBee User Manual... -
Page 7: Safety Instructions
The power input is auto-ranging from 100 to 240 VAC. Please read these Important Safeguards carefully before use. • All the safety and operating instructions should be read before the product is operated. R699740 - DreamBee User Manual... - Page 8 Exposure of your lightning storm, or when it is left unattended and eyes to the strong light can result in impaired unused for long periods of time, unplug it from the R699740 - DreamBee User Manual...
-
Page 9: Regional Specific Information
United States. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. R699740 - DreamBee User Manual... -
Page 10: Installation Guidelines
25° vertically. Doing so may cause unevenness in the color or shorten the lamp life. • Projection at a location that blocks the air inlets or exhaust vents. • Projection at a place exposed to air blasts from an air conditioner. R699740 - DreamBee User Manual... -
Page 11: Air-Flow And Space Requirements
This unit can be installed in table position. Make sure that the unit is installed within the space requirements described below. • A: Air inlets • B: Air outlets Air flow 150 mm 150 mm 150 mm 100 mm 100 mm 150 mm Space requirements R699740 - DreamBee User Manual... -
Page 12: Ceiling Mounting The Unit
The projection screen sizes and projecting distances in the table above are provided only as a guide. Please use them as reference during installation. • Use a projection image of 16:9 aspect ratio for setup adjustment. R699740 - DreamBee User Manual... -
Page 13: Vertical And Horizontal Offset Setting
The horizontal shift level is between -34% and 34% of screen base. • The shift level is set to 0% vertically and horizontally by default. • The position of the projection screen may be out of alignment due to the gear movement. R699740 - DreamBee User Manual... - Page 14 (-80% to +80%) The Vertical and Horizontal shift dials are located at the bottom of the unit. Turn clockwise to shift the picture on the screen downward. Turn anti-clockwise to shift the picture on the screen upward. R699740 - DreamBee User Manual...
- Page 15 3.0 INSTALLATION GUIDELINES 3.5.0.2 Adjust the picture position horizontally Turn clockwise to shift right the picture on the screen. Turn anti-clockwise to shift left the picture on the screen. R699740 - DreamBee User Manual...
-
Page 16: Remote Control Unit (Rcu)
Test Pattern button Backlight button TEST LIGHT 4.2 Loading and replacing batteries • Push the cover tab with the fingernail a little backwards and pull upwards the cover top. Slide the cover forward to remove. R699740 - DreamBee User Manual... -
Page 17: How To Use The Remote Control Unit
The remote control unit can be used by having the transmission signal reflected off a screen, as the effect of signals reflected from the RCU differ with the type of screen used, operable distance may decrease. R699740 - DreamBee User Manual... -
Page 18: Getting Started
Operating and Navigation buttons described in section 5.5, page 21. 5.2 Connecting the Power Cord •Before plugging in the Power Cord, ensure that all devices have been connected. •Connect the power cord to the power input terminal of the projector. R699740 - DreamBee User Manual... -
Page 19: Focus And Zoom Adjust
Do not cut, tear or modify the power cords. Also, do not place a heavy object on, heat or stretch the power cords as this may cause damage to the cords. Do not insert or pull plugs with a wet hand. 5.3 Focus and Zoom Adjust Zoom In Zoom Out Focus Adjust Zoom Adjust R699740 - DreamBee User Manual... -
Page 20: Operating Leds
When in Cool Down mode, do not pull out the plug from the outlet. Also, do not block the air inlets/exhaust vents by standing the projector on its end or laying it on its side. R699740 - DreamBee User Manual... -
Page 21: Operating And Navigation Buttons
To turn On or Off the projector. Input To switch the input selection. Hide To hide temporary the picture. Exit To return to previous menu or cancel action. Menu To display On Screen Display (OSD) Menu. R699740 - DreamBee User Manual... -
Page 22: Connections
Make sure to use a good quality cable, especially when the distance between the different devices are longer than 5 meters. If it is the case, the use of a split system or optical fiber cable is highly recommended. R699740 - DreamBee User Manual... -
Page 23: Connecting A Device With S-Video Output
Video output 6.5 Connecting a device with Component Output Audio Video Source: DVD-Player HDTV receiver Game Console (SD or HD) DVB-T Television receiver Multimedia Box Analog Camera Cr/Pr - Red Cb/Pb - Blue Y - Green R699740 - DreamBee User Manual... -
Page 24: Connecting A Device With Scart Output (European Market)
Control Device Computer with RS-232* RS-232 output RS-232C SING WITH A OMPUTER The RS-232 Control and Automation may require specific softwares and tools. See “RS-232C input”, page 38 for more details on RS-232C cabling and protocol. R699740 - DreamBee User Manual... -
Page 25: Menu And Picture Setting
If the selected item has a sub menu, this sub menu will open. (Input Adjust, Offset, etc.) • Use the [EXIT] key to return to the previous menu, or to clear the menu screen when the main menu is displayed. R699740 - DreamBee User Manual... -
Page 26: Menu Structure
Picture Position Adjust the horizontal and vertical position of the picture on the screen HDMI Input Level Standard (Available for HDMI1 and 2 inputs) Enhanced (see page 29) Mask 2.5%, 5%, Off (for High Definition picture) R699740 - DreamBee User Manual... - Page 27 Japanese, English, German, Spanish, Italian, French, Portuguese, Dutch, Swedish, Norwegian, Chinese (Simplified) Info. Input Display selected video Input Source Display the type of the current input video signal Lamp Time Display the accumulated hours usage of the lamp R699740 - DreamBee User Manual...
-
Page 28: Image Menu
(more blue) light. The User settings allow a manual configuration of each primary color Red, Green and Blue from -255 to 0. Accurate picture calibrations may require professional tools such as dedicated software and colormeter. R699740 - DreamBee User Manual... -
Page 29: Gamma
Enhanced. select this setting when the black and white of the picture is unclear with RGB video signals from DVI devices. ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ MENU Setup HDMI Input Level Standard / Enhanced R699740 - DreamBee User Manual... -
Page 30: Mask
Reset Dynamic You can set up to 6 profiles: Cinema, Natural, Dynamic, User 1, User 2 and User 3. The Image Profile can be directly accessed with the Remote Control Unit buttons. 7.6 Video Menu COMP R699740 - DreamBee User Manual... -
Page 31: Hdmi Color Space
Flip V. Set Flip V. On if the unit is installed in ceiling position. High Altitude Set High Altitude On when using the unit at low atmospheric pressure, typically higher than 900 meters above sea R699740 - DreamBee User Manual... -
Page 32: Function Menu
French, Portuguese, Dutch, Swedish, Norwegian and Chinese (simplified). 7.9 Information Menu Input Displays the active video input. Source Displays the type of the current input video signal. Lamp Time Displays the accumulated hours of usage of the lamp. R699740 - DreamBee User Manual... -
Page 33: Clean Dirt On The Cabinet
In this case, replace with a new lamp and reset the lamp time. • The projection mode (operating mode) cannot be restored until a new lamp is replaced and the lamp time reset. R699740 - DreamBee User Manual... -
Page 34: Procedure For Lamp Replacement
Pull out the power plug from the outlet while the [STANDBY/ON] indicator is still on. Remove the inner filter Push up and lift the claw at the base of the inner filter, followed by drawing out the filter. R699740 - DreamBee User Manual... -
Page 35: Reinstall The Inner Filter
The message will be displayed with the Warning word when the accumulated lamp time exceeds 2000 hours. The message can be cleared by pressing the [EXIT] button. Install a new lamp and reset the lamp time. see “Procedure for Lamp Replacement”, page 34. R699740 - DreamBee User Manual... -
Page 36: Led Warning
External temperature is too high. leave the unit until it cools down. After that, turn ON the power again. Leave the unit until it cools down, then turn ON the Cooling Fan speed error. power again. R699740 - DreamBee User Manual... -
Page 37: Before Sending The Projector To Repair
This unit uses a microcomputer. External noise may cause it to malfunction. If this happens, turn off the power and remove the plug from the power outlet. Insert plug again into the outlet and check operation of the unit. R699740 - DreamBee User Manual... -
Page 38: Miscellaneous
: Designates the end of the data. Fixed to Line Feed (0Ah) *[ ] is not necessary Response data format Upon receiving a valid control command, the unit sends back the following response data to the computer to R699740 - DreamBee User Manual... -
Page 39: Available Commands And Parameters
37h 33h 31h 44h MENU 37h 33h 32h 45h ENTER 37h 33h 32h 46h Right button 37h 33h 33h 34h Left button 37h 33h 33h 36h VIDEO 37h 33h 34h 42h S-VIDEO 37h 33h 34h 43h R699740 - DreamBee User Manual... - Page 40 Rsp : 40h 89h 01h 50h 57h 31h 0Ah Ask the projector its Active Input ACK: 06h 89h 01h 49h 50h 0Ah 3Fh 89h 01h 49h 50h 0Ah S-Video being active Rsp : 40h 89h 01h 49h 50h 30h 0Ah R699740 - DreamBee User Manual...
-
Page 41: Specifications
D-ILA is the abbreviation for Direct drive Image Light Amplifier. D-ILA devices are the newest display technology for projection devices, based on reflective L-COS technology. The manufacturing process features a pixel effectiveness of 99,99% and the fill factor obtained is above 93%. R699740 - DreamBee User Manual... -
Page 42: Dimensions
9.0 MISCELLANEOUS Dimensions 205 mm 8.0’’ 585 mm 470 mm 23.0’’ 18.5’’ 585 mm 23.0’’ R699740 - DreamBee User Manual... - Page 43 Contact Information: TEC - DreamVision 7, rue La CAILLE, 75017 Paris - FRANCE Phone: +33 1 42 29 44 44, Fax: +33 1 42 29 09 10 e-mail : sales@dreamvision.net, Web: www.dreamvision.net R699740 - DreamBee User Manual...
