Dream Vision YUNZI User Manual

High contrast video-projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HIGH CONTRAST VIDEO-PROJECTOR
ACTIVE
GLASSES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YUNZI and is the answer not in the manual?

Questions and answers

Related Manuals for Dream Vision YUNZI

Summary of Contents for Dream Vision YUNZI

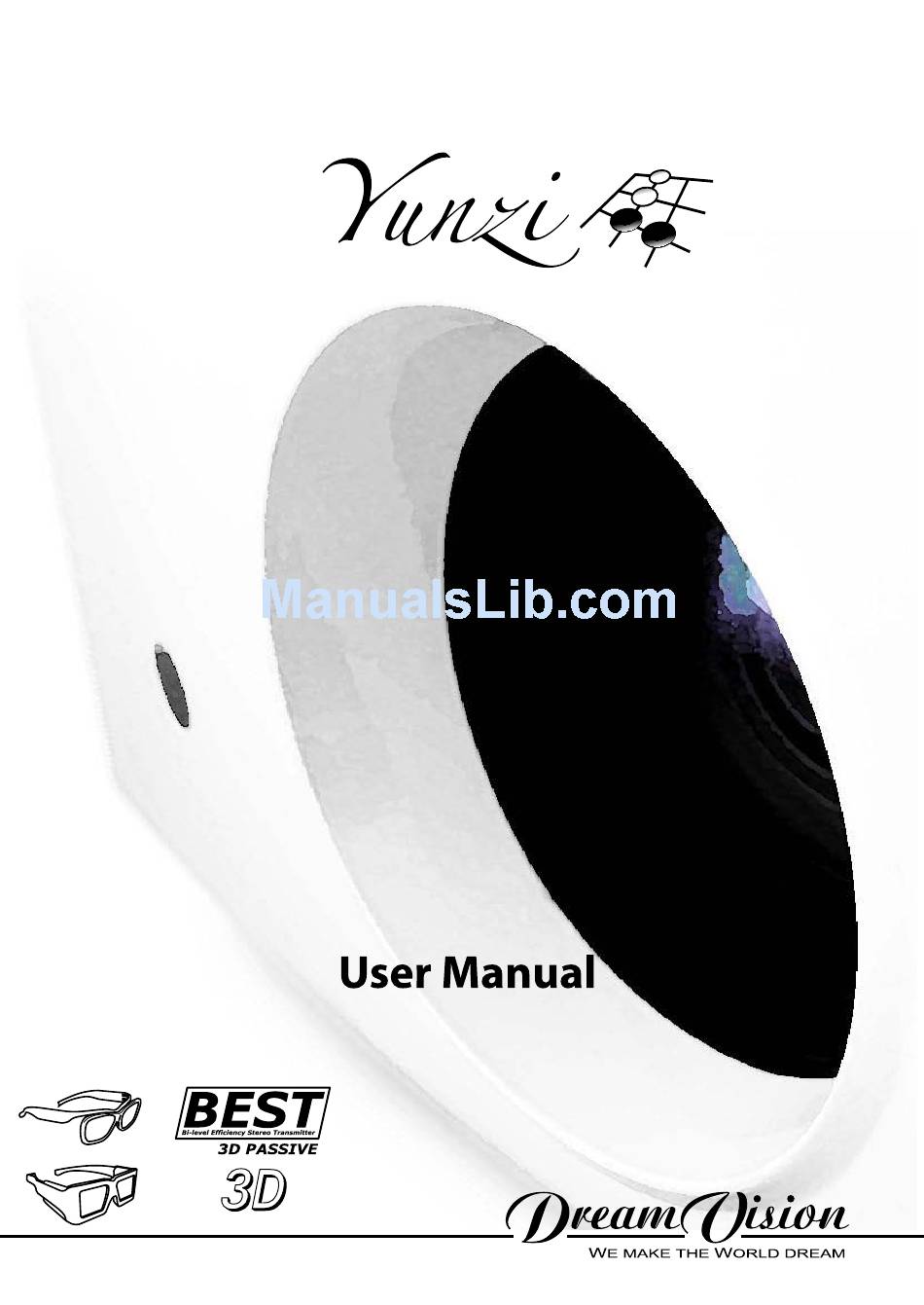

  • Page 1 HIGH CONTRAST VIDEO-PROJECTOR ACTIVE GLASSES...
  • Page 2 Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders. All brands and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for the products of their manufactures. R699820 - Yunzi Series User Manual...

  • Page 3: Table Of Contents

    Regional Specific Information......................7 INSTALLATION GUIDELINES ..................8 About 3D Content and 3D Projection....................8 THX-3D Display Certification (Yunzi 2 & 3) ................... 8 Comfort and Caution with 3D Content....................9 3D-Synchro Emitter and 3D Glasses ....................9 Best seat position for 3D projection ....................9 Environment of Use .........................
  • Page 4 Cleaning and Replacing the Dust Filters ..................39 14.5 Troubleshooting ..........................39 15.0 MISCELLANEOUS ....................... 40 15.1 RS-232C protocol ..........................40 15.2 LAN protocol ........................... 46 15.3 Infra Red, long hex-pronto compatible RCU................... 47 15.4 Specifications........................... 48 R699820 - Yunzi Series User Manual...

  • Page 5: Safety Instructions

    Do not use this product near water. Do not use immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in fire, electric shock, or other hazards. R699820 - Yunzi Series User Manual...
  • Page 6 Fragments from a broken light-source lamp dangerous voltages and other hazards. Refer all may cause injuries. service to qualified service personnel. • The light-source lamp used in this projector is a R699820 - Yunzi Series User Manual...

  • Page 7: Regional Specific Information

    United States. The FCC's jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions. R699820 - Yunzi Series User Manual...

  • Page 8: Installation Guidelines

    film director during playback of 2D and 3D images, and they are the proof of high definition and high quality, indicating that Yunzi 2 & 3 have cleared more than 400 rigorous image quality tests including accuracy of color reproduction, cross-talk, viewing angle and video processing performance.

  • Page 9: Comfort And Caution With 3D Content

    In general the perception of the 3D effect will vary according to your seat position and to the screen size. When a movie is produced for 3D projection, the director knows the exact distance where the 3D effect will be perceived. In R699820 - Yunzi Series User Manual...

  • Page 10: Environment Of Use

    2.7 Air-Flow and Space Requirements This unit can be installed in table, ceiling, rear table or rear ceiling position. Make sure that the unit is installed within the space requirements described below (A: air inlets, B: air outlets). R699820 - Yunzi Series User Manual...

  • Page 11: Ceiling Mounting The Unit

    Dimensions Distances between left and right holes is D = 337 mm. Distances between front and back holes is d = 290 mm. 2.9 Projection Distance R699820 - Yunzi Series User Manual...

  • Page 12: Setting The Lens And Using Lens Memories

    Screen Base (B) This unit comes with a vertical and horizontal shift to suit most installations. Make sure that your installation does not exceed 80% vertical offset and 34% horizontal offset to avoid trapezoidal correction. R699820 - Yunzi Series User Manual...
  • Page 13 Using Lens Memories You can save the current picture position, zoom and focus in up to 5 different Lens Memories (10 for Yunzi 2 & 3). Each memory stores the current position, zoom, focus of the lens and you can also set a custom name of 10 characters or less.

  • Page 14: Remote Control Unit (Rcu)

    + and - marks inside the battery compartment. • Insert the lower tab of the battery cover in the gap at the bottom of the remote control, and press the cover until it is firmly closed. R699820 - Yunzi Series User Manual...

  • Page 15: How To Use The Remote Control Unit

    The remote control unit can be used by having the transmission signal reflected off a screen, as the effect of signals reflected from the RCU differ with the type of screen used, operable distance may decrease. R699820 - Yunzi Series User Manual...

  • Page 16: Getting Started

    Air Outlet Operating LED Front IR sensor • Optical Lens & Lens cover. The lens cover on model Yunzi 2 & 3 is motorized. • Operating LEDs: see section 4.3, page 17 for more details. • Air Outlets: see “Air-Flow and Space Requirements”, page 10.

  • Page 17: Connecting The Power Cord

    When in Cool Down mode, do not pull out the plug from the outlet. Also, do not block the air inlets/exhaust vents by standing the projector on its end or laying it on its side. When the projector is running for more than 1 minute, the Standby/ON LED will automatically switch OFF. R699820 - Yunzi Series User Manual...

  • Page 18: Operating And Navigation Buttons

    Prior to connecting any device to this unit, switch the projector in standby mode. Never connect a HDMI source to this unit when the projector is in operate mode. The HDMI termination is a self-powered connection and can cause electric discharges. R699820 - Yunzi Series User Manual...

  • Page 19: Connecting A Video Source To The Projector

    Multimedia box, Analog Camera. VGA (Sub D-15) For Yunzi 2 & 3: Computer, Multimedia box using their VGA output. (*) Yunzi 2 & 3 only Make sure to use a certified HDMI cable, especially when the distance between the different devices are longer than 5 meters.

  • Page 20: Connecting An Automation Or Control Device

    46 for more details on the network configuration and protocol. ONNECTING AN AUTOMATION CONTROL DEVICE This unit can control or be controlled by using several input/output terminals. Each terminal is ruled by specific protocols. Please refer to Appendix for more information. R699820 - Yunzi Series User Manual...

  • Page 21: Menu Structure

    Animation (Video programs) Natural (Concerts) Stage User1 User2 User3 User4 User5 Add. Picture Modes (Yunzi 2 & 3) (*) for expert users, require THX bright(*) individual calibration THX dark(*) ISF Day(*) ISF Night(*) Color Profiles (Yunzi 1) (HDTV) Standard the list varies upon current Picture (Movies and films)
  • Page 22 0 - 16 MNR (SD only) 0 - 16 BNR (SD only) On, Off Custom Gamma: Custom1 Custom2 Custom3 Correction value Gamma Adjustment White Green Blue Color Management Custom1 Custom2 Custom3 Pause On, Off R699820 - Yunzi Series User Manual...
  • Page 23 Color Space Auto YCbCr(4:4:4) YCbCr(4:2:2) Control with HDMI (CEC) On, Off COMP. Color Space YCbCr PC input (Yunzi 2 & 3) Auto Alignment Tracking Phase Picture position Hor., Vert. Picture Position Horizontal Vertical Aspect (Video only) if 3D, only 16:9 is available...
  • Page 24 Anamorphic (vert. stretch) (hor. squeeze) Screen Adjust A, B, C (Yunzi 1) (Color Profile must be On) 001 - 105 (Yunzi 2 & 3) Environment Setting Environment Setting On, Off Screen Size (inch diag.) 60 - 200 Viewing Distance 1m - 10m...

  • Page 25: Picture Adjust Settings

    3D Animation Standard The Yunzi 2 & 3 have an additional THX picture mode to obtain a non over-saturated colors in a dark environment. This picture mode is optimized for dark rooms. There are 16 Color profiles, depending on the picture mode, you may choose an available color profile preset: •...

  • Page 26: Color Temperature

    Accurate color temperature may require professional tools such as dedicated software and colormeter. Wait at least 15 minutes after startup before modifying the picture settings. (*) Xenon Modes are exclusive to Yunzi 2 & 3 models. 7.3 Gamma Gamma is the relationship between the color values of the data and the color values displayed. The Gamma coefficient makes it possible to adjust the brightness of the midtones only without affecting the very bright and very...

  • Page 27: Dark / Bright Level

    -Areas affected by the Enhance parameter are colored Blue and Green. -Areas affected by the Dynamic Contrast parameter are colored Red and Yellow. -Areas affected by the Smoothing parameter are colored Black. Noise Reduction R699820 - Yunzi Series User Manual...

  • Page 28: Reset Picture Profile

    To avoid any damage to the lamp, you can’t change the lamp power within 90 seconds from the projector startup or 60 seconds after lamp power change. 7.11 Reset Picture Profile Prompt a confirmation to reset the current Picture Profile to default settings. R699820 - Yunzi Series User Manual...

  • Page 29: Input Signal Settings

    Y Pb/Cb Pr/Cr: Select this option if the COMP. input is connected to a component video signal. • RGB: Select this option if the COMP. input is used with a RGB video source. 8.3 PC (Yunzi 2 & 3 only) This menu is available if the selected active input is PC (Sub-D15) input. •...

  • Page 30: Mask

    Adjustments White, Red, Green and Blue: -8 +8 Negative values reduce visible Crosstalk, positive values bring a brighter 3D picture at the cost of more Crosstalk. R699820 - Yunzi Series User Manual...

  • Page 31: Expert Calibration (Yunzi 2 & 3)

    Call up saved lens adjustment data to configure the lens to the save settings. Lens Memory Save Store into an available memory the lens focus, zoom and shift configuration. There are 5 memories for Yunzi 1 and 10 memories for Yunzi 2 & 3.

  • Page 32: Installation Style

    5% left/right and 15% up/down. • Vertical Keystone from -30 to +30. • Horizontal Keystone from -40 to +40. NB: When a 3D signal is fed the Keystone is inactive. R699820 - Yunzi Series User Manual...

  • Page 33: Pincushion

    001 - 009: select a profile between 001 and 009 when watching 3D content with 3D shutter glasses. Profile 001 is recommended when using Dreamvision’s active IR 3D-glasses. • 010 to 105: select the best compensation profile depending on your screen and environment. R699820 - Yunzi Series User Manual...

  • Page 34: Environment Setting

    Choose the duration of the timer between: Off, 1 hour, 2 hours, 3 hours and 4 hours. 11.3 High Altitude Mode Select this when the projector is in a location of low atmospheric pressure. On or Off. R699820 - Yunzi Series User Manual...

  • Page 35: Eco Mode

    In the case of PC signal, the vertical frequency is displayed. Lamp Time Displays the accumulated hours of usage of the lamp. Calibrator Stores up to 18 ASCII characters set by the Calibrator. Shown only if set during ISF profile adjustment. R699820 - Yunzi Series User Manual...

  • Page 36: Cinemascope Setups

    13.0 CINEMASCOPE SETUPS 13.0CINEMASCOPE SETUPS 13.1 Lens Zoom or Theater System Kit The Yunzi Series centralizes the controls and automation commands for a unique, versatile and unexpectedly simple to operate 2.35:1 theatre experience using Lens Zoom or Anamorphic Lens. •...

  • Page 37: Maintenance

    The lens shall be cleaned using commercial blowers or lens cleaning papers (for cleaning glasses and cameras). Do not use fluid-type cleaning agents. This may lead to peeling of the surface coating film. The lens surface is fragile. Avoid rubbing it hard or knocking. 14.3 Replacing the Lamp R699820 - Yunzi Series User Manual...

  • Page 38: Procedure For Lamp Replacement

    Tighten the screws of the lamp unit. • Attach the lamp cover and fasten the lamp trap screw. Resetting Lamp Time After installing a new lamp, reset the lamp time sing the OSD menu R699820 - Yunzi Series User Manual...

  • Page 39: Cleaning And Replacing The Dust Filters

    Unit is in operate mode (during projection) Unit is in operate mode, but HIDE is ON. blinking Press again on HIDE button to obtain a green picture. blinking red Unit is in cooldown mode. (switching off) R699820 - Yunzi Series User Manual...

  • Page 40: Miscellaneous

    Control of this unit is possible using a computer or automation device connected with a RS-232 cross cable (female - female D-sub 9 pins cable) or LAN/ RJ-45 cable. Communication specifications for this unit are as follows: R699820 - Yunzi Series User Manual...
  • Page 41 Switch active input to VGA Switch active input to HDMI 1 Switch active input to HDMI 2 Switch to next input Switch to previous input Gamma 47h 54h Set Gamma to Normal Set Gamma to A R699820 - Yunzi Series User Manual...
  • Page 42 37h 33h 36h 45h User 3 37h 33h 43h 41h User 4 37h 33h 43h 42h User 5 Color Profile 50h 4Dh 50h 52h 31h 36h Standard (Yunzi 1) 31h 37h Film 31h 38h Cinema R699820 - Yunzi Series User Manual...
  • Page 43 Set Calibrator name 50h 4Dh 43h 49h 18 ASCII char. Set Calibrator name - ISF must be in Adjust Mode Contrast 52h 43h 37h 33h 37h 38h Contrast + 37h 33h 37h 39h Contrast - R699820 - Yunzi Series User Manual...
  • Page 44 Set 3D Parallax to 1 30h 30h 30h 39h Set 3D Parallax to 9 30h 30h 30h 41h Set 3D Parallax to 10 3D Parallax 49h 53h 4Ch 56h 30h 30h 30h 42h Set 3D Parallax to 11 R699820 - Yunzi Series User Manual...
  • Page 45 Set custom name to Lens Memory1 Set Memory2 name 49h 4Eh 4Dh 32h 10 ASCII char. Set custom name to Lens Memory2 Set Mem9 name 49h 4Eh 4Dh 39h 10 ASCII char. Set custom name to Lens Memory9 R699820 - Yunzi Series User Manual...

  • Page 46: Lan Protocol

    20554. and send a command immediately as the connection will be dropped within 5 sec of inactivity. If for any reason you have to change the TCP connection port, you may use the following RS-232c/LAN command. R699820 - Yunzi Series User Manual...

  • Page 47: Infra Red, Long Hex-Pronto Compatible Rcu

    0014 0014 0014 003C 0014 0014 0014 003C 0014 0014 0014 0014 0014 0014 0014 0014 0014 0014 0014 0336 A complete device/function chart with their corresponding long hex commands is available, ask your dealer if required. R699820 - Yunzi Series User Manual...

  • Page 48: Specifications

    15.0 MISCELLANEOUS 15.4 Specifications Overview The Yunzi Series uses the latest technology developed to provide the ultimate video-projection experience. LCoS (Liquid Crystal on Silicon) technology based on a reflective principle features an extremely high-definition picture and seamless color gradations. Emission Method LCoS (Reflective Active Matrix Principle)
  • Page 49 15.0 MISCELLANEOUS Dimensions 215 mm 8.5’’ 455 mm 505 mm 17.9’’ 19.9” 455 mm 17.9’ R699820 - Yunzi Series User Manual...
  • Page 50 15.0 MISCELLANEOUS HOW TO REPLACE BATTERIES ON INFRA-RED 3D-GLASSES RADIO FREQUENCY 3D-GLASSES Radio-Frequency 3D-Glasses uses rechargeable batteries that can be recharge using the mini-USB connector. R699820 - Yunzi Series User Manual...
  • Page 51 15.0 MISCELLANEOUS R699820 - Yunzi Series User Manual...
