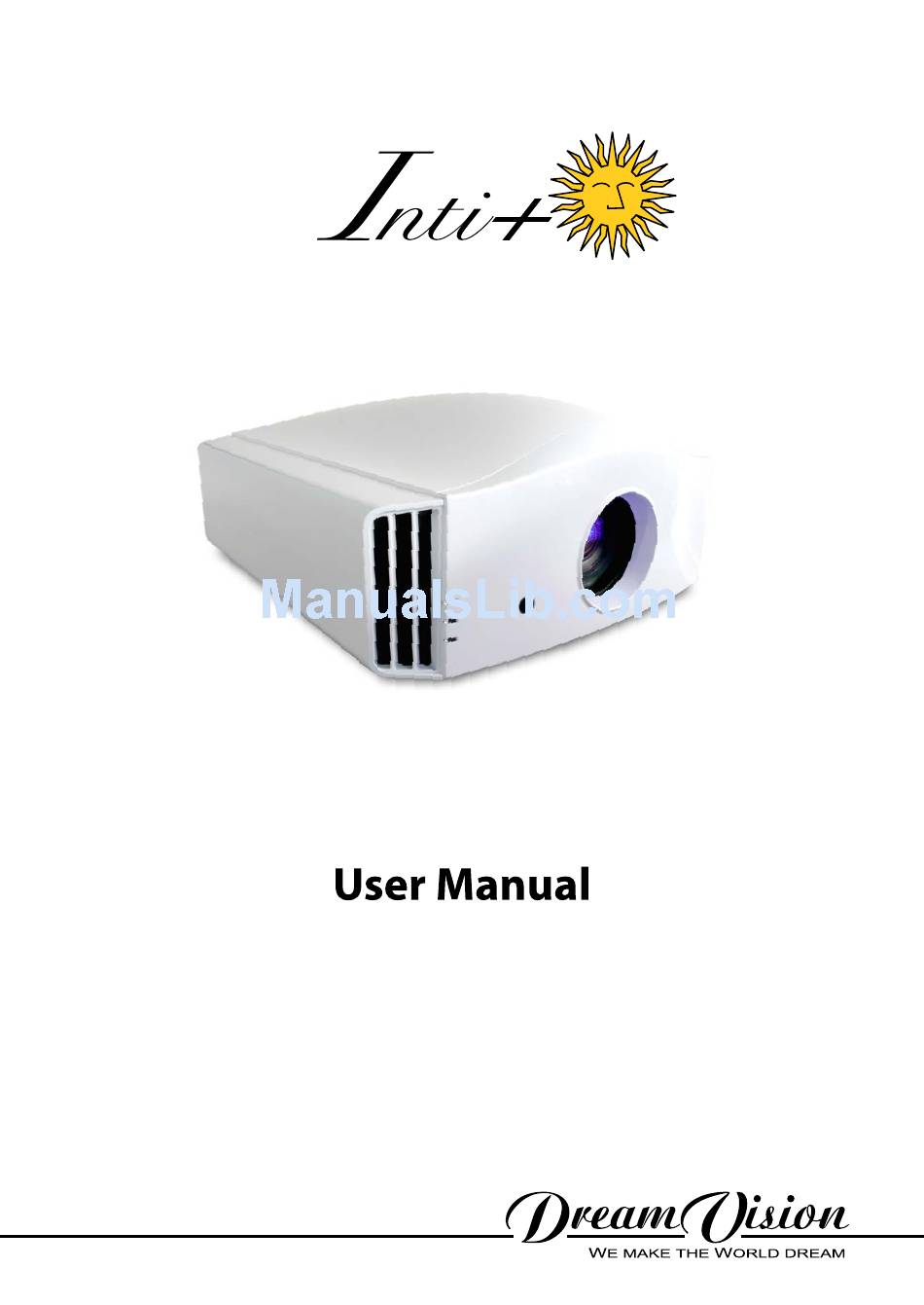

Dream Vision Inti+ User Manual

3d projector
Hide thumbs Also See for Inti+:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inti+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dream Vision Inti+

Summary of Contents for Dream Vision Inti+

  • Page 2 Changes Dreamvision provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. Dreamvision may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.

  • Page 3: Table Of Contents

    Important Safeguards ......................... 5 REGIONAL SPECIFIC INFORMATION..................7 INSTALLATION GUIDELINES ..................8 About 3D Content and 3D Projection....................8 THX-3D Display Certification (Inti+2 & +3)..................8 Comfort and Caution with 3D Content....................9 3D-Synchro Emitter ........................... 9 Environment of Use ......................... 10 Air-Flow and Space Requirements ....................
  • Page 4 Pixel Adjust (Inti+2 & +3 only) ..................30 Installation Style........................ 31 Keystone..........................31 Anamorphic........................31 Screen Adjust ........................32 Black Level ........................32 Display Setup Menu......................... 32 Back Color ........................32 Menu Position ........................32 Menu Display ........................33 Line Display ........................33 Source Display ........................

  • Page 5: Safety Instructions

    1.0 SAFETY INSTRUCTIONS 1.0 SAFETY INSTRUCTIONS 1.1 Important Information Lead-free regulation This product has a High Intensity Discharge (HID) lamp that contains a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: http:// www.eiae.org.
  • Page 6 1.0 SAFETY INSTRUCTIONS • Do not place this product on an unstable cart, • Unplug this product from the wall outlet and refer stand, or table. The product may fall, causing service to qualified service personnel under the serious injury to a child or adult, and serious following conditions: damage to the product.

  • Page 7: Regional Specific Information

    1.0 SAFETY INSTRUCTIONS high pressure mercury lamp. Be careful when disposing of the light source lamp. If anything is unclear, please consult your dealer. • Do not ceiling-mount the projector to a place which tends to vibrate; otherwise, the attaching fixture of the projector could be broken by the vibration, possibly causing it to fall or overturn, which could lead to personal injury.

  • Page 8: Installation Guidelines

    film director during playback of 2D and 3D images, and they are the proof of high definition and high quality, indicating that Inti+2 & +3 have cleared more than 400 rigorous image quality tests including accuracy of color reproduction, cross-talk, viewing angle and video processing performance.

  • Page 9: Comfort And Caution With 3D Content

    2.0 INSTALLATION GUIDELINES The THX certification features by using THX picture mode: • Correct Gamma and Color Temperature • No Overscan or Scaling • Correct High Definition color Gamut The Best in Class Parameters also include ANSI and Sequential contrast, luminance and color Uniformity, color tracking with gray scale, optimum brightness, deinterlacing performance, jaggie and countouring.

  • Page 10: Environment Of Use

    2.0 INSTALLATION GUIDELINES 2.5 Environment of Use Do not use this unit in rooms with cigarette smoke or oily smoke. This may cause the unit to malfunction. Mounting this unit to the ceiling Check temperature during install. If there is a heater, the air may reach a higher temperature than expected. Precautions of Usage This unit makes use of a light source lamp that reaches a high temperature during projection.

  • Page 11: Projection Distance

    2.0 INSTALLATION GUIDELINES Precautions for Ceiling-mount • To ceiling-mount this unit, special expertise and techniques are necessary. Be sure to ask your dealer or specialist to perform mounting. • Do not mount at places that may be subjected to vibration and shock.

  • Page 12: Setting The Lens And Using Lens Memories

    2.0 INSTALLATION GUIDELINES brain will interpret the 3D-projection as two superposed pictures. In general the perception of the 3D effect will vary according to your seat position and to the screen size. When a movie is produced for 3D projection, the director knows at witch distance the effect will be perceived and witch depth he intends to gives to the objects.
  • Page 13 2.0 INSTALLATION GUIDELINES • To avoid the use of keystone correction, and only use the vertical and horizontal shifts, make sure to not exceed the values contained in the tab below: Left - Right shift 10% 15% 20% 25% 30% 34% max.

  • Page 14: Remote Control Unit (Rcu)

    3.0 REMOTE CONTROL UNIT (RCU) 3.0 REMOTE CONTROL UNIT (RCU) 3.1 General View STAND BY [Power On] button [Stand By] button INPUT Select Active [Input] HDMI 1 HDMI 2 COMP. Select [3D Format] FORMAT SETTING Display [3D Setting] menu [Anamo]rphic mode LENS LENS ANAMO.

  • Page 15: How To Use The Remote Control Unit

    3.0 REMOTE CONTROL UNIT (RCU) AUTION WHEN USING BATTERIES Do not mix new and old batteries.Do not mix different type of batteries as they are different in characteristics. Insert batteries according to the + and - marks on the battery case. Do not put batteries into fire or recharge them if they are not design to.

  • Page 16: Getting Started

    Air Outlet Operating LED Front IR sensor • Optical Lens & Lens cover. The lens cover is motorized on Inti+2 & +3. • Operating LEDs: see section 4.3, page 17 for more details. • Air Outlets: see “Air-Flow and Space Requirements”, page 10.

  • Page 17: Connecting The Power Cord

    4.0 GETTING STARTED 4.2 Connecting the Power Cord • Before plugging in the Power Cord, ensure that all devices have been connected to their respective inputs to this unit. • Connect the power cord to the power input terminal of the projector. AUTION AGAINST IRE AND LECTRIC...

  • Page 18: Operating And Navigation Buttons

    4.0 GETTING STARTED 4.4 Operating and Navigation Buttons Power button STANDBY/ON Input source INPUT Up - down Left - right MENU BACK Menu Back Button Description Power button To turn On or Off the projector. Input source To switch input source. OK (Enter) To select or to confirm action.

  • Page 19: Connections

    DVD-Player, HDTV Receiver, Game Console (SD or HD), DVB-T receiver, YPbPr or RGB (3x RCA) Multimedia box, Analog Camera. VGA (Sub D-15) For Inti+2 & +3: Computer (VGA output), Multimedia box. (Inti+2 & +3) R699810 - Inti+ Series User Manual...

  • Page 20: Connecting An Automation Or Control Device

    When the LAN Control is selected, the RS-232 port cannot be used for automation. In addition, the control device must send specific functions to this unit using the Local Network (this is not a web interface) See “LAN protocol (Inti+2 & +3)”, page 45 for more details on the network configuration and protocol. ONNECTING AN AUTOMATION CONTROL DEVICE This unit can control or be controlled by using several input/output terminals.

  • Page 21: Menu And Picture Setting

    6.0 MENU AND PICTURE SETTING 6.0 MENU AND PICTURE SETTING 6.1 Menu Structure MAIN MENU SUBMENU AVAILABLE OPTIONS Picture Adjust Picture Mode Inti+2 & +3 only (Movies) Film (Digital Cinema) Cinema (SF movies or anims) Animation (Video programs) Natural (Concerts) Stage Inti+2 &...
  • Page 22 If Picture mode is not Film or 3D: (focus on tone) (film S curve) (more contrast than B) (brighter) Custom1 Custom2 Custom3 Dark/Bright Level (Inti+2 & +3) Dark Level -7 +7 Bright Level -7 +7 Picture Tone (Inti+2 & +3) White -16 +16...
  • Page 23 Image Pattern On, Off Lock On, Off Lens Memory Select Lens Memory Save Lens Memory Name Edit Lens Cover (Inti+2 & +3 only) Auto , Open Pixel Adjust (Inti+1 only) horiz. Red 1 - 5 horiz.Blue 1 - 5 vert. Red 1 - 5 vert.
  • Page 24 Horizontal -30 +30 Vertical -40 +40 Anamorphic (vert. stretch) (hor. sqeeze) Screen Adjust 1 - 3 (Inti+1 only) 000 - 255 (Inti+2 & +3) Black Level 0 +10 Display Setup Back Color Blue, Black Menu Position select position Menu Display...

  • Page 25: Picture Adjust Menu

    Adobe RGB Vivid Standard The Inti+2 & +3 also have the THX profile to obtain a non over-saturated colors in a dark environment. Optimized for dark rooms. Color Profiles (Inti+2 & +3) Inti+2 & +3 have 12 Color profiles, depending on the picture mode, you may choose an available color profile preset: •...

  • Page 26: Dark / Bright Level

    • Bright Level adjust gamma curve between 85IRE and 100IRE from -7 to +7. Picture Tone (Inti+2 & +3 only) It allows a fine adjustment steps of the global picture brightness while maintaining the correct contrast level to keep good black and bright levels. Available when Film Picture profile is selected: •...
  • Page 27 Wde2: same color space as DCI but within a wider color gamut 6.2.0.5 Color Management (TSL adjustments Inti+2 & +3 only) The Color Management gives the installer an unique calibration ease with the integrated Color Adjustment menu: each primary, secondary colors and orange can be independently calibrated to obtain a precise color balance in a snap.

  • Page 28: Reset

    Y Pb/Cb Pr/Cr: Select this option if the COMP. input is connected to a component video signal. • RGB: Select this option if the COMP. input is used with a RGB video source. PC (Inti+2 & +3 only) This menu is available if the selected active input is PC (Sub-D15) input. •...

  • Page 29: Picture Position

    6.0 MENU AND PICTURE SETTING • Phase: Adjust flickering and blurred pictures. • Picture Position: Adjust the display position of the picture. Picture Position Depending on your source, you may find that the picture should be adjusted into the screen, adjust the horizontal and vertical position of the picture into the screen.

  • Page 30: Installation Menu

    Auto: the lens cover opens or closes when the projector switches On or Off. b. Open: the lens cover is always open. Pixel Adjust (Inti+1 only) The Inti+1 picture pixel alignment can be adjusted within 1 pixel steps. This menu allows a fine adjustment of the red and blue panels separately. •...

  • Page 31: Installation Style

    6.0 MENU AND PICTURE SETTING 6.4.0.2 Adjust Area Whole: the entire screen is selected for adjustment. Zone: the screen is divided into 121 adjustment zones. 6.4.0.3 Adjust Color Select the color to adjust: Red or Blue. 6.4.0.4 Adjust Pattern Color Select a pattern to help the pixel alignment.

  • Page 32: Screen Adjust

    Mode B: slightly greenish. • Mode C: slightly bluish. Inti+2 & +3: • 001 - 009: select a profile between 001 and 009 when watching 3D content with 3D shutter glasses. Profile 001 is recommended when using Dreamvision’s active glasses.

  • Page 33: Menu Display

    Network (Inti+2 & +3) When the Communication Terminal selected is LAN, this unit will be visible on the local Network and the following parameters need to be configured. See “LAN protocol (Inti+2 & +3)”, page 45 for more details. Remote Code Select in the projector menu the code A or B according to the code selected on the RCU.

  • Page 34: Deep Color Depth

    Calibrator Stores up to 18 ASCII characters set by the Calibrator. Shown only if set during calibration. 6.8 Expert Calibration (Inti+2 & +3) Expert Calibration is accessed only by using a programmable IR-RCU, RS-232C or LAN control. Two additional sets of Picture Modes can be activated.

  • Page 35: Anamorphic Setups

    7.0 ANAMORPHIC SETUPS 7.0 ANAMORPHIC SETUPS 7.1 Lens Zoom and Theatre System Kit The Inti+ Series centralizes the controls and automation commands for the Theatre System Kit for a unique, versatile and unexpectedly simple to operate 2.35:1 theatre experience using an anamorphic Lens. •...

  • Page 36: Installing A Motorized Anamorphic Lens

    7.0 ANAMORPHIC SETUPS 7.3 Installing a Motorized Anamorphic Lens Plug the 12V Trigger output of the projector to the Anamorphic motorization 12V Trigger to anamorphic motorization Connect the lens motorization to the 12V Trigger output ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ ⇒ Configure into Function “Menu Trigger On (Anamo)”...

  • Page 37: Maintenance

    8.0 MAINTENANCE 8.0 MAINTENANCE 8.1 Clean Dirt on the Cabinet Always use a soft cloth. In case of heavy soiling, soak a cloth in neutral detergent diluted with water, wring dry and wipe, followed by wiping again using a dry cloth. Caution Pay attention to the following as the cabinet may deteriorate in condition, get damaged or paint may come off.

  • Page 38: Cleaning And Replacing The Dust Filters

    8.0 MAINTENANCE • Loosen the screw on the lamp trap at the rear of this unit. • Open the lamp Cover and loosen the 2 screws on the lamp unit to release it. • Pull out the lamp unit using the handle. •...

  • Page 39: Troubleshooting

    8.0 MAINTENANCE 8.5 Troubleshooting Warning Messages Led Operating LED Description STANDBY / LAMP WARNING Blinking orange LED red LED Unit is in standby mode green Unit is in operate mode (during projection) Unit is in operate mode, but HIDE is ON. blinking Press again on HIDE button to obtain a green...

  • Page 40: Miscellaneous

    9.0 MISCELLANEOUS AUTION When in Cool Down mode, do not pull out the plug from the outlet. Also, do not block the air inlets/exhaust vents by standing the projector on its end or laying it on its side. 9.0 MISCELLANEOUS 9.1 RS-232C protocol Serial communication specifications Control of this unit is possible using a computer or automation device connected with a RS-232 cross cable (female...
  • Page 41 9.0 MISCELLANEOUS Available Operating commands Header (21h) Command Data Description Connection RS-232 00h 00h none Check the serial connection Power ON 50h 57h If the projector is in stand-by mode, this command switch the unit ON. Power OFF 50h 57h If the projector is powered ON, this command switches this unit into Stand-by Mode.
  • Page 42 9.0 MISCELLANEOUS Keypad 52h 43h 37h 33h 30h 31h 37h 33h 30h 32h DOWN 37h 33h 30h 33h BACK 37h 33h 32h 45h MENU 37h 33h 32h 46h 37h 33h 33h 34h RIGHT 37h 33h 33h 36h LEFT Hide Display 52h 43h 37h 33h 31h 44h Toggle Hide ON/OFF...
  • Page 43 9.0 MISCELLANEOUS Expert Calibration 52h 43h 37h 33h 43h 36h Switch to Adjust mode (THX) 37h 33h 43h 37h THX plus - Off 37h 33h 43h 38h THX plus - On 37h 33h 38h 35h Switch Picture Mode to THX - Bright 37h 33h 38h 36h Switch Picture Mode to THX - Dark Expert Calibration...
  • Page 44 9.0 MISCELLANEOUS Anamorphic Modes 52h 43h 37h 33h 32h 34h Turn OFF the Anamorphic mode 37h 33h 32h 33h Anamorphic set to Mode A 37h 33h 32h 42h Anamorphic set to Mode B 37h 33h 43h 35h Cycle Anamorphic Mode through OFF/A/B Select 3D mode 49h 53h 33h 44h 31h...

  • Page 45: Lan Protocol (Inti+2 & +3)

    06h 89h 01h 49h 50h 0Ah (confirm cmd) receive: 40h 89h 01h 49h 50h 36h 0Ah (HDMI 1 is active) 9.2 LAN protocol (Inti+2 & +3) LAN / RJ-45 communication specification To set the projector to LAN Control Mode, go to the Function menu, then set the Communication Terminal from RS- 232C (default) to LAN.
  • Page 46 9.0 MISCELLANEOUS • DHCP Client: When set to ON, the projector’s IP address will be automatically set by the DHCP server. on the LAN. • IP Address: Sets the IP (Internet Protocol) address of the projector. A valid address must be set for this unit. •...

  • Page 47: Infra Red, Long Hex-Pronto Compatible Rcu

    9.0 MISCELLANEOUS 9.3 Infra Red, long hex-pronto compatible RCU The infra red command must be sent using NEC 5 protocol in ASCII format. In the following example, Power ON command is 37h 33h 30h 35h, this command has to be converted as ASCII, it becomes 73 05.

  • Page 48: Specifications

    1.4a with HDCP and CEC Color Management Advanced color settings (7-axis: primaries, secondaries and orange) Video processing Detail Enhancement, Sharpness, DNR, MNR, BNR Inti+2 & +3 only: 2x FullHD frames per picture and advanced 1/16 pixel alignment Input Sync Frequency Analog Inputs 74.5 Mhz...
  • Page 49 9.0 MISCELLANEOUS Dimensions 215 mm 8.5’’ 455 mm 505 mm 17.9’’ 19.9’ 455 mm 17.9’’ R699810 - Inti+ Series User Manual...
  • Page 50 9.0 MISCELLANEOUS R699810 - Inti+ Series User Manual...
  • Page 51 9.0 MISCELLANEOUS R699810 - Inti+ Series User Manual...
