Upgrade procedure for Eos Series
www.dreamvision.net
Date: 15032019
Rev: 01
Part. No.: R699904

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eos Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dream Vision Eos Series

Summary of Contents for Dream Vision Eos Series

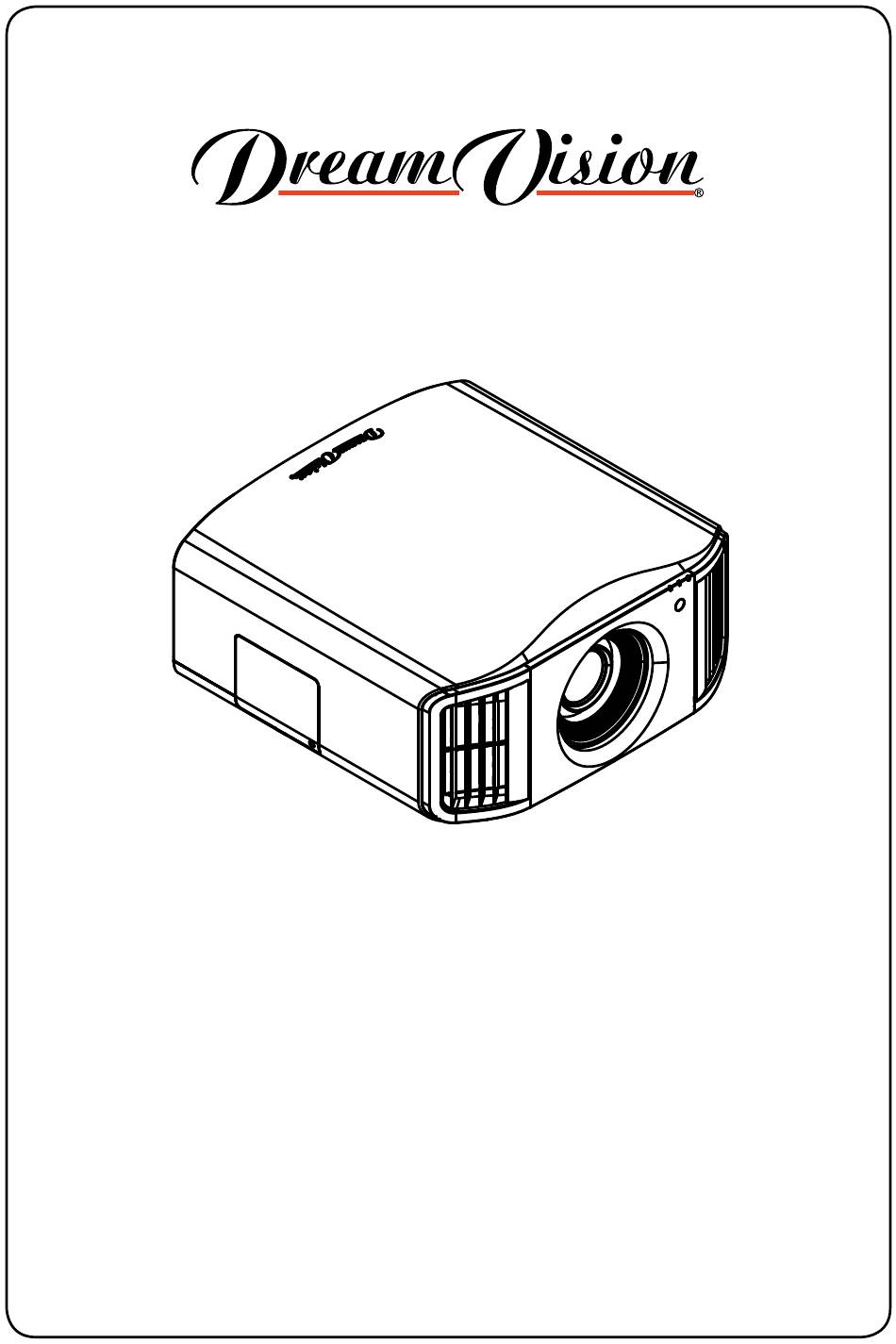

  • Page 1 Upgrade procedure for Eos Series www.dreamvision.net Date: 15032019 Rev: 01 Part. No.: R699904...
  • Page 2 Required Equipment: To successfully complete this procedure you will need the following equipment: • This projector • A computer to copy the latest firmware update • An USB drive/Key, FAT32 formatted with 1 Go of free space or more Downloading and extracting the firmware: • Download the zip file for the update onto the PC. The file name should be jkcpj201601v[xxxx].zip where xxxx is the version number • Unzip this file and copy the “UD_B2A1” folder and its contents to the root directory of the USB drive. The USB drive should contain only one folder named UD_B2A1.
  • Page 3 Menu > Function > “Software Update” • Select the “Software Update” in the menu. A confirmation screen asking whether to start the software update appears. • Before confirming the upgrade, check the required time. Then select “Yes” to confirm the beginning of the upgrade procedure. CAUTION: !!! Do not turn off the projector or remove the USB drive while updating. Interrupting the update may cause the projector to malfunction !!! • Once the required time is reached and that the update is completed, the projector will automatically turn off and all the LED indicators will go out. • You can turn on the power again, by pressing the [Power] button on the projector. Alternatively, you can press any button on the RCU to exit the standby state and then press the [ON] button to switch this projector on.
  • Page 4 LED Indication during the Update: Operating LEDs STBY/ON WARNING LIGHT Standby/On, LIGHT / WARNING LEDs Data writing in progress light up sequence from right to left LEDs drive detection progress Standby/On and Warning light up simultaneously and blink alternately with Light Update error: Request for repair at your authorized dealer. Blink simultaneously Troubleshooting: If the update does not end even after it has long past the estimated required time, there is a possibility that update has failed. You should request for repair at your authorized dealer Double check that the USB drive is correctly inserted and that it is correctly formatted in FAT32.
