UL Version
Mobile Computing
User Manual
ex
MC 9090
-G
Type B7-A229-OG.O/H.......
ex
MC 9090
-K
Type B7-A229-OK.O/H.......
Class I, II, III Div 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC 9090ex-G and is the answer not in the manual?

Questions and answers

Summary of Contents for Bartec MC 9090ex-G

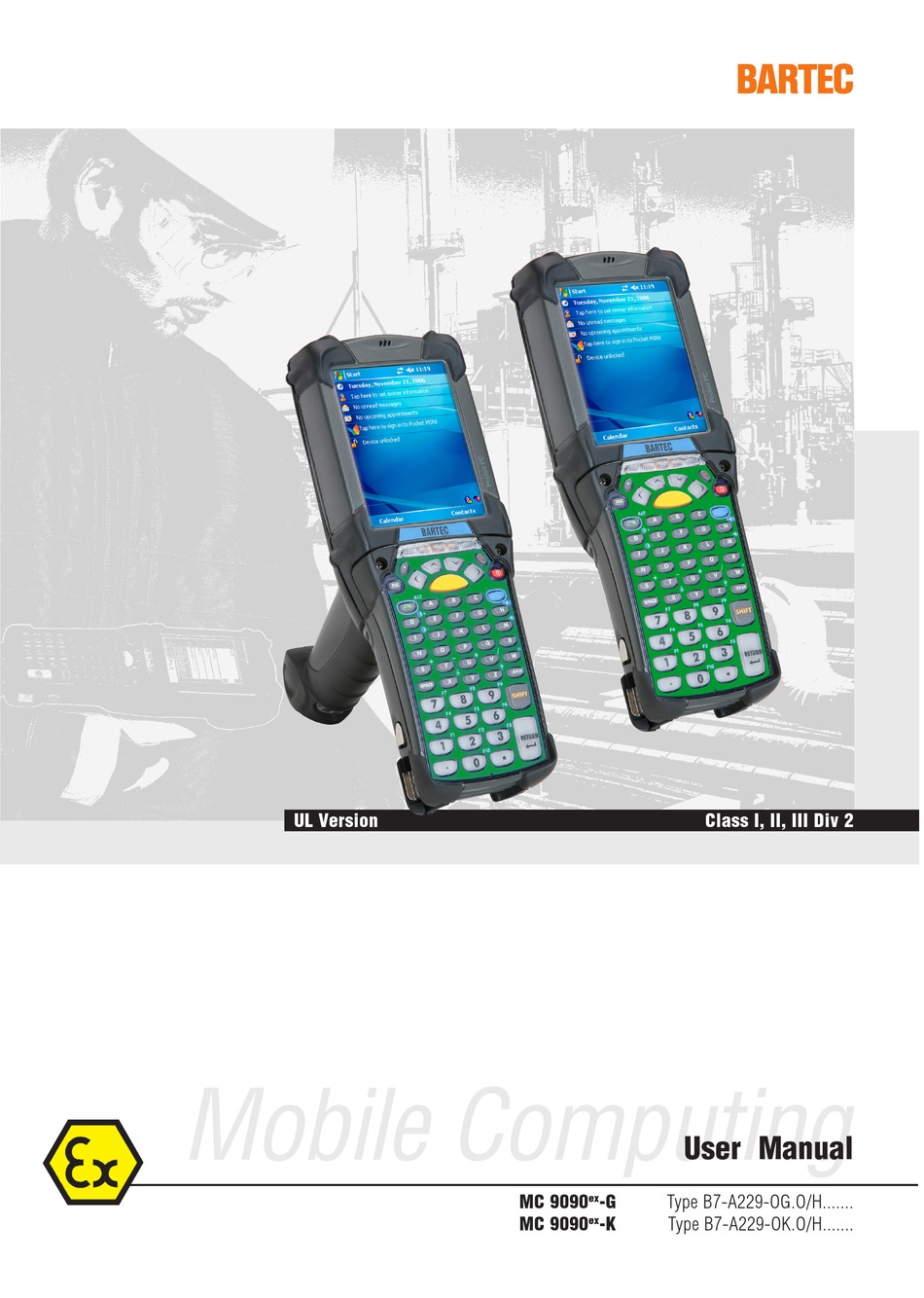

  • Page 1 UL Version Class I, II, III Div 2 Mobile Computing User Manual MC 9090 Type B7-A229-OG.O/H..MC 9090 Type B7-A229-OK.O/H..
  • Page 3 Mobile Computer MC 9090 Type B7-A229-0K.0/H….. UL Version Version 1.01 Document No. B1-A229-7D0002 INDEX A / Status: 11 March 2010 Technical data subject to change! GmbH Max-Eyth-Straße 16 Phone: +49 7931 597-0 Contact: 97980 Bad Mergentheim Fax: +49 7931 597-119 info@bartec.de Germany...
  • Page 5 Natural wear is also excluded from warranty. BARTEC reserves the right to alter the contents of the document without notice. No guarantee is given for the correctness of the information. In case of doubt the original German version of the safety information will apply because it is not possible to rule out errors in translation or in printing.
  • Page 6: Table Of Contents

    MC 9090 series Contents Product Description........................8 General............................8 Use ...............................9 Advantages ..........................9 Safety Instructions........................10 Warnings about the Mobile Computers ..................10 Warnings for Battery........................11 Warnings about Laser Devices ....................12 Notes on Installation........................12 Electromagnetic Fields .......................14 2.5.1 International..........................14 2.5.2 US and Canada..........................14 Health and Safety Recommendations..................15 2.6.1 Ergonomic Recommendations ....................15 2.6.2...
  • Page 7 Holster for MC9090ex "Version Brick", Type B7-A229-0Kx0HJxFA6xx ........46 Stylus............................47 6.3.1 Stylus for MC 9090ex-K ......................47 6.3.2 Stylus for MC 9090ex-G ......................47 Headset or Other Audio Devices....................47 Maintenance ..........................48 Care of the Battery ........................48 Cleaning the Battery Contacts....................48 Information about Repairs ......................48 Additional Informations ......................49...
  • Page 8: Product Description

    MC 9090 series User Manual Product Description General The MC 9090 -G and MC 9090 -K Mobile Computers each form a compact unit for high-standard barcode scanning in hazardous (potentially explosive) areas. The comfortably positioned scan trigger and the ergonomic design of the MC 9090 device series allow the acquisition of data with one-hand operation.
  • Page 9: Use

    MC 9090 series User Manual The Mobile Computer is a hand-guided electrical device used for the mobile acquisition, processing and radio transmission of data in hazardous areas. The Mobile Computer is used in areas of Class I, II and III Div 2. The MC 9090 series is specially intended for use in Class I, II and III Div 2, Group A, B, C, D, F and G.
  • Page 10: Safety Instructions

    MC 9090 series User Manual Safety Instructions Warnings about the Mobile Computers W A R N I N G S The device may not be opened by the user outside the hazardous area either! The user may not make any alterations to the device.
  • Page 11: Warnings For Battery

    MC 9090 series User Manual A T T E N T I O N Equipment that is damaged in any way or that does not function proberly must instantly be removed from the hazardous area and sent in for inspection/repair! Take the device out of the hazardous areas before wiping it with a dry cloth or cleaning it! General statutory regulations or directives on safety at work;...
  • Page 12: Warnings About Laser Devices

    MC 9090 series User Manual Warnings about Laser Devices Devices equipped with Symbol lasers conform to the US 21CFR1040.10 and 1040.11 and IEC 825-1: (Ed.2.0), EN 60825-1:2007 standards. The laser classification is marked on one of the labels on the device. Class 1 laser devices are rated not hazardous when used in the manner intended.
  • Page 13 Repairs on explosion-protected operating equipment can only be done by authorised persons using original spare parts and working in accordance with the latest developments of technology. The relevant applicable regulations must be observed. Please direct any questions you may have to BARTEC GmbH. Installation Directives The safety and accident prevention regulations applicable to the respective application must be adhered to.
  • Page 14: Electromagnetic Fields

    US and Canada Portable Devices This device was tested for typical body-worn operation. Use only BARTEC tested and approved belt clips, holsters, and similar accessories to ensure FCC Compliance. The use of third-party belt-clips, holsters, and similar accessories may not comply with FCC RF exposure compliance requirements, and should be avoided.
  • Page 15: Health And Safety Recommendations

    User Manual Health and Safety Recommendations Use only the accessories, batteries and battery chargers approved by BARTEC. Do not attempt to charge damp/wet Mobile Computers or batteries. All components must be dry before being connected to an external power supply.
  • Page 16: Warnings For Use Of Wireless Devices

    MC 9090 series User Manual Warnings for Use of Wireless Devices Please observe all warning notices with regard to the usage of wireless devices. 2.7.1 Safety in Aircraft Switch off your wireless device whenever you are instructed to do so by airport or airline staff. If your device offers a 'flight mode' or similar feature, consult airline staff as to its use in flight.
  • Page 17: Radio Frequency Interference Requirements-Fcc

    MC 9090 series User Manual 2.7.5 Radio Frequency Interference Requirements-FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 18: Technical Data

    MC 9090 series User Manual Technical Data Explosion Protection Type B7-A229-0G.0/H..and B7-A229-0K.0/H...…. Class Ι, II and III Div 2 Groups A, B,C, D, F and G T5 Ex protection type Certification UL File No. E321557 General Data Dimensions (height x width x depth) Type B7-A229-0G.0/H..
  • Page 19 MC 9090 series User Manual Interfaces RS232, max. 115.2 kbps, min. 1200 bps USB Vers. 1.1 (client) Keypad versions "Gun" version and "Brick" version As an alternative, the 53-key version is also available with emulation key printing 28 keys 43 keys 53 keys No emulation software is installed on the Mobile Computers with the emulation key version.
  • Page 20: Technical Data - Scan Engine And Decode Zone

    MC 9090 series User Manual Technical Data - Scan Engine and Decode Zone 3.3.1 Scan Engine for Type B7-A229-0GJ0/H..(1D-Long Range Scan Engine) Laser diode Visible red light 650 nm Scan rate 35 scans / sec. ± 5 (bi-directional) Scan angle 13.5°...
  • Page 21: Scan Engine For Type B7-A229-0Ka0/H

    MC 9090 series User Manual 3.3.2 Scan Engine for Type B7-A229-0KA0/H..(1D-Standard Range Scan Engine) Laser diode Visible red light 650 nm Scan rate 104 scans / sec. ± 12 (bi-directional) Scan angle 47° ± 3° standard 35° ± 3° reduced Laser safety Devices in CDRH Class II / IEC 825 Class 2 -K (1D-Standard Range Scan Engine)
  • Page 22: Scan Engine For Type B7-A229-0Kk0/H

    MC 9090 series User Manual 3.3.3 Scan Engine for Type B7-A229-0KK0/H..(1D-/2D-Imager Engine) Illumination element (LED) Visible red light 635 nm +/- 20 nm Target element (VLD) Visible red light 635 nm +/- 20 nm Field of vision Horizontal 32,2 ° Vertical 24,5 °...
  • Page 23: Technical Data - Wlan / Wpan

    MC 9090 series User Manual Technical Data - WLAN / WPAN WLAN (integrated radio module) Radio standard IEEE 802.11a/b/g (direct sequence topologie) Data rate IEEE802.11a: up to 54 Mbit/sec IEEE802.11b: up to 11 Mbit/sec IEEE802.11g: up to 54 Mbit/sec Frequency range IEEE802.11a: 5 GHz IEEE802.11b:...
  • Page 24: Technical Data - Battery

    MC 9090 series User Manual Technical Data - Battery Battery Type B7-A2Z0-0006 (only rechargeable in the safe range) Lithium Ion 7.4 V / 2200 mAh 0 °C to +40 °C 32 °F to 104 °F Operating temperature when charging -20 °C to +40 °C -4 °F to 104 °F when discharging -25 °C to +20 °C -13 °F to 68 °F Storage temperature...
  • Page 25: Product Marking

    MC 9090 series User Manual Product Marking 3.6.1 Mobile Computer MC 9090 CAUTION - CLASS 3R LASER LIGHT WHEN OPEN. AVOID DIRECT EYE Warning Laser EXPOSURE. ATTENTION - LUMIÈRE LASER DE CLASSE 3R, EN CAS D’OUVERTURE. EXPOSITION DANGEREUSE AU FAISCEAU. VORSICHT - LASERLICHT KLASSE 3R, WENN ABDECKUNG GEÖFFNET.
  • Page 26: Laser Labels

    MC 9090 series User Manual Laser Labels In accordance with Clause 5, IEC 825 and EN 60825, the following information is provided to the user: DEUTSCH KLASSE 1 KLASSE 1 LASER PRODUKT KLASSE 2 LASERLICHT NICHT IN DEN LASERSTRAHL SEHEN KLASSE 2 LASER PRODUKT ENGLISH DANISH / DANSK...
  • Page 27: Wlan / Bluetooth

    MC 9090 series User Manual WLAN / Bluetooth 3.8.1 Radio Modules The device contain approved radio module(s). These module(s) are identified below. Symbol Modular RLAN radio card, type(s): 21-21160 Symbol Bluetooth Terminal, model: 21-21160 3.8.2 Products Equipped with Bluetooth® Wireless Technology This device contains the following bluetooth complimentary subsystems: BT ID:B01825 BT ID:B02413...
  • Page 28: Commissioning

    MC 9090 series User Manual Commissioning Mobile Computer To ensure that the devices function correctly and have a long service life, they must be handled carefully. Chapter 5 "Handling" explains how to avoid inappropriate handling (e.g. by letting fall, damaging with objects). Use the devices only if they are in a perfect technical condition.
  • Page 29: Battery

    Note that battery type B7-A2Z0-0006 with 7.4 V/2200 mAh may only be charged outside the hazardous area. Use only accessories approved by BARTEC. Do not attempt to charge damp/wet Mobile Computers or batteries. All components must be dry before they are connected to an external power supply.
  • Page 30: Power Supply

    4.3.3 Power Supply Use only the power packs approved by BARTEC/Motorola (50-14000-148, 12 Vdc and at least 3.33 A). The power pack is certified in accordance with EN 60950-1 and has SELV outputs. The use of other power packs invalidates the permits granted for these devices and can be dangerous.
  • Page 31: Installing Battery

    MC 9090 series User Manual Installing Battery Do not remove the battery during the first 15 hours of operation. There is a risk of losing data if the battery is removed. Sliding the battery into the Mobile Computer as shown in Figure. Ensure the battery is fully inserted.
  • Page 32: Handling

    MC 9090 series User Manual Handling Make sure that the Mobile Computer is set down on a stable supporting surface. Avoid putting it down on places such as e.g. tables, trolleys, stands or holders if they are not stable. MC 9090 -K Mobile Computer In this position the device cannot be protected against damage.
  • Page 33: Mc 9090Ex-G Mobile Computer

    MC 9090 series User Manual MC 9090 -G Mobile Computer In this position the device cannot be protected against damage. The scanner window can be damaged by objects lying on the supporting surface. In this position the device cannot be protected against damage.
  • Page 34: Battery

    Replace the battery when a significant loss of run time is detected. Batteries must be charged within the 0° to +40 °C (32° to 104° F) temperature range. Standard warranty period for all BARTEC batteries is 1 year, regardless of whether the battery was purchased separately or included as part of the Mobile Computer.
  • Page 35 MC 9090 series User Manual Charging the Battery in the Mobile Computer Care must be taken that the devices to be charged are inserted into the charging station in the direction of the arrow. The Mobile Computer starts the charging process automatically. The yellow charging LED in the LED display bar lights up to indicate the charging status.
  • Page 36: Tips On Optimising The Operating Time

    MC 9090 series User Manual 5.3.3 Tips on Optimising the Operating Time Leave the Mobile Computer connected to AC power at all times when not in use. Set the Mobile Computer to turn off after a short period of non-use. Set the display and keyboard backlight to turn off after a short period of non-use.
  • Page 37: Changing The Display Backlight Settings

    MC 9090 series User Manual 5.4.2 Changing the Display Backlight Settings To change the display backlight settings in order to conserve more battery power: Tap Start > Settings > System tab > Backlight icon > Battery Power tab Select the On battery power: Disable backlight if not used for: check box and select a value from the drop-down list box.
  • Page 38: Waking The Mobile Computer

    MC 9090 series User Manual 5.4.5 Waking the Mobile Computer The wake-up conditions define what actions wake up the Mobile Computer. These settings are configurable and the factory default settings shown in the following table are subject to change/update. Table Wake-up Conditions (Default Settings) Status Description Conditions for Wake-up...
  • Page 39: Booting Mobile Computer

    MC 9090 series User Manual Booting Mobile Computer 5.5.1 Windows Mobile 5.0 Devices If the functions stop working when you are using the Mobile Computer, it is recommendable to REBOOT the device. There are two reset functions, warm boot and cold boot. A warm boot restarts the Mobile Computer and closes all running programs.
  • Page 40 MC 9090 series User Manual To perform a Cold Boot on a MC 9090 Press the primary battery release on the Mobile Computer to partially eject the battery from the Mobile Computer. On a MC 9090 -G, while the battery is partially released, simultaneously press and release the trigger and the Power button.
  • Page 41: Additional Components

    MC 9090 series User Manual Additional Components Keypad and SD Card 6.1.1 Keypad with Green Overlay for use in Class I, II and III Div 2 areas Options Order number 28 keys 05-0080-0425 43 keys 05-0080-0427 33 keys 05-0080-0426 53 keys 05-0080-0424 53 keys keypad coding for VT emulation...
  • Page 42: Removing/Changing The Keypad

    MC 9090 series User Manual 6.1.3 Removing/Changing the Keypad The keypad and SD card may only be replaced outside the hazardous area! 1. Turn off the MC 9090 2. Remove the battery. (see chapter 5.3.2 "Charging Processes") 3. Take out the screws at the top edge of the keypad. Fig.
  • Page 43 MC 9090 series User Manual 6. Snap on the keypad in the direction of the arrow (fig. 4) and push it upwards until the boreholes for the screws are over the threaded sleeves. Fig. 4: Changing the keypad 7. Check that the keypad is mounted correctly. Figure 5: Keypad mounted correctly Figure 6: Keypad mounted incorrectly 8.
  • Page 44: Inserting/Replacing The Sd Card

    MC 9090 series User Manual 6.1.4 Inserting/Replacing the SD Card The hardware status of the SD cards is specified in the test certificate. Accordingly only the SD cards with the order number 17-28BE-F006/000x are to be used. 1. Take off the keypad as instructed in chapter 6.1.3; repeat steps 1 - 4. SD card slot Figure 7: MC 9090 without keypad...
  • Page 45: Open Case And Holster

    MC 9090 series User Manual Open Case and Holster 6.2.1 Open Case for MC 9090 "Version Gun", Type B7-A229-0Gx0HJxFA6xx Order No.: 03-9809-0009 Open case for MC 90xx 03-9809-0011 Loop for open case (Gun) The open case is made of leather and suitable for use in the hazardous area. Do not use open cases or holsters that are not made of leather and not approved for use in hazardous areas.
  • Page 46: Holster For Mc9090Ex "Version Brick", Type B7-A229-0Kx0Hjxfa6Xx

    MC 9090 series User Manual 6.2.2 Holster for MC9090 "Version Brick", Type B7-A229-0Kx0HJxFA6xx Order No.: 03-9809-0010 Holster for MC 90xx The holster is made of leather and suitable for use in the hazardous area. Do not use open cases or holsters that are not made of leather and not approved for use in hazardous areas.
  • Page 47: Stylus

    MC 9090 series User Manual Stylus 6.3.1 Stylus for MC 9090 Order number for stylus (yellow): 3-pack 03-9849-0041 10-pack 03-9848-0042 Stylus with holder 3-pack 03-9849-0039 50-pack 03-9848-0040 6.3.2 Stylus for MC 9090 Order number for stylus (grey): 10-pack 03-9849-0021 50-pack 03-9848-0022 Stylus with holder 3-pack...
  • Page 48: Maintenance

    If you wish to send in a defective device for repairs please first read the RMA procedure guide. Then fill in and sign the RMA (Return Merchandise Authorisation) form and send it to our service centre. Email: services@bartec.de Fax: +49 7931 597-119 We cannot guarantee any contractually agreed processing times for devices that are sent in without an RMA number.
  • Page 49: Additional Informations

    MC 9090 series User Manual Additional Informations Links http://www.bartec-group.com BARTEC Homepage http://www.symbol.com Motorola Homepage http://www.symbol.com/ The Motorola site for the MC 9000 Support and Resources Product Manuals Mobile Computers MC 9090 WM http://www.symbol.com/ The Motorola site for the MC 9000...
  • Page 50: Accessories

    MC 9090 series User Manual Accessories Designation Order number Order number Motorola BARTEC Accessories for the Hazardous Area Ex Accessory: Battery Spare battery for devices with UL approval B7-A2Z0-0006 Ex Accessory: SD Card for ATEX and UL Version ATP Industrial Grade SD card with 512 MB...
  • Page 51 MC 9090 series User Manual Designation Order number Order number Motorola BARTEC Accessories for the Non-Hazardous Area 05-0079-0018 Single Slot Cradle Set: Consists of: Single slot cradle CRD9000-1001SR 03-9915-0003 Power pack 50-14000-148R 03-9911-0015 RS232 cable (Cradle <-> PC) 25-63852-01R 03-9919-0004 USB cable (Cradle <->...
  • Page 52: Order Numbers

    MC 9090 series User Manual Order Numbers B7-A229-0G 0/HC FA600 Lorax 1D-Long Range Scan Engine (SE 1524) 28 Keys (mobile phone keypad) 43 Keys (with function keys F1 - F12 in direct access) 33 Keys (mobile phone keypad) 53 Keys (alphanumeric keypad) 53 Keys Keypad coding for VT emulation...
  • Page 53 MC 9090 series User Manual B7-A229-0K 0/HC FA600 1D-Standard Range Scan Engine (SE950) 2D-Imager Engine (SE1440) 28 Keys (mobile phone keypad) 43 Keys (with function keys F1 - F12 in direct access) 33 Keys (mobile phone keypad) 53 Keys (alphanumeric keypad) 53 Keys Keypad coding for VT emulation (the software is not installed on the device)
  • Page 54: Transport And Shipment

    MC 9090 series User Manual Transport and Shipment Important Note: Concerning Transport and Shipping ! Sensitive Devices ! It is absolutely necessary to deliver the equipment in the original packaging in order to avoid damage to the equipment. Technical data subject to change without notice. Page 54 Issue 03/2010...
  • Page 55: Appendix A - Mc 9090

    Appendix A – MC 9090 RFID UHF (R7) User Manual Mobile Computer MC 9090 RFID / UHF (R7) Typ B7-A229-RG.0/H...R7.. UL Version Version 1.01 Document No. B1-A229-7D0001 INDEX A / Status: 11 March 2010 Technical data subject to change! Technical data subject to change without notice. Page 55 Issue 03/2010...
  • Page 56 Appendix A Product description The MC 9090ex-G RFID/UHF Mobile Computer with a pistol grip is a compact unit for scanning barcodes and RFID tags reliably in hazardous areas. The scan trigger is conveniently positioned at the pistol grip. Thus barcodes can be captured with only one hand. The integrated radio module enables real time data access to your host system.
  • Page 57 MC 9090 series Appendix A Technical Data A2.1 Explosion Protection Type B7-A229-RG*0/H***R7** Class Ι, II and III Div 2 Groups A, B,C, D, F and G T5 Ex protection type Certification UL File No. E321557 A2.2 General Data Dimensions (height x width x depth) 273 mm x 119 mm x 195 mm 10.75 inch x 4.7 inch x 7.7 inch Ambient temperature...
  • Page 58 MC 9090 series Appendix A Additional Informations A3.1 Links http://www.symbol.com Motorola Homepage http://www.symbol.com/ The Motorola site for the MC 9000 Software and Manuals Support and Resources Product Manuals Mobile Computers MC 9090-G RFID http://devcentral.symbol.com The Motorola Developer Central Page for Software Developers. This page has tools, updates, patches etc.
  • Page 59 MC 9090 series Appendix A A3.2 Order Numbers B7-A229-RG 0/HC FR7 1D- / 2D-Imager Engine (SE 1440) 1D Long Range Scan Engine (SE1524) 53 key without SD card with 512 MB SD-card with 1 GB SD-card with 2 GB SD-card Example: MC 9090 RFID/UHF (R7) with 1D- / 2D-Imager Engine and 53 key without SD-card.
  • Page 60 BARTEC protects p e o p l e a n d the environment b y t h e s a f e t y of components, s y s t e m s a n d p l a n t s .
