Bartec LUMEN X4 Quick Start Manual

4.3" industry mobile computer atex / iecex zone 2 and 22 csa class i division 2
Hide thumbs Also See for LUMEN X4:

Advertisement

Quick Links

Download this manual See also: User Manual
ATEX / IECEx
Zone 2 and 22
CSA Class I Division 2
Lumen X4 Quick Start Guide
4.3" Industry Mobile Computer
Type B7-A2P4-..../........

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUMEN X4 and is the answer not in the manual?

Questions and answers

Related Manuals for Bartec LUMEN X4

Summary of Contents for Bartec LUMEN X4

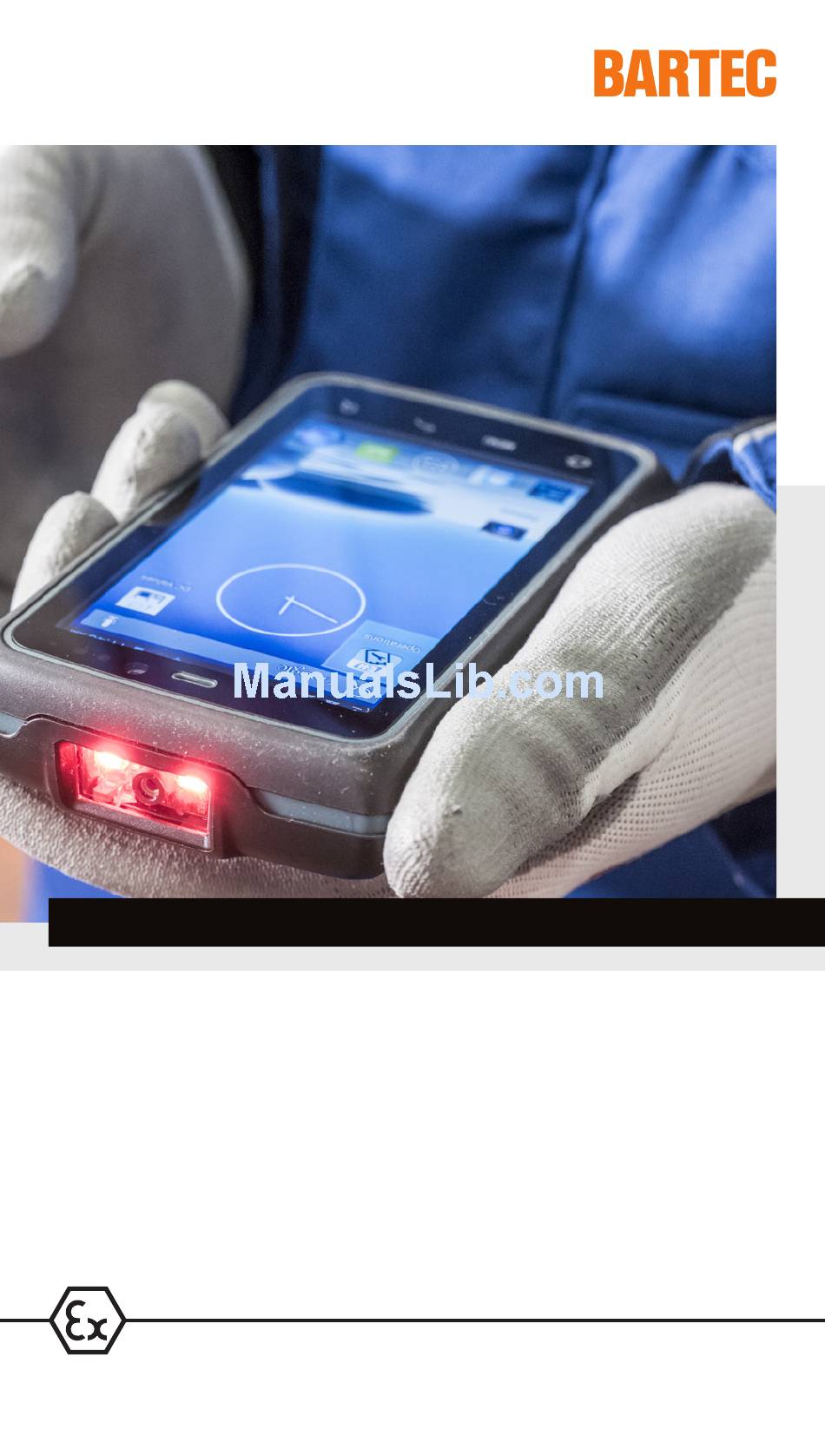

  • Page 1 ATEX / IECEx Zone 2 and 22 CSA Class I Division 2 Lumen X4 Quick Start Guide 4.3" Industry Mobile Computer Type B7-A2P4-../..
  • Page 3 Quick Start Guide - Translation Lumen X4 4.3" Industry Mobile Computer Type B7-A2P4-…./…….. ATEX/IECEx Zone 2/22 CSA Class I Division 2 Document No.: B1-A2P4-7E0002 / 401724 Revision 0 / Status: 6 June 2016 Proviso: Subject to technical changes. Changes, mistakes and printing errors do not substantiate any claim to damages.
  • Page 4 Atries and material damage can be avoided by circumspect handling and systematically following the instructions. The BARTEC company reserves the right to carry out technical changes at any time. Maintanance and Repairs The pertinent erection and operating...

  • Page 5: Getting Started

    1 x USB power adapter with US plug 1 x USB cable (Type A to micro Type B) 1 x Quick Start Guide 3. Getting started In order to start using the Lumen X4 Mobile Computer for the first time: Install the battery ...
  • Page 6 Quick Start 4.3" Industry Mobile Computer - Lumen X4 Guide Type B7-A2P4-.…/…….. 4. Marking, test certificate, and standards Note: Full information in "user manual" ATEX Zone 2 and 22 II 3G Ex ic IIC T5 Gc EPS 16 ATEX 1 039X II 3D Ex ic IIIB T100°C Dc IP54...
  • Page 7 Your Lumen X4 Some tips for using and caring the Lumen X4 Your Lumen X4 Mobile Computer series is designed to resist damages from certain rugged conditions. However, to help care for your Lumen X4, please avoid prolonged or extreme exposure to those conditions.
  • Page 8 Quick Start 4.3" Industry Mobile Computer - Lumen X4 Guide Type B7-A2P4-.…/…….. 6. Starting the Lumen X4 Before using the Lumen X4, install the Li-Polymer battery by sliding the battery into the Lumen X4. Subject to technical changes. EN 6/12 06/2016...
  • Page 9 Quick Start 4.3" Industry Mobile Computer - Lumen X4 Guide Type B7-A2P4-.…/…….. Subject to technical changes. EN 7/12 06/2016...

  • Page 10: Installing The Battery

    Quick Start 4.3" Industry Mobile Computer - Lumen X4 Guide Type B7-A2P4-.…/…….. Installing the Battery Only charge, install or replace the battery outside the potentially explosive atmosphere. (1) Reinsert the battery by latching the bottom first. (2) Push it down.
  • Page 11 8. Charge the Battery With USB charging cable The battery in the new Lumen X4 is not charged yet. For the first time using, we recommend you charge with the AC adapter (Charging from PC’s USB port will take 6 hours or longer). Use...
  • Page 12 Quick Start 4.3" Industry Mobile Computer - Lumen X4 Guide Type B7-A2P4-.…/…….. Connect the power supply output connector to the input power port on the USB charging cable. Open the connector cover connect charging cable bottom of the Industry Mobile Computer.
  • Page 13 4.3" Industry Mobile Computer - Lumen X4 Guide Type B7-A2P4-.…/…….. 9. Turn on/Turn off your Lumen X4 Unintended use endangers explosion protection. Risk of fatal injury in an explosive atmosphere! In the case of functional disturbances or damage to the enclosure, the device should be turned off and removed immediately from the potentially explosive atmosphere to a safe place.
  • Page 14 Make sure the Lumen X4 is powered off and the USB cable is unconnected before you remove the back cover. Place the Lumen X4 on its front (display facing down-wards) on a flat mat. Press the two latches up. Remove the battery.
  • Page 16 Quick Start 4.3" Industry Mobile Computer - Lumen X4 Guide Type B7-A2P4-.…/…….. EU Declaration of Conformity...
  • Page 17 Quick Start 4.3" Industry Mobile Computer - Lumen X4 Guide Type B7-A2P4-.…/……..
  • Page 18 Your partner for safety technology. Challenge us! BARTEC GmbH Phone: +49 7931 597-0 Max-Eyth-Str. 16 Fax: +49 7931 597-119 97980 Bad Mergentheim info@bartec.de Germany www.bartec.de...
