Bartec MC 9090ex-G User Manual

Hide thumbs Also See for MC 9090ex-G:
Table of Contents

Advertisement

Quick Links

Download this manual

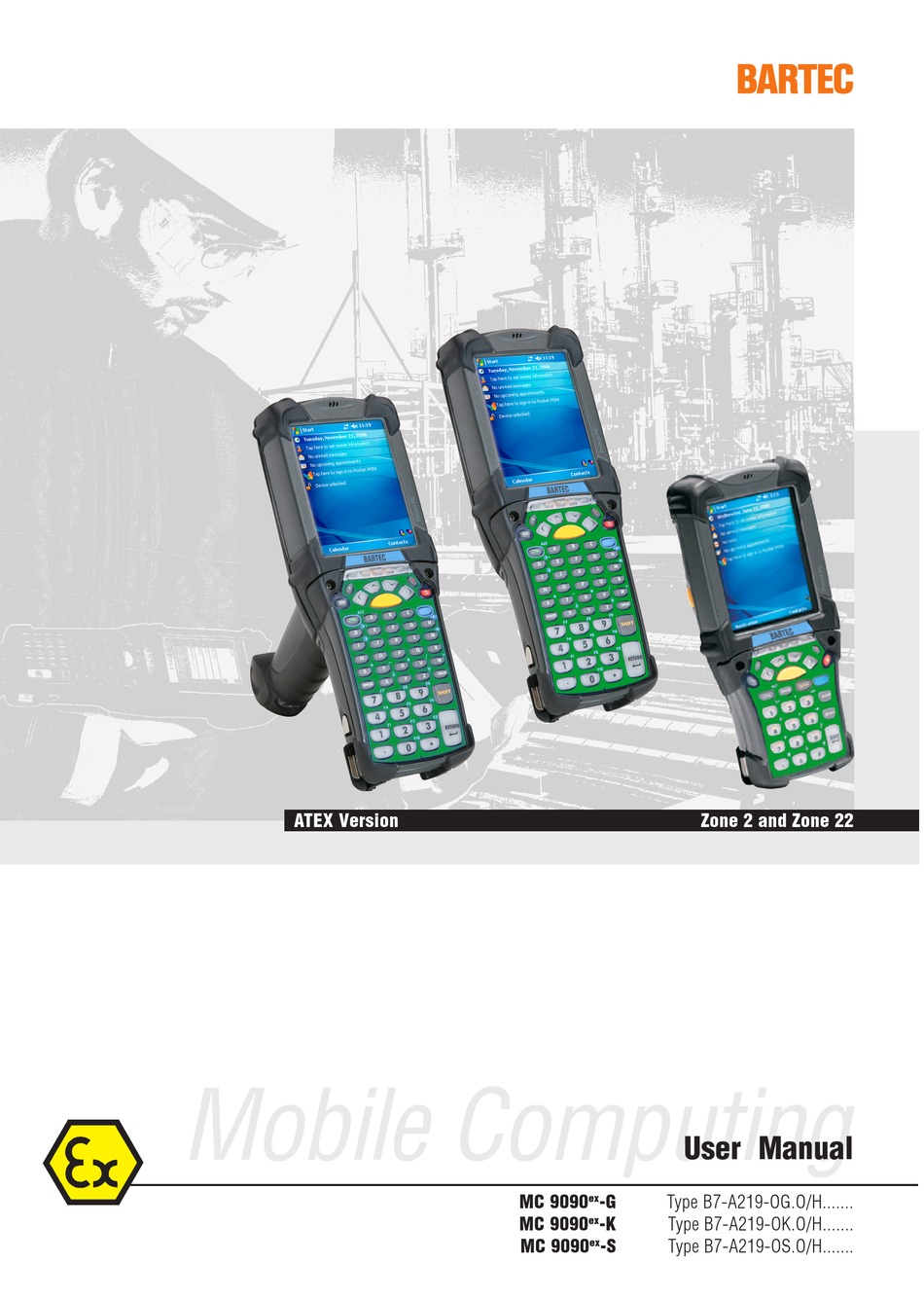

ATEX Version
Mobile Computing
User Manual
ex
MC 9090
-G
Type B7-A219-OG.O/H.......
ex
MC 9090
-K
Type B7-A219-OK.O/H.......
ex
MC 9090
-S
Type B7-A219-OS.O/H.......
Zone 2 and Zone 22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC 9090ex-G and is the answer not in the manual?

Questions and answers

Related Manuals for Bartec MC 9090ex-G

Summary of Contents for Bartec MC 9090ex-G

  • Page 1 ATEX Version Zone 2 and Zone 22 Mobile Computing User Manual MC 9090 Type B7-A219-OG.O/H..MC 9090 Type B7-A219-OK.O/H..MC 9090 Type B7-A219-OS.O/H..
  • Page 3 Type B7-A219-0S.0/H……. ATEX Zone 2 and Zone 22 Version 1.00 Document no. 11-B219-7D0001 Status: November 27 , 2007 Technical data subject to change! GmbH Max-Eyth-Straße 16 Phone: +49 7931 597-0 Contact: 97980 Bad Mergentheim Fax: +49 7931 597-183 Service-Mobilecomputing@bartec.de Germany...
  • Page 4 Natural wear is also excluded from warranty. BARTEC reserves the right to alter the contents of the document without notice. No guarantee is given for the correctness of the information. In case of doubt the original German version of the safety information will apply because it is not possible to rule out errors in translation or in printing.

  • Page 5: Table Of Contents

    Contents Product Description ..............................1 General ................................1 Use................................2 Advantages ..............................2 Safety Instructions ...............................3 Warnings about the Mobile Computers......................3 Warnings about the battery..........................4 Warnings about Laser Devices ........................5 Notes on installation............................5 Electromagnetic Fields............................7 2.5.1 International.............................7 2.5.2 Portable Devices ..........................7 2.5.3 Handheld Devices ...........................7 Health and Safety Recommendations......................8 2.6.1 Ergonomic Recommendations ......................8...
  • Page 6 Contents Handling ..................................25 MC 9090 -K and MC 9090 -S Mobile Computer ..................25 MC 9090 -G Mobile Computer........................26 Battery................................27 5.3.1 Battery Informationen ........................27 5.3.2 Charging Processes ........................27 5.3.3 Tips on Optimising the Operating Time ..................29 Software Settings............................29 5.4.1 Changing the Power Settings ......................29 5.4.2 Changing the Display Backlight Settings..................30 5.4.3...

  • Page 7: Product Description

    Product Description Product Description General The MC 9090 -G, MC 9090 -K and MC 9090 -S Mobile Computers, type B7-A219-0..0/H……. each form a compact unit for high-standard barcode scanning in hazardous (potentially explosive) areas. The comfortably positioned scan trigger and the ergonomic design of the MC 9090 device series allow the acquisition of data with one-hand operation.

  • Page 8: Use

    Product Description The Mobile Computer is a hand-guided electrical device used for the mobile acquisition, processing and radio transmission of data in hazardous areas. The Mobile Computer is used in areas designated for the use of devices from Equipment Group II, Category 3G. For the dust-proof area, care must be taken that the device is only used in areas without conductive dust.

  • Page 9: Safety Instructions

    Safety Instructions Safety Instructions Warnings about the Mobile Computers Take the device out of the hazardous areas before wiping it with a dry cloth or cleaning it! Do not exchange batteries of the type B7-A2Z0-0001 and B7-A2Z0-0003 in the hazardous area! Do not open or charge the device and do not exchange any data through the "cradle contacts"...

  • Page 10: Warnings About The Battery

    Safety Instructions When transporting the equipment in vehicles, it must be placed in appropriate compartments or fittings so that it can neither fall off during the drive nor be exposed to extreme vibrations. The rules for hazardous areas (see directive 99/92/EC) must be observed. In particular, appropriate clothing and footwear should be worn in view of the risk of dangerous electrostatic charges.

  • Page 11: Warnings About Laser Devices

    Safety Instructions Warnings about Laser Devices Devices equipped with Symbol lasers conform to the US 21CFR1040.10 and IEC 825-1:1993, EN 60825-1:1994+A11:1996 standards. The laser classification is marked on one of the labels on the device. Class 1 laser devices are rated not hazardous when used in the manner intended.
  • Page 12 The relevant applicable regulations must be observed. Please direct any questions you may have to BARTEC GmbH. Installation Directives The safety and accident prevention regulations applicable to the respective application must be adhered to.

  • Page 13: Electromagnetic Fields

    2.5.2 Portable Devices This device was tested for typical body-worn operation. Use only BARTEC tested and approved beltclips, holsters, and similar accessories to ensure FCC Compliance. The use of third-party belt-clips, holsters, and similar accessories may not comply with FCC RF exposure compliance requirements, and should be avoided.

  • Page 14: Health And Safety Recommendations

    Safety Instructions Health and Safety Recommendations Use only the accessories, batteries and battery chargers approved by BARTEC. Do not attempt to charge damp/wet Mobile Computers or batteries. All components must be dry before being connected to an external power supply.

  • Page 15: Warnings For Use Of Wireless Devices

    Safety Instructions Warnings for Use of Wireless Devices Please observe all warning notices with regard to the usage of wireless devices. 2.7.1 Safety in Aircraft Switch off your wireless device whenever you are instructed to do so by airport or airline staff. If your device offers a 'flight mode' or similar feature, consult airline staff as to its use in flight.

  • Page 16: Technical Data

    Technical Data Technical Data Explosion Protection Type B7-A219-0G.0/H..and B7-A219-0K.0/H...…. and B7-A219-0S.0/H...…. Ex protection type II 3G Ex nA nL IIC T4 X -20 °C ≤ Ta ≤ +50 °C II 3D Ex tD A22 IP54 T80 °C Certification EC-Declaration of Conformity General Data Dimensions (height x width x depth) Type B7-A219-0G.0/H..
  • Page 17 Technical Data Interfaces RS232, max. 115.2 kbps, min. 1200 bps USB Vers. 1.1 (client) Keypad versions Version "Gun" and Version "Brick" As an alternative, the 53-key version is also available with emulation key printing 28 keys 43 keys 53 key No emulation software is installed on the Mobile Computers with the emulation key version.

  • Page 18: Technical Data Scan Engine And Decode Zone

    Technical Data Technical Data Scan Engine and Decode Zone 3.3.1 Scan Engine for Version "Gun", type B7-A219-0GJ0/H..Long Range Scan Engine Laser diode Visible red light 650 nm Scan rate 35 scans / sec. ± 5 (bi-directional) Scan angle 13.5° ± 0.7° Laser safety Devices in CDRH Class II / IEC 825 Class 2 Decode zone "Lorax Extended Range Scan Engine"...

  • Page 19: Scan Engine For Version "Brick" And Version "Short", Type B7-A219-0.A0/H

    Technical Data 3.3.2 Scan Engine for Version "Brick" and Version "Short", type B7-A219-0.A0/H..Standard Range Scan Engine Laser diode Visible red light 650 nm Scan rate 104 scans / sec. ± 12 (bi-directional) Scan angle 47° ± 3° standard 35° ± 3° reduced Laser safety Devices in CDRH Class II / IEC 825 Class 2 Decode zone "Standard Range Scan Engine"...

  • Page 20: Scan Engine Für Version "Gun", Version "Brick" And Version "Short", Typ B7-A219-0.K0/H

    Technical Data 3.3.3 Scan Engine for Version "Gun", Version "Brick" and Version "Short", Type B7-A219-0.K0/H..Imager Illumination element (LED) Visible red light 635 nm +/- 20 nm Target element (VLD) Visible red light 635 nm +/- 20 nm Field of vision Horizontal 32,2 °...

  • Page 21: Technical Data - Wlan / Wpan

    Technical Data Technical Data - WLAN / WPAN WLAN (integrated radio module) Radio standard IEEE 802.11a/b/g (direct sequence topology) Data rate IEEE802.11a: up to 54 Mbit/Sek. IEEE802.11b: up to 11 Mbit/Sek. IEEE802.11g: up to 54 Mbit/Sek. Frequency range IEEE802.11a: 5 GHz IEEE802.11b: 2.4 GHz IEEE802.11g:...

  • Page 22: Technical Data - Battery

    Technical Data Technical Data - Battery Battery Type B7-A2Z0-0001 and type B7-A2Z0-0003 Lithium Ionen 7.4 V / 2200 mAh, type B7-A2Z0-0001 (only rechargeable in the safe range) Lithium Ionen 7.4 V / 1550 mAh, type B7-A2Z0-0003 Operating temperature when charging 0 °C to +40 °C 32 °F to 104 °F when discharging...

  • Page 23: Product Marking

    Technical Data Product Marking 3.6.1 Mobile Computer MC 9090 CAUTION - CLASS 3R LASER LIGHT WHEN OPEN. AVOID DIRECT EYE EXPOSURE. Warning Laser ATTENTION - LUMIÈRE LASER DE CLASSE 3R, EN CAS D’OUVERTURE. EXPOSITION DANGEREUSE AU FAISCEAU. VORSICHT - LASERLICHT KLASSE 3R, WENN ABDECKUNG GEÖFFNET. DIREKTE BESTRAHLUNG DER AUGEN VERMEIDEN.

  • Page 24: Battery B7-A2Z0-0001

    Technical Data 3.6.2 Battery B7-A2Z0-0001 3.6.3 Battery B7-A2Z0-0003 Laser Labels In accordance with Clause 5, IEC 825 and EN 60825, the following information is provided to the user: DEUTSCH KLASSE 1 KLASSE 1 LASER PRODUKT KLASSE 2 LASERLICHT NICHT IN DEN LASERSTRAHL SEHEN KLASSE 2 LASER PRODUKT ENGLISH DANISH / DANSK...

  • Page 25: Wlan / Bluetooth

    Technical Data WLAN / Bluetooth 3.8.1 Radio Modules The device contain approved radio module(s). These module(s) are identified below. Symbol Modular RLAN radio card, Type(s): 21-21160 Symbol Bluetooth Terminal, Model: MC9090 3.8.2 Products Equipped with Bluetooth® Wireless Technology This device contains the following Bluetooth Complimentary subsystems: BT ID:B01825 BT ID:B02413 The use of wireless devices may be forbidden or restricted.
  • Page 26 Note 2: If using WLAN (5 GHz) in the European Economic Area (EAA), there are varying restrictions that must be observed. For details see the EC-Declaration of Conformity from BARTEC (Appendix A "Certificates") or view the Motorola (Symbol) web site http://www2.symbol.com/doc/ for the CE Declaration of Conformity for the standard version.

  • Page 27: Commissioning

    Commissioning Commissioning Mobile Computer To ensure that the devices function perfectly and have a long service life, they must be handled carefully. Chapter 5 "Handling" explains how to avoid inappropriate handling (e.g. by letting fall, damaging with objects). Use the devices only if they are in a perfect technical condition. Before using the Mobile Computer for the first time, charge the main battery (as described in chapter 4.3 "Battery").

  • Page 28: Battery

    Note that battery type B7-A2Z0-0001 with 7.4 V/2200 mAh and B7-A2Z0-0003 may only be charged outside the hazardous zone. Use only accessories approved by BARTEC. Do not attempt to charge damp/wet Mobile Computers or batteries. All components must be dry before they are connected to an external power supply.

  • Page 29: Power Supply

    4.3.3 Power Supply Use only the power packs approved by BARTEC/Motorola (50-14000-148, 12 Vdc and at least 3.33 A). The power pack is certified in accordance with EN 60950-1 and has SELV outputs. The use of other power packs invalidates the permits granted for these devices and can be dangerous.

  • Page 30: Installing Battery

    Commissioning Installing Battery Do not remove the battery during the first 15 hours of operation. There is a risk of losing data if the battery is removed. Sliding the battery into the Mobile Computer as shown in Figure. Ensure the battery is fully inserted. Two audible clicks can be heard as the battery is fully inserted. A partially inserted battery may result in unintentional data loss.

  • Page 31: Handling

    Handling Handling Make sure that the Mobile Computer is set down on a stable supporting surface. Avoid putting it down on places such as e.g. tables, trolleys, stands or holders if they are not stable. MC 9090 -K and MC 9090 -S Mobile Computer In this position the device cannot be protected against damage.

  • Page 32: Ex -G Mobile Computer

    Handling MC 9090 -G Mobile Computer In this position the device cannot be protected against damage. The scanner window can be damaged by objects lying on the supporting surface. In this position the device cannot be protected against damage. The display can be damaged by objects lying on the supporting surface.

  • Page 33: Battery

    Replace the battery when a significant loss of run time is detected. Batteries must be charged within the 0° to +40 °C (32° to 104° F) temperature range. Standard warranty period for all BARTEC batteries is 1 year, regardless of whether the battery was purchased separately or included as part of the Mobile Computer.
  • Page 34 Handling Charging the Battery in the Mobile Computer Care must be taken that the devices to be charged are inserted into the charging station in the direction of the arrow. The Mobile Computer starts the charging process automatically. The yellow charging LED in the LED display bar lights up to indicate the charging status.

  • Page 35: Tips On Optimising The Operating Time

    Handling 5.3.3 Tips on Optimising the Operating Time Leave the Mobile Computer connected to AC power at all times when not in use. Set the Mobile Computer to turn off after a short period of non-use. Set the display and keyboard backlight to turn off after a short period of non-use. Turn off all wireless radio activity when not in use.

  • Page 36: Changing The Display Backlight Settings

    Handling 5.4.2 Changing the Display Backlight Settings To change the display backlight settings in order to conserve more battery power: Tap Start > Settings > System tab > Backlight icon > Battery Power tab Select the On battery power: Disable backlight if not used for: check box and select a value from the drop-down list box.

  • Page 37: Waking The Mobile Computer

    Handling Waking the Mobile Computer 5.4.5 The wake-up conditions define what actions wake-up the Mobile Computer. These settings are configurable and the factory default settings shown in the following table are subject to change/update. Table Wake-up Conditions (Default Settings) Status Description Conditions for Wakeup Power Off...

  • Page 38: Booting Mobile Computer

    Handling Booting Mobile Computer 5.5.1 Windows Mobile 5.0 Devices If the functions stop working when you are using the Mobile Computer, it is recommendable to REBOOT the device. There are two reset functions, warm boot and cold boot. A warm boot restarts the Mobile Computer and closes all running programs. A cold boot also restarts the Mobile Computer and closes all running programs but also resets the Real-Time-Clock (RTC).
  • Page 39 Handling To perform a Cold Boot on a MC 9090 Press the primary battery release on the Mobile Computer to partially eject the battery from the Mobile Computer. On an MC 9090 -G, while the battery is partially released, simultaneously press and release the trigger and the Power button.

  • Page 40: Additional Components

    Additional Components Additional Components Keypad and CD Card 6.1.1 Keypad with Green Overlay Options Order number 28 keys 05-0080-0395 43 keys 05-0080-0396 MC 9090 53 keys 05-0080-0397 53 keys keypad coding for VT Emulation 05-0080-0398 MC 9090 53 keys keypad coding for 3270 Emulation 05-0080-0399 53 keys keypad coding for...

  • Page 41: Removing/Changing The Keypad

    Additional Components 6.1.3 Removing/Changing the Keypad The keypad and SD card may only be replaced outside the hazardous area! Turn off the MC 9090 Remove the battery (see chapter 5.3.2 "Charging Processes"). Take out the screws at the top edge of the keypad. Fig.
  • Page 42 Additional Components Snap on the keypad in the direction of the arrow (see fig. 4) and push it upwards until the boreholes for the screws are over the threaded sleeves. Fig. 4: Changing the keypad Check that the keypad is mounted correctly. Figure 5: Keypad mounted correctly Figure 6: Keypad mounted incorrectly Tighten the screws (torque = 0.565 Nm / torque = 5.0 in-lbs), 0.5 Nm advisable...

  • Page 43: Inserting/Replacing The Sd Card

    Additional Components 6.1.4 Inserting/Replacing the SD Card The hardware status of the SD cards is specified in the test certificate. Accordingly only the SD cards with the order number 17-28BE-F006/000x are to be used. Take off the keypad as instructed in chapter 6.1.3; repeat steps 1 - 4. SD card slot Figure 7: MC 9090 without keypad...

  • Page 44: Open Case And Holster

    Additional Components Open Case and Holster 6.2.1 Open Case for MC 9090 "Version Gun" Order No.: 03-9809-0009 Open Case for MC 90xx 03-9809-0011 Loop for Open Case (Gun) The open case is made of leather and suitable for use in the hazardous area. Do not use open cases or holsters that are not made of leather and not approved for use in hazardous areas.

  • Page 45: Holster For Mc 9090

    Additional Components 6.2.2 Holster for MC 9090 "Version Brick" Order No.: 03-9809-0010 Holster for MC 90xx The holster is made of leather and suitable for use in the hazardous area. Do not use open cases or holsters that are not made of leather and not approved for use in hazardous areas.

  • Page 46: Stylus

    Additional Components Stylus 6.3.1 Stylus for MC 9090 Order number for stylus ( yellow): 3-pack 3-pack 10-pack 10-pack Stylus with holder 3-pack 3-pack 50-pack 50-pack 6.3.2 Stylus for MC 9090 Order number for stylus (grey): 10-pack 10-pack 50-pack 50-pack Stylus with holder 3-pack 3-pack 50-pack...

  • Page 47: Maintenance

    If you wish to send in a defective device for repairs please first read the RMA procedure guide. Then fill in and sign the RMA (Return Merchandise Authorisation) form and send it to our "Retouren Centre". Email: services@bartec.de Fax: +49 7931 597-119 We cannot guarantee any contractually agreed processing times for devices that are sent in without an RMA number.

  • Page 48: Additional Information

    Additional Information Additional Information Links http://www.bartec-group.com BARTEC Homepage http://www.symbol.com Motorola Homepage http://www.symbol.com/ The Motorola site for the MC 9000 Support and Resources Product Manuals Mobile Computers MC 9090 WM http://www.symbol.com/ The Motorola site for the MC 9000 Products and Services...

  • Page 49: Information Around The Explosion Protection

    Directive 1999/92/EC - in the Federal Republic of Germany implemented on the basis of the "BetrSichV Betriebssicher- heitsverordnung" (occupational safety regulations) - and informed by means of written corporate regulations which should be regularly updated. BARTEC as a specialist for safety technology offers such consultation and training. Design Regulations for Explosion Protected Systems, Devices and...
  • Page 50 Additional Information Marking of equipment for use in potentially explosive atmospheres http://www.bartec.de/homepage/deu/40_service/60_fachartikel/s_40_60_20.shtml...

  • Page 51: Accessories

    Additional Information Accessories Order number Order number Designation Motorola BARTEC Accessories for the Hazardous Zone Ex Accessory: Battery for ATEX Zone 2 / Zone 22 Spare battery for MC9090 -G and MC9090 B7-A2Z0-0001 Spare battery for MC9090 B7-A2Z0-0003 Ex Accessory:...
  • Page 52 Additional Information Order number Order number Designation Motorola BARTEC non-Hazardous Zone Accessories for the Single Slot Cradle Set: 05-0079-0018 Consists of: Single slot cradle CRD9000-1001SR 03-9915-0003 Power pack 50-14000-148R 03-9911-0015 RS232 cable (Cradle <-> PC) 25-63852-01R 03-9919-0004 USB cable (Cradle <-> PC)

  • Page 53: Order Numbers

    Additional Information Order numbers B7-A219-0G 0/HJ FA600 Lorax 1D Long Range Scan Engine (SE 1524) 2D Pico Imager (SE 1440) 28 Keys Mobile phone keypad 43 Keys With function keys F1 – F12 in direct access 53 Keys Alphanumeric keypad 53 Keys Keypad coding for VT emulation (the software is not installed on the device)
  • Page 54 Additional Information B7-A219-0K 0/HJ FA600 1D Standard Range Scan Engine (SE 950) 2D Pico Imager (SE 1440) 28 Keys mobile phone keypad 43 Keys with function keys F1 – F12 in direct access 53 Keys alphanumeric keypad 53 Keys Keypad coding for VT emulation (the software is not installed on the device) 53 Keys Keypad coding for 3270 emulation...

  • Page 55: Transport And Shipment

    Transport and Shipment Transport and Shipment Important Note Concerning Transport and Shipping ! Sensitive Devices ! It is absolutely necessary to deliver the equipment in the original packaging in order to avoid damage to the equipment.
  • Page 56 Notice...
  • Page 57 Prüfbescheinigungen / Certificates Prüfbescheinigungen / Certificates EG-Konformitätserklärung / EC-Declaration of Conformity...
  • Page 58 Prüfbescheinigungen / Certificates...
  • Page 59 Prüfbescheinigungen / Certificates...
