Fine-Tuning the Top of Form Position

If your label format prints too close to the front or back edge of the label, you can fine-tune the
position with the top of form (TOF) switch. The TOF switch controls the position of the format
forward or backward along the length of the label.
Only use the TOF switch to fine-tune your label format position. Do not use the TOF switch to
design your label format. This is important because the printer returns to the default TOF setting
when you:
• cycle printer power.
• lift the printhead.
Use the TOF switch to fine-tune the format position after you design the label. Use PrintSet or the
IPL top of form command to control the initial TOF setting. For help on using the top of form
command, see the PrintSet help or the IPL Programming Reference Manual.

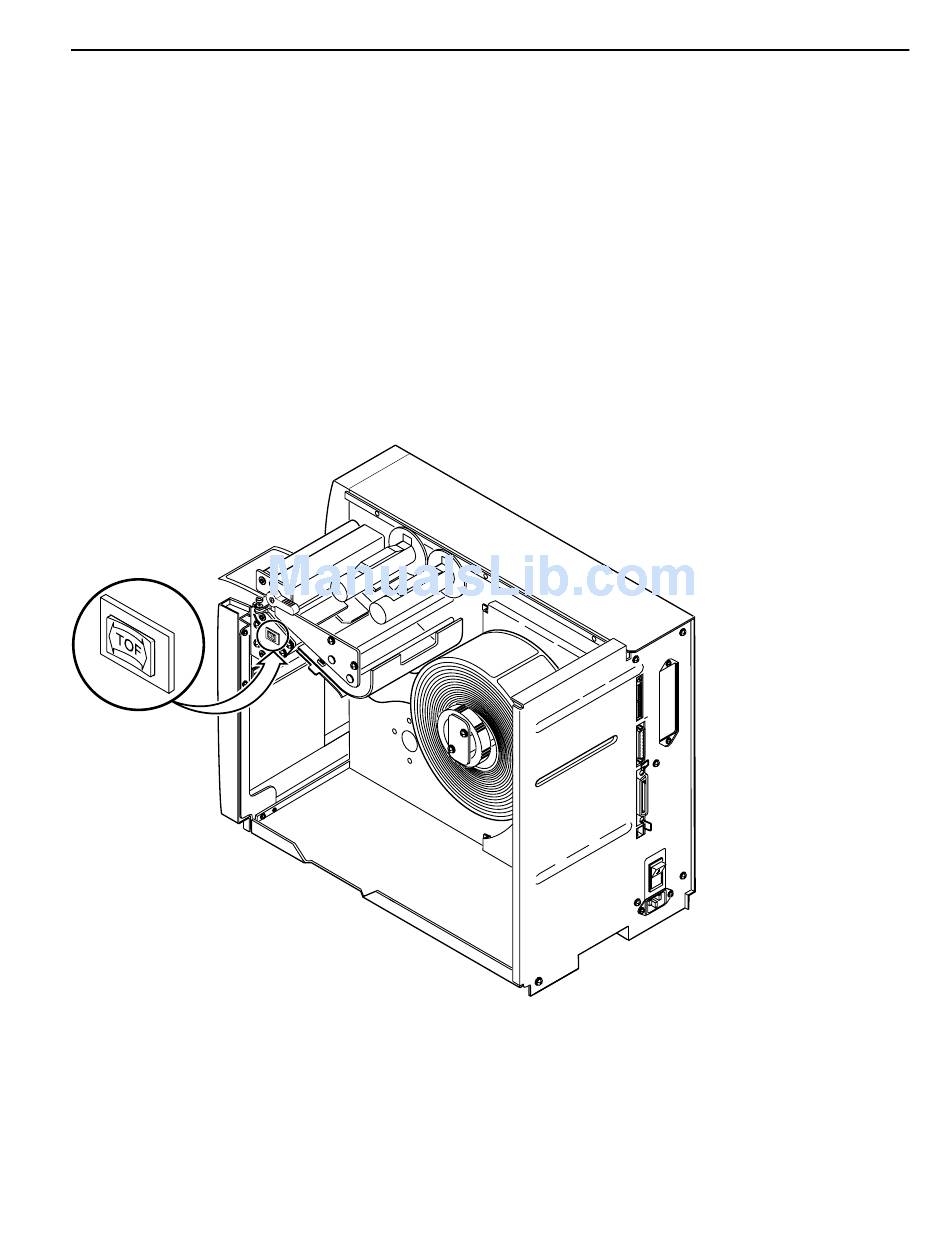

The TOF switch is a small rocker switch located on the lower outboard plate of the printer.
O
44XXG.053
28
