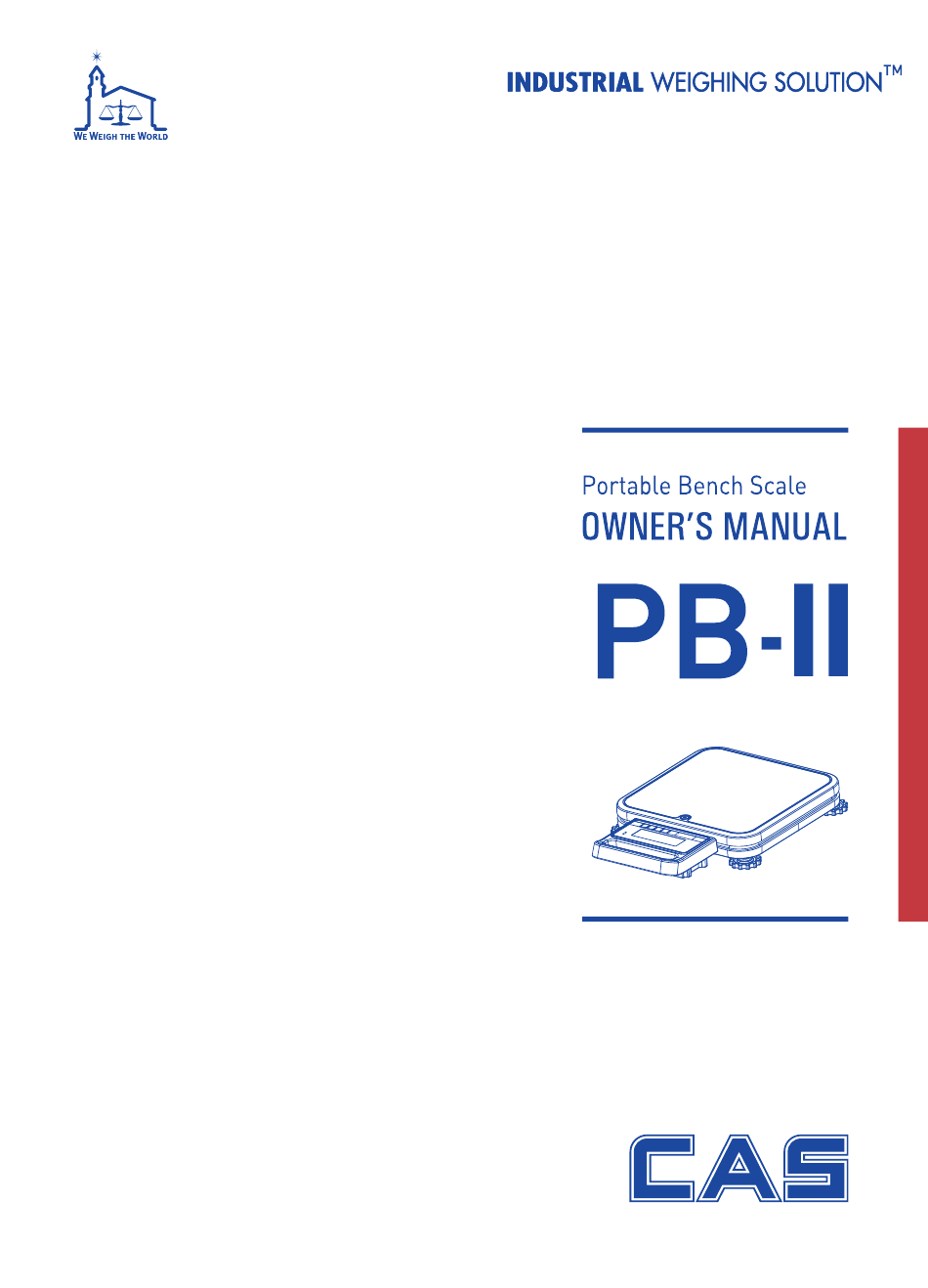

CAS PB-II Owner's Manual

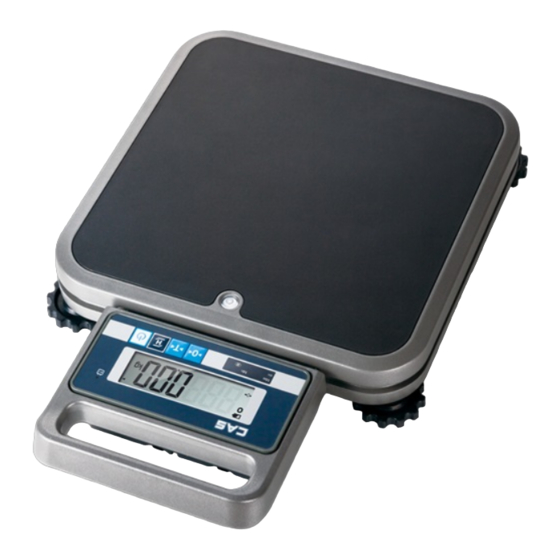

Portable bench scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB-II and is the answer not in the manual?

Questions and answers

Related Manuals for CAS PB-II

Summary of Contents for CAS PB-II

  • Page 2: Table Of Contents

    PRECAUTIONS PREFACE OVERALL VIEW DISPLAY & KEYBOARD OPERATIONS 1. Simple Weighing Mode 2. Weighing with Tare 3. Hold Function 4. Setup Mode 5. How to use print(Option) BATTERY MAINTENACE ERROR MESSAGE SPECIFICATIONS...

  • Page 5: Preface

    Thank you for purchasing CAS PB(Portable Bench). These series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your special departments can enjoy these high quality reliable CAS products. We believe that your needs will be satisfied and you will have proper reliability.

  • Page 6: Display & Keyboard

    DISPLAY & KEYBOARD ■PB2(LCD) ■ KEY FUNCTIONS KEYS FUNCTIONS Used to set the zero point. Used to input or cancel the weight of tare. Used to make the weight of commodity stable. This weight is average value. Used to turn on/off the scale or backlight. (If you press the button long time, Power is turned off)

  • Page 7: Operations

    ● Turn on the display by pressing key. Then, the display will show all the segments and count up "0" to "9". ● When you turn on the display, make sure that platter is empty. Otherwise, display will show "Err 1", an error of initial zero range. Please refer to "ERROR MESSAGE"...

  • Page 8: Hold Function

    ④ Remove container and ⑤ Press the key, then commodity, then the display display will show the "0.00". will show the weight of the container with "-" symbol. 3. Hold Function ① When the weight is unstable, press the key. ②...

  • Page 9: Setup Mode

    Setting) “ On ” Use back-light. “ rS-Co” Print out, continuously. (Continue Mode) “rS-PC ” Print out, continuously. (CAS10Byte). “ rS-CAS ” Print out, continuously. (CAS22Byte) Rs-232 “rS-St2 ” Weight is Stable, Print out. (Stable Mode) (Communication Setting) “ rS-DLP ”...

  • Page 10: How To Use Print(Option)

    5. How to Use Print (Option) 5-1. Mode Change You can use print out function. Print Out Mode has total 7 stage. Each Stage is “rS-Co, rS-PC, rS-CAS, rS-St2, rS-DLP, rS-K, rS-St1” 5-2. rS-Co 1)Mode Setting - This Print Mode is ‘Continue Mode’. First of all, You must scale’s mode setting.
  • Page 11 5-3. rS-PC 1)Mode Setting - This Print Mode is ‘Command Mode’. Please refer to the page 10. 2)Protocol Transmission Data description DATA Value(HEX) Description Start of heading Start of text S(53h),U(55h) S: Stable , U:Unstable SIGN -(2Dh),SP(20h) Sign of the weight data W5~W0 Weight data UN1,UN2...
  • Page 12 COMMAND : DC1(0X11) SCALE->PC DATA FORMAT Weight Value Data Format 5-4. rS-CAS 1)Mode Setting - This Print Mode is ‘Continue Mode’ using CAS22Byte. Please refer to the page 10. 2)Protocol CAS-22 Protocol Data (8 bytes) CR LF └─┘ └─┘ └┐ └────┐...
  • Page 13 5-5. rS-St2 1)Mode Setting - This Print Mode is ‘Stable Mode’. Please refer to the page 10. 2)Print Opreation ①Place a commodity on the ② If weight is stable state, platter, then the display will weight is send a printer show the weight of the commodity.
  • Page 14 ①Place a commodity on the ② If weight is stable state, platter, then the display will weight is send a DLP printer. show the weight of the commodity.  CAS DLP Protocol Variable Descriptions Data Length Net(Net weight) 7 byte...
  • Page 15 5-7. rS-K 1)Mode Setting - This Print Mode is ‘Key Printer Mode’. Please refer to the page 10. 2)Print Opreation ①Place a commodity on the ② If press the Hold key, platter, then the display will weight is send a printer. show the weight of the commodity.
  • Page 16 5-8. rS-St1 1)Mode Setting - This Print Mode is ‘Stable Mode’. Please refer to the page 10. 2)Print Opreation ①Place a commodity on the ② If weight is stable state, ③ Remove container and platter, then the display will You will see on display commodity, then You can show the weight of the...
  • Page 17 5-9. How to Connect RS-232C Wire - SERIAL INTERFACE(Scale <-> Printer) - SERIAL INTERFACE(Scale <-> PC)

  • Page 18: Battery Maintenace

    Remove unstable The "Err 0" occurs when scale is not stable. "Err 0" facts. The "Err 1" occurs when a current zero point has Please call your CAS "Err 1" shifted from the last span calibration. dealer. Please remove the The "Err 3"...

  • Page 19: Specifications

    MODEL PB-II (Portable Bench) Dual Interval Dual Interval Dual Interval Capacity / e Max 15/30kg Max 30/60kg Max 60/150kg e=5/10g e=10/20g e=20/50g Internal 1/60,000 1/60,000 1/60,000 Resolution External 1/3,000 1/3,000 1/3,000 Resolution MAX Tare -14.995kg -29.99kg -59.98kg Display 115 x 35 [mm] / 45 " x 15.5 " 6 digit LCD...
