Summary of Contents for CAS PR2-15
-
Page 2: Table Of Contents
PRECAUTIONS PREFACE, OVERALL VIEW DISPLAY & KEY BOARD COLUMN INSTALLATION OPERATION Chapter 1. Basic Operation Chapter 2. PLU Saving & Calling-up Chapter 3. User' s Set-up Mode Chapter 4. Sales transaction Chapter 5. Payment Chapter 6. Interface in Detail BATTERY MAINTENANCE ERROR MESSAGE SPECIFICATIONS... - Page 5 Thank you for purchasing CAS PRΙΙ series. These series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your special departments can enjoy these high quality reliable CAS products. We believe that your needs will be satisfied and you will have proper reliability.

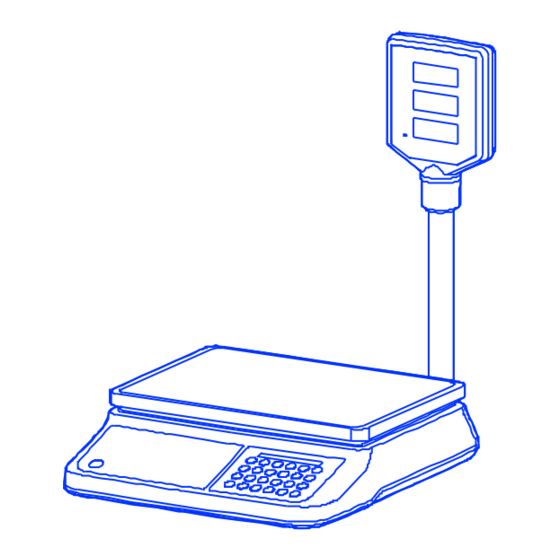

- Page 6 PR II - B Front display PR II - B Rear display PR II - P Front cover & key...
- Page 7 KEY FUNCTIONS KEYS FUNCTIONS Used to enter all the numeric data PLU key. Function key(Back-light, Power Save Used to enter PLU setting Used to clear all the numeric price display Used to clear sum total price Used to clear all the daily total prices Used to correct the zero point To set or clear tare value PLU save key.
-
Page 9: Chapter 1. Basic Operation
● Turn on the ON/OFF switch. Then, the display will show all the segments and count up "9" to "0". Chapter 1. Basic Operation a. Zero function ① Press ZERO key to set Zero. b. Tare function Tare means the weight of container. You may use tare function when you weigh an item with container and measure only the weight of item. - Page 10 ● Successive tare ③ Place another container on the platter. EX) 100g of tare. ④ Press TARE key to set zero point. ⑤ After weighing item remove all of the container from the platter. ⑥ Press TARE key again to set zero. ●...
-
Page 11: Chapter 2. Plu Saving & Calling-Up
Chapter 2. PLU Saving & Calling-up a. Saving unit price on PLU This section explains how to save unit price in PLU. Number of PLU Range Remarks PLU NAME ① Press the 'Fn' key for a few seconds then, Set-up menu will be shown. ②... -
Page 12: Chapter 3. User's Set-Up Mode
Chapter 3. User’s Set-up Mode This section explains how to set up the following functions. Display FUCTION Remarks bL-At Use back-light when you put on the weight bL-oFF Do not use a back-light. bL-on Use back-light always ps - 0 Do not use power save mode. -
Page 13: Chapter 4. Sales Transaction
Chapter 4. Sales transaction PR-Ⅱ can provide inputting the unit price through the numeric key and calling up PLU. a. Input the unit price through the numeric key This section explains how to input the unit price through the numeric key and complete the sales transaction. - Page 14 ● Use + key to makes the adding-up transactions. ● You may either call up PLU or just input the unit price. ① Press M1~M7 key can call up the PLU. EX) M1 ② Place an item on the platter. ③...
- Page 15 Press + key. “Total Price” display says ⑦ total price added, and “Unit Price” display says the number of sales transactions added. ⑧ Remove the item from the platter. ● You may also place the item on the platter first and then input unit price in the scale later.
-
Page 16: Chapter 5. Payment
Chapter 5. Payment a. Payment function on total sales amount ① Press ∑ key to call up total price. (If you want to go back to sales mode, press zero key.) Input payment of consumer by numeric ② key. Ex) 120.00 payment Press Σ... - Page 17 b. Deleting total sales data ① Press ∑ key to call up total price. (If you want to go back to sales mode, press zero key.) Press C key to delete “total sales” data. ② Clear account message shows up shortly, and then it goes to normal weighing mode.
-
Page 18: Chapter 6. Interface In Detail
Chapter 6. Interface in Detail This function is helpful to understand RS-232C Communication user setting. The following is the communication information of RS-232C. RS-232C Port Connection ● 8-BIT ASCII code None parity 1 stop bit baud rate 9600 ●... - Page 19 ● RS-232C Protocol Transmission Data description DATA Value(HEX) Description Start of heading Start of text S(53h),U(55h) S: Stable , U:Unstable SIGN -(2Dh),SP(20h) Sign of the weight data W5~W0 Weight data UN1,UN2 KG,LB Unit of Weight Block check character exclusive or(^) End of text End of transmission...
- Page 20 COMMAND : DC2(0X12) SCALE -> PC DATA FORMAT All Data Format (total price,weight,unit price)
-
Page 21: Error Message
Error Message on Description Solution Display The "Z-Err" occurs when a current Please call your CAS zero point has shifted from the last dealer. span calibration. The "oL" is an overload error. Please remove the weight. - Page 22 MODEL : PRΙΙ Dual Dual Dual Single Single Single Interval Interval Interval Capacity 3/6kg 6/15kg 15kg 15/30kg 30kg e=2g e=5g e=10g e=1g e=2g e=5g e=1/2g e=2/5g e=0.5/1g e=0.5g e=1g e=2g e=0.2g e=0.5g e=1g External 1/3000~ 1/3000~ 1/3000~ 1/3000 1/3000 1/3000 Resolution 1/30000 1/30000...
