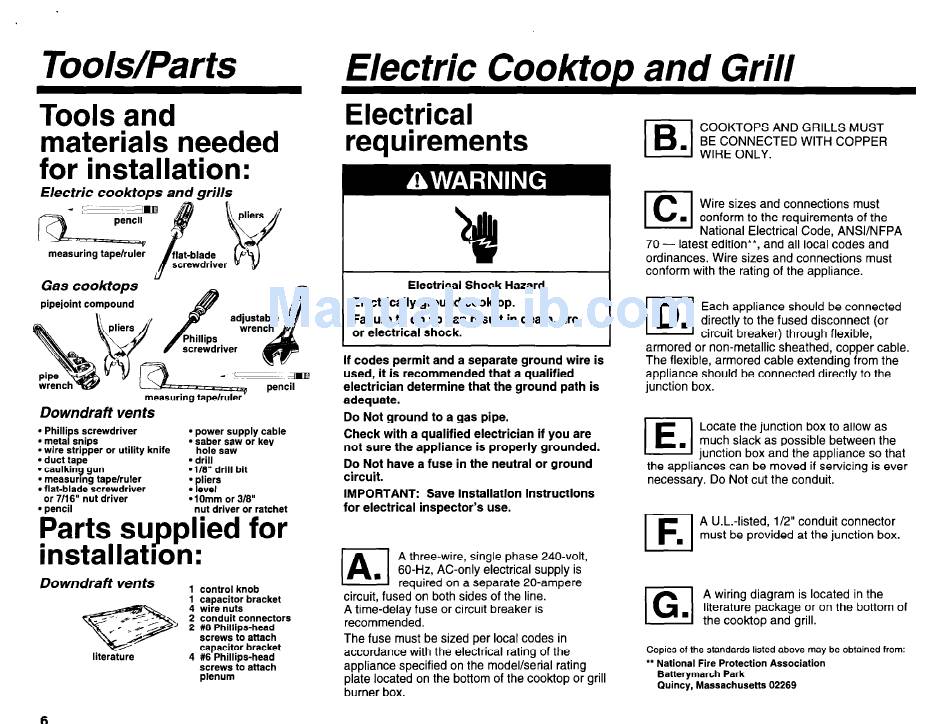

Tools/Parts
Electric Cooktop and Grill
Tools and
materials needed
for installation:
Electric
cooktops
and grills
I
Ll
Gas cooktops
pipejoint
compound
measuring
tape/ruler'
Downdraft
vents
l
Phillips
screwdriver
l
power supply
cable
l
metal snips
l
wire stripper
or utility
knife
l
saber saw or key
hole saw
l
duct tape
l
drill
l
caulking
gun
*l/8"
drill bit
l
measurmg
tape/ruler
l
liers
l
flat-blade
screwdriver
P
l
evel
or 7/16" nut driver
l
1 Omm or 318"
l
pencil
nut driver or ratchet
Parts supplied for
installatron:
Downdraft
vents
1 control
knob
1 caoacitor
bracket
4 wire nuts
2 conduit
connectors
2 #8 Phillips-head
screws
to attach
literature
capacitor
bracket
4 #6 Phillips-head
screws
to attach
plenum
Electrical
requirements
If codes permit and a separate ground
wire is
used, it is recommended
that a qualified
electrician
determine
that the ground
path is
adequate.
Do Not ground
to a gas pipe.
Check with a qualified
electrician
if you are
not sure the appliance
is properly
grounded.
Do Not have a fuse in the neutral or ground
circuit.
IMPORTANT:
Save Installation
Instructions
for electrical
inspector's
use.
/A
A three-wire, single phase 240-volt,
n
60-H& AC-only electrical supply is
required on a separate 20-ampere
circuit, fused on both sides of the line.
A time-delay fuse or circuit breaker is
recommended.
The fuse must be sized per local codes in
accordance with the electrical rating of the
appliance specified on the model/serial rating
plate located on the bottom of the cook-top or grill
burner box.
l!%l
El
n
COOKTOPS
AND GRILLS MUST
BE CONNECTED
WITH COPPER
WIRE ONLY.
Wire sizes and connections
must
conform to the requirements
of the
National Electrical Code, ANSVNFPA
. . . .
.
70-
latest edition**, and all local
COdeS and
ordinances.
Wire sizes and connections
must
conform with the rating of the appliance.
•l
Each appliance should be connected
.
directly to the fused disconnect
(or
circuit breaker) through flexible,
armored or non-metallic
sheathed, copper cable.
The flexible, armored cable extending from the
appliance should be connected directly to the
junction box.
El
Locate the junction box to allow as
n
much slack as possible between the
iunction box and the appliance so that
the appliances can be moved if servicing is ever
necessary. Do Not cut the conduit.
El
A U.L.-listed, l/2" conduit connector
must be provided at the junction box.
El
A wiring diagram is located in the
.
literature package or on the bottom of
the cooktop and grill.
Copies of the standards
listed above may be obtained from:
** National
Fire Protection
Association
Batterymarch
Park
Quincy,
Massachusetts
02269
6
