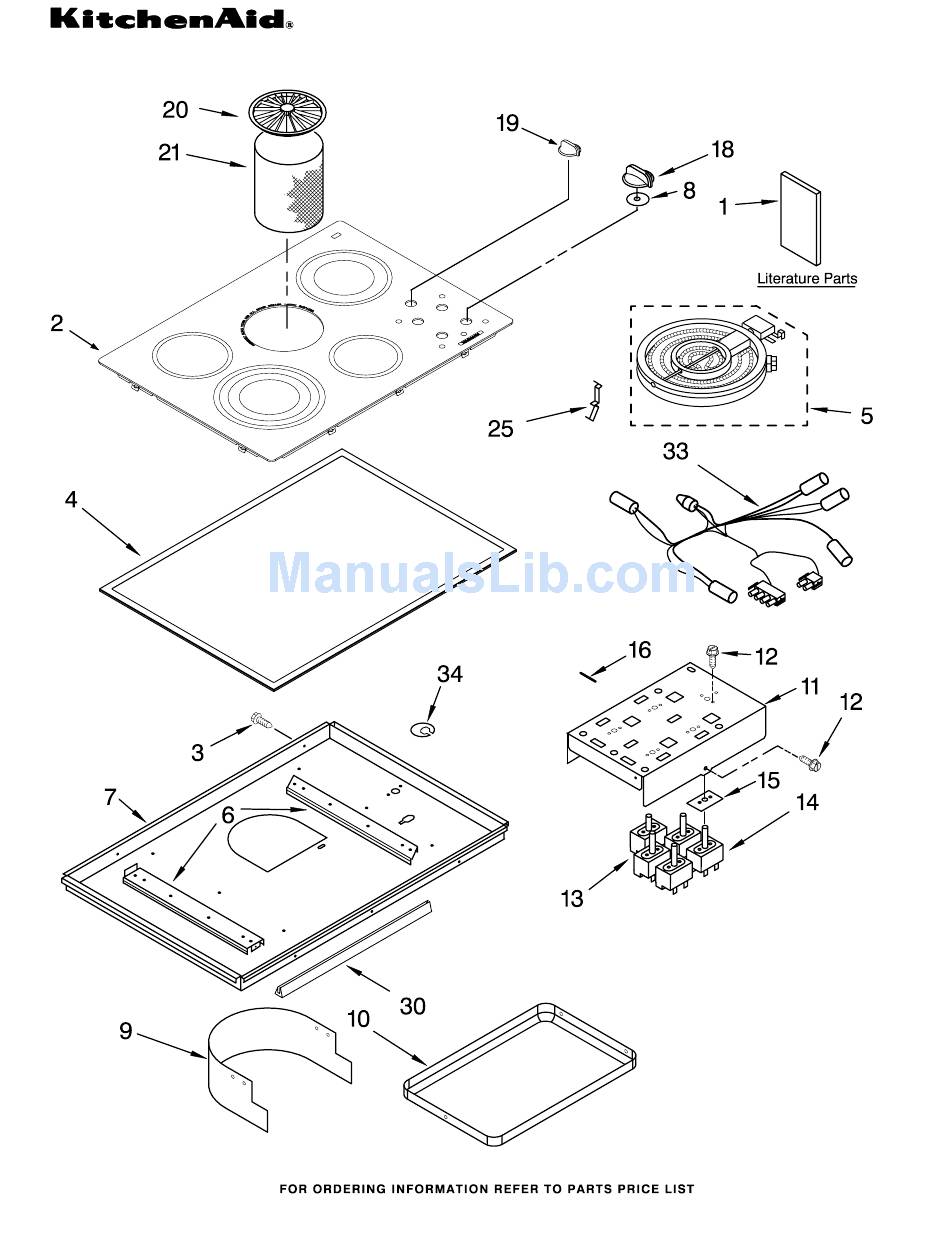

- Page 1 COOKTOP PARTS 30" ELECTRIC BUILT−IN For Models: KECD806RBL00, KECD806RWW00, KECD806RSS00 DOWNDRDAFT COOKTOP (Black) (White on White) (S.Steel) 12−05 Litho in U.S.A. (cre) Part No. 8186305 Rev.A...
- Page 2 For Models: KECD806RBL00, KECD806RWW00, KECD806RSS00 Illus. Part DESCRIPTION Literature Parts 8286553 Installation Instructions 8286427 Wiring Diagram 8286080 Use & Care Guide 3191638 Safe Cooking Tips 9759133 Safe Cooking Tips COOKTOP PARTS Cooktop, Glass & Bracket Assembly 8286219 Black 8286220 White 8286221 S.Steel...
- Page 3 For Models: KECD806RBL00, KECD806RWW00, KECD806RSS00 8186305 BLOWER UNIT PARTS (Black) (White on White) (S.Steel) Illus. Part DESCRIPTION 8285958 Bracket, Shield 3192403 Bracket, Blower Mounting 9760484 Ring, Inlet 9760485 Screen, Inlet 9760483 Adapter, Vent 9760440 Blower Motor Asm. (Includes Fan Asm) 3196537 Screw, 8−18 x 3/8...
- Page 4 OPTIONAL PARTS For Models: KECD806RBL00, KECD806RWW00, KECD806RSS00 (Black) (White on White) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga. 150 C 242822 Wire, Blue 14 Ga. 150 C 242830 Wire, Brown 14 Ga.
