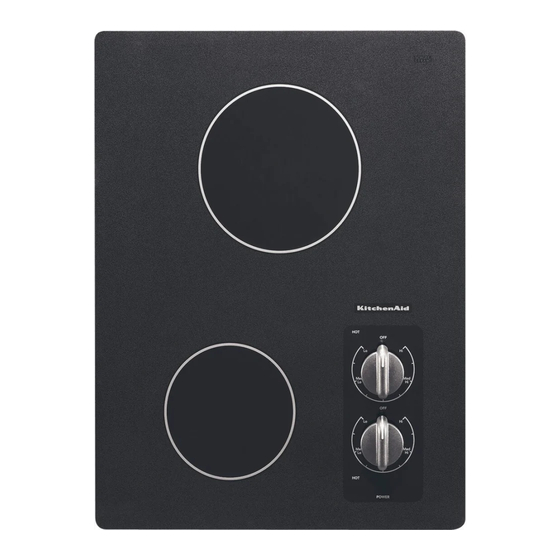

KitchenAid KECC056R Dimensions

Electric built-in cooktop
Hide thumbs


Advertisement

PRODUCT MODEL NUMBERS
KECC056R
KECC566R
KECC506R
KECC567R
KECC507R
KECC568R
KECC508R
KECV568R
Electrical: A 4-wire or 3-wire, single phase, 240
volt, 60 Hz., AC only electrical supply is required
on a separate, 40-amp circuit, fused on both sides
of the line. Use 8 gauge copper wire.
NOTE: The 15" (38.1 cm) model series requires a
20-amp circuit. Use 12 gague copper wire.
CABINET OPENING DIMENSIONS
C
L
K
J
A. 15" (38.1 cm) on 15" (38.1 cm) models; 30" (76.2 cm) on
30" (76.2 cm) models; 36" (91.4 cm) on 36" (91.4 cm) models
B. Combustible area above countertop (shown by dashed box above)
C. 30" (76.2 cm) minimum clearance between top of cooktop platform
and bottom of unprotected wood or metal cabinet (24" [61 cm]
minimum clearance if bottom of wood or metal cabinet is protected
by not less than
" [0.6 cm] flame retardant millboard covered with
not less than No. 28 MSG sheet steel, 0.015" [0.04 cm] stainless
steel, or 0.024" [0.06 cm] aluminum or 0.020" [0.05 cm] copper)
D. 13" (33 cm) recommended upper cabinet depth
E. 2" (5.1 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
®
Electric Built-in Cooktop
OVERALL DIMENSIONS
A
D
B
F
G
E
H
H
I
Straight-edge cooktop
A
Curved-edge cooktop
A
For model 15" (38.1 cm) model only:
rear of cabinet or
rear wall under
countertop
F. 20½" (52 cm)
G. 18" (45.7 cm) minimum clearance from upper cabinet to countertop
within minimum horizontal clearances to cooktop
H. Junction box or outlet; 12" (30.5 cm) minimum from bottom of
countertop; 10" (25.4 cm) from right side of cabinet
I. 14½" (36.8 cm) on 15" (38.1 cm) models; 29½" (74.9 cm) on
30" (76.2 cm) models; 35½" (90.2 cm) on 36" (91.4 cm) models
J. 1" (2.5 cm) minimum distance to nearest left and right side
combustible surface above cooktop
K. 1½" (3.8 cm) max. counter thickness on 15" (38.1 cm) models. See
following illustration.
L. 1" (2.5 cm) minimum clearance between back wall and countertop
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
A. 21
" (54.1 cm)
B. 16
" (42.1 cm)
30
" (77.1 cm)
36
" (92.3 cm)
C. 2 " (7.3 cm)
B
A. 22 " (56.1 cm)
B. 16
" (42.1 cm)
30
" (77.1 cm)
36
" (92.3 cm)
C.
2 " (7.3 cm)
back edge
of cutout
B
A
A.
" (1.7 cm) min.
B. 1½" (3.8 cm) max.
C
C
Ref. 8286066
09-20-05
