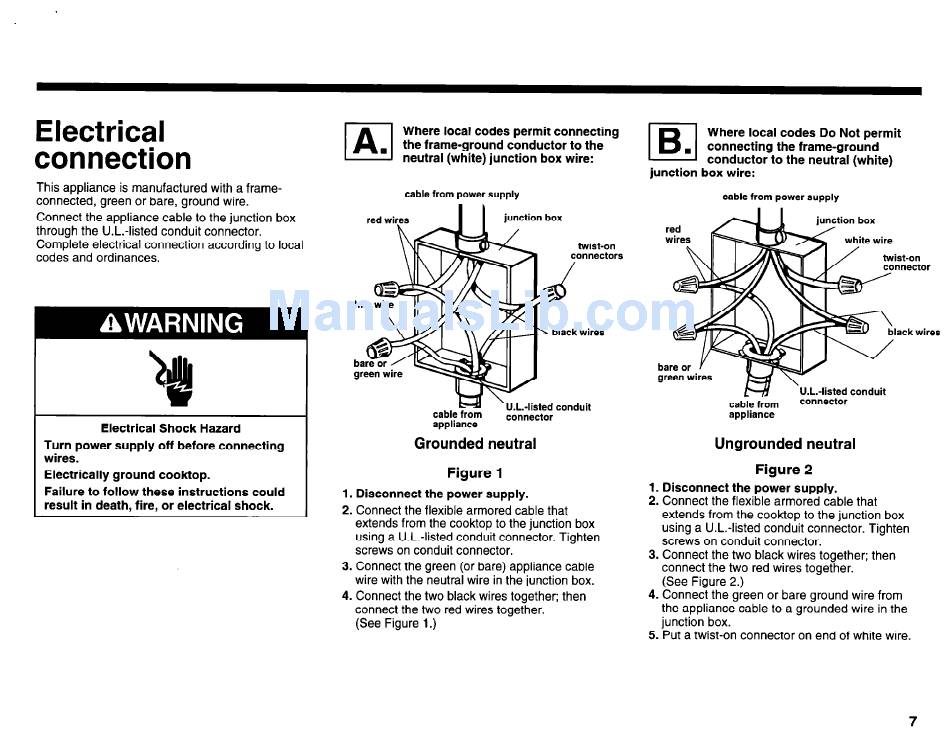

Electrical
connection
This appliance is manufactured
with a frame-
connected,
green or bare, ground wire.
Connect the appliance cable to the junction box
through the U.L.-listed conduit connector.
Complete electrical connection
according to local
codes and ordinances.
Electrical
Shock Hazard
Turn power supply
off before connecting
wires.
Electrically
ground
cooktop.
Failure to follow
these instructions
could
result in death, fire, or electrical
shock.
Where local codes permit connecting
the frame-ground
conductor
to the
neutral (white) junction
box wire:
cable from power supply
red wires
I
I
junction
box
twist-on
connectors
2
black wires
cable from
appliance
' U.L.-listed
conduit
connector
Grounded
neutral
Figure 1
Figure 2
1. Disconnect
the power supply.
2. Connect the flexible armored cable that
extends from the cooktop to the junction box
using a U.L.-listed conduit connector. Tighten
screws on conduit connector.
3. Connect the green (or bare) appliance cable
wire with the neutral wire in the junction box.
4. Connect the two black wires together; then
connect the two red wires together.
(See Figure 1.)
1. Disconnect
the power supply.
2. Connect the flexible armored cable that
extends from the cooktop to the junction box
using a U.L.-listed conduit connector. Tighten
screws on conduit connector.
3. Connect the two black wires together; then
connect the two red wires together.
(See Figure 2.)
4. Connect the green or bare ground wire from
the appliance cable to a grounded wire in the
junction box.
El
Where local codes Do Not permit
.
connecting
the frame-ground
conductor
to the neutral
(white)
junction
box wire:
cable from power supply
ist-on
nnector
black wires
cable from
appliance
U.L.-listed
conduit
connector
Ungrounded
neutral
5. Put a twist-on connector on end of white wire.
7
