TDAM-1000
VHF AM TRANSCEIVER
Installation and Operating
Instructions
TiL Document No. 15RE532
Rev. C
November 2018
Technisonic Industries Limited
240 Traders Boulevard, Mississauga, Ontario L4Z 1W7
Tel: (905) 890-2113 Fax: (905) 890-5338
www.til.ca
Copyright by Technisonic Industries Limited. All rights reserved.
Advertisement
Table of Contents
Related Manuals for Technisonic Industries Limited TDAM-1000
Summary of Contents for Technisonic Industries Limited TDAM-1000

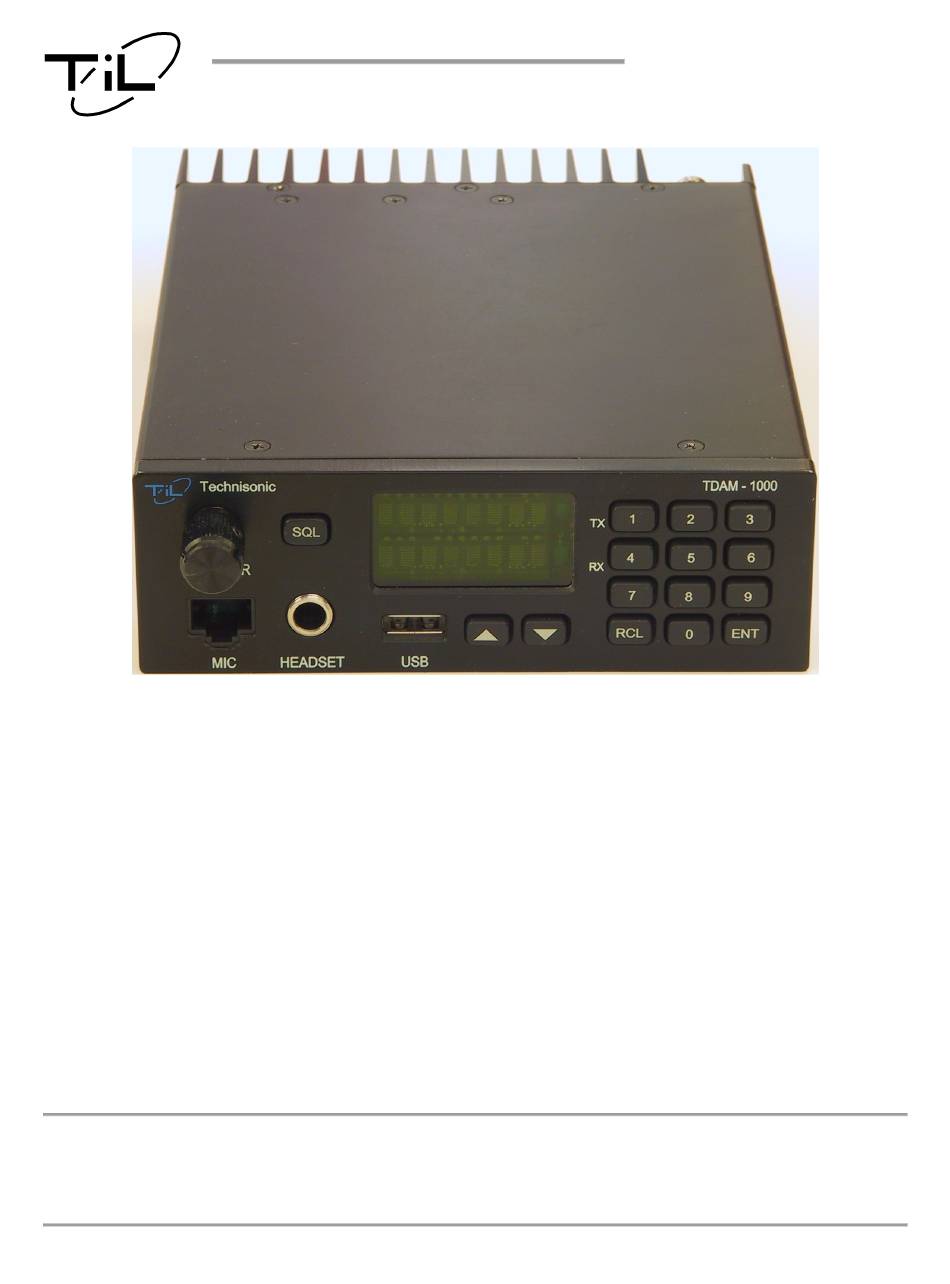

- Page 1 VHF AM TRANSCEIVER Installation and Operating Instructions TiL Document No. 15RE532 Rev. C November 2018 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca Copyright by Technisonic Industries Limited. All rights reserved.
- Page 2 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C...
- Page 3 8 Jan 2016 Updated to final installation and operation for 24 May 2018 production release. Updated for IC and FCC conformance. 22 June 2018 Updated FCC Compliance notes 1 Nov 2018 TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C...
- Page 4 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C...
- Page 5 This manual is designed to provide information about the TDAM-1000. Every effort has been made to make this manual as complete and accurate as possible. WARRANTY INFORMATION The Model TDAM-1000 is under warranty for one year from date of purchase. Failed units caused by defective parts or workmanship should be returned to: Technisonic Industries Limited...
-
Page 6: Table Of Contents
WARRANTY ........................16 LIST OF FIGURES FIGURE TITLE PAGE Outline Drawing for Model TDAM-1000 ................4 Wiring Connections and Notes for the TDAM-1000 ............5 TDAM-1000 Front Panel Controls ..................7 LIST OF TABLES TABLE TITLE PAGE Power Connections (2 Pin D-Connections – J1) ............... 5 Accessory Connections (15 Pin D-Connections –... - Page 7 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C...
-
Page 8: Introduction
TECHNISONIC INDUSTRIES LIMITED SECTION 1: GENERAL DESCRIPTION INTRODUCTION This publication provides information on the installation and operation of the TDAM-1000 Transceiver. DESCRIPTION The TDAM-1000 VHF AM mobile transceiver (Product Marketing Name (PMN) TDAM-1000) operates in the aeronautical VHF AM band and is designed for ground vehicle installation. - Page 9 TECHNISONIC INDUSTRIES LIMITED This page is intentionally left blank. TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C...
-
Page 10: General
INSTALLATION The TDAM-1000 is designed to be used in land mobile applications. A mounting bracket, hand microphone, power cable and antenna are supplied. The TDAM-1000 will operate on both standard 13.8 VDC or 28 VDC special purpose or military vehicle power without modification. -
Page 11: Outline Drawing For Model Tdam-1000
TECHNISONIC INDUSTRIES LIMITED FIGURE 1 - Outline Drawing for Model TDAM-1000 TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C... -
Page 12: Installation Connections
TECHNISONIC INDUSTRIES LIMITED INSTALLATION - CONNECTIONS FIGURE 2 - Rear Connector View - TDAM-1000 J1 (2 Pin D Connections) - Use Plug Pin # Description Power Ground TABLE 1. Power Plug Connections J7 (15 Pin D Connections) - Use MALE Connector... -
Page 13: Installation - Wiring Instructions
For most installations, only the power connection and the antenna connection are required. However an installation of two TDAM-1000 transceivers can take advantage of the ‘Cross Mute’ feature available on the 15 pin D connector. The Cross Mute function will mute the other receiver whenever one of the radios is transmitting. -
Page 14: General
TECHNISONIC INDUSTRIES LIMITED SECTION 3: OPERATING INSTRUCTIONS GENERAL This section contains information and instructions for the correct operation of the TDAM-1000 transceiver. FEATURES The TDAM-1000 supports the following features: 16 character LED alphanumeric display • Backlit panel and keys •... -
Page 15: Normal Operation
Those marked with an asterisk (*) will not be available in fixed mode. 3.4.1 ENTERING A FREQUENCY* The TDAM-1000 supports both 25 kHz and 8.33 kHz channel spacing. The channel spacing used is determined by the frequency entered. See the ICAO frequency chart in table x.x. - Page 16 ‘DELETE?’. Press enter again to confirm. For example, to delete channel 48, press: The radio will then tune to the next lower channel number available TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C...
-
Page 17: Function Menu
Enter configuration menu. See 3.6 CONFIGURATION MENU. Read channel or configuration data from USB storage device into radio. Save channel or configuration data to USB storage device from radio. TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C... -
Page 18: Configuration Menu
Contacted All replies are transmitted on the frequency of the last channel received. Tx Timer Transmit timer. Selects the transmit timeout timer between Off, 30, 60 or 90 seconds. TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C... -
Page 19: 25 And 8.33 Khz Channel Spacing
TECHNISONIC INDUSTRIES LIMITED 25 AND 8.33 kHz CHANNEL SPACING The TDAM-1000 is capable of both 25 and 8.33 kHz channel spacing. Selecting the desired channel spacing is achieved during the frequency entry procedure. The TDAM-1000 uses the ICAO standard where 5, 10 or 15 kHz is added to the 25 kHz channel frequencies to represent the additional 8.33 kHz channel steps:... -
Page 20: Dimensions
+/- 1 ppm (0.0001%) Operating Temperature -20 to +55 °C Storage Temperature -40 to +70 °C Power Consumption Transmit High Power < 65 Watts Receive < 15 Watts Standby < 10 Watts TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C... -
Page 21: Receiver Specifications
25 kHz Channel Spacing 300 to 3400 Hz, +1 dB, -2dB 8.33 kHz Channel Spacing 350 to 2500 Hz, +1 dB, -2 dB Audio Distortion < 5% THD Audio Output Power > 7 Watts TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C... -
Page 22: Transmitter Specifications
< 5% @ 90% Modulation Frequency Stability ±1 ppm (0.0001%) Intermodulation Attenuation 40 dB @ 150 kHz Offset Keying Time < 20 ms Release Time < 10 ms Speech Processor 35 dB Dynamic Range TDAM-1000 Installation and Operating Instructions TiL 15RE532 rev. C... -
Page 23: Warranty
Tel: (905) 890-2113 Fax: (905) 890-5338 IMPORTANT WARRANTY All communication equipment manufactured by Technisonic Industries Limited is warranted to be free of defects in Material or Workmanship under normal use for a period of one year from Date of Purchase by the end user.
