Model No. EPTL22310.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer
Care.
1-866-997-6999
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.iconservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.

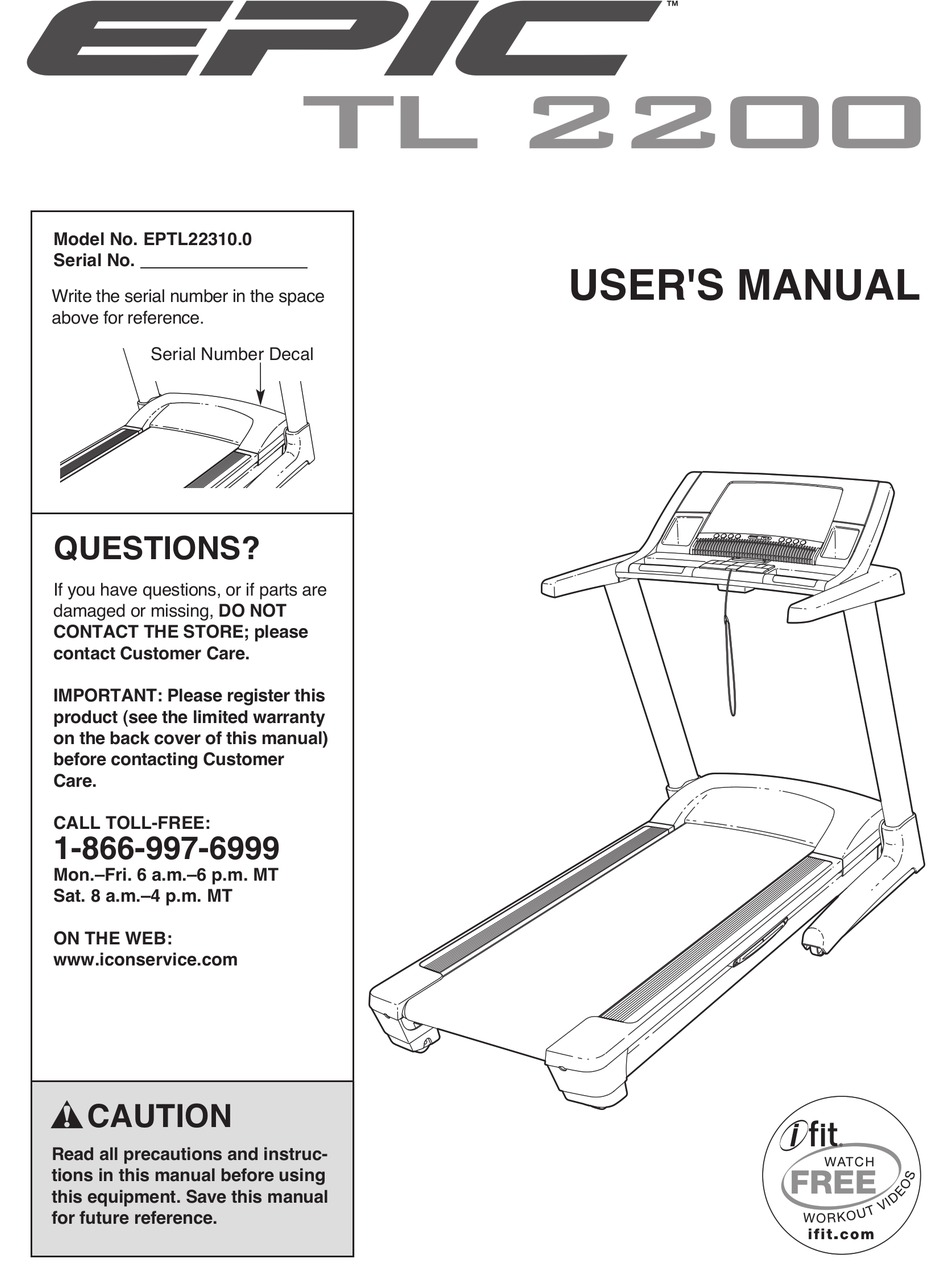

USER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Epic Epic TL2200
Summary of Contents for Epic Epic TL2200
- Page 1 USER'S MANUAL Model No. EPTL22310.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care. IMPORTANT: Please register this product (see the limited warranty on the back cover of this manual)
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. .2 IMPORTANT PRECAUTIONS . -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and in- structions in this manual and all warnings on your treadmill before using your treadmill. ICON as- sumes no responsibility for personal injury or property damage sustained by or through the use of this product. - Page 4 18. The treadmill is capable of high speeds. 23. Do not change the incline of the treadmill by Adjust the speed in small increments to placing objects under the treadmill. avoid sudden jumps in speed. 24. Inspect and properly tighten all parts of the 19.
-
Page 5: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the revolutionary EPIC™ ing this manual, please see the front cover of this man- TL 2200 treadmill. The TL 2200 treadmill offers an im- ual. To help us assist you, note the product model pressive selection of features designed to make your number and serial number before contacting us. -
Page 6: Assembly
ASSEMBLY To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly re- quires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 7 2. Identify the Right Upright (88). Have a second person hold the Right Upright near the Right Base Cover (111). See the inset drawing. Tie the wire tie in the Right Upright securely around the end of the Upright Wire (86). Then, pull the other end of the wire tie up through the Right Upright until the Upright Wire is routed through Wire...
- Page 8 4. With the help of a second person, hold the handrail assembly near the Uprights (85, 88). Connect the Upright Wire (86) to the 25" Wire Handrail Harness (103). See the inset drawing. The Assembly connectors should slide together easily and snap into place.
- Page 9 6. Set the console assembly face down on a soft surface to avoid scratching the console assem- Tabs bly. Slide the three tabs on the Console Accent (102) into the console assembly. Slot Press on the ends of the Console Accent (102) so that they snap into the slots in the console assembly.
- Page 10 8. Attach the console assembly to the handrail as- sembly with nine #8 x 3/4" Screws (7). Start all Console Assembly nine Screws, and then tighten each of them. Handrail Assembly 9. Locate the two cardboard stands from step 1. With the help of a second person, raise the front of the treadmill and insert the crossbar on the Base (115) into the cutouts in the cardboard...
- Page 11 11. Orient the Storage Latch (78) so that the large barrel and the Latch Knob (77) are in the posi- tions shown. Remove the tie from the upper end of the Storage Latch (78). Attach the upper end of the Storage Latch to the bracket on the Frame Crossbar (39) with a 3/8"...
- Page 12 If you purchase the optional chest pulse sensor (see page 23), follow the steps below to install the re- ceiver included with the chest pulse sensor. 1. Make sure that the power cord is unplugged. Remove the indicated #8 x 3/4" Screws (7) from the Pulse Receiver Cover (95) on the back of the console assembly.
-
Page 13: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT that is properly installed and grounded in accor- dance with all local codes and ordinances. IMPORTANT: The treadmill is not compatible with Your treadmill features a walking belt coated with high- performance lubricant. IMPORTANT: Never apply sil- GFCI-equipped outlets. - Page 14 CONSOLE DIAGRAM FEATURES OF THE CONSOLE The console also features the iFit interactive workout system. The iFit system accepts iFit cards with work- The treadmill console offers an impressive selection of outs that help you achieve specific fitness goals. For features designed to make your workouts more effec- example, lose unwanted pounds with the 8-week tive and enjoyable.
- Page 15 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left.
- Page 16 5. Follow your progress with the displays. 6. Measure your heart rate if desired. The matrix—When you Note: If you use the handgrip pulse sensor and the optional chest pulse sensor at the same select the manual time, the console will not display your heart mode, the matrix will rate accurately.
- Page 17 HOW TO USE A PRESET WORKOUT each segment, a series of tones will sound and the next segment of the profile will begin to flash. If a 1. Insert the key into the console. new speed or incline setting is programmed for the next segment, the new speed or incline setting will See HOW TO TURN ON THE POWER on page 15.
- Page 18 HOW TO CREATE A CUSTOM WORKOUT When the first segment of the workout ends, a se- ries of tones will sound and the current speed and 1. Insert the key into the console. incline settings will be saved in memory. Program a speed setting and an incline setting for the sec- See HOW TO TURN ON THE POWER on page 15.
- Page 19 HOW TO USE A CUSTOM WORKOUT If desired, you can redesign the workout while using it. To change the speed setting or the in- 1. Insert the key into the console. cline setting for the current segment, simply press the speed or incline buttons. When the current See HOW TO TURN ON THE POWER on page 15.
- Page 20 HOW TO USE A PULSE WORKOUT get heart rate setting may be programmed for con- secutive segments. CAUTION: During each segment of the workout, the console If you have heart prob- will compare your heart rate to the target heart rate lems, or if you are over 60 years of age and setting for that segment.
- Page 21 HOW TO USE AN IFIT CARD 3. Press the Start button to start the workout. To purchase iFit cards, go to www.iFit.com or call the A moment after you press the Start button, the telephone number on the front cover of this manual. treadmill will automatically adjust to the first speed iFit cards are also available at select stores.
- Page 22 THE INFORMATION MODE An “E” for English miles or an “M” for metric kilometers The console features an information mode that keeps will appear in the track of the total distance that the walking belt has Incline/Pulse display. Press moved and the total number of hours that the treadmill the Speed increase button has been used.
- Page 23 HOW TO USE THE STEREO SOUND SYSTEM HOW TO ADJUST THE CUSHIONING SYSTEM To play music or audio books through the consoleʼs The treadmill features a cushioning system that re- stereo speakers, you must connect your MP3 player, duces the impact as you walk or run on the treadmill. CD player, or other personal audio player to the con- To increase the firmness of the walking platform, step sole through the audio jack near the Stop button.
-
Page 24: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to the lowest position before you fold the treadmill. left. -
Page 25: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 26 Lower the treadmill (see HOW TO LOWER THE TREADMILL FOR USE on page 24). Remove the four indicated #8 x 3/4" Screws (7), and remove the Motor Hood (66). Next, locate the Reed Switch (48) and the Magnet (101) on the left side of the Pulley (54). Turn the View Pulley until the Magnet is aligned with the Reed Switch.
- Page 27 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller bolt clockwise 1/2 of a turn;...
-
Page 28: Exercise Guidelines
EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning any time. During the first few minutes of exercise, your exercise program, consult your physician. body uses carbohydrate calories for energy. Only after This is especially important for persons over the first few minutes of exercise does your body begin the age of 35 or persons with pre-existing... -
Page 29: Part List
PART LIST—Model No. EPTL22310.0 R0710A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description 3/8" x 1 1/4" Patch Bolt Lift Arm 3/8" x 3 3/4" Patch Bolt Reed Switch Clamp 1/4"... - Page 30 Key No. Qty. Description Key No. Qty. Description Magnet Key/Clip Console Accent Right Base Cover 25" Wire Harness Caution Decal Right Bottom Handrail Cover Base Foot Handrail Frame Wire Tie Left Bottom Handrail Cover Base 18" Audio Wire Wheel 5/32" Hex Key –...
-
Page 31: Exploded Drawing
EXPLODED DRAWING A—Model No. EPTL22310.0 R0710A... - Page 32 EXPLODED DRAWING B—Model No. EPTL22310.0 R0710A...
- Page 33 EXPLODED DRAWING C—Model No. EPTL22310.0 R0710A...
- Page 34 EXPLODED DRAWING D—Model No. EPTL22310.0 R0710A...
- Page 35 EXPLODED DRAWING E—Model No. EPTL22310.0 R0710A...
-
Page 36: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
Need help?
Do you have a question about the Epic TL2200 and is the answer not in the manual?
Questions and answers

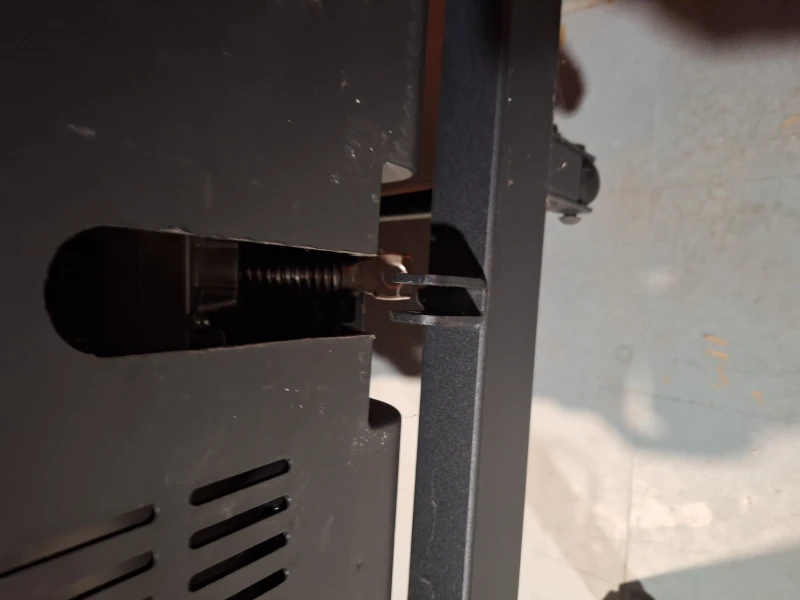

Look like a cable came a loose on my treadmill epic tl 1700. Would that be a reason that I cannot lower it.
Yes, a loose cable on the Epic TL2200 treadmill could prevent it from lowering. If the treadmill has an electronic or mechanical locking mechanism controlled by cables, a loose connection might interfere with its ability to release properly. Checking and securing all cables may help resolve the issue.
This answer is automatically generated
I **** unable to lower my treadmill What could be the reason
If your Epic TL2200 treadmill will not lower, the possible reason could be that the storage latch is not releasing properly. Ensure that the storage latch is holding the frame securely in the storage position and try disengaging it to lower the treadmill. If the issue persists, check for any obstructions or mechanical faults.
This answer is automatically generated
