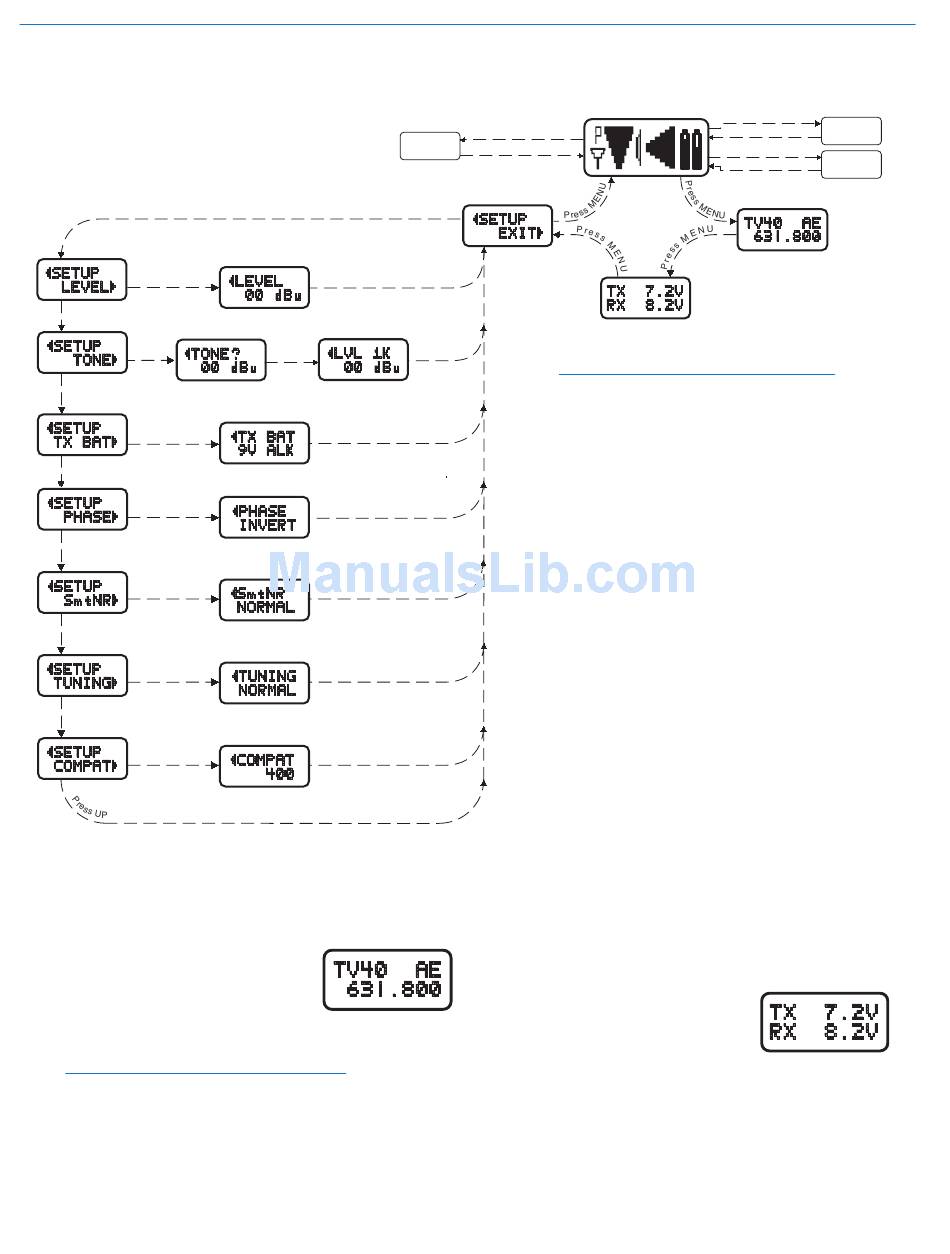

Menu Selections from Main Window

Press
MENU
Press
(Press UP / DOWN to adjust)
UP
Audio Test Tone
Press
MENU
Press
UP
Press MENU
Press
(Press UP / DOWN to select)
UP
Press MENU
Press
(Press UP / DOWN to select)
UP
Press MENU
Press
(Press UP / DOWN to select)
UP
Press MENU
Press
UP
Press MENU

Frequency Window

TVxx - The television broadcast channel the frequency
falls within.
Transmitter switch settings (AE
in the illustration) - These are the
correct settings for the frequency
switches on your transmitter - see
your transmitter instructions.
Frequency - Press the SEL Up and
Down buttons to change the frequency of the receiver.
Note: Be certain to change the transmitter
frequency switches to match the settings shown
in the upper right hand corner of the Frequency
window.
12
Level
Press MENU
Audio Test Tone
Press UP
(Press UP / DOWN to adjust)
Tx Battery Type
Press MENU
Output Phase
Press MENU
Noise Reduction
Press MENU
Tuning Mode
Press MENU
(Press UP / DOWN to select)
Compatibility Mode
Press MENU
(Press UP / DOWN to select)
Pilot Off/On
Hold MENU & press UP
Setup Window
Press UP
Press MENU
From the Main Window, you can navigate
to the Frequency, Battery Level and
Setup windows in a circular sequence by
pressing the MENU button.
When the TUNING mode is set to NORMAL, the SEL
Up and Down buttons tune in single channel incre-
ments. In the GROUP tuning modes, the SEL Up and
Down buttons move among the selected intermod-free
frequencies.

Battery Level Window

This window shows the trans-
mitter (TX) and receiver (RX)
battery voltage. These levels will
flash when the voltages drop be-
low suggested optimum working
levels. Typically, there will be about one hour operating
time remaining after the indicators begin to flash. The
RX voltage changes to EX when operating on external
power and displays the external power source voltage.
(Disclaimer: We cannot guarantee 0.1 Volt accuracy.)
Main Window
Press All Buttons
Press & Hold MENU
Frequency
Window
Battery Level
Window
LECTROSONICS, INC.
Frequency
Scan Mode
SELECT
Lock/Unlock
