Remove the four cover screws and lift the
cover off.
Remove the four inlet cover screws and remove
inlet cover - also the two side access trimplate
section screws and remove complete with seal.
Having determined the direction of the inlet
water mains supply and cable approach for
the installation (Top, Bottom, or Rear or any
combination) - it is necessary to remove the
appropriate section inserts. See Plumbing
Connections and Electrical Installation
sections (Pages 5 and 7) for detailed guidance.
Hold the shower vertically against the wall and
mark the top hole first.
Drill the hole to take the rawl plug provided
(taking care to keep dust away from the
shower).
Put the top screw in first leaving it proud by
5mm approximately. The shower can now be
hung on this screw.
Position the shower so that it is vertical then
mark and drill the other two holes. Then fix the
Shower to the wall.

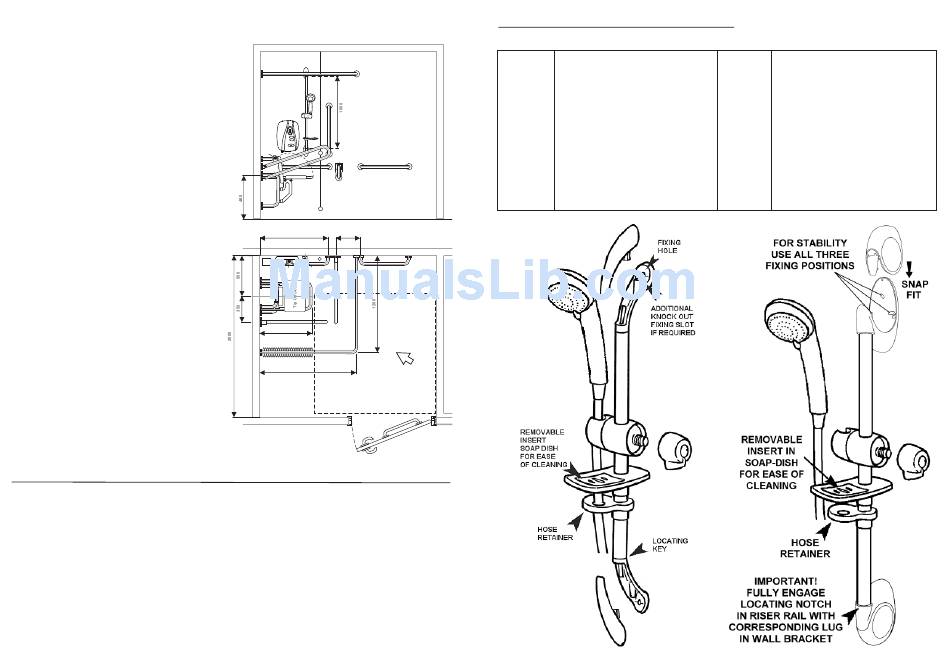

Assemble the accessories as shown in
Diagram 25 (or 26 for 'Plus' model Accessories).
Fix the riser rail with screws provided.
The fixing holes are revealed by removing the
plastic fronts.
Note: For "Plus model accessories" ensure that
the notch in the riser rail is fully engaged into
the corresponding lug in the wall bracket. This
has been made a firm fit to aid stability and stop
rotation.
Typical guideline dimensions used for
less- abled bathroom installations
Handset Height Adjustment
Back
Rest
Drop-down rail on side wall
Alarm Pull Cord
Elevation
850 300
Floor Shower Shower Riser
Towel / Grab Rail
Drain Unit Rail
Drop-down
650
Rail
Shower Curtain
Fall of Floor
1200
Plan
1500x1500 Wheelchair Turning Space
All measurements shown are in millimetres. Drawing sizes are
not to scale. Shower model shown is a Selectronic Premier Plus.
4
Spares (Ring 0844 372 7750 UK ONLY)
Please Note:- The fitting of all spares should be supervised by a suitably qualified person
Description
Part No,
Triac PCB
93594102
Flow Valve Assy (No Outlet)
93594104
Valve Stepper Motor
93594105
Flow Transducer
93594117
Front Cover Complete
93594135
Heat Exchanger 8.5kW
93594136
Heat Exchanger 9.5kW
93594137
Heat exchanger 10.8kW
93594138
Thermal Cut-Out c/w Cables
93594139
Outlet Connector c/w Temp Sensor
93594140
Cable/Pipe Entry Set
93594141
PRV Housing Complete
93594142
Diagram 25
Description
Part No.
Main Logic Board
93594143
Inlet Filter Housing Complete
93594144
Backplate Trimplate
93594145
Backplate Side Section
93594146
6-Mode Handset
93593578
1.25m Long Chrome Shower Hose
93797641
2m Long Chrome Shower Hose
93550865
Wall Bracket Set (Std Models)
93593522
Wall Bracket Set (Plus Models)
93550834
22mm x 455mm Bright Riser Rail
93593526
22mm x 1m Bright Riser Rail
93550864
Height Adjuster Assy
93593580
Diagram 26
