NetXtreme II
menu options, and device information are only available based on the types of devices installed or the item selected in the
interface.
Two buttons at the bottom of the interface control what you want to manage: click the
the connected devices, or click the
Device Management
The Device Management pane lists the devices that can be viewed, analyzed, tested, or adjusted by BACS 3. When an item
is selected in the Device Management pane, the tabs showing the information and options that are available for the item
appear. Because the BACS 3 interface is context-sensitive, only the information that applies to the selected item can be
viewed or adjusted.
Items in Device Management can be listed by type or by connection.

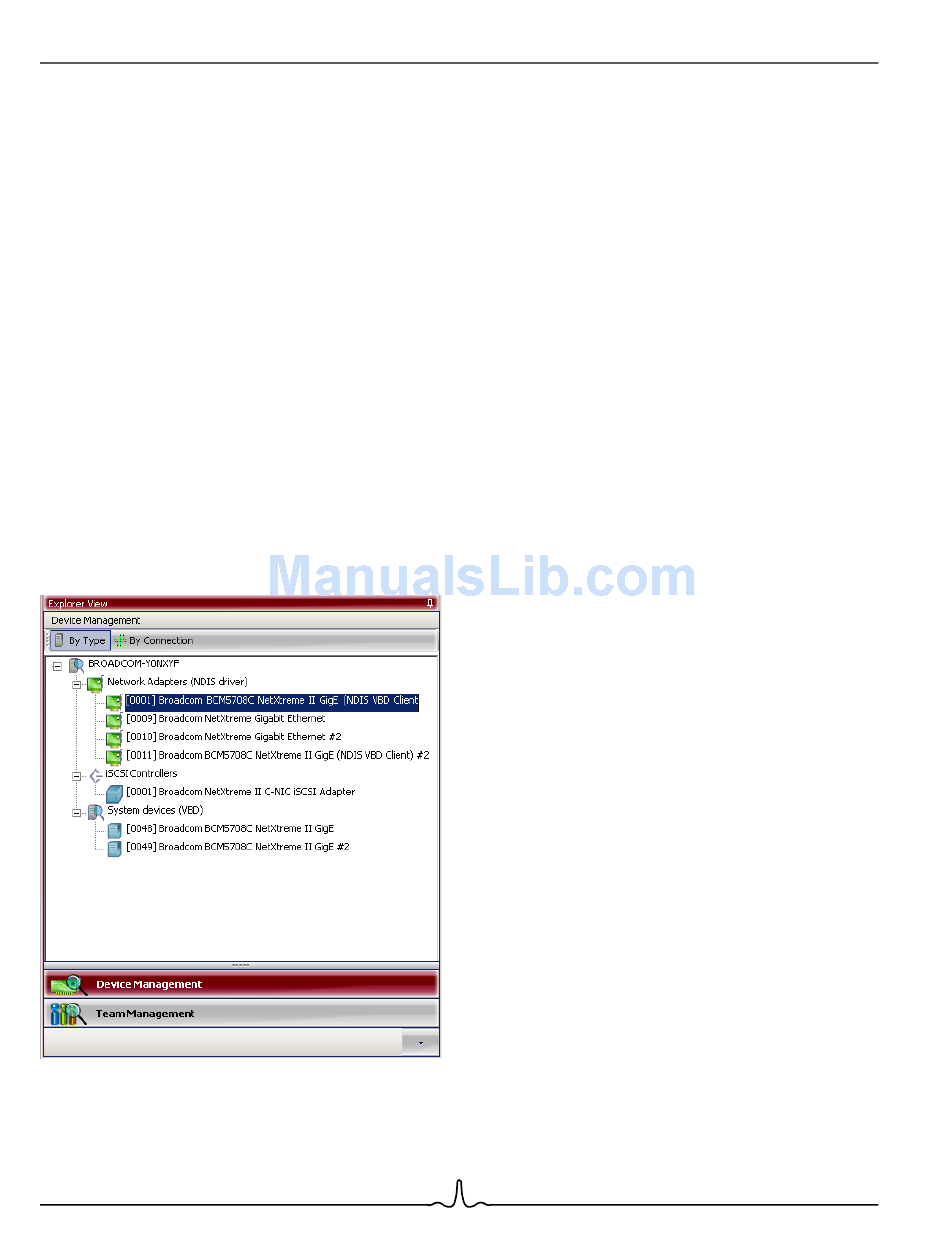

To list items in Device Management by type
• At the top of the Device Management pane, click By Type.
A single hardware device may be using several different drivers, so Device Management breaks each item out into separate
categories.
• Network Adapters. Lists the available NDIS client adapters.
• iSCSI Controllers. Lists client items using iSCSI network protocols.
• System Devices. Lists VBD server drivers.
To list items in Device Management by connection
• At the top of the Device Management pane, click By Connection.
Page 158 Using Broadcom Advanced Control Suite 3
Team Management button to create and manage teams.
Bro adco m C orp or atio n
User Guide
Device Management button to manage
Document ENGSRVT52-CDUM100-R
January 2010
