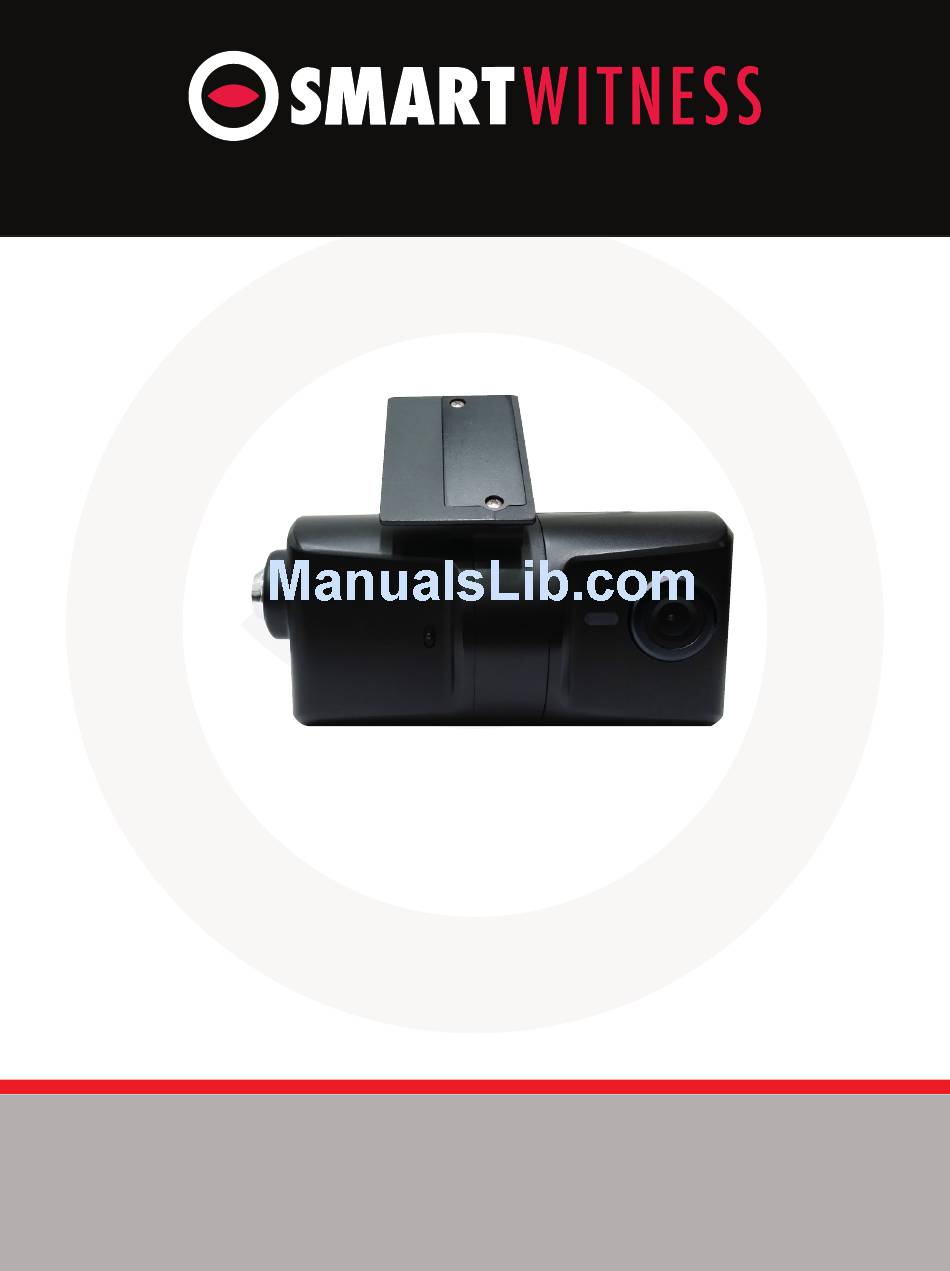

- Page 1 VEHICLE CCTV AND SAFETY SYSTEMS 3G/4G Instant Video Transmission Vehicle Accident Camera User Guide www.smartwitness.com...
-
Page 2: Table Of Contents
Recording When Power is Cut ........4. Software Installation .............. Configuration Tool ............Analysis Software ............5. Configuration Software ............Initialise SD Card ............Device Settings ............... Record Settings ............... Event Settings ..............Information Settings ............3G/LTE Settings .............. Account Settings ............. User Settings ..............www.smartwitness.com... - Page 3 7. Notification Email Templates ..........Event Notification ............. Request Original Data ............. Send Original Data ............Request Preview .............. Send Preview ..............Remote Configure ............8. Recording Time Table ............. Continuous Mode ............. Event Mode ..............Dual Recording Mode ............9. Specifications ................www.smartwitness.com...
- Page 4 CONTINUED... Appendices ................. Firmware Upgrade ............Optional Accessories - Power Adaptor ......Optional Accessories - Junction Box ....... Optional Accessories - Cigarette Power ......www.smartwitness.com www.smartwitness.com...
- Page 5 When malfunction occurs, the product may not save all videos and the sensor may not recognise shock impacts. WARNING: DO NOT EXPOSE PRODUCT TO RAIN OR MOISTURE www.smartwitness.com...
-
Page 6: Gps Reception
MP3 and CD players and camera alarms using GPS. 4) If you are using a receiver connected by a cable, electrical interference can be avoided by simply changing the location of the receiver (antenna). 5) On heavily overcast or cloudy days, if the vehicle is in a covered location such as under a bridge or raised roadway, in a tunnel, an underground roadway or parking area, inside a building or surrounded by high-rise buildings. 6) If GPS signal reception is poor, it may take longer to locate your current position when the vehicle is moving than when it is stationary. www.smartwitness.com... -
Page 7: Overview
1. OVERVIEW The KP1 is the world’s most advanced incident camera with powerful 3G/4G instant video transmission, built in tracking and telematics data. The KP1 also features an optional second camera to help provide a comprehensive view of any incident and keep an eye on valuable cargo. This evidence can protect a driver from many of the issues faced on the roads today: • Cash for Crash / Pre-meditated staged accidents... - Page 8 Front Adjustable Bracket Lens (170° Wide Angle Lens) Locking Cover Side SD Card Slot 2 (Slave SD) SD Card Slot 1 (Master SD) USB Interface (For 3G/4G Dongle) Molded Cable Interface...
- Page 9 Rear G-Sensor Calibration Button Panic Button Red LED Orange LED Green LED Blue LED (Over (Over Speed (Communication) (Record) Speed 2) Bracket KP1 features a new, easily adjustable bracket designed to give you the ideal viewing angle. To adjust the bracket, follow the steps below. Remove the locking case using the key and turning anti-clockwise. www.smartwitness.com...
- Page 10 Then, pinch the red and black clips and then pull the case away from KP1. Black clip in identical position on the reverse Adjust the angle of the bracket to the desired angle and slide in to lock in place. When you are happy with the angle, slide the case back onto KP1 and lock.
- Page 11 KP1 comes with 2 cables. One cable connects to the cigarette lighter adaptor and either junction box. The second cable is unique to KP1 and connects to the second camera. This cable allows both power and video to be carried to the secondary camera.
-
Page 12: Contents
Contents 1x KP1 3G/4G Transmission Vehicle Camera 1x 3M Pad and Cable Tidy stickers 1x Locking Case 2x Keys for Locking Case 1x User Manual www.smartwitness.com... -
Page 13: Installation
Camera at the front of the car. Secure to windscreen by applying a small amount of pressure and holding for 15-30 seconds. 4. Plug into Cigarette Lighter Socket, if this is your chosen power method www.smartwitness.com... -
Page 14: Basic Operation
Red LED, Orange LED, Blue LED, Green LED will be ON in sequence (around 40 ~ 50 sec) Blue LED On/Off (Starting time: around 60 ~ 70 sec) (Buzzer sound operation at start-up) Single ”Beep” after starting (If beep is set to ‘On’ in config settings). G-Sensor Calibration After installing KP1, you will need to calibrate the G-Sensor. To do this, turn on KP1 and park the vehicle on a flat surface. Then, press the [G-Sensor Calibration] button for one second. This G-Sensor calibration is only needed the first time KP1 is used. www.smartwitness.com... -
Page 15: Recording Mode
When in normal record mode, the BLUE LED will be blinking slowly to indicate normal recording. Event (Shock and Panic) The event recording function will be automatically started by G-sensor, panic button or alarm. You can set the G-sensor parameters for the unit on your PC using KP1 config software. Each event file will contain 20 seconds of footage before, and up to 20 seconds after an incident. The event file can also be extended by a 2 trigger during event recordings. -
Page 16: Communication
The USB 3G/4G modem is inserted to the USB terminal behind the locking case. To use the USB 3G/4G modem on KP1, please contact your local distributor. During communication, the GREEN LED will be on to show you can communicate. -
Page 17: Over Speed
When the Blue and Green LEDs are flashing at the same time, the initialisation of the SD card will begin. Initialisation operation of the SD card will take around 90 seconds depending on the size of SD card.When initialisation of the SD card is completed, KP1 will restart automatically. Once completed, all files will be deleted and the configurations will default to the factory settings. When the SD Card initialisation is being performed, the BLUE and GREEN LED will flash simultaneously. -
Page 18: Inserting The Sd Card
LED light is off, you can safely insert the card. There are 2 SD Card slots for this unit, please insert the first SD card into SD card slot 1. Removing The SD Card To safely remove the SD card, please follow the steps below; 1. Turn off the power and then check the BLUE LED. 2. Press the ‘G-Sensor Calibration’ button for over 3 seconds and then remove the SD Card. www.smartwitness.com... -
Page 19: Inserting 3G/4G Usb Modem
Inserting 3G/4G USB Modem Turn off the power and then check the BLUE LED light. Once the BLUE LED light is off, insert the 3G/4G USB modem. LED/Buzzer Specification 1. Red LED (Over Speed 2) 2. Orange LED (Over Speed 1) 3. Blue LED (Record) 4. Green LED (Communication 3G/4G Signal) www.smartwitness.com... - Page 20 Over Speed 1 Beep Once Over Speed Over Speed 2 Beep Once Beep 3 G-Sensor Calibration Seconds Beep SD Card Initialisation Simultaneous Flashing 2 Seconds Firmware Upgrade Flashing Sequentially Flashing - 3 Times (Long Beep 3 SD Card Full Blink) Times www.smartwitness.com...
- Page 21 Camera 2 Video Simultaneous Flashing Loss Beep 3 3G/4G Error Times Flashing Beep 3G/4G Service Error Error (Slow) Twice Without Driver. Beep Once inf file 4 Seconds 4 Seconds simultaneous- Beep Without Setting simultaneously Flashing ly Flashing File Twice (Repeated every minute) (Repeated every minute) www.smartwitness.com...
-
Page 22: Recording When Power Is Cut
When the power is off and simultaneously an event is triggered there unit will not be on enough time to record the event file. Therefore, there is a possibility of the last event file will be lost. During dual recording The continuous video recording will be recorded up to just before the end of the power. When the power is off and an event is triggered, there unit will not be on enough time to record the event file. Therefore, there is a possibility of the last event file will be lost. www.smartwitness.com... -
Page 23: Software Installation
4. Software Installation Configuration Tool Before using KP1, you will need to install both the configuration software and the analysis software to adjust KP1 settings. If you do not have the software you can download it from www.smartwitness.com. To install the configuration software, follow the steps below. 1. Insert your SD card into the SD Card reader and plug into your Windows PC. 2. Drag the software onto your desktop from the software folder. 3. Double click the software icon to run the software installation software. - Page 24 Analysis Software To install KP1 Analysis Software, follow the steps below. If you do not have the software you can download it from www.smartwitness.com. 1. Insert your SD card into the SD Card reader and plug into your PC.
- Page 25 5. Select a destination to save the software to and click ‘Next’. 6. You can set the software to create shortcuts in both the Start Menu and the Desktop, as shown above. 7. To complete the setup, click the ‘Finish’ button. When installed, double click the shortcut icon to open the software. www.smartwitness.com...
-
Page 26: Configuration Software
5. Configuration Software Before using KP1, you will need to open the configuration software to initialise the SD card, configure settings on the unit such as telematics and resolution etc. Before loading the configuration software, insert your SD card into the computer using an SD card Reader. Initialise SD Card Firstly, on the configuration tool, you can initialise the SD card so it is ready for use in KP1. To do this, click the ‘Initialise SD Card’ button. To initialise the SD card, click on the above icon and you will be presented with the following screen to choose the SD card to initialise option. Click ‘OK’ when you have selected the SD card. Then, click the ‘Quick Format’ button and Master SD Card selection (As shown Below). -
Page 27: Device Settings
Built-in Camera: Check this box to use the built-in camera. • Camera: Check this box to use both the built-in camera and additional camera. • Cam Title: Rename each camera (maximum 10 digits) • Camera Type: Choose the camera type from NTSC or PAL. Speed • Source: Select speed source from GPS or Pulse (Car speed pulse) www.smartwitness.com... - Page 28 Connection • Type: Choose the connection source: 1. Standard: Cigar Power 2. KP1-INT1: Power Adaptor 3. KP1-INT2: Junction Box Smart Sensor Sensitivity • Easy/Custom Settings: Check the ‘Easy/Custom’ box to set all sensitivity settings to High, Middle or Low. • Collision/Turning/Accel/Decel: Uncheck the ‘Easy/Custom’ box to set 3 different Smart Sensors for Collision, turning or accell/decel. Each parameter can be set to 1,2 or 3 with 1 being High and 3 being Low.
-
Page 29: Record Settings
Record Settings Built-in Camera Resolution HD (1280x720) VGA (640x480) QVGA (320x240) Camera Resolution (720x480) HD1 (720x240) CIF (352x240) Recording Mode Continuous Event Continuous + Event: 1fps continuous recording + Event recording (adjust the ‘FPS’ from 1fps to 30fps). www.smartwitness.com... - Page 30 Available FPS & Max FPS per Resolution Single camera mode (Built-in camera only) Resolution HD (720P) 1280x720 640x480 QVGA 320x240 www.smartwitness.com...
- Page 31 Two Camera Mode (Built-In Camera + 2 Camera) Built-in Camera Camera Resolution Resolution HD (720P) 1280x720 720x480 HD (720P) 720x240 1280x720 HD (720P) 352x240 1280x720 (720x480) (640x480) QVGA (720x480) (320x240) www.smartwitness.com...
-
Page 32: Event Settings
1. When using a standard power cable, you can set the unit to record when triggered by the G-Sensor, Panic Button and/or GPS Speed Limit. 2. When using a KP1-INT1 cable, you can also add an alarm output to the above settings. -
Page 33: Information Settings
3. When using a KP1-INT2 cable, you can also add an alarm and signal to the standard cable settings (Shown Below). Information Settings This option allows you to adjust the Time Zone, GPS Time Synchronisation, set your Vehicle ID and also the Driver ID. www.smartwitness.com... -
Page 34: Lte Settings
3G/LTE Settings Enable the 3G/LTE function on KP1 and adjust the settings for use like password, User ID, Authentication etc. Please refer to the 3G/4G Sim Card supplier website for these settings. www.smartwitness.com... -
Page 35: Account Settings
Account Settings In account settings, you can set an email account for KP1 for when you need to email commands. This account is also the email account KP1 will send emails from. User Settings This option allows you to set receiver information such as email or SMS for each user. -
Page 36: Analysis Software
6. Analysis Software Insert the KP1 SD card and locate the software folder, now install the Analysis software, once installed you can double click on the desktop icon. The main screen will then be displayed as follows: Control Buttons File... -
Page 37: Playback
Playback Insert the SD Card to your PC. Make sure that the SD Card is properly recognised. After confirming that SD card is recognised correctly in the PC, open the KP1 analysis software and click the “Select SD Card” button. Then, select the correct SD card from the list (Shown below). www.smartwitness.com... -
Page 38: Open Files
The Playback file list can be separated from the main screen and you can hide it or change the position. In addition, the file list can be displayed on the screen as well by clicking the “File List” button. You can end the Video playback by clicking the “close” button. When finished, click the “disconnect safely and removing the SD card” button and remove the SD card from your PC. Open Files If you want to play a specific file that has been backed up on the PC or SD Card, click the “Open files” button. Select the specific MDD file you want to play and click the “Open” button. The image of the selected file will then be displayed and you can click the ‘Play’ button to play the file. www.smartwitness.com... -
Page 39: Drive Data
Drive Data KP1 can record not only video and audio, GPS information, speed but also vehicle information like the alarm, G-Sensor, brake, speed Pulse and RPM together. The recorded information can be analysed and played through the KP1 Analysis software. -
Page 40: Analyse Drive Data
The last bar shows the state of the engine where white means the engine is off, blue means it is running properly within the pre-set RPM limit, and red means over acceleration, i.e. exceeding the pre-set RPM limit. www.smartwitness.com... - Page 41 The lower graph shows the G-sensors. The x-axis is in red, y-axis in blue, and z-axis is green. The indicator bar below shows jolts in the G-sensor values, i.e. G-sensor values that exceed the pre-set limit. Grey means normal conditions, red means jolts in the x-axis direction, blue in the y-axis direction, and green in the z-axis direction. Configurations for this function can be set by clicking the [Setting] button in the right bottom corner. The limits for G-sensor, permitted speeding, excessive RPM, and eco-speeding can be set under the ‘Analyse’ tab and ranges for the two graphs can be set under the ‘Component’ tab. www.smartwitness.com...
-
Page 42: Analysis Criteria Settings
Set the limit for excessive RPM. The RPM limit can be set from 0-9999 RPM and the time can be set by selecting the drop down menu. In the example above the limit has been set to 2400 RPM for 30 seconds. If this limit is exceeded, it will count as excessive. www.smartwitness.com... - Page 43 Set the criteria for eco-speed limit. The idle time limit can be set for any length of time. In the example on page 43, the limit has been set to 30 minutes. If this limit is exceeded, it will count as excessive idling. All of the above criteria are used in the grading process for grading driver’s safety and eco-score. www.smartwitness.com...
-
Page 44: Grading Criteria Setting
0.5 and based on the settings in the image above, they would be graded as B. This criteria is used in both safety and eco grading, but the weights can be set sepa- rately. www.smartwitness.com... - Page 45 Peak Speed Relative To Speed Limit (kmh/mph) This option sets the grading criteria for speeding and calculates the peak speed the driver drove, relative to the speed limit. The value can be set from 0-999km/h. The assessment of this criteria is based on the speed limit option in the ‘Analysys Criteria Setting’. This criteria is used for safety grading. www.smartwitness.com...
- Page 46 8 hours in a day but exceeded the RPM limit 4 times, their score for this criteria would be 0.5 and based on the image on page 43, they would be graded as B. The assessment of this criteria is based on the RPM limit option in the ‘Analysis Criteria Setting’. This criteria is used for eco grading only. www.smartwitness.com...
-
Page 47: Grading Method
‘Analysis Criteria Setting’. This criteria is used for eco grading only. PLEASE NOTE Once the grading criteria settings has been adjusted and saved, it can be exported into an ‘ini’ file and them imported into another version of the analysis software. This means that you can set each KP1 quicker than manually adjusting the settings in each version of the software. Grading Method Grades: Each criteria is given a grade of A, B, C or D and anything lower is given a grade of F for fail. Therefore each grade will be assigned a limit that if exxceed, the score will go down to the next grade. - Page 48 Eco Score = 20*70/100 + 10*100/100 + 20*100/100 + 20*70/100 + 10*100/100 + 10*100/100 + 10*100/100 = 88 Eco Grade B As you can see, each driver got 2 C grades, however as they were weighted differently, their eco grades are different. www.smartwitness.com...
-
Page 49: Graph Display Setting
Max Speed: Set the graph’s upper speed limit (0-999 km/h) Max G-Sensor: Set the graph’s upper G-Sensor limit, by selecting a value from the drop down menu (+-1G, +-2G, +-3G) Max RPM: Set the graph’s upper RPM limit (0-9999) Zoom Windwo Display Time: Set the time scale for the graph to be in zoom mode by selecting a value from the drop down menu (1 min ~ 10 mins). The graph settings will applied to the following window displays: Manual Mode, Data Search, Driving Data and the Zoom Graph. Default settings are: Max Speed (100 km/h), Max G-Sensor (+-1G), Max RPM (3000). www.smartwitness.com... -
Page 50: Tracking Map
If the map is not displayed, make sure that the PC is connected to the internet correctly. The KP1 Analysis Software is composed of a main screen, drive data screen, drive data analysis screen and the tracking screen. These screens can be displayed independently and their location and size changed to improve the use and management of data. -
Page 51: Event Search
Event Search With the KP1, searching and filtering the data is made easy. Utilising supplementary data such as g-sensor, signals, alarms, speed, and RPM, you can find incidents and events quicker than monitoring the vast amounts of video and audio recordings. Click the ‘Event Search’ button to access the event search screen. Firstly, set the search range. If you select the type of events you want to search for like G-sensor, signal, alarm, speed, etc and then click the ‘Search’ button. -
Page 52: Privacy Settings
Privacy Settings KP1 allows you to set the mosaic area on each channel for privacy protection. When backing up the data as a JPG or AVI format and playing in the Viewer software, you are able to make a mosaic processing on the area you have set. -
Page 53: Save As Jpg
To select the channel you want to save, check all the information you want to include from the options shown. The selected information will be imprinted on the image itself. Choose the folder you want to save the image to and click ‘start’. The file will be saved in the default folder of “My Documents\SmartWitness\KP1\JPG” if you do not specify a Folder. If you check “Privacy Masking”, the image will include the blurs. -
Page 54: Save As Avi
Select the frame rate (FPS), from 1 to 30, you wish to use. (For the best video stream, use 30 FPS). Check the supplementary information you wish to include in the video. The selected information will show up as text on the video itself. Choose the folder you wish to save the AVI file and type a file name. (The default folder is “My Documents\SmartWitness\KP1\AVI” and the default name is the date and time.) A video of each camera will be made into an AVI file. www.smartwitness.com... -
Page 55: Print Image
Check all camera images you wish to include in the report. Then, type the title of the report and any comments about the situation or other reminders. If the Privacy Masking box is checked, the pre-set blur effect will be applied. When you click ‘OK’, a preview of the report like the one below, will be pop up. After checking all the information, press the ‘Print’ to print the report. www.smartwitness.com... -
Page 56: Backup
You can back up the recorded data on your PC or other data storage media. KP1 offers an option to store data by type to ease management of data. You can also input additional data such as Vehicle ID, Driver ID, title, and comments to help in administration. -
Page 57: Backup List
Backup List You can use the data backup list to play data files easier that have been backed up. To do this, click the ‘Backup List’ button (below). Choose the folder where the backup files are at the bottom of the screen. (It will automatically show the last folder that was accessed.) Then, select the report type by scrolling down the options. The files are listed showing the “Date/Time, Vehicle ID, Driver ID, Title”. Check the box next to the file you wish to play back and click ‘OK’. Finally, double click the file and video files will show on the Viewer. www.smartwitness.com... -
Page 58: Software Settings
Click the ‘Set Password’ button. Password for the KP1 Analysis Software can be set with any number between 1000-9999. [Note] The PC Software will not be able to run without a password, so please make sure to keep the password in a safe place. KP1 Analysis Software Settings Language: Selectable from “Japanese / Korean / English/ Spanish/ Russian”. Velocity Form: Select from “km/h” or “mp/h”. Speed Type (Play information bar): Selectable from the vehicle speed pulse or GPS. -
Page 59: About
About You can check the version information of the KP1 Analysis software. Click the ‘About’ button to see the below pop up. Here, you can check the software version and KP1 firmware version number. For updates please check with your supplier/distributor. www.smartwitness.com... -
Page 60: Notification Email Templates
7. Notification Email Templates Event Notification Email from KP1 The KP1 will send an email notification when an incident happens. Below explains the content and subject header of the emails. Email Subject: ID > Vehicle ID > Event Type > Date-Time For Example: ID > Y122 VVE > G > 16/04/2014-17:39:17 Email Body: Type: G Location: 50 MPH - X=0.3g,Y=0.2g,Z=0.9g In the above example, the type will start with the event type. The different types of... -
Page 61: Request Original Data
Email Subject: ID > Vehicle ID >V > Date-Time For example: ID > Y122 VVE > V > 2014/04/16-17:39:17 V= Video Attach mdd file (The Max file size is 10MB): 1st camera + 2nd camera video When requesting the video again, the email will attach an MDD file. This file can only be played through the KP1 Analysis Software. Request Preview Send an Email to KP1 Email Subject: Event Type_ >_Date-Time_>_Password For example: G_ >_2014/04/16-17:39:17_>_5555... -
Page 62: Send Preview
Send Preview Send an Email to KP1 Email Subject: ID>Vehicle ID >T>Date-Time For example: ID > Y122 VVE > T > 2013/11/16-17:39:17 T= Thumbnail video Attach AVI file (10sec, HD or 10sec VGA or 10sec QVGA): 1st camera only (Pre) 4 seconds + (Event)1 second + (Post) 5 seconds The AVI file resolution can be set in the settings on the analysis software. AVI file name: ID_Date_Time.avi KML file name: ID_Date_Time.kml Remote Configure - To Change KP1 Settings Send an Email to KP1 Email Subject: S_ >_Admin Password... -
Page 63: Recording Time Table
640x480 23.4 46.8 93.5 166.7 31.9 63.8 Normal 31.5 62.9 125.9 166.7 14.2 28.4 56.8 113.6 Super 48.1 96.2 166.7 166.7 16.8 33.7 67.3 134.6 QVGA High 320x240 53.8 107.6 166.7 166.7 20.6 41.3 82.6 165.1 Normal 166.7 166.7 www.smartwitness.com... - Page 64 145.1 166.7 11.5 22.9 45.8 91.6 Normal Normal 43.1 86.3 166.7 166.7 *This is a guideline only. Actual results may very depending on a variety of factors. Limitation of the total file number In Event Record Mode: 1 camera recording: The number of files is limited to a maximum of 3,000. 2 camera recording: The number of files is limited to a maximum of 2,000. www.smartwitness.com...
-
Page 65: Event Mode
Events Events Camera 1 Camera 2 Resolution Quality Resolution Quality 16GB 32GB 1500 2000 Super Super Events Events Events Events 1800 2000 High High 640x480 720x480 Events Events Events Events 1400 2000 2000 Normal Normal Events Events Events Events www.smartwitness.com... -
Page 66: Dual Recording Mode
Hours Hours Super Super 1480 Event Events Events Events Events Normal Hours Hours Hours Hours High High 640x480 720x480 1500 Event Events Events Events Events Normal Hours Hours Hours Hours Normal Normal 1400 1500 Event Events Events Events Events www.smartwitness.com... -
Page 67: Specifications
Buzzer Recording Start, Error 4 LEDs (Red, Orange, Blue, Green) PC Software KP1 Config Software / KP1 Analysis Software Cigarette Jack: Input - DC 12V/24V 2A, Output: DC 5V 3A Power Input Power Adaptor: Input - DC12/24V, Output: DC 5V 3A Junction Box: Input - DC 12V/24V 2A, Output: DC 5V 3A... -
Page 68: Appendices
Product support page. For full details on installation, please go to section 4 on page 2. Then, initialise your SD Card using the configuration software. 3. Make a folder called ‘Program’ on the SD Card as shown below. 4. Copy the “KP1_X.X.X.bin” file into the SD card ‘Program’ folder. 5. Make sure KP1 is turned off and insert the prepared SD card into KP1 SD slot 1 and turn on the power. Upgrading the unit will usually take about 1 to 2 minutes. PLEASE NOTE Do not turn off the power during upgrading. -
Page 69: Optional Accessories - Power Adaptor
Appendix 2 Optional Accessories Power Adaptor: KP1-INT1 Extension Cable Junction Box Power Cable To KP1 Extension Cable Power In & Alarms To KP1 Power On/Off 12V/24V Switch Power Source Cable Descriptions Battery - Battery + Alarm Alarm Out 1 Alarm Out 2 www.smartwitness.com... - Page 70 Input Voltage DC 12V / 24V 2000mA Output Voltage DC 5V 3000mA Operation Temp. -20°C ~ +60°C When Used at 12V When Used at Initial Voltage 12.5V Initial Voltage 23.2V Power Cut Voltage Power Cut Voltage www.smartwitness.com...
-
Page 71: Optional Accessories - Junction Box
Appendix 3 Optional Accessories Junction Box: KP1-INT2 Extension Cable Junction Box Signal & Power Cable To KP1 Extension Cable Signal & Power Cable from Vehicle To KP1 Cable Descriptions Battery - Speed Reverse Brake Right Left Battery + Alarm Out 1A, 1B, 2A & 2B Alarm In 1, 2, 3 & 4 www.smartwitness.com... - Page 72 2. Delayed Shutdown Time Setting DIP Switch No. Time 1 Min 30 Min 1 Hour 2 Hour 4 Hour 15 Min 3. Power On Delay Time Setting DIP Switch No. Time 0 Sec 5 Sec 10 Sec 30 Sec www.smartwitness.com...
- Page 73 DIP Switch No. Voltage Input Voltage DC 12V / 24V 2000mA Output Voltage DC 5V 3000mA Operation Temp. -20°C ~ +60°C When Used at 12V When Used at Initial Voltage 12.39V Initial Voltage 23.3V Power Cut Voltage 11.9V Power Cut Voltage 22.7V www.smartwitness.com...
-
Page 74: Optional Accessories - Cigarette Power
Appendix 4 Optional Accessories Cigarette Power: KP1-CIGAR 12V to 5V Converter 5m Cable Place cable out of driver’s view Connect cable to www.smartwitness.com... - Page 75 This product is supplied with a 2 year warranty. The Warranty excludes products that have been misused, (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase. www.smartwitness.com...
