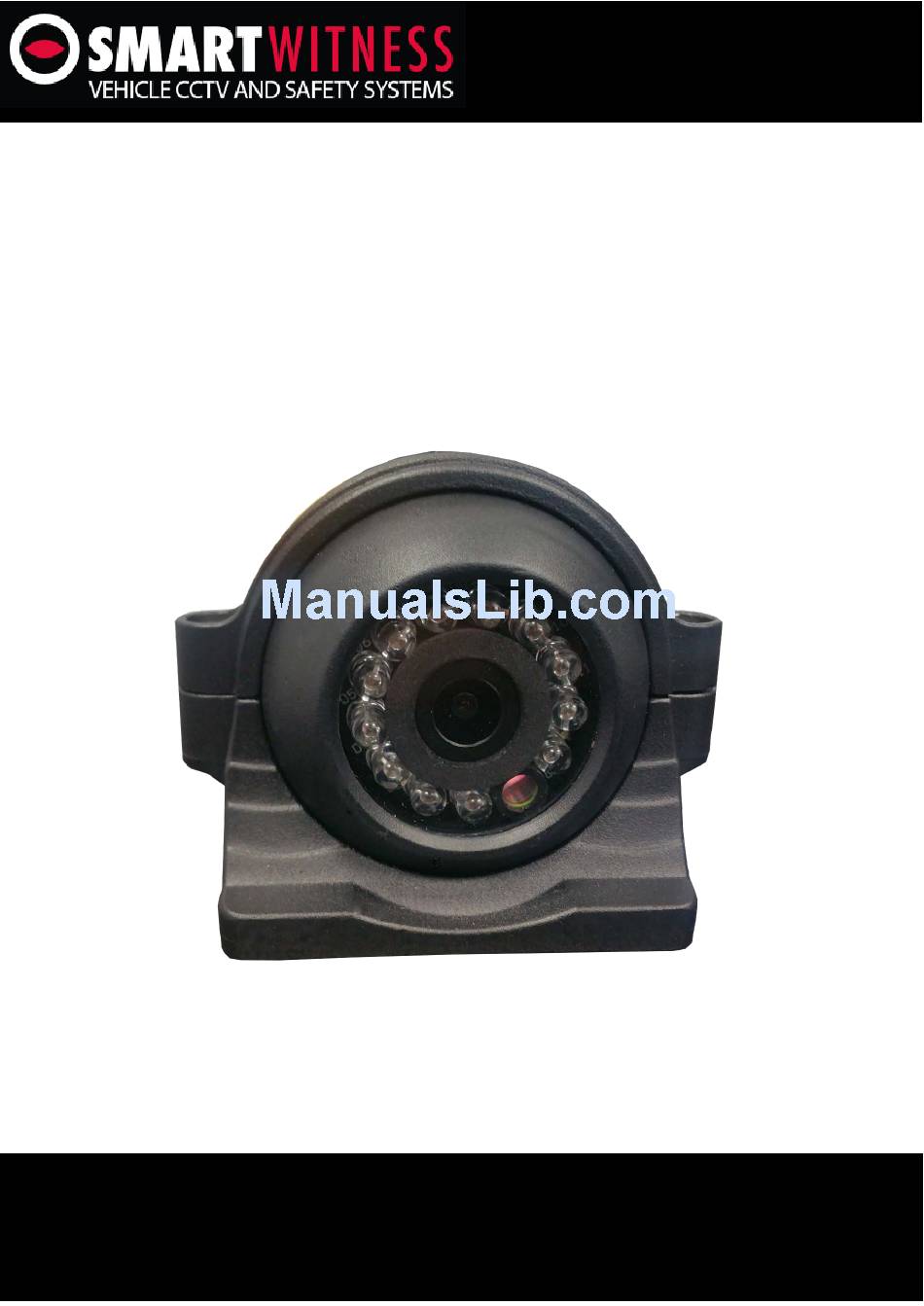

  • Page 1 SVC-S 720P AHD Vehicle Camera User Manual...

  • Page 2: Safety Advice

    Safety Advice Please unpack the box carefully and identify that all the parts are present. Make sure you use the recommended power input. Damage caused to the camera by incorrect voltage is not covered by the warranty. Do not attempt to open the casing to access the camera. Damage caused to the camera by tampering with the camera casing is not covered by the warranty.

  • Page 3: Adjusting The Camera

    Introduction The SVC-S is a 720P AHD Camera. It features a 2.8mm lens and has a viewing angle between 110-120°. Adjusting the Camera To adjust the angle of the camera, use the screw tool provided and unscrew the screws located on the sides of the camera. There are 3 in total.
  • Page 4 Adjusting the Camera Continued Then adjust the camera manually with your hand to your preferred position. After you have completed your adjustment, replace the protective bracket Then close the casing of the camera and screw back the screws.

  • Page 5: Mounting The Camera

    Mounting the camera To mount the camera, remove the screws from all sides Drill a hole in the centre of the camera and screw it into your desired location. Replace the camera and screw in the screws.
  • Page 6 Specifications SVC-S Video System Pick Up Element 1/4” CMOS Image Sensor Image Signal Process Digital Signal Processing System Lens / Viewing Angle 3.6mm Lens/120 Degree Number Of Pixel 1280x720 Effective Pixels Approximately 3 Megapixel AHD 720P Resolution DC 12 ± 1A, Aviator Connector to MDVR...
