SmartWitness SVC-V User Manual

720p ahd vehicle camera
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

SVC-V
720P AHD Vehicle Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVC-V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SmartWitness SVC-V

Summary of Contents for SmartWitness SVC-V

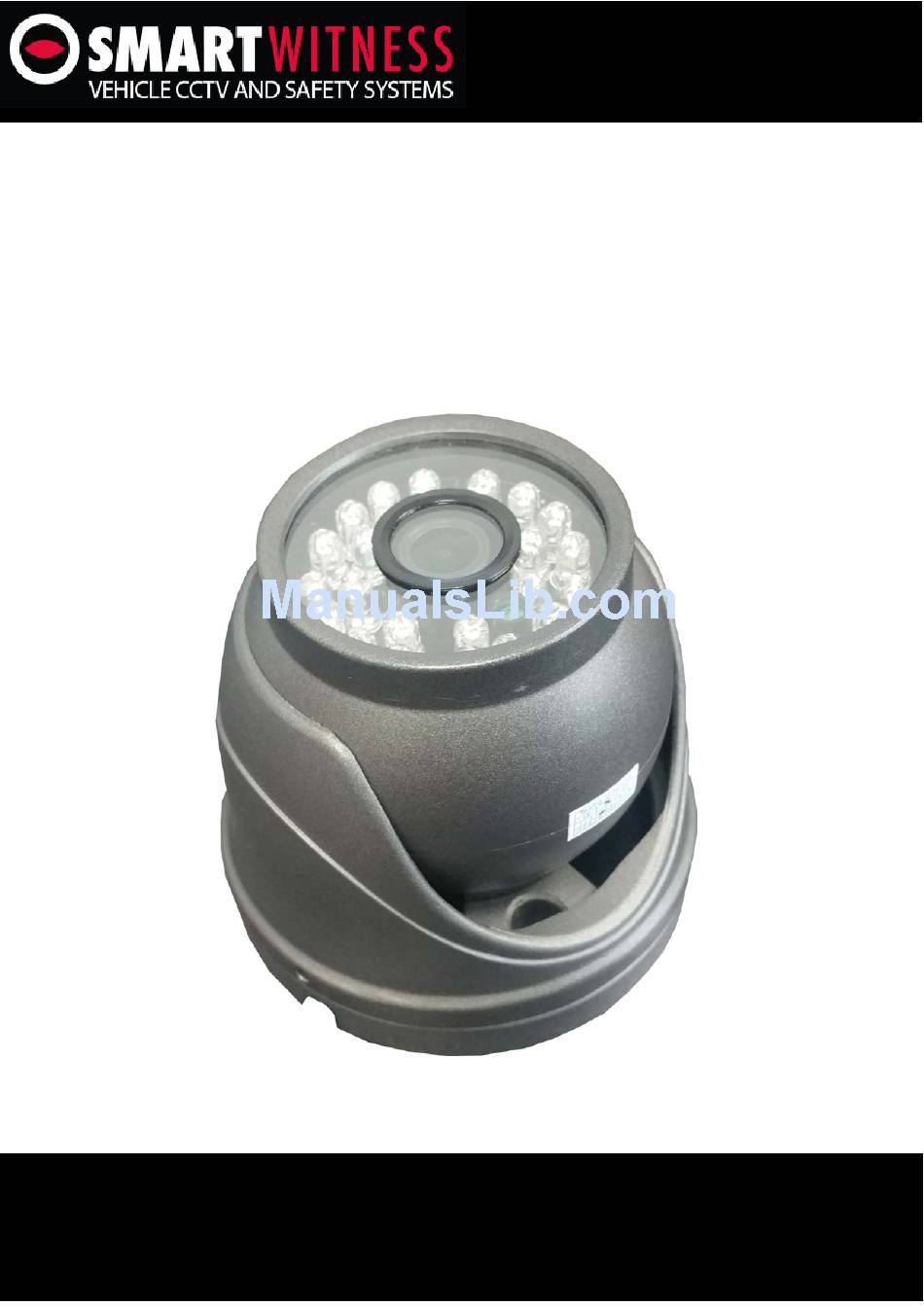

  • Page 1 SVC-V 720P AHD Vehicle Camera User Manual...

  • Page 2: Safety Advice

    Safety Advice Please unpack the box carefully and identify that all the parts are present. Make sure you use the recommended power input. Damage caused to the camera by incorrect voltage is not covered by the warranty. Do not attempt to open the casing to access the camera. Damage Do not attempt to open the casing to access the camera.

  • Page 3: Adjusting The Camera

    Introduction The SVC-P is a 720P AHD Dome Camera. It features a 3.6mm lens and has a viewing angle between 90-100°. Adjusting the Camera To adjust the angle of the dome camera, use the screw tool provided and unscrew the screws located on the sides of the camera. There are 3 in total. To unscrew, turn anticlockwise to open the screw from the base.

  • Page 4: Mounting The Camera

    Introduction The SVC-V is a 720P AHD Dome Camera. It features a 2.8mm lens and has a viewing angle between 110-120°. Mounting the Camera To mount the camera, use the screw tool provided and unscrew the screws located on the sides of the camera.
  • Page 5 Mounting the Camera Continued Get the correct drill bit for the size of the holes which you need to drill. After drilling, feed through the camera wires into the base, as shown above. Then screw back the remaining screws.
  • Page 6 Specifications SVC-V Video System Pick Up Element 1/4” CMOS Image Sensor Image Signal Process Digital Signal Processing System 3.6mm Lens/120 Degree Lens / Viewing Angle Number Of Pixel 1280x720 Effective Pixels Approximately 3 Megapixel AHD 720P Resolution Power Supply DC 12 ± 1A, Aviator connector to...
  • Page 7 SmartWitness UK Metrotower 2, 2600-4720 5 The Pavilion, Amber Close, 1016 Lunt Avenue, Schaumburg, Kingsway Burnaby, BC V5H Tamworth, B77 4RP IL 60193, USA 4N2, Canada +44(0) 1483 397005 +1 (312) 981-8774 +1 (778) 994-6670 sales@smartwiness.com sales.usa@smartwiness.com sales.can@smartwiness.com ©2016 SmartWitness PLC...
