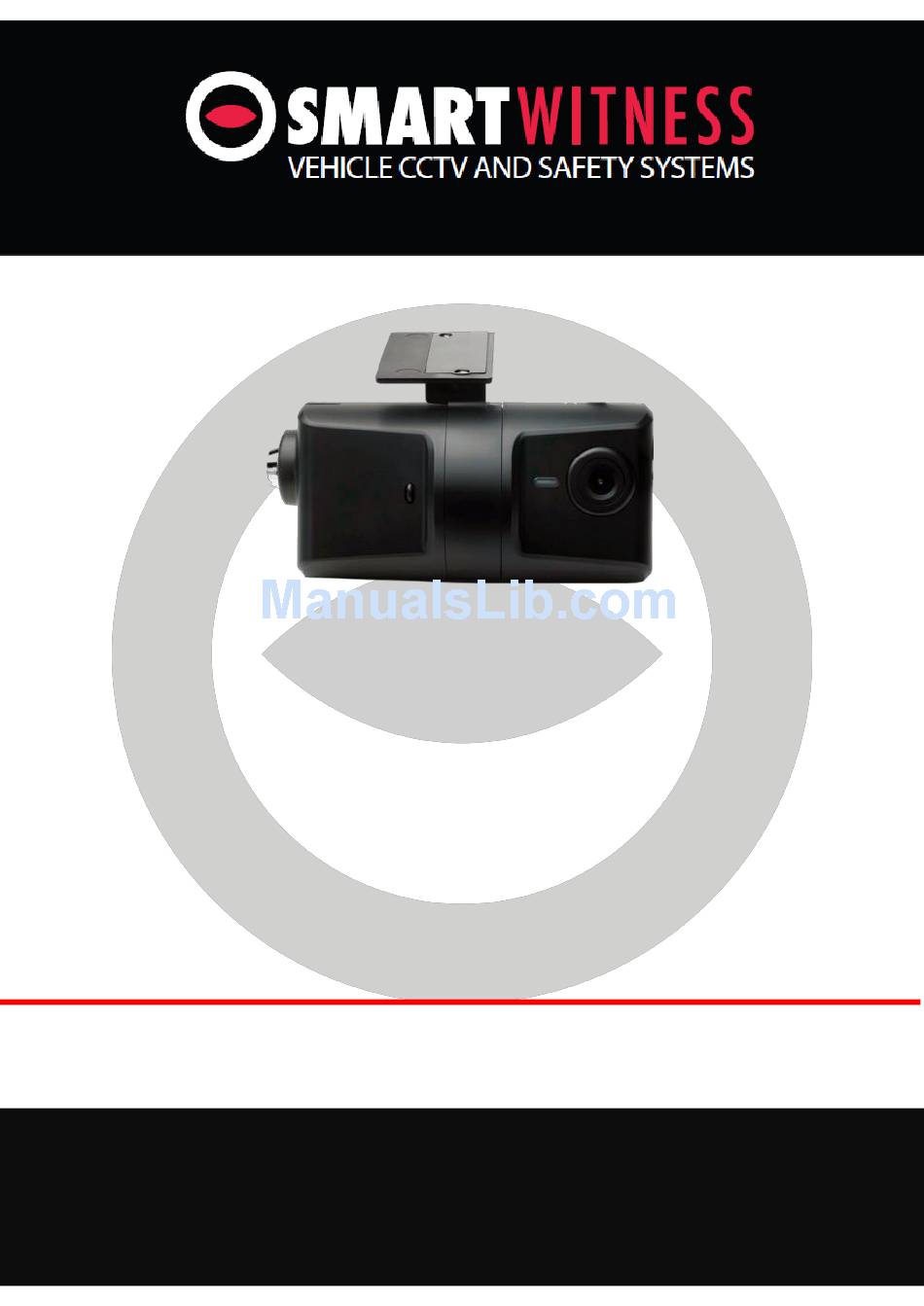

- Page 1 3G/WiFi Instant Video Transmission Vehicle Accident Camera KP1 Installation & Quick Start Guide 3G/WiFi Data Transfer via EMAIL...
-
Page 2: Table Of Contents
1.4.6. Email Setup Tab......................... 15 1.4.7. User Setup Tab ........................17 1.5. Save settings ..........................19 1.6. Second Card ..........................20 2. KP1 Unit ............................20 2.1. Hardware Installation......................209 2.2. Inserting SD cards & USB dongle ....................22 2.3. Check Footage .......................... 22 2.3.1. -
Page 3: Configuration Tool
This guide will take you through the steps necessary to Initialize your SD card for use in the KP1 unit. Please note that the settings displayed here are our basic recommended default settings and are to be used as a guide. We recommend to read the full user manual for more in depth detail on each setting so that you can customise the unit for your own needs. - Page 4 3. The next window will confirm the destination to install the software to. You can leave this as it is and select Next. 4. The next window will ask to confirm what folder it will appear as in your Start Menu. You can leave this as the default and select Next to proceed. www.smartwitness.com/usa...
- Page 5 5. The next window will give you the option to create a desktop icon for the software. If you would like to do this you can check the checkbox. You can click on Next to proceed. 6. The final window will confirm your settings. You can click on the Install button to finalise and install the software. www.smartwitness.com/usa...
-
Page 6: Open Configuration Tool
Now that you have installed the Configuration Tool you can open it, either from the Programs list in your Start Menu or alternatively, if you created a desktop icon during the install process, you can run the shortcut from your desktop. www.smartwitness.com/usa... -
Page 7: Initialize Sd Card
The first step to preparing your SD card(s) for use is to initialize it. This will format the card and put configuration files on that will allow the KP1 unit to use it and read information from it. 1. First, insert your SD card into your PC or Laptop. If you have an SD card reader in your computer you can use this otherwise you will need a USB SD card reader. - Page 8 No settings need to be applied. Please note: If formatting the card fails please check your Antivirus settings. If it will still not format after this please check with your place of purchase or direct with SmartWitness. www.smartwitness.com/usa...
-
Page 9: Settings Configuration
Please use the images on the next few pages to copy these settings from, additional information will also be provided below these images to further advise you. You can hover your mouse over this icon in the configuration tool for more detailed description www.smartwitness.com/usa... -
Page 10: Device Tab
1.4.1. Device Tab If you are using a second camera with your KP1 unit you will need to check the “2 Camera” box to enable this camera, please confirm if this is a PAL or NTSC camera (if you are in North America or South America you will most likely have an NTSC camera). -
Page 11: Record Tab
You have 3 options for the Recording Mode: Continuous: Constant recording the whole time the unit is powered. www.smartwitness.com/usa... -
Page 12: Event Tab
NOTE: If you are using INT-1-S or INT-2 power accessory options, the event tab will reflect the additional input/output triggers which are enabled when using INT-1-S or INT-2. www.smartwitness.com/usa... -
Page 13: Info Tab
There are also blank fields at the bottom of this page that you can use to fill in any additional information that you wish to include with the record data, such as driver contact details or insurance policy details. www.smartwitness.com/usa... -
Page 14: Connectivity Tab
The following steps are only needed if you are using a 3G or WiFi USB modem with your KP1 unit (please contact SmartWitness or your supplier for compatible USB modems). If you are not doing this you can proceed to page 17, section 1.5. Save Settings. -
Page 15: Email Setup Tab
If you do not have or want Wireless connectivity, simple uncheck the “Enable” box and the settings will device to SD card storage only. 1.4.6. Email Setup Tab The Email Setup page is used to provide details of an email account for the KP1 to send emails from. www.smartwitness.com/usa... - Page 16 If you are using multiple KP1 units with 3G or Wi-Fi USB modems, then the “Email Address” field must be unique for each unit. If you have the same email account on every unit then you will be unable to request data from the unit (e.g. sending email from PC to the KP1 email account to request original video footage), however you will still be able to receive alerts from the unit.
-
Page 17: User Setup Tab
You also have the option to receive SMS text messages from the unit, you can use the Receiver SMS text box to enter the mobile phone number for that user. Please note that this will need to start with the country code (e.g. +1 for USA). www.smartwitness.com/usa... - Page 18 GPS location, Vehicle speed, and Vehicle ID. “E-Mail Alert” will be just a quick line of text indicating what type of alert has been triggered (e.g. Excessive Speed). An SMS Alert will give the same information as an E-Mail Alert. Email Alert Example: Email Notification Example: www.smartwitness.com/usa...
-
Page 19: Save Settings
You can save your settings as the default settings for the Configuration Tool, so when you close and reopen the software, your settings will always remain. To do so, click “Settings” in the bottom left corner, Click “Save Current Settings as Default”, then when prompted click “Yes” to confirm. www.smartwitness.com/usa... -
Page 20: Kp1 Unit
If you are using a second card you will need to initialize it before proceeding with the next step. You can follow the same steps on page 7, section 1.3 EXCEPT YOU MUST UNCHECK “MASTER SD CARD” 2. KP1 Unit 2.1. Hardware Installation Apply both pieces of provided 3M adhesive to the mounting bracket and press firmly to adhere. - Page 21 Power wire (IGN+) To connect the cable to either the cigarette lighter adaptor or either junction box, attach by lining up the arrows on each cable and then push together. To secure them together, twist the silver plate as shown below. www.smartwitness.com/usa...
- Page 22 Adjust the angle of the bracket to the desired angle and slide in to lock in place. When you are happy with the angle on the windshield, slide the case back onto KP1 and lock. Once your camera is mounted on the dash, you can run the cables up and around the edge of your windshield (or up in the headliner) and down the side panel.
-
Page 23: Check Footage
Once you have Initialized your SD card(s) and applied the settings you wish to use, the next step is to insert the card(s) into the KP1 unit and power it on. Insert the SD card into the slot labelled 1 on the KP1 unit. - Page 24 2. The Setup Wizard will then begin, on the first window you can select Next. 3. The next window will confirm the destination to install the software to. You can leave this as it is and select Next. www.smartwitness.com/usa...
- Page 25 Next to proceed. The next window will give you the option to create a desktop icon for the software. If you would like to do this you can check the checkbox. You can click on Next to proceed. www.smartwitness.com/usa...
-
Page 26: View Footage
You can do this with the Select SD Card button in the top left hand corner of the application, as shown below. You will then be asked to confirm the SD card, select it from the top option. It will be similar to that shown below. www.smartwitness.com/usa... -
Page 27: Complete
Once you are happy with everything you can insert the SD card into the KP1 unit and start using it. Thank you for reading this guide. Should you need any help or assistance please refer to the full user manual or contact your place of purchase. -
Page 28: Appendix
4. Appendix 4.1. APNs Please see below for typical APN details for the most common providers. You can use these to configure wireless access with KP1 on the “CONNECTIVITY” tab in the Configuration Tool T-Mobile AT&T Dial #: *99# Dial #: *99# APN: fast.t-mobile.com... -
Page 29: Sms Center Numbers
# allows SMS text alerts to be sent in the “EMAIL” mode only. T-Mobile AT&T +12063130004 +13123149810 Please note that these are subject to change and should only serve as a quick reference. It is advised to check with your provider to confirm the correct settings. www.smartwitness.com/usa... -
Page 30: Smtp Email Settings
SMTP setup. NOTE: Please make sure you DO NOT use the same email account for receiving email from KP1 (set on the “User” tab). The “account” tab settings are for transmitting emails FROM KP1. Also, do not use the same email account for more than one KP1. - Page 31 www.smartwitness.com/usa...
- Page 32 Gmail *NOTE: if using Gmail you must turn on “Access for less secure apps” in the settings. Otherwise Gmail will block KP1 from sending emails. www.smartwitness.com/usa...
- Page 33 4.4. Email Commands from PC to KP1 You can email the KP1 from any device to update the settings, request a video file, and more. The email account you send from must be one of the 5 user profiles on the User Setup tab (see section 1.4.7).
- Page 34 www.smartwitness.com/usa...
- Page 35 www.smartwitness.com/usa...
