SmartWitness KP1S Installation Manual

2 wire
Hide thumbs Also See for KP1S:

Advertisement

Quick Links

Download this manual See also: User Manual
KP1S Installation Guide (2 wire)

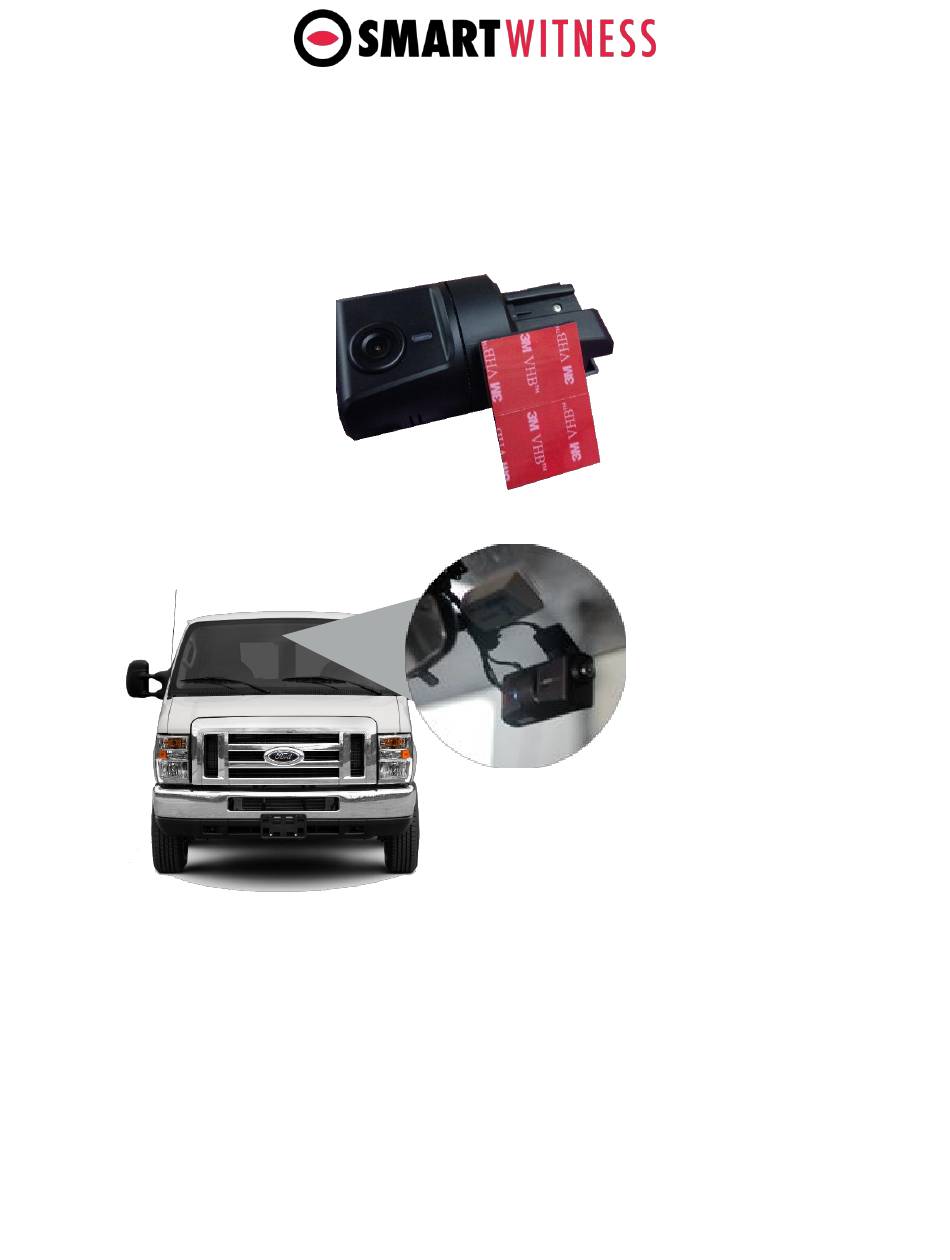

1. KP1S Windshield Mounting
Apply provided 3M VHB adhesive pad to the mounting bracket and press firmly to adhere.
Clean the windshield with alcohol and make sure it is dry. Then remove the red 3M paper from the
adhesive and press firmly and hold on the windshield for about 20 seconds.
*NOTE: adhesive cures best went installed in moderate temperature environment. Not recommended
to install in cold or very hot weather.
www.smartwitness.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the KP1S and is the answer not in the manual?

Questions and answers

Related Manuals for SmartWitness KP1S

Summary of Contents for SmartWitness KP1S

  • Page 1 KP1S Installation Guide (2 wire) 1. KP1S Windshield Mounting Apply provided 3M VHB adhesive pad to the mounting bracket and press firmly to adhere. Clean the windshield with alcohol and make sure it is dry. Then remove the red 3M paper from the adhesive and press firmly and hold on the windshield for about 20 seconds.
  • Page 2 2. KP1S Diagram 3G Modem Driver Facing Connection (USB) Camera Input Power connection RED = IGN+ BLACK = GND Power Adaptor Connection www.smartwitness.com...
  • Page 3 3. KP1S Bracket Attachment & SD Card insertion Use the provided keyset to unlock and remove the locking cover. To unlock the cover, insert the provided keyset and turn counter-clockwise 90 degrees. Once unlocked, press firmly on the two buttons on either side of the cover and pull the door away from the camera.
  • Page 4 Make sure vehicle ignition is off and keys are out, then connect RED power (+) cable to vehicle fuse that is powered with ignition. Connect the Black Ground (BAT-) or vehicle chassis. SmartWitness recommends installation to be done by a professional.
  • Page 5 5. KP1S connection to Driver Facing Camera The SmartWitness driver facing camera is equipped with a simple plug & play connection to KP1S’ 2nd camera input. Simply connect the 2.5mm male stereo connector into the female stereo input on the KP1 and mount the camera to your desired location in the driver cabin.
  • Page 6 6. KP1S connection to 3G modem www.smartwitness.com...
  • Page 7 3M VHB adhesive. Once applied, you can apply to your desired location on the windshield. The excess USB cable and KP1S cable should be tucked neatly in the roof lining or along the edge of the windshield. It is recommended to adhere the modem in the “blue zone” of the windshield to reduce the amount of direct sunlight and not touching any part of the vehicle frame or metal.
  • Page 8 & 3G modem), you can turn on vehicle ignition and the KP1S will power on. There will be a sequence of LED lights cycling during boot process. Once boot up is complete. There will be a solid blue light. This means proper operation and recording.

  • Page 9: Troubleshooting (Faq)

    If Link LED is OFF, check the USB connection of the cable and modem  If Link LED is blinking, it may be a camera configuration issue or server issue. Please contact SmartWitness  The 3G modem Link LED is solid on o The SIM card is not registering with the cellular network.
  • Page 10 (61 ~ 89sec) ON & OFF step (90sec + 1sec ) *IF SD card is blank (not initialized), KP1 will blink RED led slowly for about 1 minute, then automatically initialize the SD card, apply the latest NAND settings, and reboot. www.smartwitness.com...
  • Page 11 1 exceeded ON & OFF Over speed over speed 2 exceeded quickly Normal No 2 camera signal Record error ON & OFF slowly (SD error, no SD) Warning ON & OFF SD Card Full quickly Normal www.smartwitness.com...

  • Page 12: Other Functions

    ON & OFF SD Format when SD card auto slowly slowly format starts after SD card corruption occurs * LED ON and OFF speed. Item Speed ON and OFF 250msec Quickly ON and OFF 500msec ON and OFF Slowly 1000msec www.smartwitness.com...
